Small Foot Print up to 2 Plates, Wall or DIN Mount Fiber Patch Panel
The Slimline 2 Plate Fiber Patch Panel is designed for fiber optic patching and splicing applications where a wall or DIN rail mounting is desired.

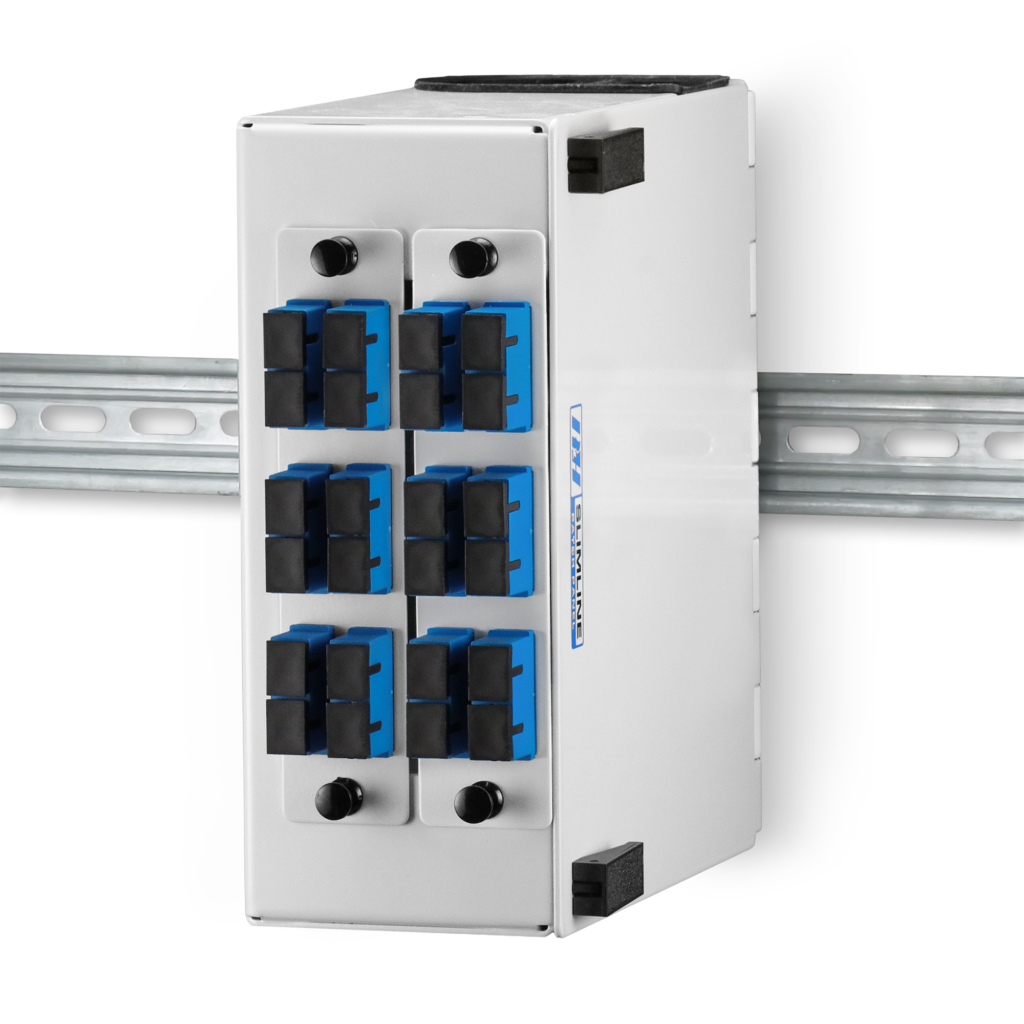

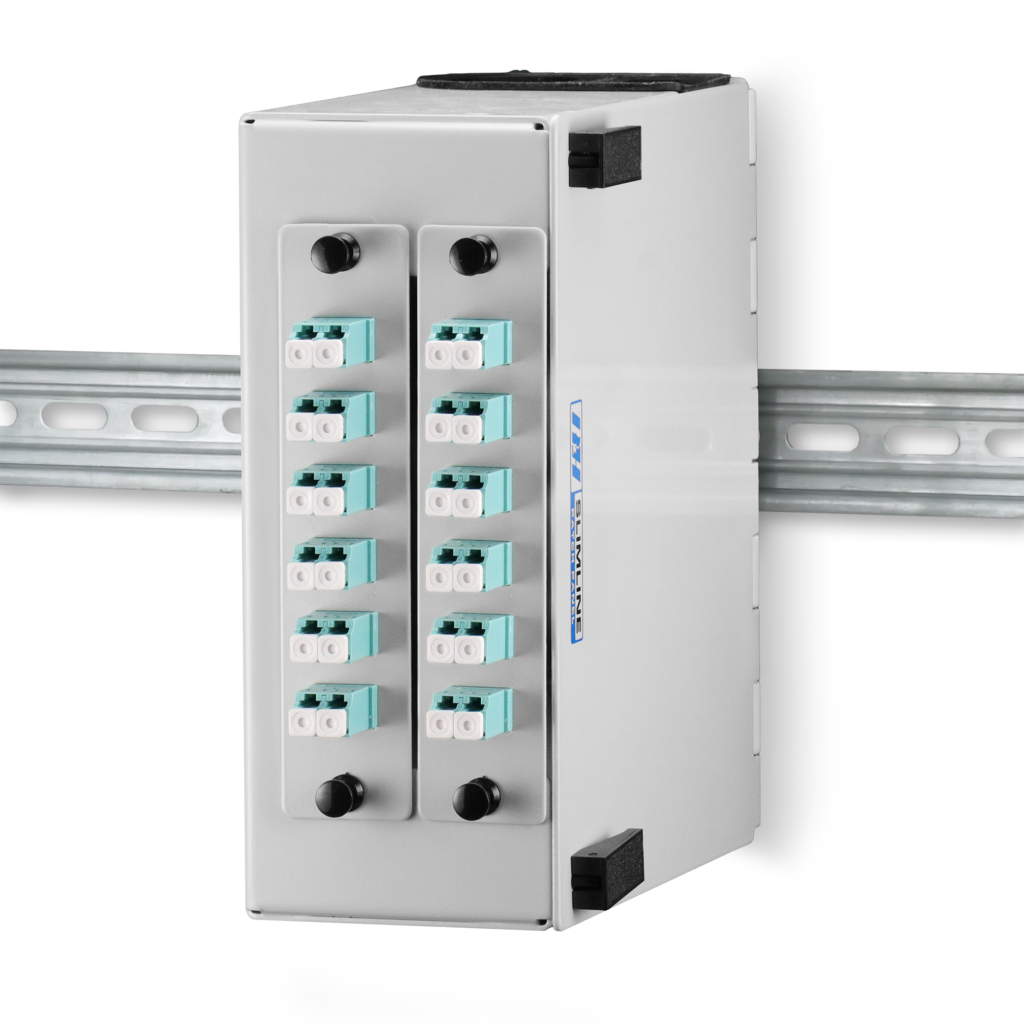

The patch panel holds up to 2 fiber adapter plates which are available with ST, SC, FC, LC, MTRJ, UPC, and APC style adapters. Adapter plates, along with fiber pigtails, can be ordered separately or bundled together with the patch panel through our configurator.
The sturdy aluminum enclosure is powder coated light grey and features a hinged door secured with convenient flip down plunger latches. The door offers easy and full access to the inside compartment making the installation and cable routing less challenging.

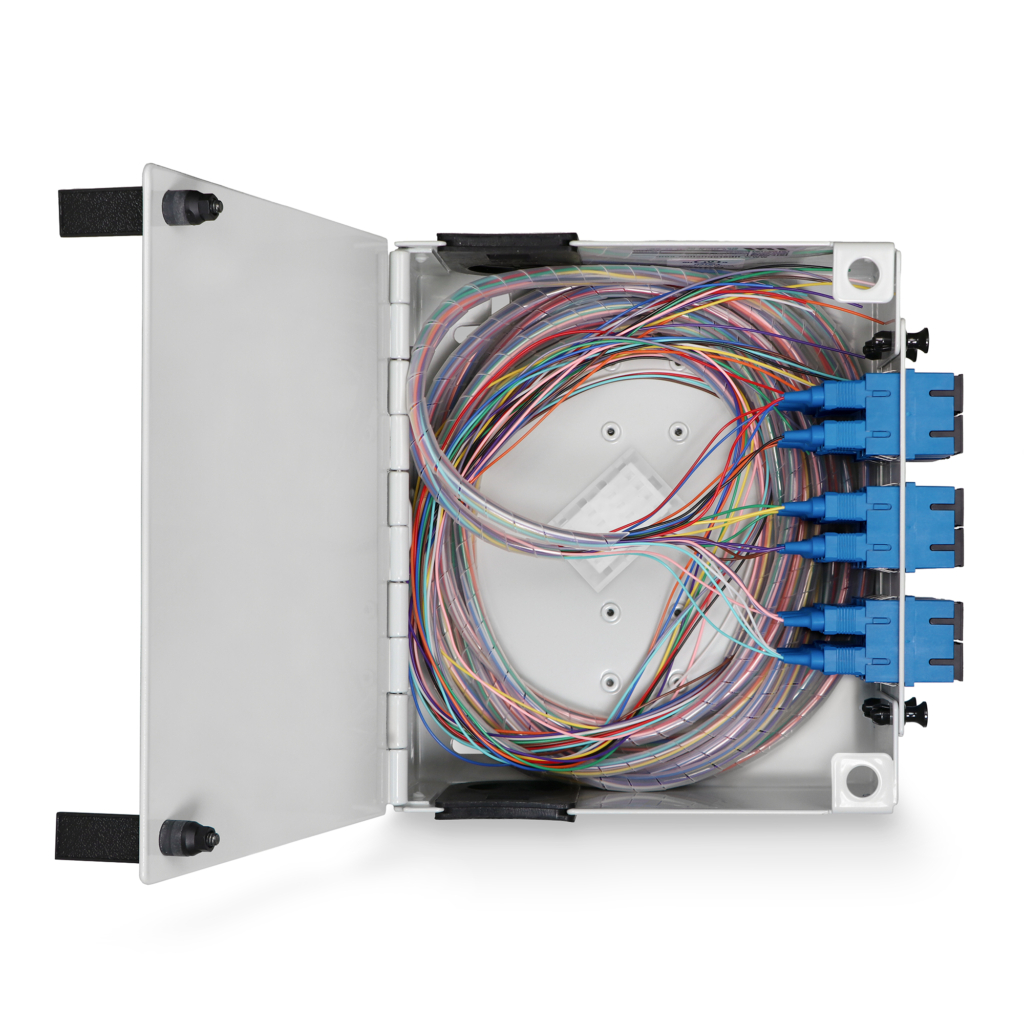

Each patch panel includes an adhesive splice holder, fiber splice protection sleeves, distribution chart, cable mounting tie-downs, and adhesive Velcro® hook and straps for securing fiber cable. Self-sealing, removable 2” grommets on the top and bottom of the enclosure allow a safe entrance and exit for the fiber cable.

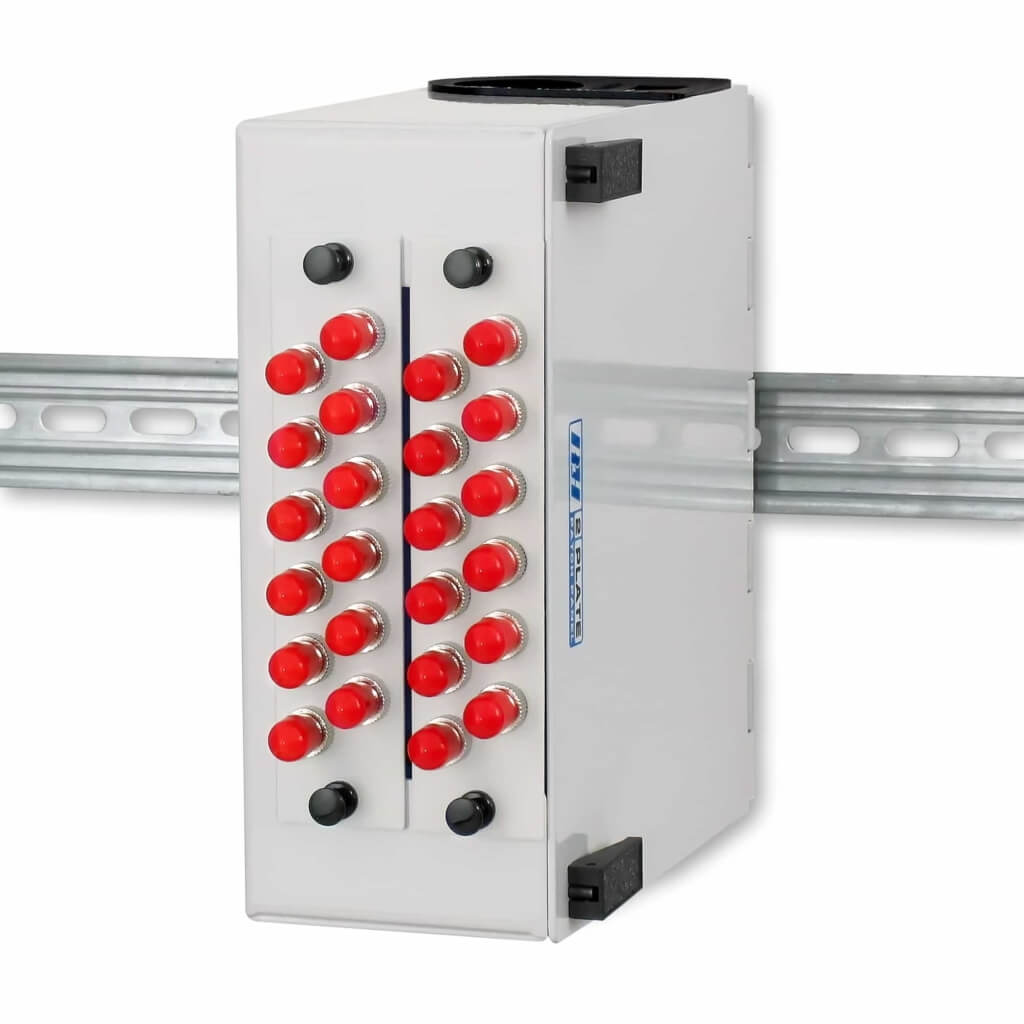

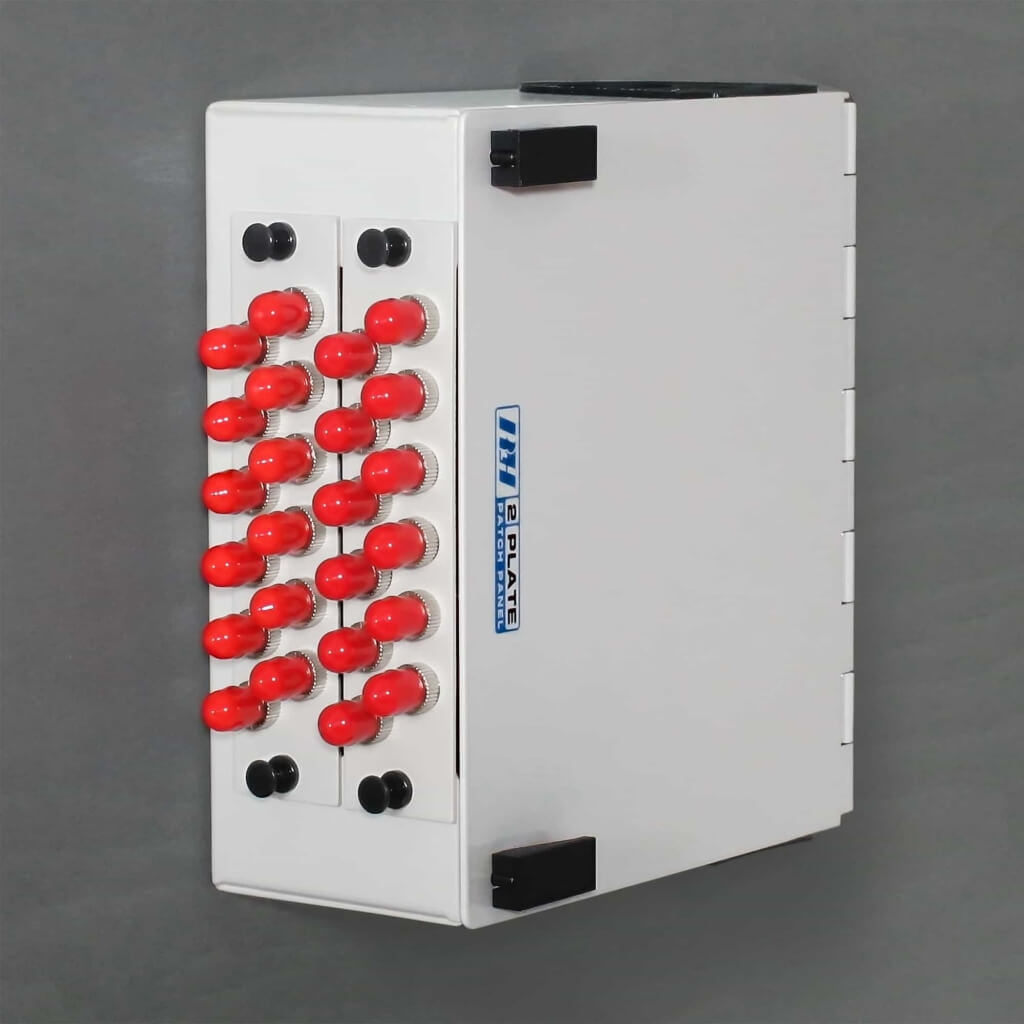

The patch panel can be wall mounted with the included hardware or DIN rail mounted when ordered with a DIN clip. The heavy duty DIN clip allows for quick and secure mounting in a variety of applications where DIN rail is present.
- Optional heavy duty DIN-Rail clip for DIN Mounting Applications
- Supports ST, SC, FC, LC, MTRJ, UPC, APC style adapters
- Durable light weight aluminum, powder coated light grey
- Holds 2 adapter plates
- Hinged door with plunger latches
- Wall mounting hardware included
- Splice holder and fiber splice protection sleeves included
- Self-sealing removable grommets on the top and bottom
- Adhesive Velcro hook and straps for easy and flexible fiber management included
- UL Listed
Mounting Style:
Wall and DIN rail (DIN rail kit ordered separately or may be ordered pre-installed)
Environmental:
Suitable for use indoors or within a weatherproof enclosure
Construction:
Powder coated aluminum, hinged door and plunger latches
*Includes a 24 position adhesive splice holder, fiber splice protection sleeves, self sealing cable grommets, cable ties, distribution chart, cable mounting adhesive Velcro hook and straps, hardware and mounting hardware

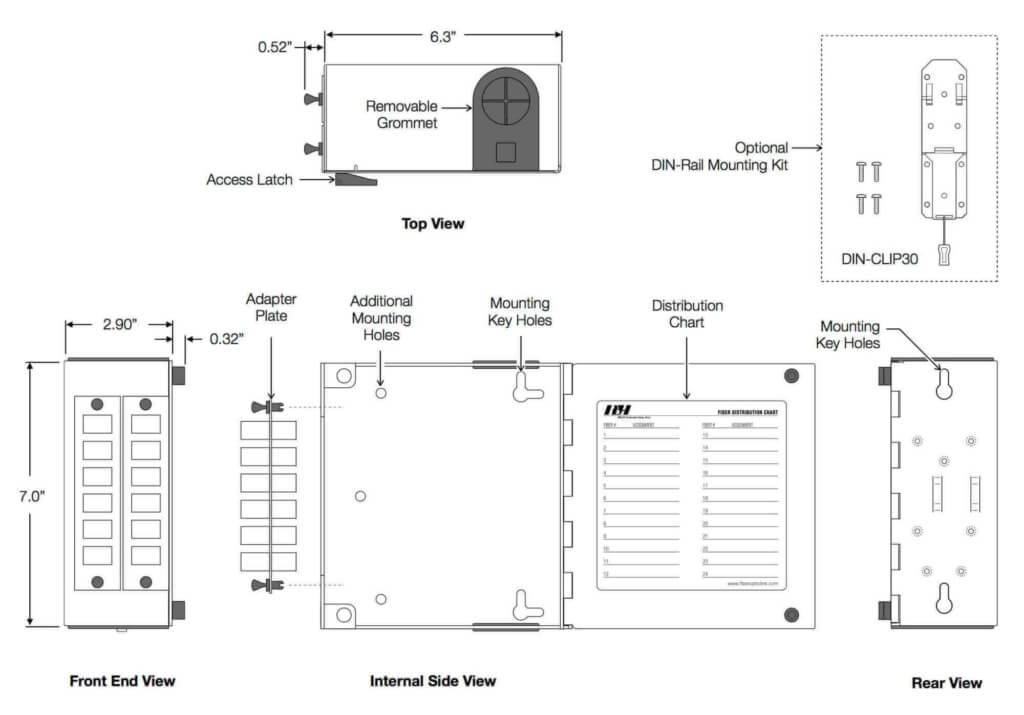

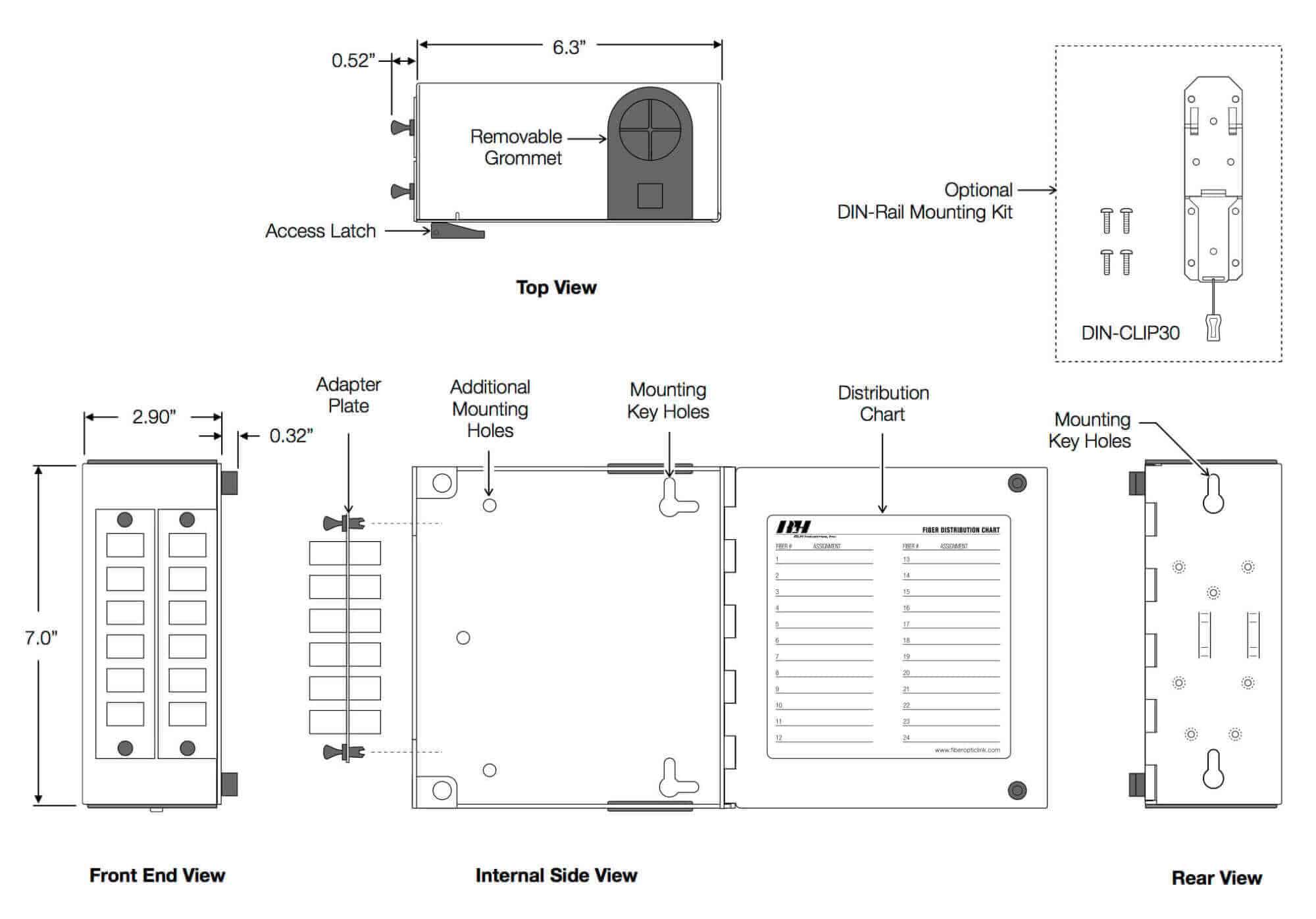

Dimensions:
W 6.3 in. x H 7.0 in. x D 2.9 in. (160mm x 178mm x 74mm)
Not including latches
Compliance:
UL Listed, RoHS
General Information
Specialized Drawings
Miscellaneous
Customize Your Patch Panel
Use the RLH Product Configurator to add Fiber Adapter Plates, Fiber Pigtails, and an optional DIN clip to your order.
PWS2-A-1
PWS2-A-1-D
DIN-CLIP30
$95.00 – $125.00
Lead Time: 2 to 3 Days*
Ordering
Slimline 2 Plate Fiber Patch Panel
| Short description | Part number | Price | |
|---|---|---|---|
| Slimline 2 Plate Fiber Patch Panel, 2 Plate Capacity, Wall mount | PWS2-A-1 | $95.00 | |
| Slimline 2 Plate Fiber Patch Panel, 2 Plate Capacity, with DIN Clip, DIN mount | PWS2-A-1-D | $125.00 |
- Fiber Adapter Plates (grey) and Splice on Fiber Pigtails are also available
- See our Product Configurator for preinstallation of Adapter Plates and Splice on Pigtails Packs
Heavy Duty DIN Clip
| Short description | Part number | Price | |
|---|---|---|---|
| Heavy Duty DIN Clip For: PWSN-A-1, PWS1-A-1, PWS2-A-1, & WMB2-A-1 | DIN-CLIP30 | $30.00 |
