Small Foot Print Wall or DIN Mount Fiber Patch Panel
The Slimline Fiber Patch Panel is designed to provide a small foot print for fiber optic patching and splicing applications where a wall or DIN rail mounting is desired.
The patch panel holds one fiber adapter plate which is available with ST, SC, FC, LC, MTRJ, UPC, and APC style adapters. The adapter plate, along with a fiber pigtail, can be ordered separately or bundled together with the patch panel through our configurator.

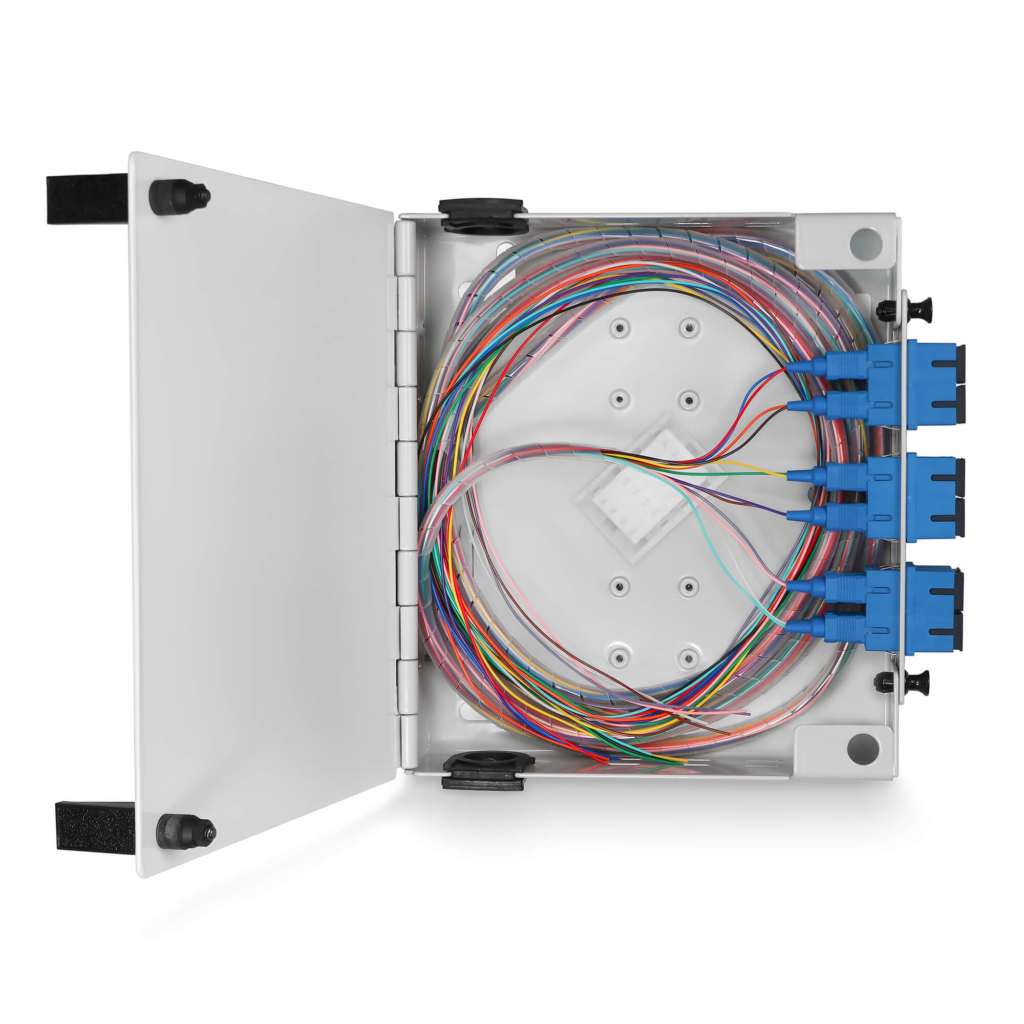

The sturdy steel enclosure is powder coated light grey and features a hinged door secured with convenient flip down plunger latches. The door offers easy and full access to the inside compartment making the installation and cable routing less challenging.
Each patch panel includes an adhesive splice holder, fiber splice protection sleeves, distribution chart, cable mounting tie-downs, and adhesive Velcro® hook and straps for securing fiber cable. Self-sealing, removable 1” grommets on the top and bottom of the enclosure allow a safe entrance and exit for the fiber cable.

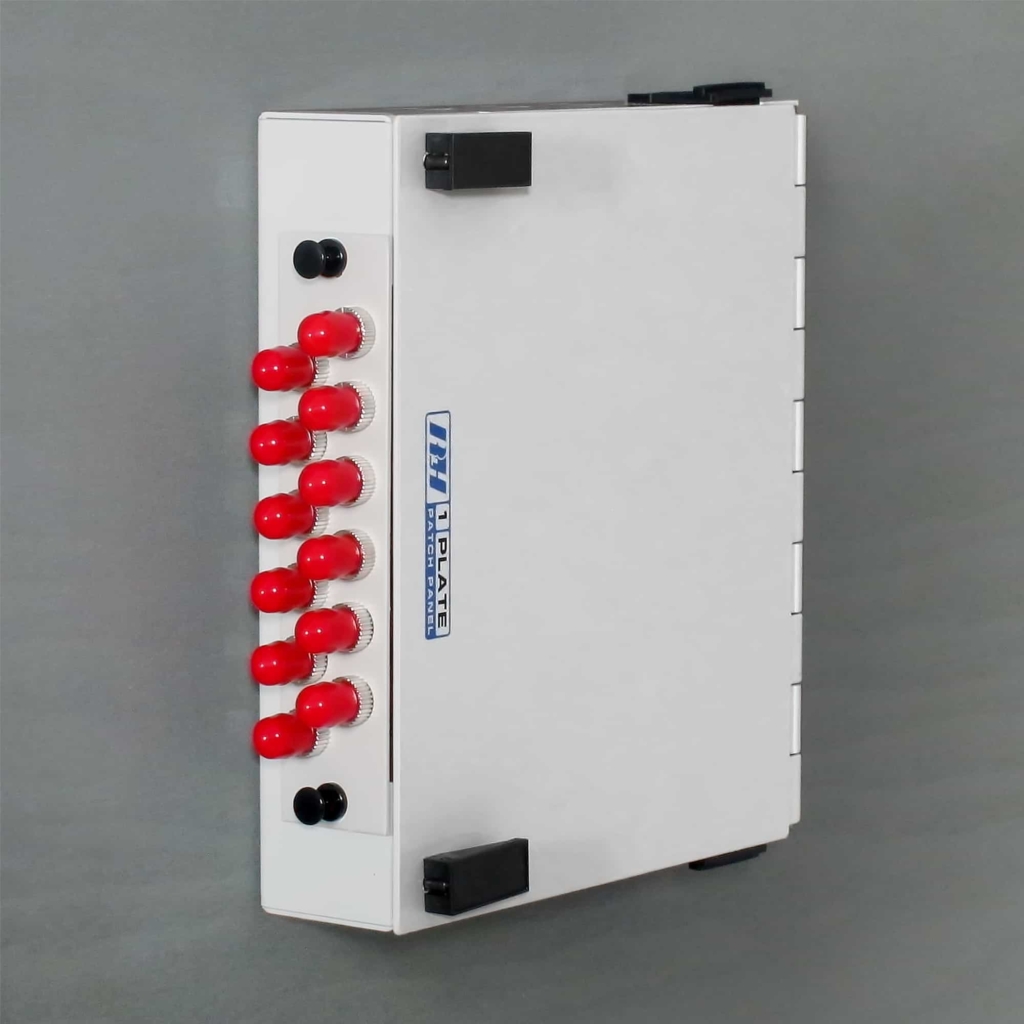

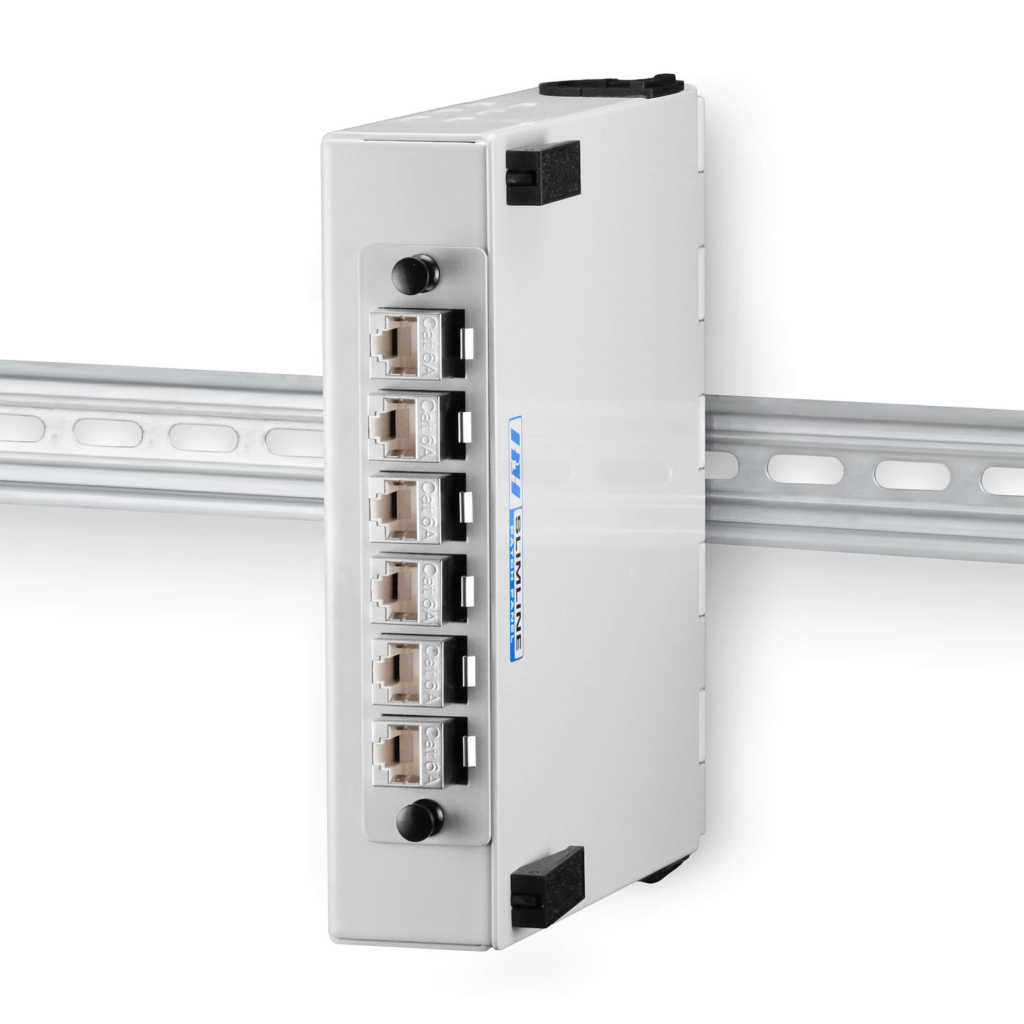

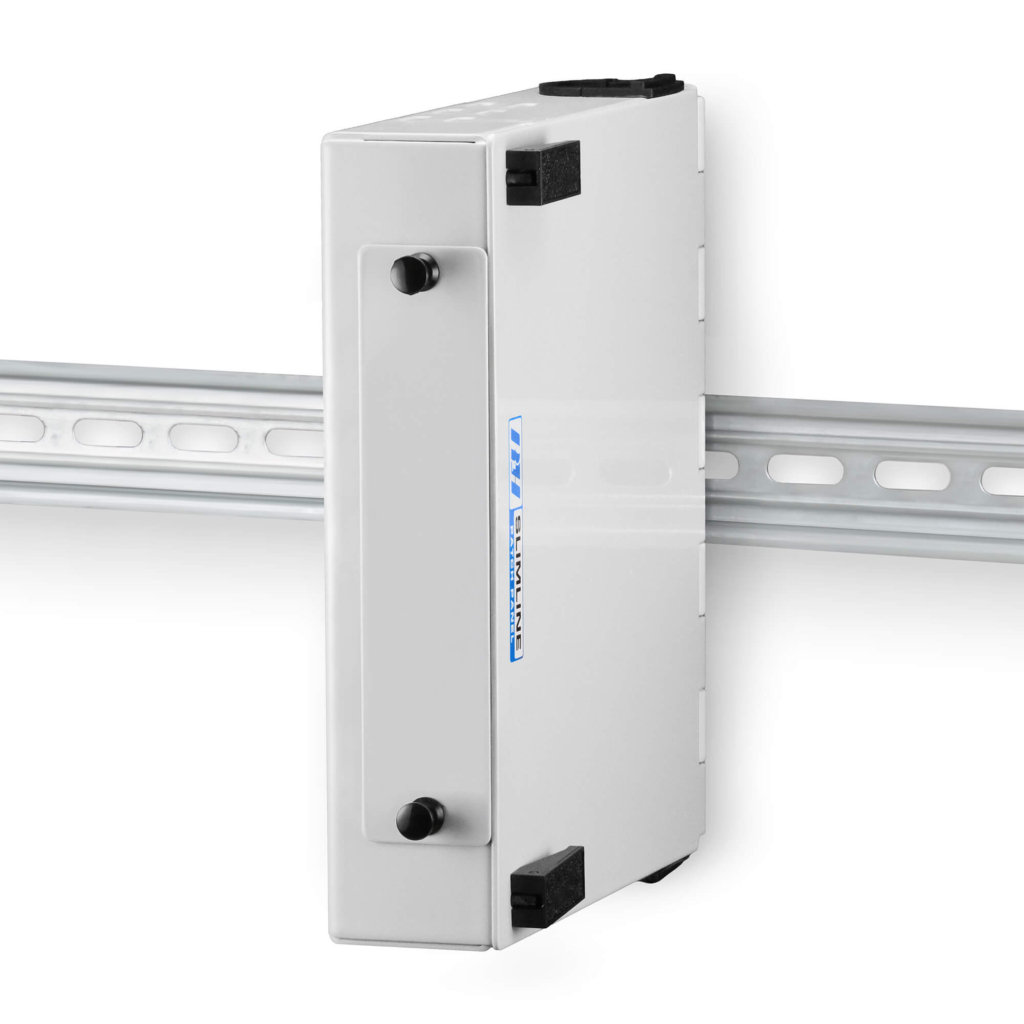

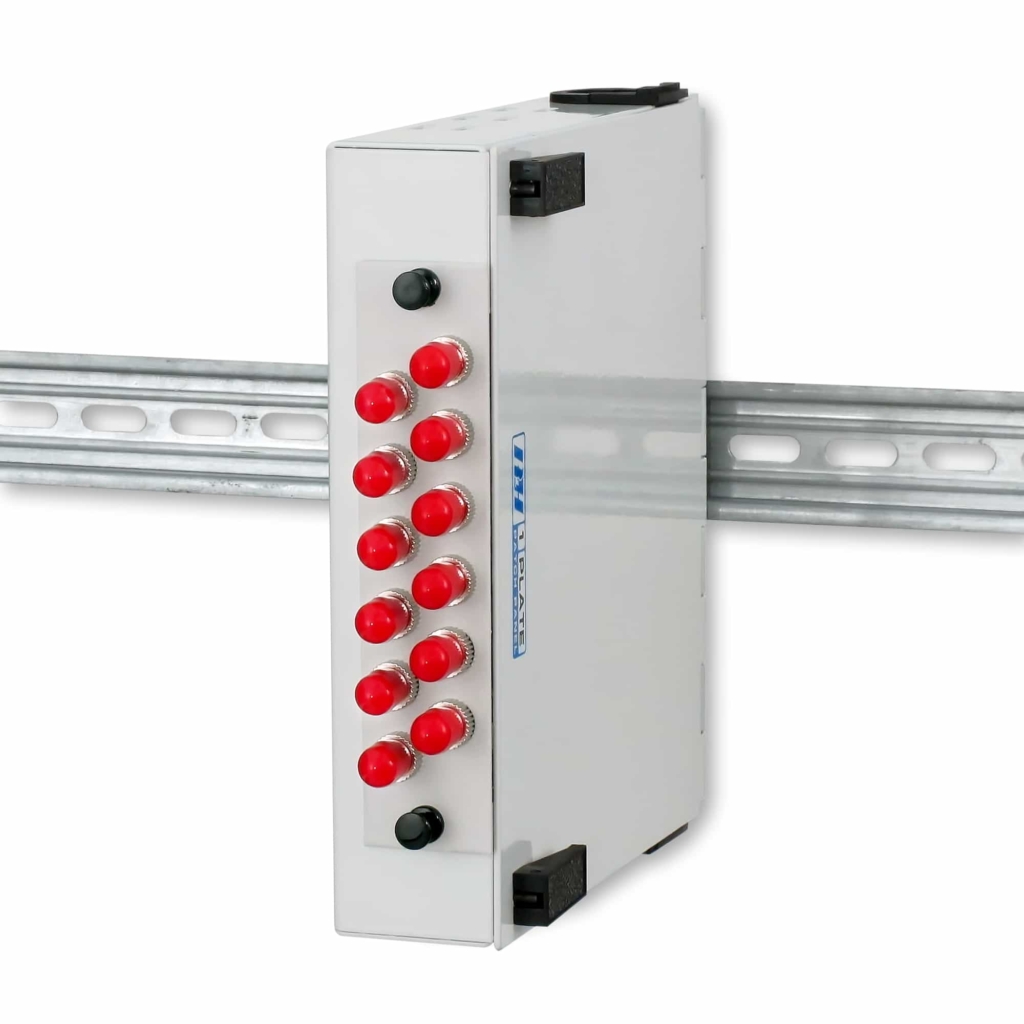

The patch panel can be wall mounted with the included hardware or DIN rail mounted when ordered with a DIN clip. The heavy duty DIN clip allows for quick and secure mounting in a variety of applications where DIN rail is present.
- Optional heavy duty DIN-Rail clip for DIN Mounting Applications

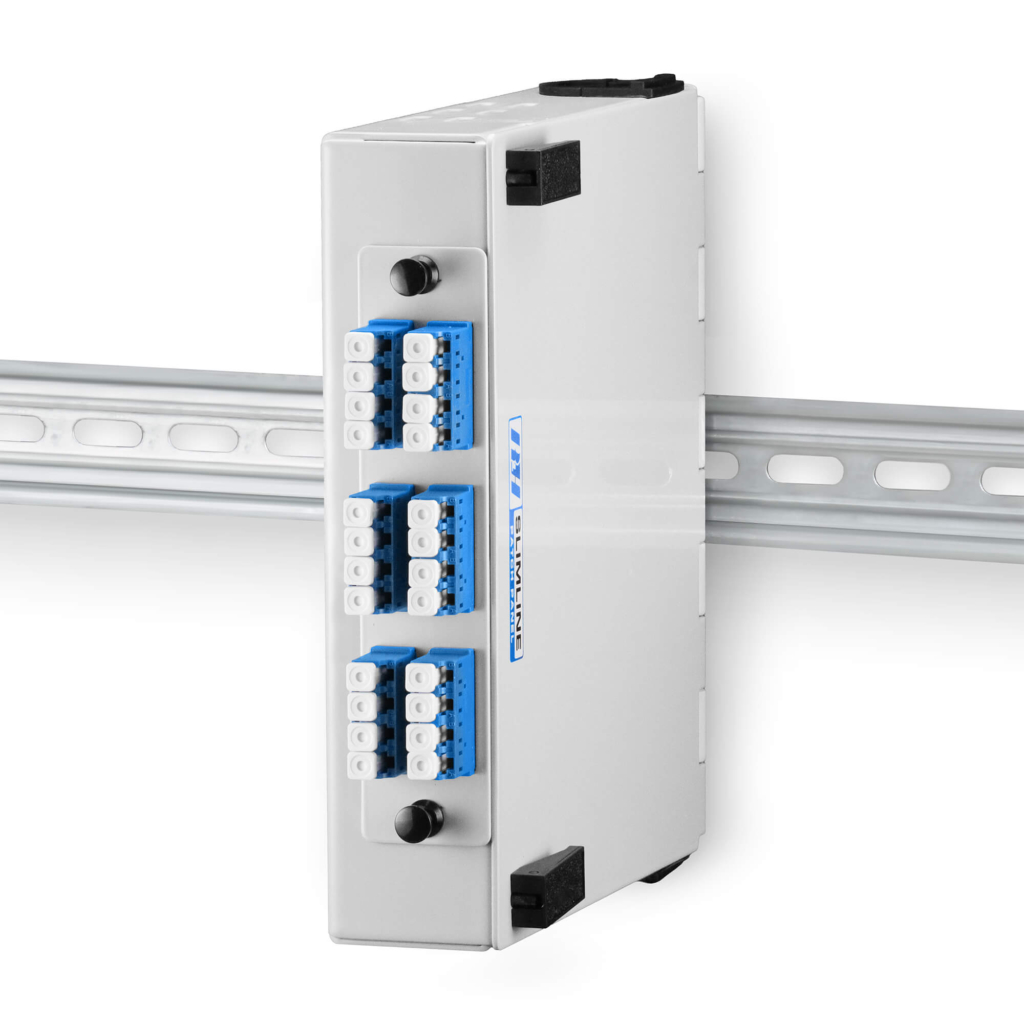

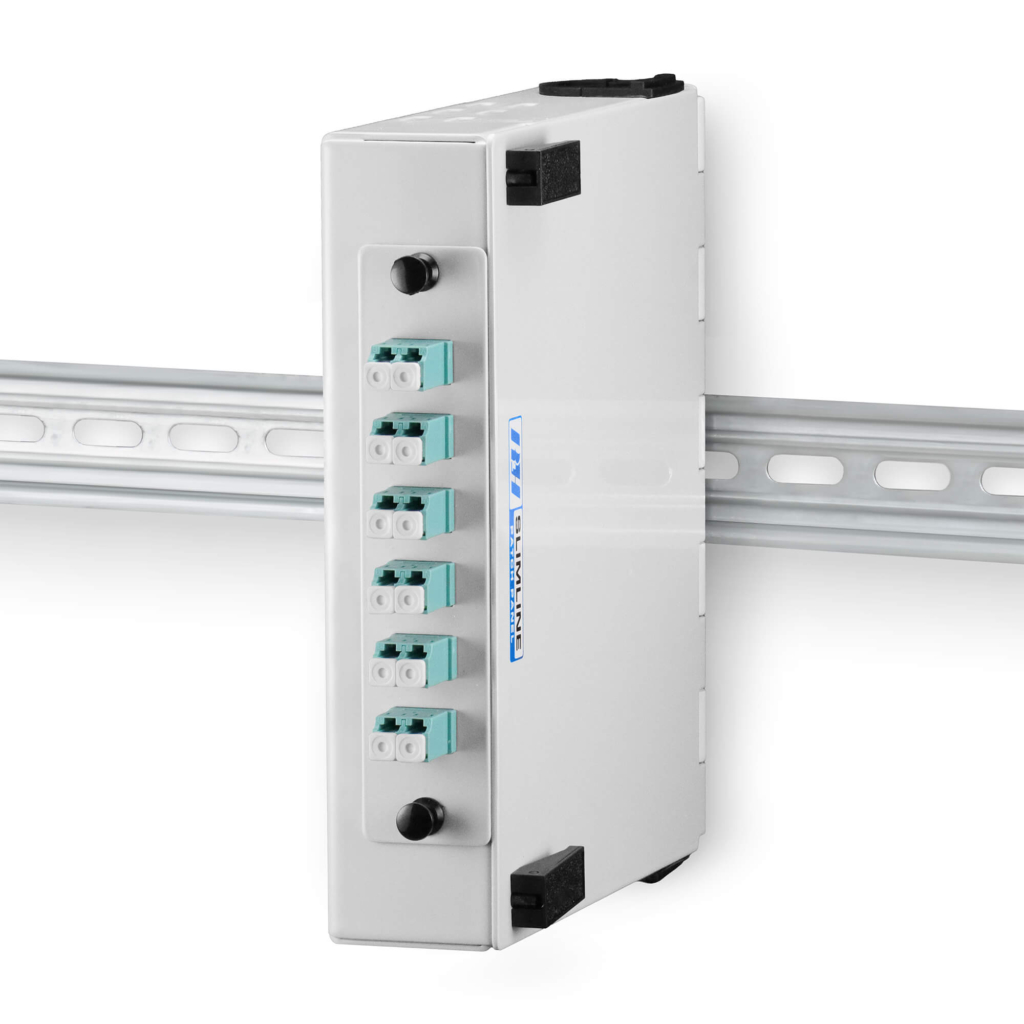

- Supports ST, SC, FC, LC, MTRJ, UPC, APC style adapters
- Steel enclosure, powder coated light grey
- Holds 1 adapter plate
- Hinged door with plunger latches
- Wall mounting hardware included
- Splice holder and fiber splice protection sleeves included
- Self-sealing removable grommets on the top and bottom
- Adhesive Velcro hook and straps for easy and flexible fiber management included
- UL Listed
Mounting Style:
Wall and DIN rail (DIN rail kit ordered separately or may be ordered pre-installed)
Environmental:
Suitable for use indoors or within a weatherproof enclosure
Construction:
Powder coated steel, hinged door and plunger latches
*Includes a 12 position adhesive splice holder, fiber splice protection sleeves, self sealing cable grommets, cable ties, distribution chart, cable mounting adhesive Velcro hook and straps, hardware and mounting hardware
Dimensions:
W 6.3 in. x H 7.0 in. x D 1.6 in. (160mm x 178mm x 41mm)
Not including latches
Compliance:
UL Listed, RoHS
General Information
Specialized Drawings
Miscellaneous
Customize Your Patch Panel
Use the RLH Product Configurator to add Fiber Adapter Plates, Fiber Pigtails, and an optional DIN clip to your order.
PWS1-A-1
PWS1-A-1-D
DIN-CLIP30
$85.00 – $115.00
Lead Time: 2 to 3 Days*
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
Slimline Fiber Patch Panel
Short description | Part number | Price | |
---|---|---|---|
Slimline Fiber Patch Panel, 1 Plate Capacity, Wall mount | PWS1-A-1 | $85.00 | |
Slimline Fiber Patch Panel, 1 Plate Capacity, with DIN Clip, DIN Mount | PWS1-A-1-D | $115.00 |
- Fiber Adapter Plates (grey) and Splice on Fiber Pigtails are also available
- See our Product Configurator for preinstallation of Adapter Plates and Splice on Fiber Pigtails
