Industrial Ethernet Switch with High Port Density

RLH industrial switches are engineered to provide reliable network performance in harsh environments. The 16+2 Gigabit SFP switch is an unmanaged switch that accepts both copper and fiber Gigabit Ethernet access. Dual rate industrial grade SFPs are recommended.

It is environmentally hardened to operate over a wide temperature range, which makes it ideal for locations that are found in industrial locations, such as in factory, utility, equipment closets, and other uncontrolled environments.

Our industrial switches are engineered with robust features and construction to meet the demands of a variety of applications, and are an ideal solution for a wide range of utility and automation environments.

Features

  • Hardened design has a wide operating temperature range -40°F to +167°F (-40°C to +75°C)
  • 2 Dual Rate SFP ports – 100Mbps & 1Gbps
  • 16 ports Gigabit Ethernet
  • Supports Jumbo Frames
  • Auto MDI/MDI-X
  • Store-and-forward switching architecture
  • Rugged case rated to IP30
  • 12-48VDC redundant power inputs with built-in alarm
  • 2kV surge protection
  • DIN rail & wall mountable
  • UL Listed

Please see the product documentation for the complete list of specifications

Construction:
Powder coated IP30 steel housing

Ethernet Ports:
(16) 10/100/1000 Mbps
(2) SFP Slots, Accepts 100 or 1000 Mbps speed transceivers

Max. Power Consumption:
15.4 Watts Full Loading

Installation:

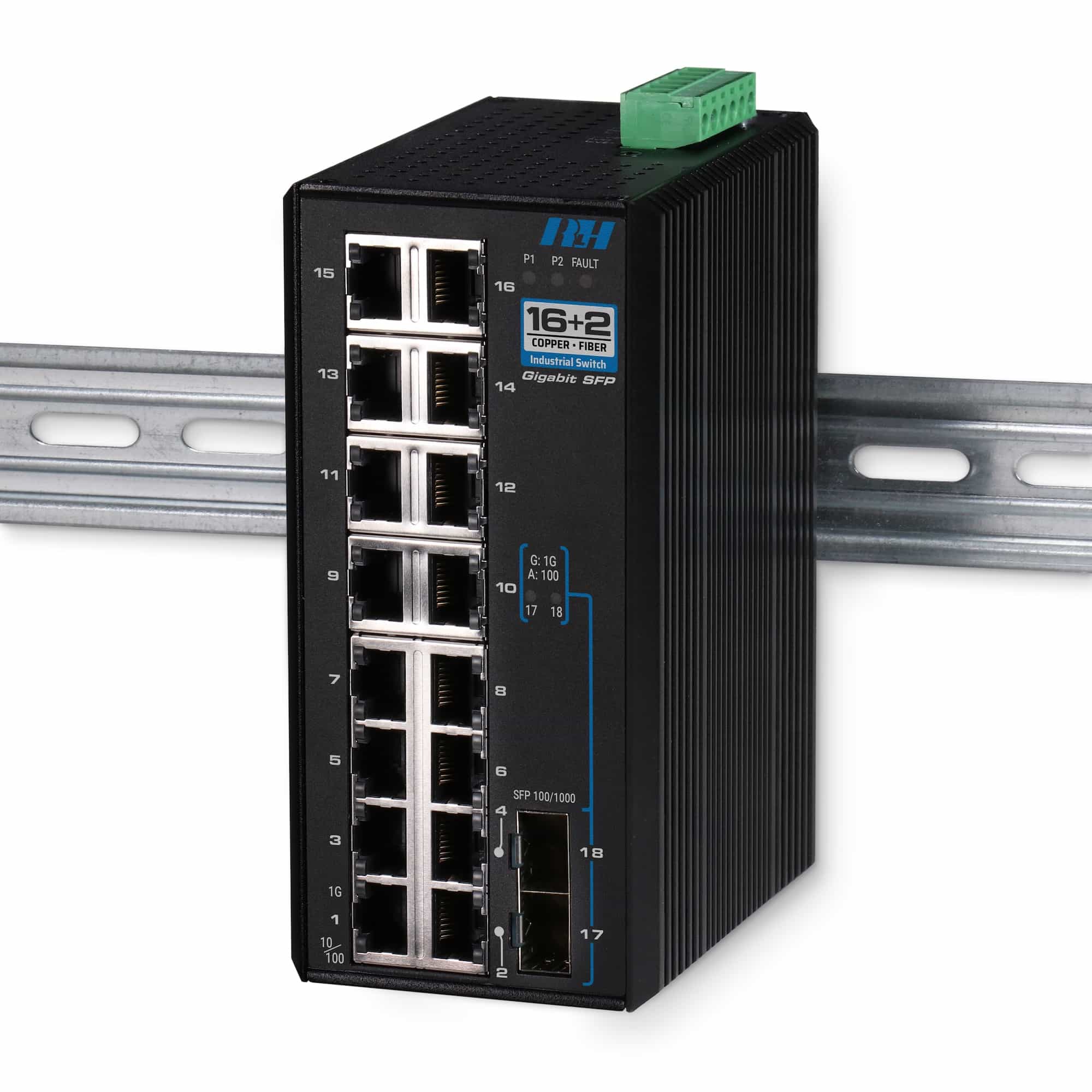

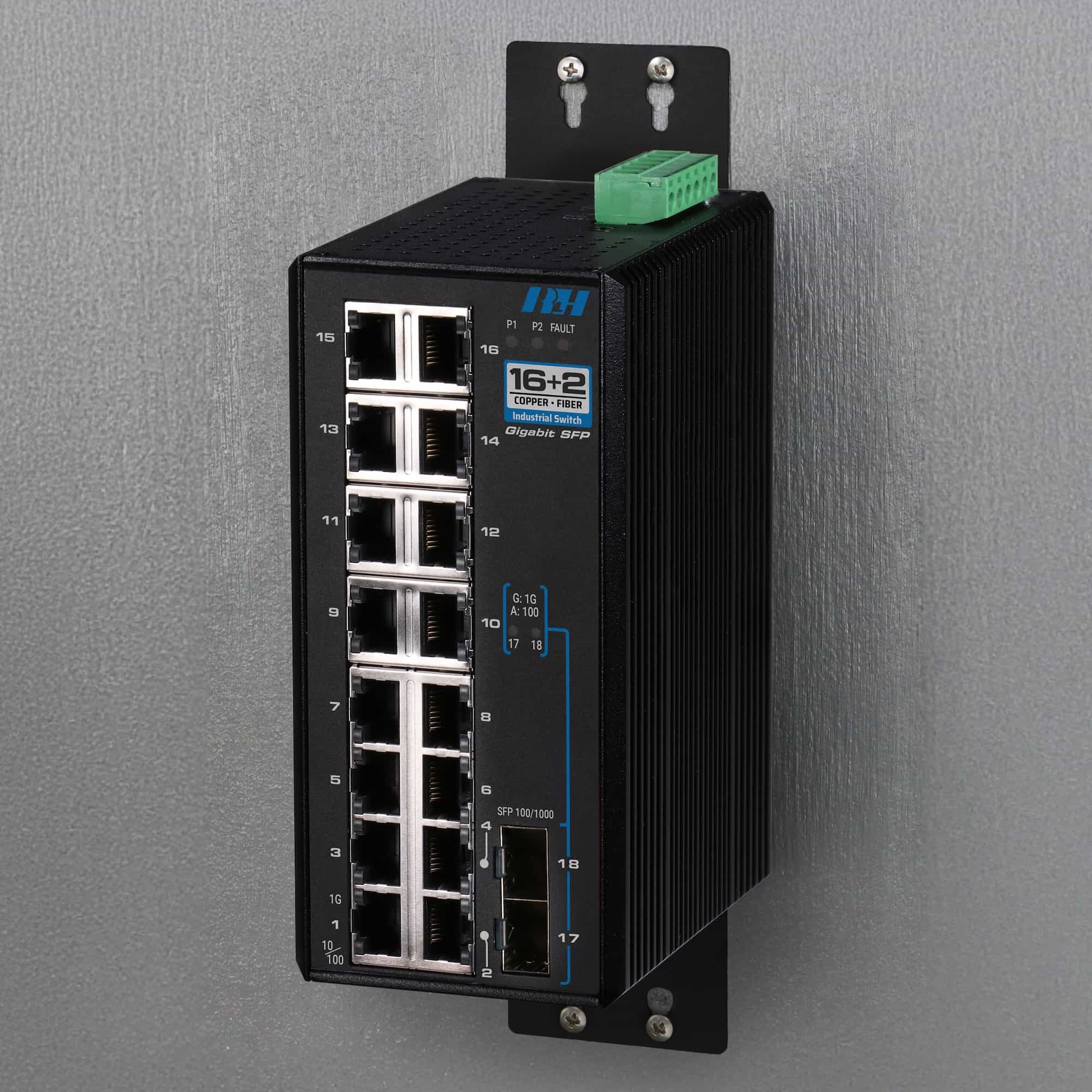

Standard DIN rail (TS-35) or wall mount

*Wall mount brackets included

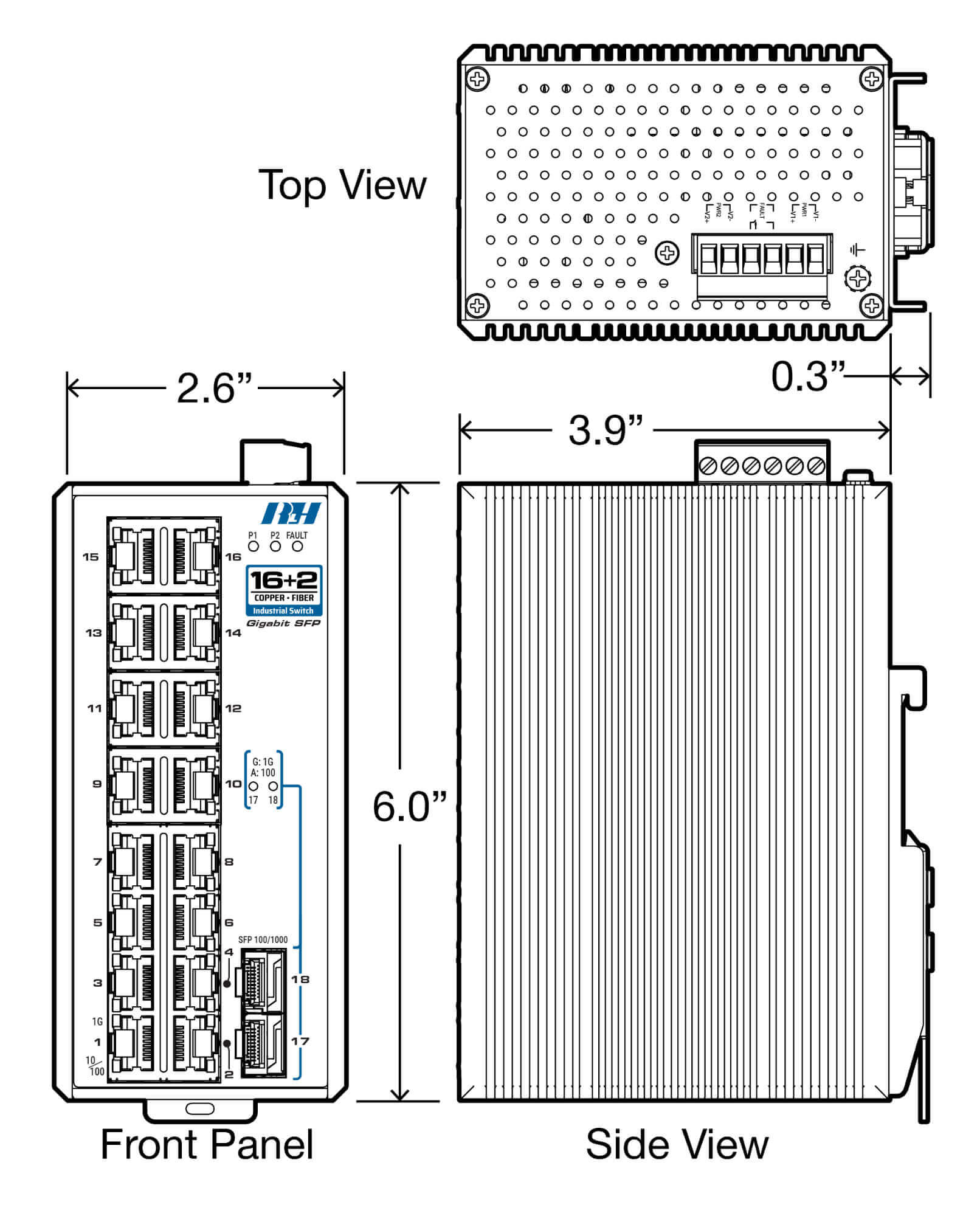

Case Dimensions:
2.6” (W) x 3.9” (D) x 5.6” (H), (67mm x 99mm x 142mm)

*Not including connectors or DIN bracket

Operating Temperature:
-40°F to 167°F (-40°C to 75°C)

Power Input:
12~48VDC redundant power inputs (6 position pluggable terminal block)

Safety:
CE, FCC Class A, UL 61010-1 and UL 61010-2-201, RoHS and REACH compliant

Warranty:
Limited 5 Year

General Information

ETH-162G-1

$890.00
Lead Time: On Backorder*

For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.

Ordering

16+2 Gigabit SFP Switch

Short descriptionPart numberPrice
16+2 Gigabit Industrial Ethernet Switch, 2 Dual Rate SFP Slots, Unmanaged, Power: 12-48VDCETH-162G-1$890.00
