Industrial Fast Ethernet Fiber Switch
RLH industrial switches are engineered to provide reliable network performance in harsh environments. The 4+1 Fiber switch provides both copper and fiber Ethernet access. It is environmentally hardened to operate in a wide temperature range, which is the standard for RLH equipment.
Our industrial switches robust features and construction meet the demands of a variety of applications, and are an ideal solution for a wide range of utility and automation environments.
Features
- Hardened design has a wide operating temperature range
- -40 to +167F (-40 to + 75 C)
- 1 Fiber 100BaseFX port
- Multimode or singlemode fiber, SC or ST connectors
- Extend Ethernet over fiber, up to 74 miles (120km)
- 4 ports of Fast Ethernet
- Auto MDI/MDI-X
- Store-and-forward switching architecture
- Rugged case rated to IP-30
- 12~48VDC redundant power inputs with built-in alarm
- 2kV surge protection
- DIN rail & wall mountable
- UL Listed
Please see the product documentation for the complete list of specifications
Construction:
Powder coated IP30 steel housing
Ethernet Ports:
(4) 10/100 Mbps
Ethernet Interface:
Auto MDI/MDI-X, Auto Negotiation
Fiber Ports:
(1) 100BaseFX, ST or SC Connectors
Fiber Wavelength:
Multimode: 1310nm
Singlemode: 1310nm, 1550nm
Other wavelengths available by request

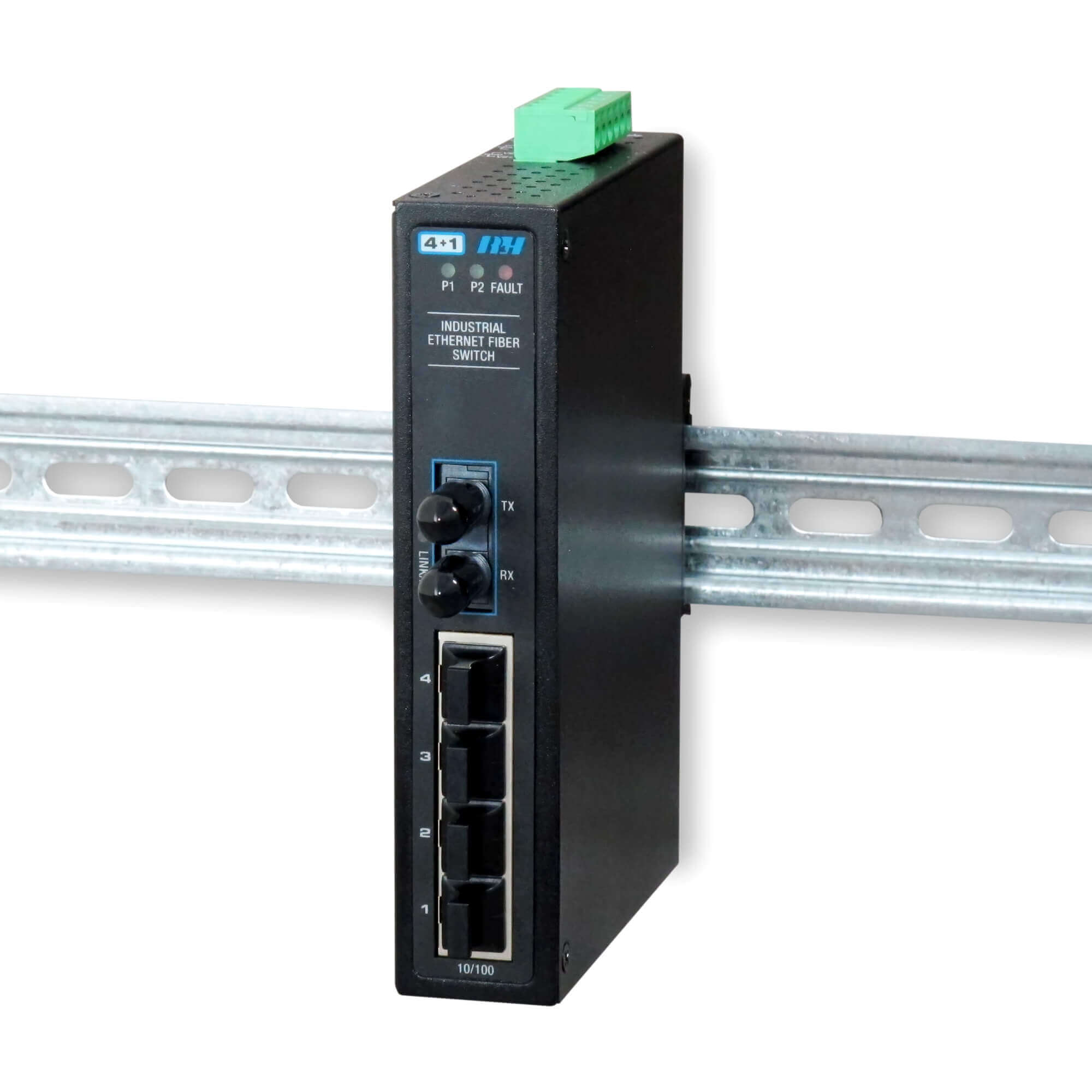

Mounting Style:
Standard DIN rail (TS-35) or wall mount
*Wall mount brackets included

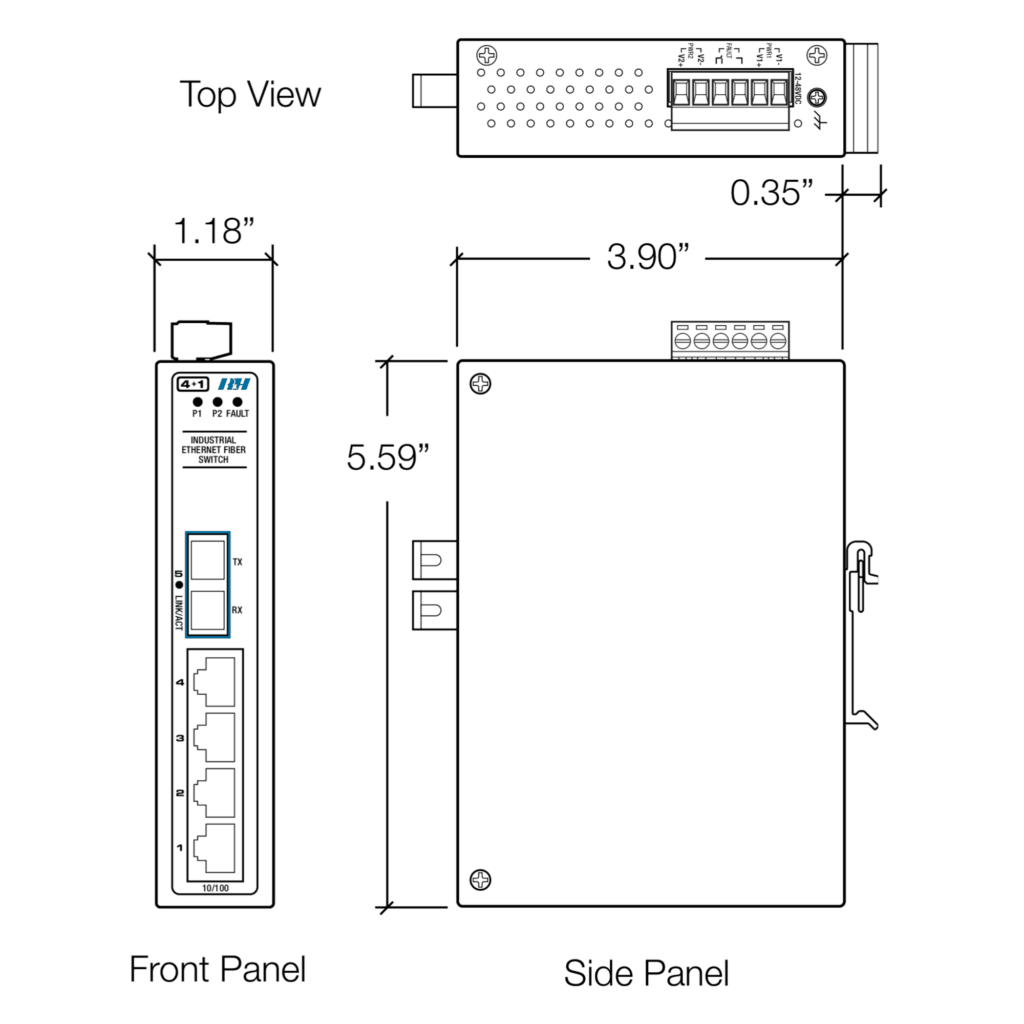

Dimensions:
1.18” (W) x 3.90” (D) x 5.59” (H), (30mm x 99mm x 142mm)
*Not including connectors or DIN bracket
Operating Temperature:
-40°F to 167°F (-40°C to 75°C)
Fault Output:
1 Relay output rated for 24VDC @ 1 Amp
Power Protection:
Over Current, Power Reversal, Polarity Protection
Powering Requirement:
12~48VDC redundant power inputs
Safety:
UL Listed, FCC Class A, CE
General Information
CAD Files
ETH-41-04-1
ETH-41-03-1
ETH-41-50-1
ETH-41-51-1
ETH-41-55-1
ETH-41-40-1
ETH-41-41-1
ETH-41-45-1
ETH-41-10-1
ETH-41-11-1
ETH-41-14-1
ETH-41-15-1
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
4+1 Fiber 10/100 Switch
| Product configuration | Mode | Connector | Distance | Fibers | Wavelength | Part number | Price | |
|---|---|---|---|---|---|---|---|---|
| 4 Fast Ethernet RJ-45 Ports, 1 Fiber Port – Multimode, ST, 2km/1.2 miles, Dual Fiber, 1310nm, Powering Voltage 12-48 DC | Multimode | ST | 2km/1.2 miles | Dual Fiber | 1310nm | ETH-41-04-1 | $280.00 | |
| 4 Fast Ethernet RJ-45 Ports, 1 Fiber Port – Multimode, SC, 2km/1.2 miles, Dual Fiber, 1310nm, Powering Voltage 12-48 DC | Multimode | SC | 2km/1.2 miles | Dual Fiber | 1310nm | ETH-41-03-1 | $280.00 | |
| 4 Fast Ethernet RJ-45 Ports, 1 Fiber Port – Singlemode, ST, 20km/12.4 miles, Dual Fiber, 1310nm, Powering Voltage 12-48 DC | Singlemode | ST | 20km/12.4 miles | Dual Fiber | 1310nm | ETH-41-50-1 | $305.00 | |
| 4 Fast Ethernet RJ-45 Ports, 1 Fiber Port – Singlemode, ST, 60km/37 miles, Dual Fiber, 1310nm, Powering Voltage 12-48 DC | Singlemode | ST | 60km/37 miles | Dual Fiber | 1310nm | ETH-41-51-1 | $415.00 | |
| 4 Fast Ethernet RJ-45 Ports, 1 Fiber Port – Singlemode, ST, 120km/74 miles, Dual Fiber, 1550nm, Powering Voltage 12-48 DC | Singlemode | ST | 120km/74 miles | Dual Fiber | 1550nm | ETH-41-55-1 | $635.00 | |
| 4 Fast Ethernet RJ-45 Ports, 1 Fiber Port – Singlemode, SC, 20km/12.4 miles, Dual Fiber, 1310nm, Powering Voltage 12-48 DC | Singlemode | SC | 20km/12.4 miles | Dual Fiber | 1310nm | ETH-41-40-1 | $305.00 | |
| 4 Fast Ethernet RJ-45 Ports, 1 Fiber Port – Singlemode, SC, 60km/37 miles, Dual Fiber, 1310nm, Powering Voltage 12-48 DC | Singlemode | SC | 60km/37 miles | Dual Fiber | 1310nm | ETH-41-41-1 | $415.00 | |
| 4 Fast Ethernet RJ-45 Ports, 1 Fiber Port – Singlemode, SC, 120km/74 miles, Dual Fiber, 1550nm, Powering Voltage 12-48 DC | Singlemode | SC | 120km/74 miles | Dual Fiber | 1550nm | ETH-41-45-1 | $635.00 | |
| 4 Fast Ethernet RJ-45 Ports, 1 Fiber Port – Singlemode, SC, 20km/12.4 miles, Single Fiber – Side A , T-1310/R-1550, Powering Voltage 12-48 DC | Singlemode | SC | 20km/12.4 miles | Single Fiber - Side A | T-1310/R-1550 | ETH-41-10-1 | $415.00 | |
| 4 Fast Ethernet RJ-45 Ports, 1 Fiber Port – Singlemode, SC, 20km/12.4 miles, Single Fiber – Side B , T-1550/R-1310, Powering Voltage 12-48 DC | Singlemode | SC | 20km/12.4 miles | Single Fiber - Side B | R-1310/T-1550 | ETH-41-11-1 | $415.00 | |
| 4 Fast Ethernet RJ-45 Ports, 1 Fiber Port – Singlemode, SC, 60km/37 miles, Single Fiber – Side A , T-1310/R-1550, Powering Voltage 12-48 DC | Singlemode | SC | 60km/37 miles | Single Fiber - Side A | T-1310/R-1550 | ETH-41-14-1 | $475.00 | |
| 4 Fast Ethernet RJ-45 Ports, 1 Fiber Port – Singlemode, SC, 60km/37 miles, Single Fiber – Side B , T-1550/R-1310, Powering Voltage 12-48 DC | Singlemode | SC | 60km/37 miles | Single Fiber - Side B | R-1310/T-1550 | ETH-41-15-1 | $475.00 |
- Single fiber (bi-directional) systems must always be paired, side A and side B
