Industrial 10/100/1000/2500, with 1G/10G SFP/SFP+
The RLH 4+2 Industrial Unmanaged 2.5G SFP+ Switch is a high-performance networking solution built to sustain critical communications in harsh environments.
It is equipped with (4) 2.5G-rated copper Ethernet ports, and (2) dual-rated 1G/10G SFP+ Ethernet ports for accommodating all industrial and enterprise network bandwidth needs.
This Ethernet switch is DIN rail mountable, hardened to operate in -40°C to 75°C (-40°F to +158°F) conditions, and covered by our limited 5 Year Warranty.
Features
- 4 Copper Ports, 10/100/1000/2500Mbps Ethernet
- 2 SFP/SFP+ Ports, 1G/10G Ethernet
- Ethernet Flow Control (IEEE 802.3x)
- Rugged IP-40 housing design

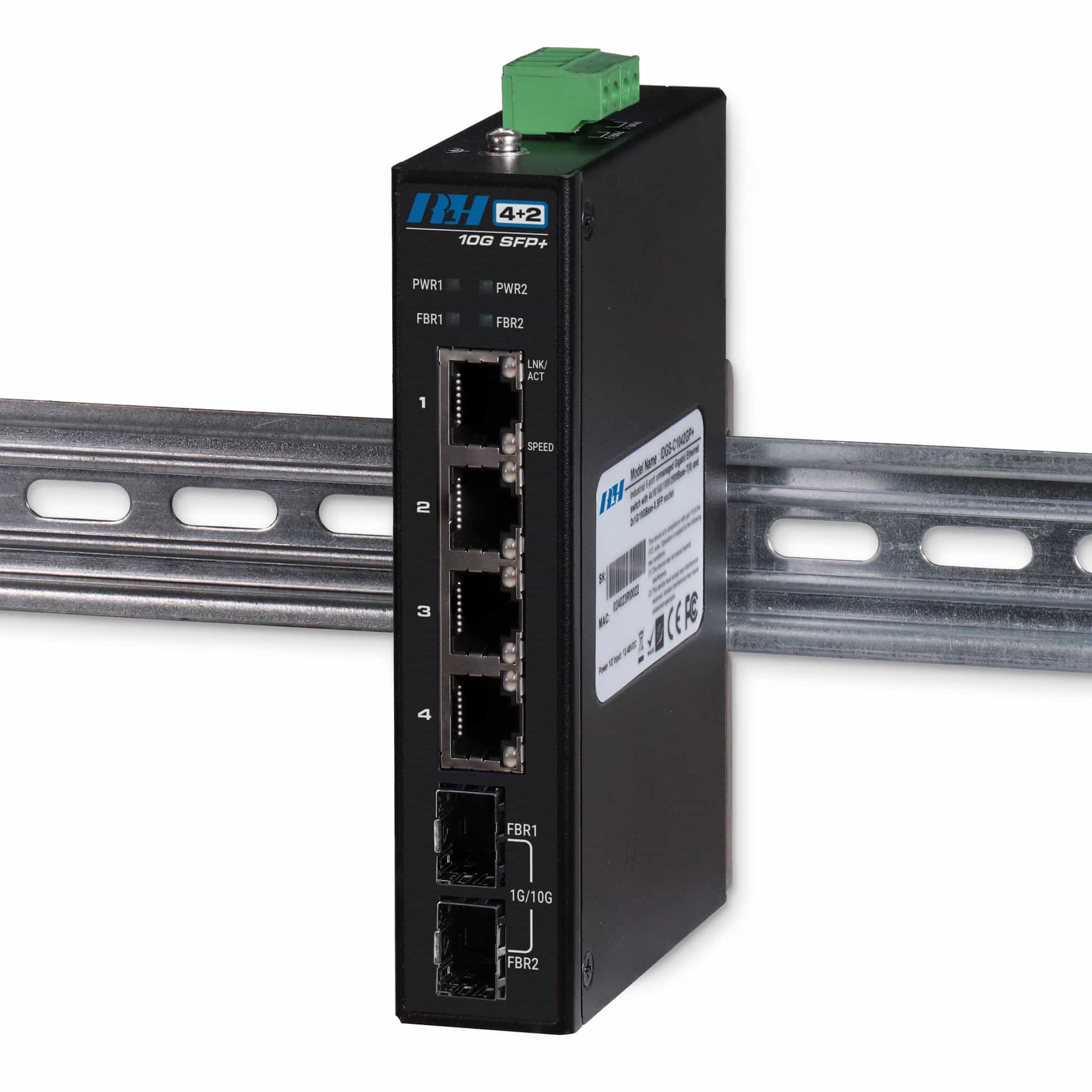

- DIN Rail mountable
- RoHS Complaint, FCC Part 15 B Class A, CE
- Hardened to operate in -40°F to +167°F (-40°C to +75°C)
- 12~48VDC dual redundant power inputs
- Covered by our limited 5 year warranty
Please see the product documentation for the complete list of specifications
Power Input:
12~48VDC redundant power inputs (4 position pluggable terminal block)
Power Consumption (typ.):
<10W
Power Protection:
Current Overload and Polarity Protection
Construction:
Metal, IP40 protection
Mounting:
Standard DIN rail (TS-35)

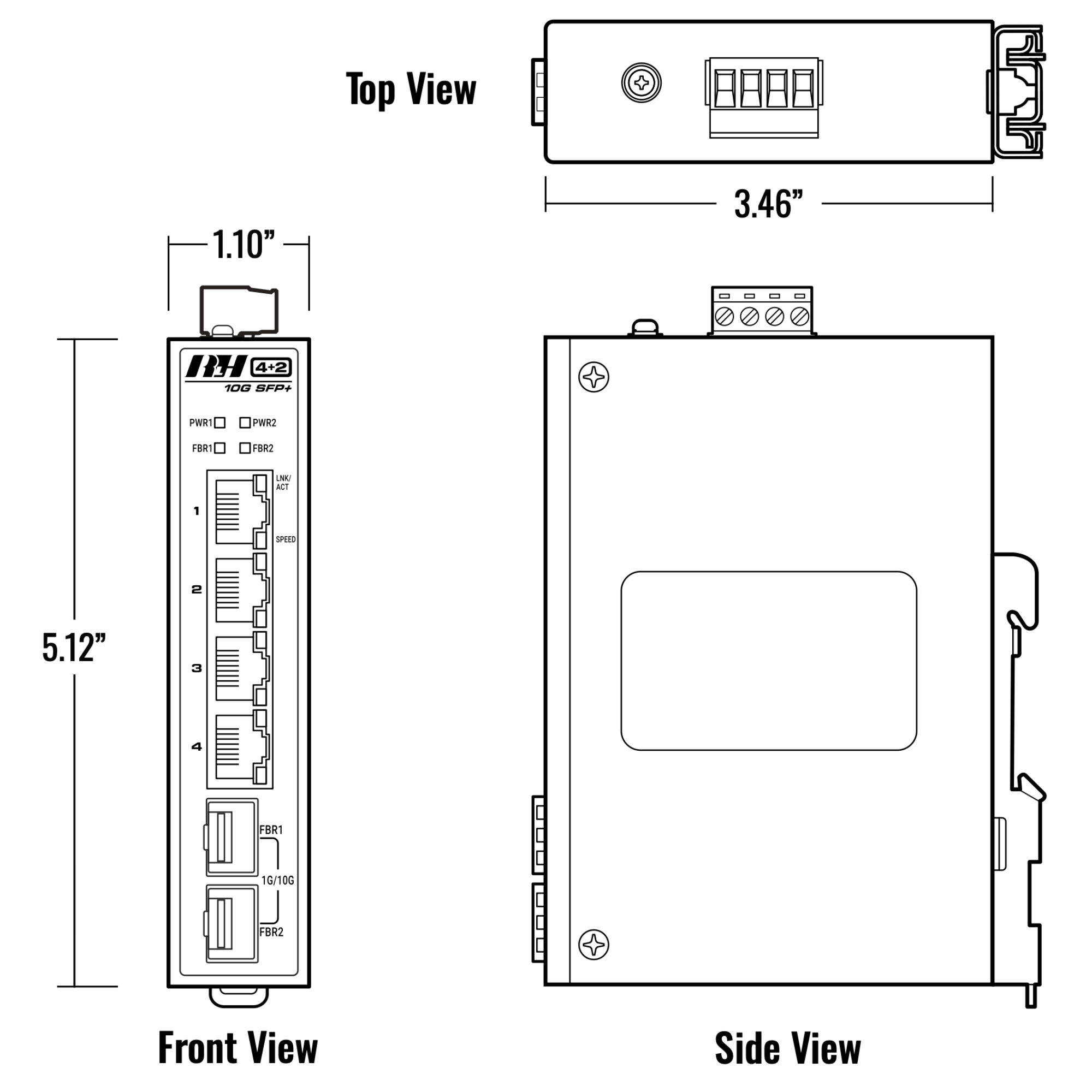

Dimensions:
1.10″ (W) x 3.46″ (D) x 5.12″ (H), (28mm x 88mm x 130mm)
*Not including connectors or DIN bracket
Operating Temperature:
-40°C to 75°C (-40°F to 167°F)
Product Information
CAD Files
Miscellaneous
ETH-42GX-1
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
4+2 Unmanaged 1G/10G SFP+ Switch
| Short description | Part number | Price | |
|---|---|---|---|
| 4+2 Gigabit Unmanaged Industrial Ethernet Switch, 2 Dual Rate 1G/10G SFP/SFP+ Slots, Powering Range: 12-48VDC | ETH-42GX-1 | $410.00 |
