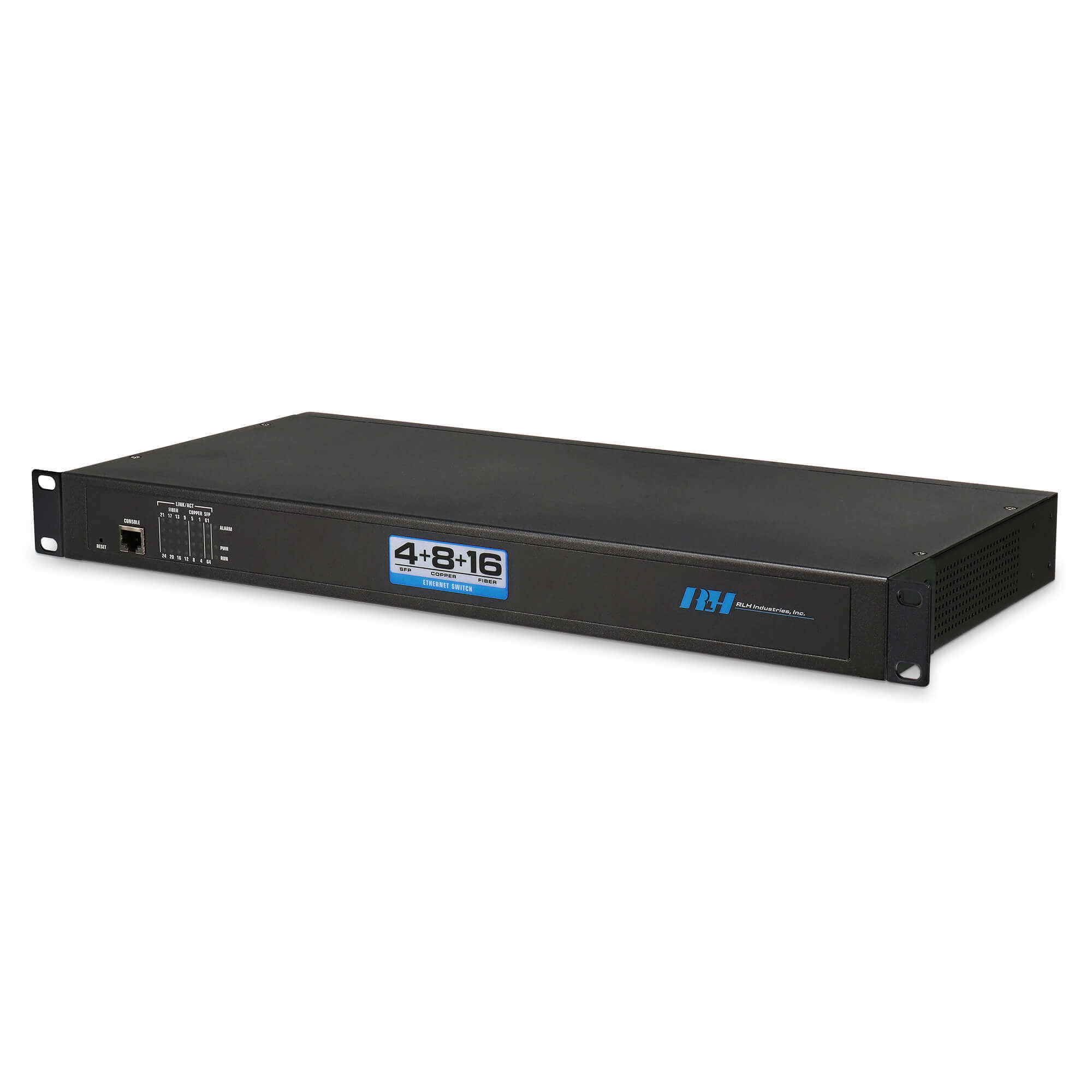

Managed Rack Mount Industrial Layer 2 Switch

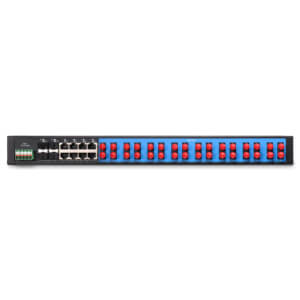

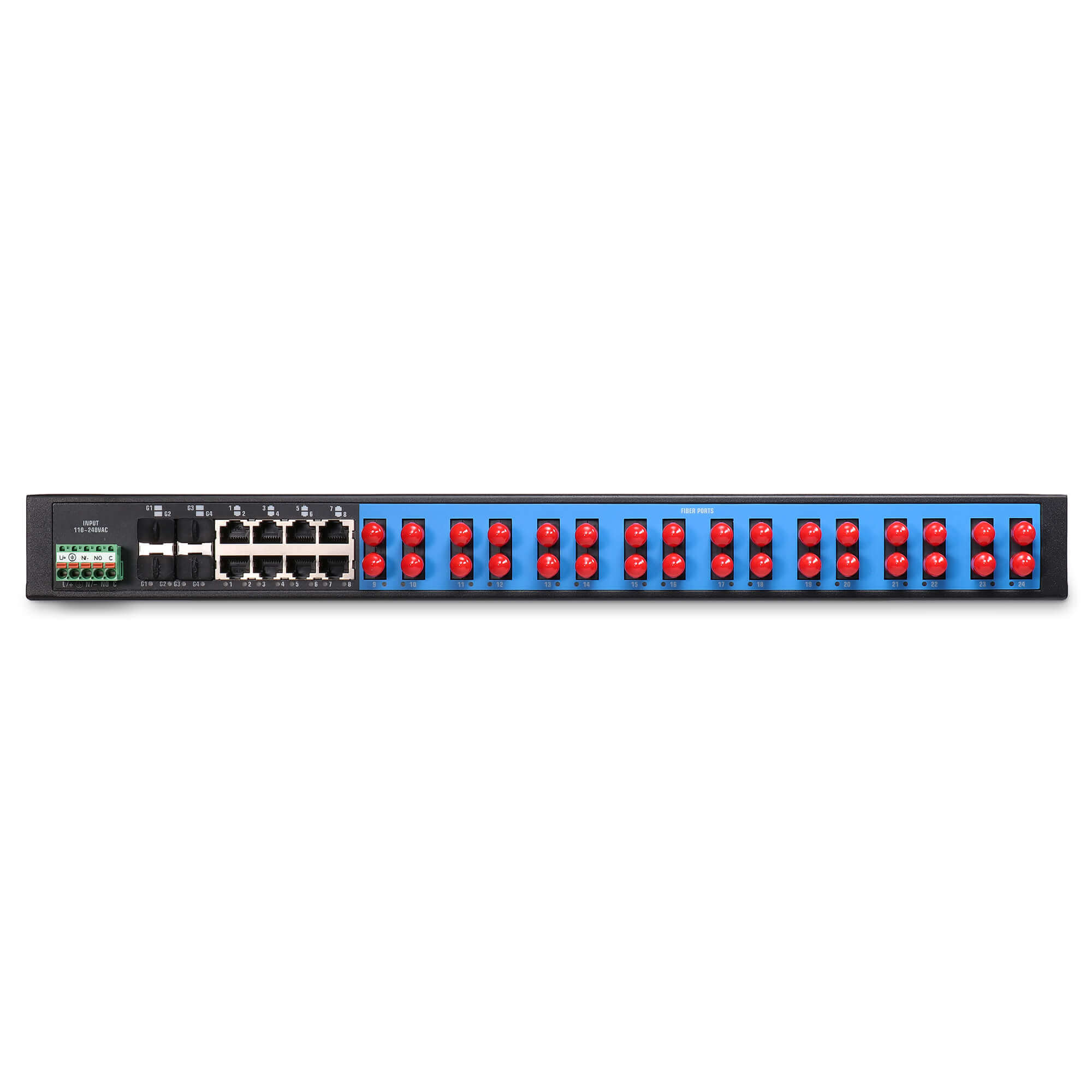

The RLH Industrial Managed Ethernet Switch offers 4 Gigabit SFP slots, 8 RJ-45 Fast Ethernet Ports, and 16 100Base-FX fiber ports. The high fiber port count makes this a great switch for aggregating remote locations to one central location.
The switch operates at Layer 2 and offers a web-based management interface as well as support for IEEE802.1Q VLANs, broadcast storm control, RSTP, QOS, along with many other features.
The RLH Managed Ethernet Switch uses only 1RU of rack space and comes complete with EIA19” rack ears for rack mount applications, or it may be used on a desktop or shelf. The fiber and SFP ports allow for fiber optic network extension over long distances with the added benefit of electrical isolation between locations. Our industrial switches operate over a wide temperature range and have a fan-less design. Their robust feature set and construction meet the demands of a variety of applications and are an ideal solution for a wide range of utility and automation environments.
Features
- -40°F to +167°F (-40°C to +75°C) operating temperature
- (4) Gigabit SFP Slots, (8) Fast Ethernet Copper Ports, (16) 100Base-
FX Fiber Ports - RJ-45 ports are auto MDI/MDIX, auto negotiating
- Embedded web management
- Supports Port-based VLAN, IEEE 802.1Q VLAN
- 19” 1RU rack mount form factor, steel enclosure
- Built-in 115/220VAC power supply
- Fan-less low power consumption design
- 5 year warranty
Please see the product documentation for the complete list of specifications
Construction:
Powder coated IP30 steel housing
Ethernet Ports:
(8) 10/100 Mbps
Ethernet Interface:
Auto MDI/MDI-X, Auto Negotiation
Fiber Ports:
(16) 100BaseFX, ST or SC Connectors
Fiber Wavelength:
Multimode: 1310nm
Singlemode: 1310nm, 1550nm
*Other wavelengths available by request
SFP Ports:
(4) Gigabit SFP Ports
Management:
Layer 2 – See User Guide for Complete management details
Mounting Style:
EIA 19″ rack mountable, 1RU rack height

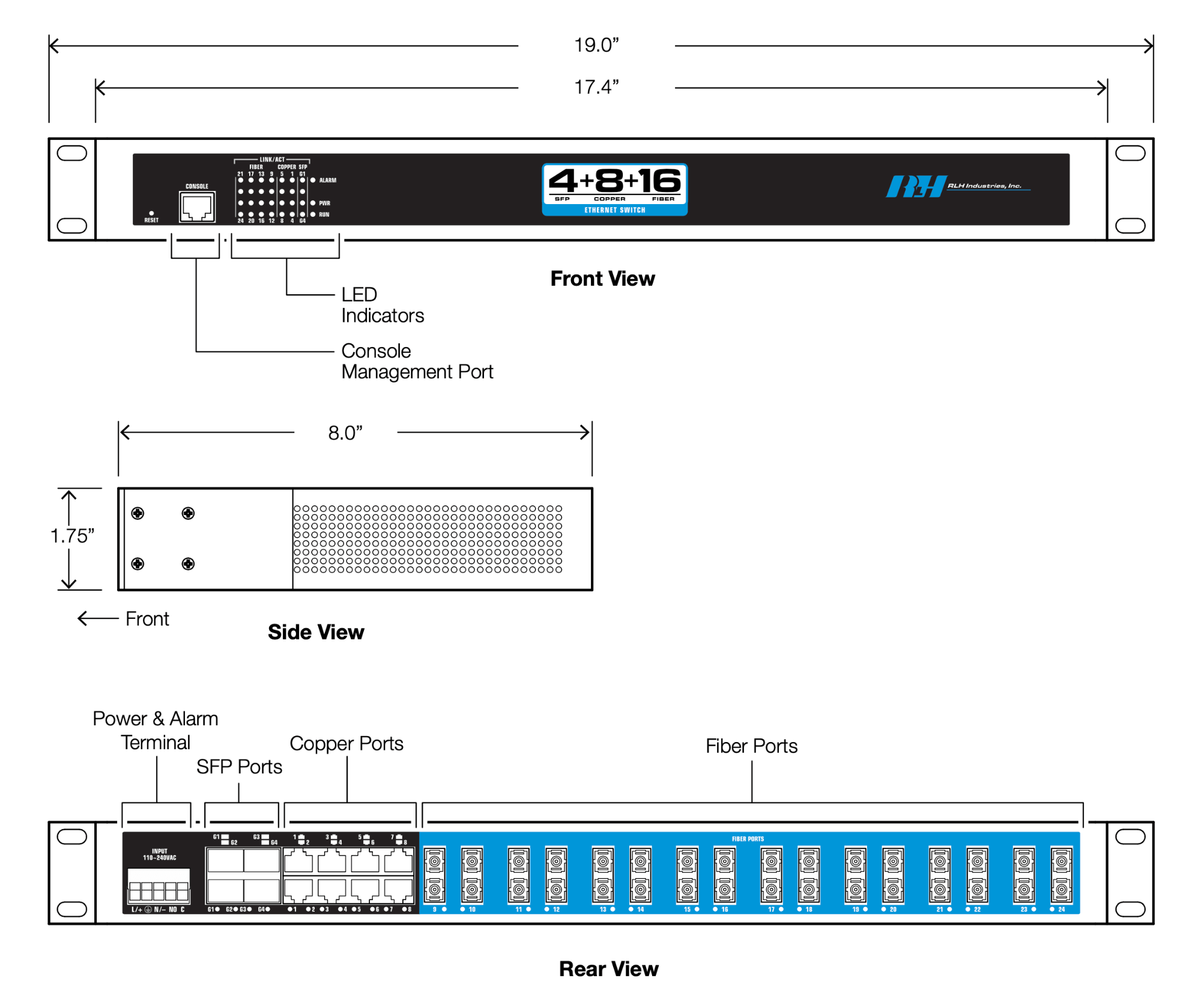

Dimensions:
W 17.4” x D 8.” x H 1.75” / 441.6mm x 206.9mm x 44.6mm
Operating Temperature:
-40°F to 158°F (-40°C to 70°C)
Powering Requirement:
115/220VAC, 50/60Hz, 35W
General Information
CAD Files
RLH-ESM040816-04-2
RLH-ESM040816-03-2
RLH-ESM040816-50-2
RLH-ESM040816-40-2
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
4+8+16 Ethernet Fiber Switch
| Product configuration | Mode | Connector | Distance | Wavelength | Part number | Price | |
|---|---|---|---|---|---|---|---|
| Industrial Rack Mount Ethernet Switch, 16 Fiber Ports - Multimode, ST, 2km/1.2 miles, 1310nm, AC Power Input | Multimode | ST | 2km/1.2 miles | 1310nm | RLH-ESM040816-04-2 | $3,650.00 | |
| Industrial Rack Mount Ethernet Switch, 16 Fiber Ports - Multimode, SC, 2km/1.2 miles, 1310nm, AC Power Input | Multimode | SC | 2km/1.2 miles | 1310nm | RLH-ESM040816-03-2 | $3,650.00 | |
| Industrial Rack Mount Ethernet Switch, 16 Fiber Ports - Singlemode, ST, 20km/12.4 miles, 1310nm, AC Power Input | Singlemode | ST | 20km/12.4 miles | 1310nm | RLH-ESM040816-50-2 | $4,050.00 | |
| Industrial Rack Mount Ethernet Switch, 16 Fiber Ports - Singlemode, SC, 20km/12.4 miles, 1310nm, AC Power Input | Singlemode | SC | 20km/12.4 miles | 1310nm | RLH-ESM040816-40-2 | $4,050.00 |
- Single fiber optics may be special ordered
- Additional wavelengths and distances available upon request
You May Also Be Interested In
You may also like…
-

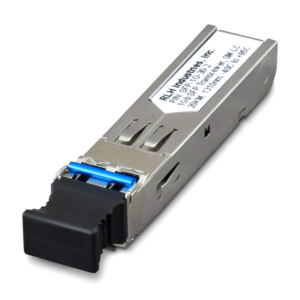

1.25Gbit SFP Transceiver
Small Form Factor Pluggable (SFP) Optical Transceivers certified for use in RLH SFP products.
View ProductSwitch Accessories – Transceivers1.25Gbit SFP Transceiver
$70.00 – $360.00 View Product This product has multiple variants. The options may be chosen on the product page -

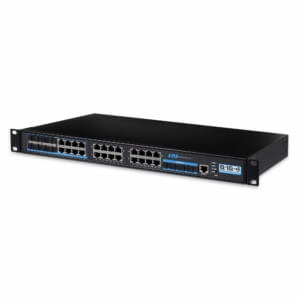

8+16+4 Gigabit Ethernet Fiber Switch
The Industrial 8+16+4 Managed Gigabit Rack Mount Fiber Switch has a built-in web interface and a high density of SFP slots.
View ProductIndustrial Ethernet Switches8+16+4 Gigabit Ethernet Fiber Switch
$3,950.00 View Product This product has multiple variants. The options may be chosen on the product page -
Fiber Optic Patch Cords
RLH Fiber optic patch cords are made with Corning® glass. Available with riser or plenum Jacketing and a wide variety of connector and lengths options.
View ProductFiber Patch CordsFiber Optic Patch Cords
$11.00 – $24.00 View Product This product has multiple variants. The options may be chosen on the product page -

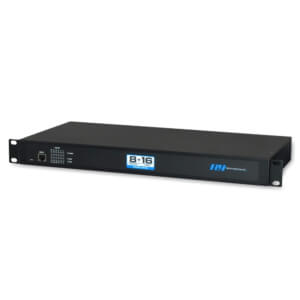

8+16 Ethernet Fiber Switch (legacy)
The Industrial 8+16 Managed Rack Mount Fiber Switch has a built-in web interface and supports fiber ring topologies.
View ProductLegacy – Industrial Ethernet Switches8+16 Ethernet Fiber Switch (legacy)
Contact Us for Pricing View Product This product has multiple variants. The options may be chosen on the product page -

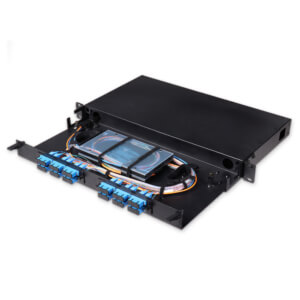

Manta 1RU Fiber Patch Panel
