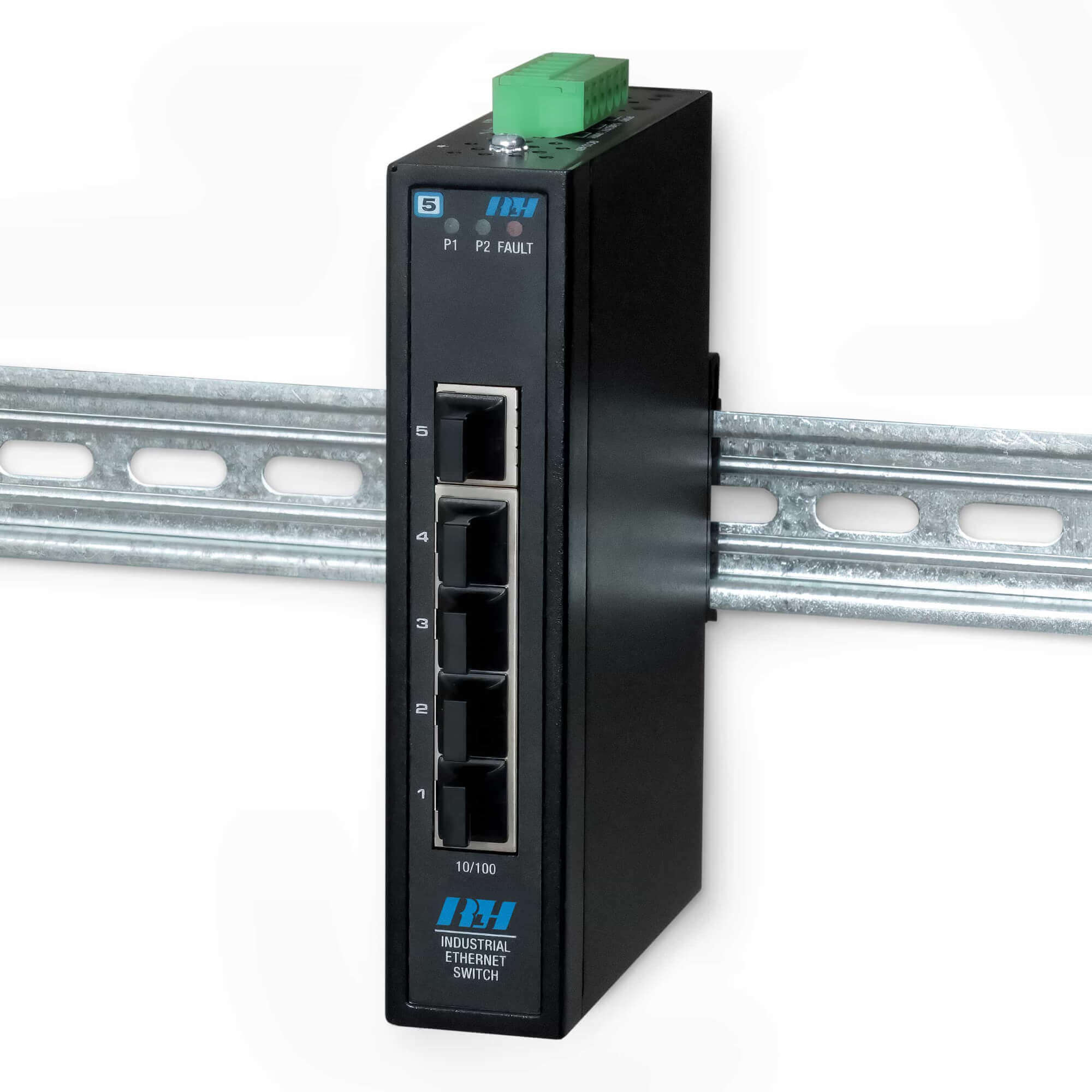

Industrial Fast Ethernet Unmanaged Switch
RLH industrial Ethernet switches are designed to deliver dependable network performance in the most challenging environments. The 5-port switch includes standard features such as redundant power inputs and a fault alarm. Built to withstand extreme conditions, it is engineered to operate across a broad temperature range, which is typical for RLH equipment.
With their rugged construction and advanced features, our industrial switches are well-suited to meet the requirements of diverse applications, making them an excellent choice for utility and automation environments.
Features
- Hardened design with wide operating temperature -40°F to 167°F (-40°C to 75°C)
- 5 ports of Fast Ethernet
- Supports Auto MDI/MDI-X Function
- Store-and-forward switching architecture
- Rugged case rated to IP-30
- 12~48VDC redundant power inputs with built-in alarm relay
- 2kV surge protection
- DIN rail & wall mountable
- UL Class 1, Division 2 Hazardous Location Certified
- Meets NEMA TS2 Requirements for Traffic Control
- TAA and NDAA Compliant
- 5 Year Warranty
Please see the product documentation for the complete list of specifications
Ethernet Ports:
(5) 10/100 Mbps
Ethernet Interface:
Auto MDI/MDI-X, Auto Negotiation
Powering Requirement:
12~48VDC redundant power inputs
Power Protection:
Over Current, Power Reversal, Polarity Protection
Fault Output:
1 Relay output rated for 24VDC @ 1 Amp
Operating Temperature:
-40°F to 167°F (-40°C to 75°C)
Construction:
Powder coated IP30 steel housing
Mounting Style:
Standard DIN rail (TS-35) or wall mount

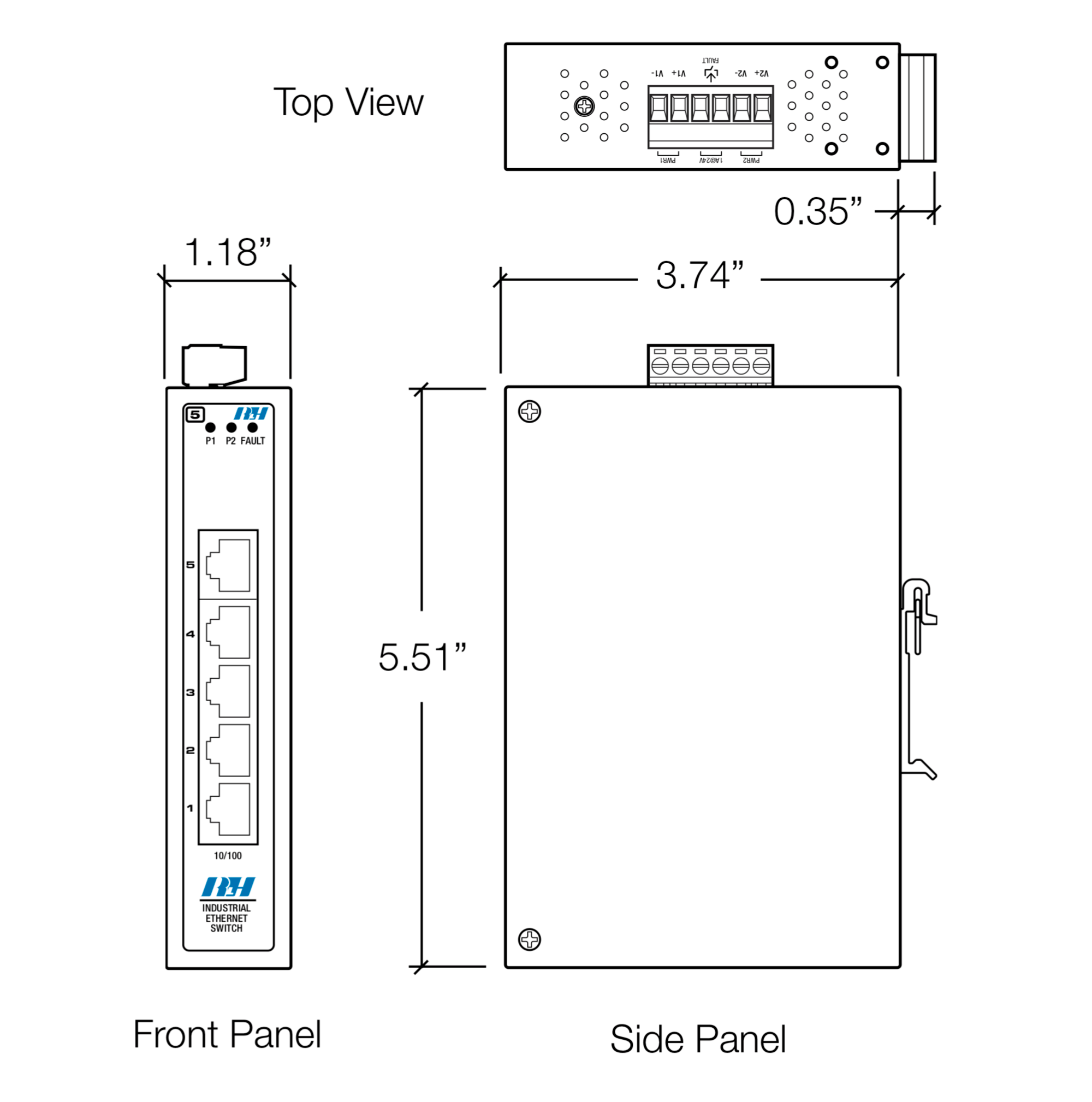

Dimensions:
1.18” (W) x 3.74” (D) x 5.51” (H), (30mm x 95mm x 140mm)
*Not including connectors or DIN bracket
Compliance:
UL Class 1/Div.2, FCC Class A, CE, RoHS, NEMA TS2, ANSI/ISA 12.12.01, TAA, NDAA
Warranty:
5 Years
General Information
CAD Files
ETH-5-1
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
5 Port 10/100 Switch
| Short description | Part number | Price | |
|---|---|---|---|
| 5 Port 10/100 Industrial Ethernet Switch, Unmanaged, Powering Voltage 12-55VDC | ETH-5-1 | $125.00 |
