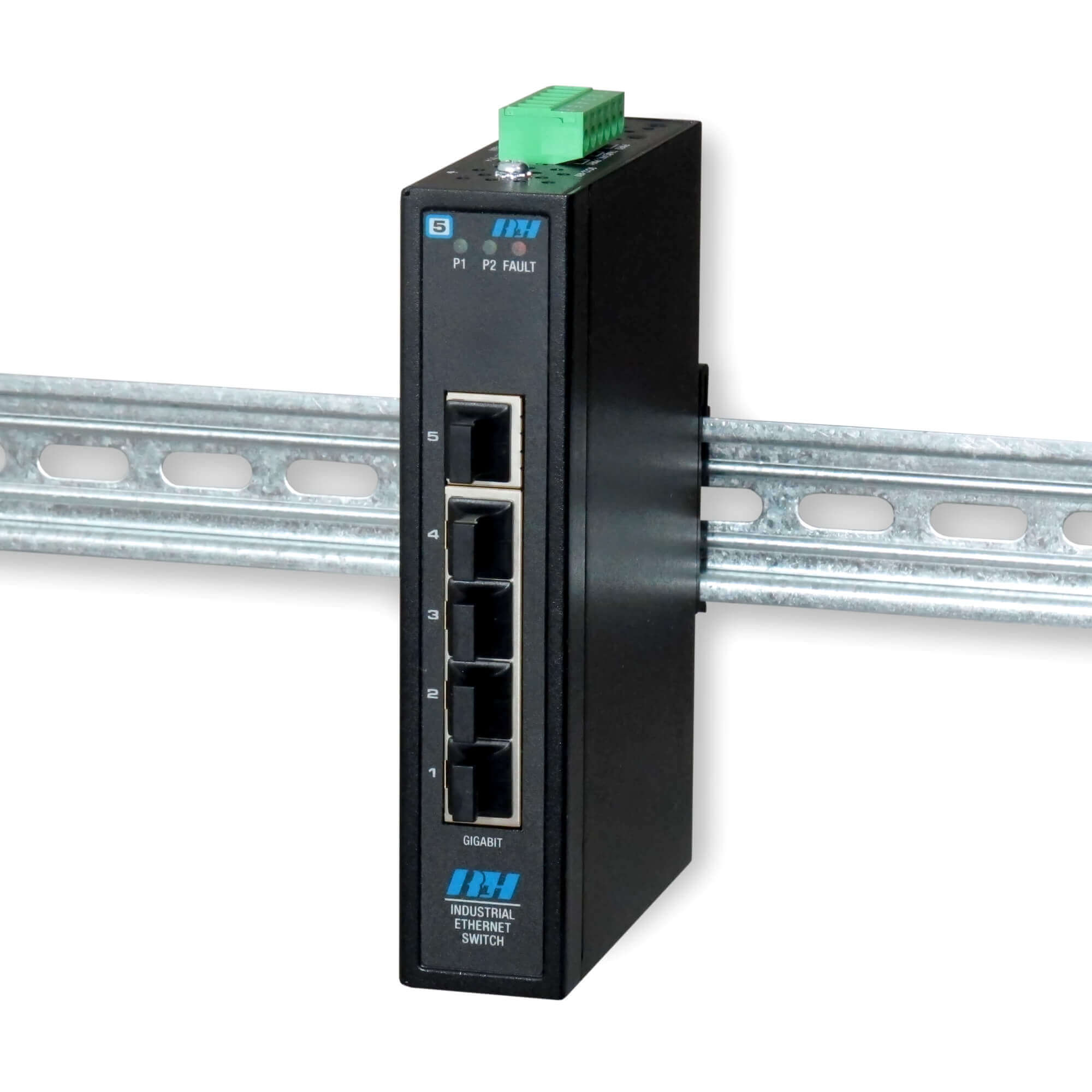

Industrial Gigabit Ethernet Switch
RLH industrial switches are engineered to provide reliable network performance in harsh environments. This gigabit switch comes standard with redundant power inputs and fault alarm. It is environmentally hardened to operate in a wide temperature range, which is the standard for RLH equipment.
Our industrial switches robust features and construction meet the demands of a variety of applications, and are an ideal solution for a wide range of utility and automation environments.
- Hardened design has a wide operating temperature range
- -40 to +167F (-40 to + 75 C)
- 5 ports of Gigabit Ethernet
- 9.6Kb Jumbo Frame Support
- Auto MDI/MDI-X
- Store-and-forward switching architecture
- Rugged case rated to IP-30
- 12~48VDC redundant power inputs with built-in alarm
- 2kV surge protection
- DIN rail & wall mountable
- UL Listed
Construction:
Powder coated IP30 steel housing
Ethernet Ports:
(5) 10/100/1000 Mbps
Ethernet Interface:
Supports Jumbo Frames, Auto MDI/MDI-X, Auto Negotiation
Mounting Style:
Standard DIN rail (TS-35) or wall mount
Wall mount brackets included

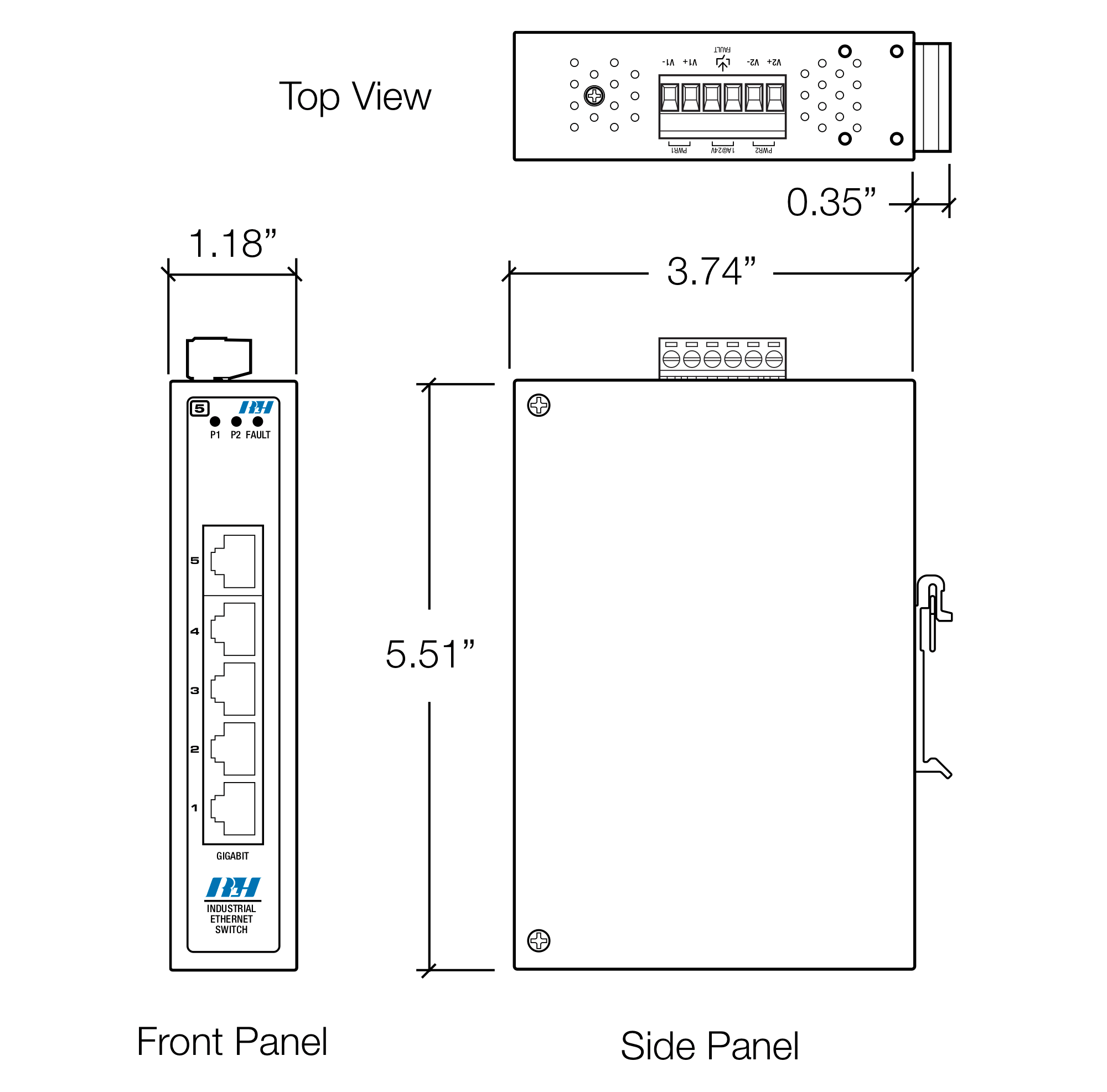

Dimensions:
1.18” (W) x 3.74” (D) x 5.51” (H), (30mm x 95mm x 140mm)
Not including connectors or DIN bracket
Operating Temperature:
-40°F to 167°F (-40°C to 75°C)
Fault Output:
1 Relay output rated for 24VDC @ 1 Amp
Power Protection:
Over Current, Power Reversal, Polarity Protection
Powering Requirement:
12~48VDC redundant power inputs
Safety:
UL Listed, FCC Class A, CE
ETH-5G-1
$230.00
Lead Time: 1 to 5 Days*
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
5 Port Gigabit Switch
Short description | Part number | Price | |
---|---|---|---|
Powering Voltage 12-55 DC | ETH-5G-1 | $230.00 |
