5+1 Managed Gigabit SFP Switch

Managed Industrial Light Layer 3 Gigabit Switch

Overview
Features
Specs
Docs
Diagrams
PN

RLH managed industrial switches are engineered to provide reliable network performance in harsh environments. The 5+1 Managed Gigabit SFP switch provides both copper and fiber Gigabit Ethernet access. This environmentally hardened Light Layer 3 switch is manageable and offers a wide array of configuration and monitoring options.

Our feature rich industrial switch meets the demands of a variety of applications, and are an ideal solution for a wide range of utility and automation environments.

Features

System:

Hardened design has a wide operating temperature range: -40º to +167º F (-40º to + 75º C)
Dual Rate SFP ports – 100Mbps & 1Gbps
5 Ports of Gigabit Ethernet
9.6K Bytes Jumbo Frame Support
Auto MDI/MDI-X
Store-and-forward switching architecture
Rugged case rated to IP-30
Redundant power inputs with built-in alarm
2kV surge protection
DIN rail & wall mountable

Management:

Light Layer 3 Switch – Supports Static Routes, Inter-VLAN Routing, ACLs, IPv4/IPv6, and DHCP Option 66/67/82
Configuration via Web, Serial, Telnet, & SSH
Network redundancy: G.8032 ERPS v2/ STP/RSTP/ MSTP
Supports IEEE 802.1q Vlans
Port Mirroring, Control, & Monitoring

Please see the product documentation for the complete list of specifications

Construction:
Powder coated IP30 steel housing

Ethernet Ports:
(5) 10/100/1000 Mbps

SFP Sides:
(1) Dual Rate SFP
Supports both 100 &1000 Mbps speed modules

Ethernet Interface:
Supports Jumbo Frames, Auto MDI/MDI-X, Auto Negotiation

Management:
Light Layer 3 – See User Guide for complete management details

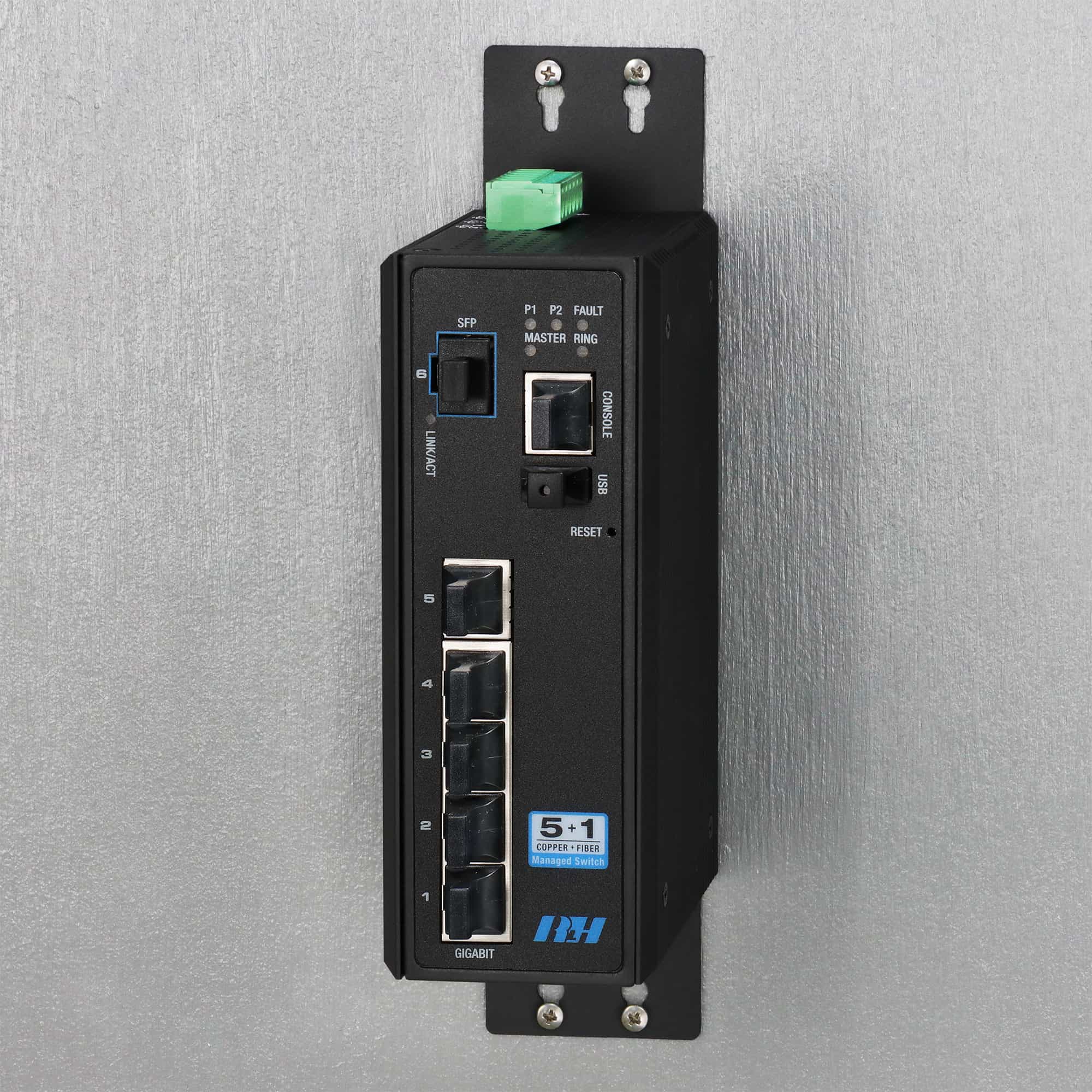

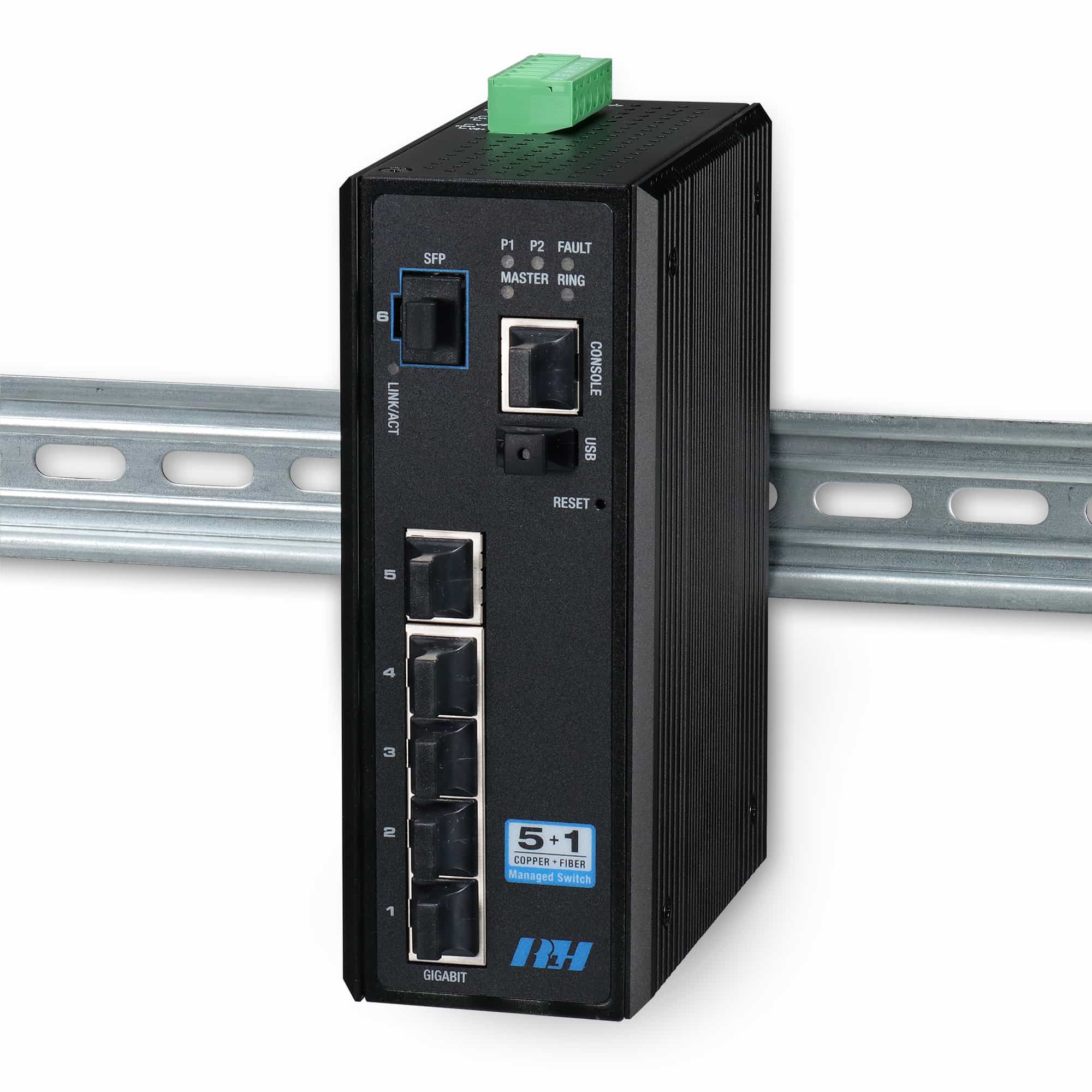

Mounting Style:
Standard DIN rail (TS-35) or wall mount

*Wall mount brackets included

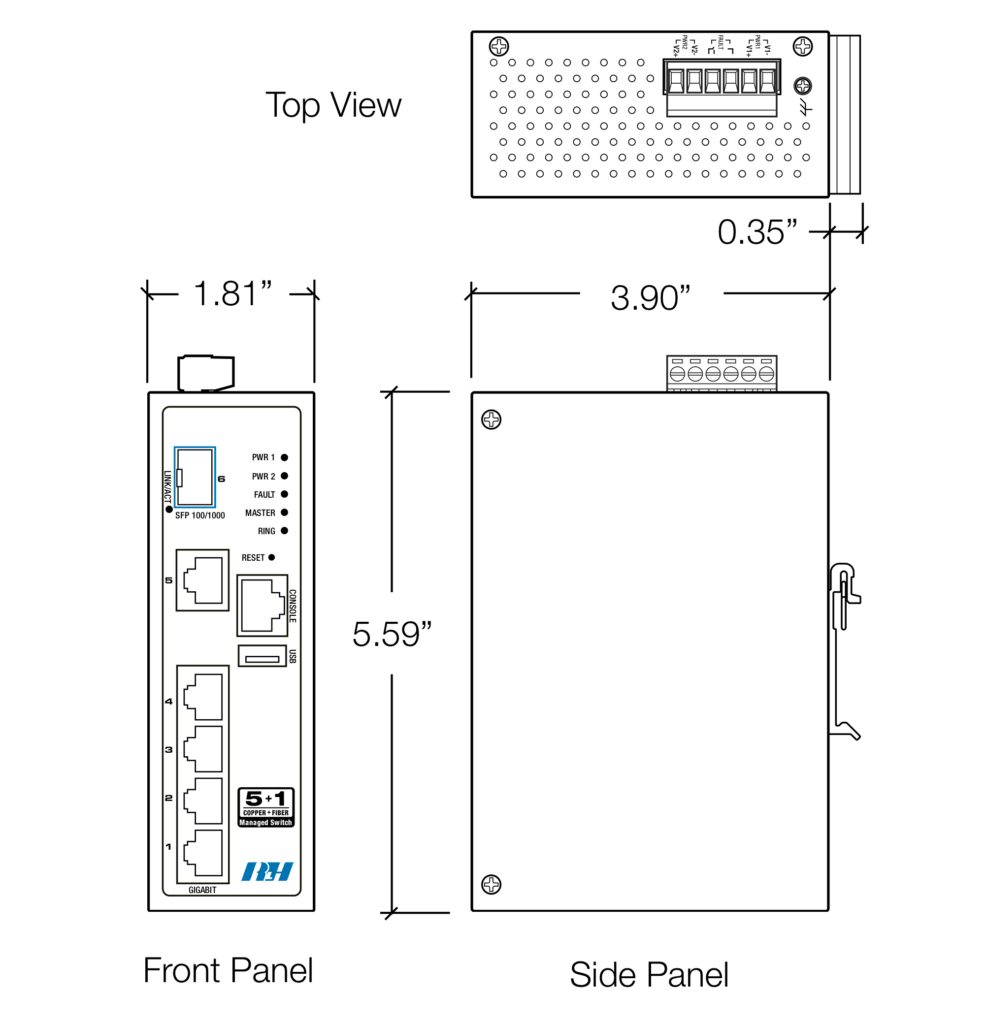

Dimensions:
1.81” (W) x 3.90” (D) x 5.59” (H), (46mm x 99mm x 142mm)

*Not including connectors or DIN bracket

Operating Temperature:
-40°F to 167°F (-40°C to 75°C)

Fault Output:
1 Relay output rated for 24VDC @ 1 Amp
