High SFP Port Count Industrial Ethernet Switch
RLH managed industrial switches are engineered to provide reliable network performance in demanding environments. The 8+12 Managed Gigabit SFP switch provides 8 copper Gigabit Ethernet ports and 12 fiber Gigabit Ethernet SFP ports for maximum connectivity in a compact form factor. A comprehensive set of management features provide a wide array of configuration and monitoring options required for various industrial applications.
This environmentally hardened, layer 3 Ethernet switch may be DIN rail or wall mounted, and is engineered to meet the demands of networking, utility and automation environments.
System
- Hardened design has a wide operating temperature range -40°F to +167°F (-40°C to +75°C)
- 8 ports – 10/100/1000Base-T(X) Ethernet
- 12 ports – 100/1000Base-(F)X SFP slots
- Supports Jumbo Frames
- Auto MDI/MDI-X
- Store-and-forward switching architecture
- Rugged IP30 housing
- 12~48VDC redundant power inputs with built-in alarm relay
- Overload and reverse polarity protection

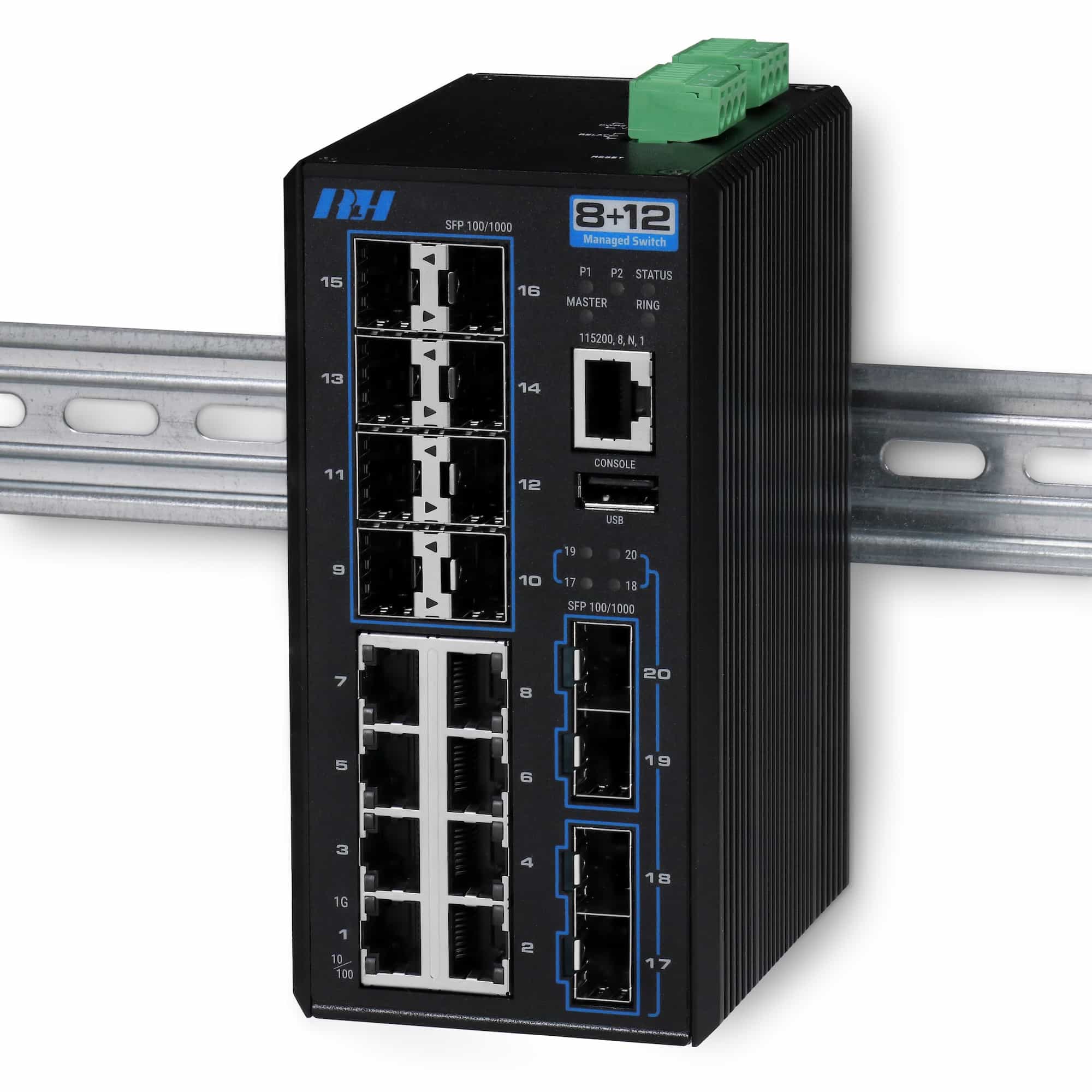

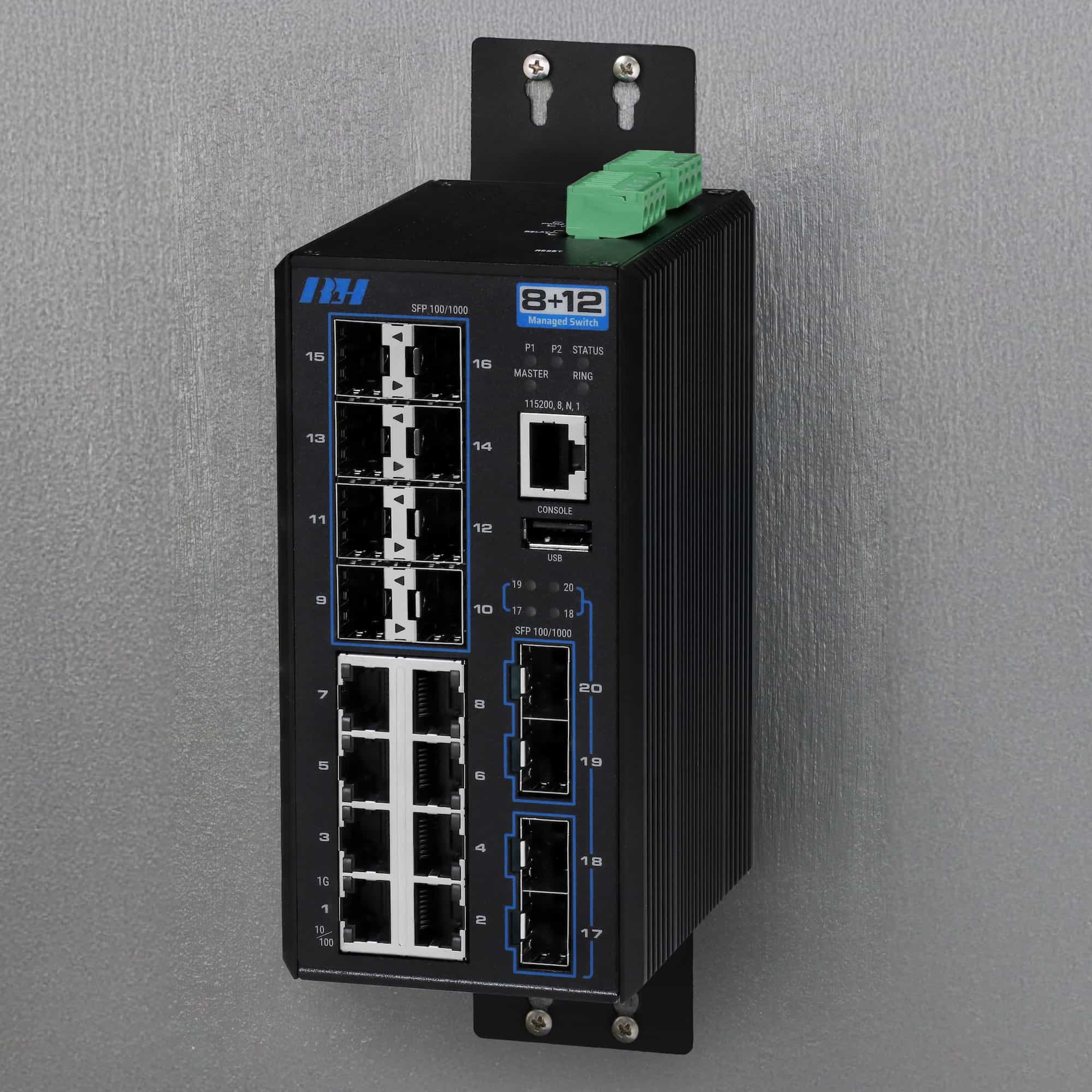

- DIN rail & wall mountable
Management
- Layer 3 switch
- Static Routing
- Configuration via Web, CLI command, Telnet, SNMP & SSH
- Supports SNMPv3
- Supports IEEE 802.1q VLANs
Construction
Metal, IP30 protection
Transfer Rates
14,880pps for Ethernet port
148,800pps for Fast Ethernet port
1,488,000pps for Gigabit Ethernet port
RJ45 Ports
8*10/100/1000 Base-T(X)
Auto-Negotiation, Full/Half Duplex, Auto-MDI/MDI-X
Fiber Port
12*100/1000Base-(F)X SFP slots
PoE Power
90 Watts (Mode A, Mode B, 4-Pair Mode)
LED Indicators
System: Power 1, Power 2, Status, Master, Ring
Ethernet ports: Speed/Link/Active
SFP: Link/Active
Input Voltage
Dual 12-48VDC redundant power inputs
Operating Temperature
-40°C ~ 75°C (-40°F ~ 167°F)

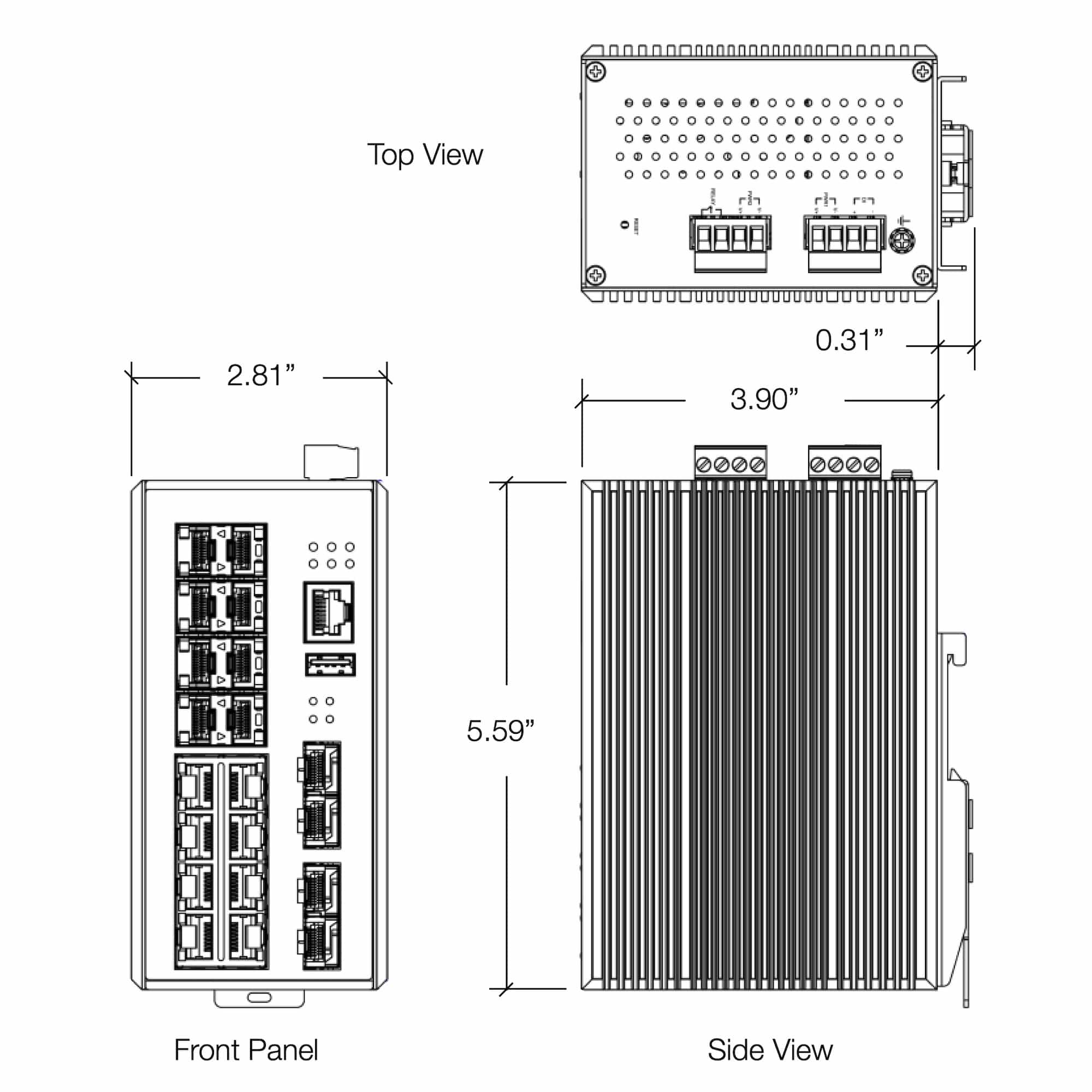

Dimensions
71.5 x 142 x 99 mm (2.81 x 5.59 x 3.9 inch)
Safety
CE, FCC Class A, UL 61010-1 and UL 61010-2-201, File Number: E544369, RoHS and REACH compliant
Warranty
Limited 5 years
General Information
ETH-812GM-1
$1,850.00
Lead Time: 1 to 5 Days*
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
8+12 Managed Gigabit SFP Switch
Short description | Part number | Price | |
---|---|---|---|
8+12 Gigabit Managed Industrial Ethernet Switch, 12 Dual Rate SFP Slots, Powering Range: 12-48VDC | ETH-812GM-1 | $1,850.00 |
- View our compatible Fast Ethernet SFPs
- View our compatible Gigabit SFPs
