Managed Gigabit Rack Mount Industrial Layer 2 Switch
Overview
Features
Specs
Docs
Numbers
Overview

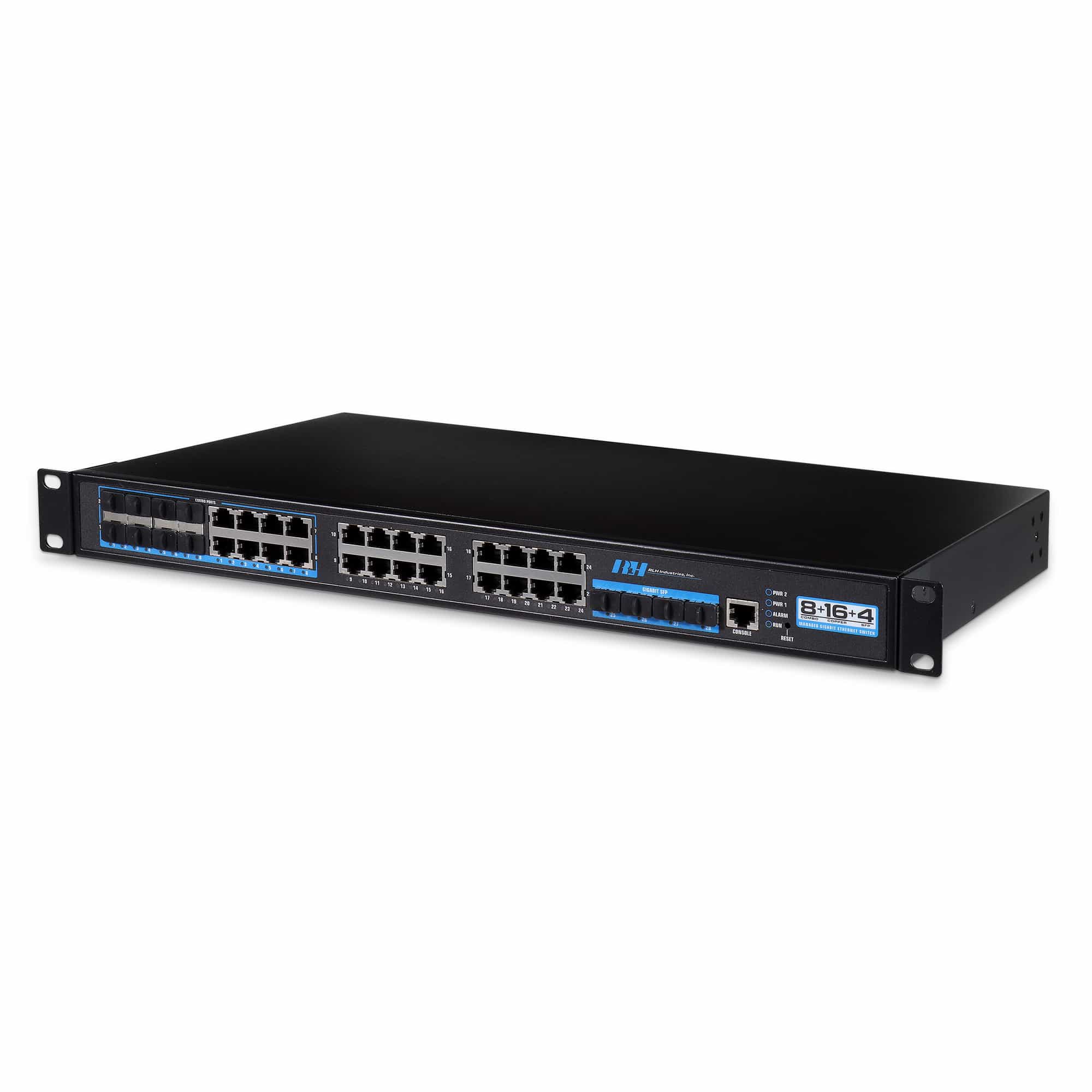

The RLH Industrial Managed Ethernet Switch offers 4 Gigabit fiber ports (SFP slots), 8 Gigabit Combo ports (SFP slots or RJ45), and 16 Gigabit copper ports for a total of 28 ports. This switch features a wide operating temperature and fanless design, and the high SFP port count makes it a great switch for aggregating remote locations to one central location.
The switch offers a web-based management interface as well as support for Static Routes, IEEE802.1Q VLANs, broadcast storm control, RSTP, and QOS, along with many other features.
The RLH Managed Ethernet Switch uses only 1RU of rack space and comes complete with EIA19” rack ears for rack mount applications, or it may be used on a desktop or shelf. The SFP ports allow for fiber optic network extension over long distances, and fiber optic cable provides electrical isolation between devices. Our industrial switches robust features and construction meet the demands of a variety of applications and are an ideal solution for a wide range of utility and automation environments.
Features
- -40°C to +75°C (-40°F to +167°F) wide operating temperature
- Up to 12 total SFP ports for fiber
- 4 Gigabit SFP ports
- 8 Gigabit SFP or RJ-45 combo ports
- 16 Gigabit RJ-45 ports
- Embedded web management
- Supports Static Routing
- Supports port-based VLANs, IEEE 802.1Q VLANs
- Supports port trunking, port mirroring, port priority, IEEE 802.1p priority, and RSTP
- 19” 1RU rack mount form factor, steel enclosure
- Built-in redundant AC or DC inputs
- No fan, low power consumption design
Specs
Please see the product Data Sheet for the complete list of specifications
Ports:
(4) Gigabit fiber ports (SFP slots)
(8) Gigabit combo ports (SFP slots or RJ45)
(16) Gigabit copper ports
Switch Properties:
Transmission mode: Store and Forward
MAC address: 16K
Packet buffer size: 12Mbit
Backplane bandwidth: 56G
Switch time delay: < 10μs
Management Features:
Embedded web interface
SNMPv1, SNMPv2, SNMPv3
Bandwidth management
Flow control
Port isolation
LED Indicators:
P1 – Power Supply 1 ON/OFF indicator
P2 – Power Supply 2 ON/OFF indicator
Alarm – ON/OFF indicator
Run – System Operation Status
Link/Act – Status indicators for each port
Dimensions:
17.4” (W) x 12” (D) x 1.75” (H), (440mm x 305mm x 44mm)
EIA 19” Rack Mountable, 1RU rack height
Power:

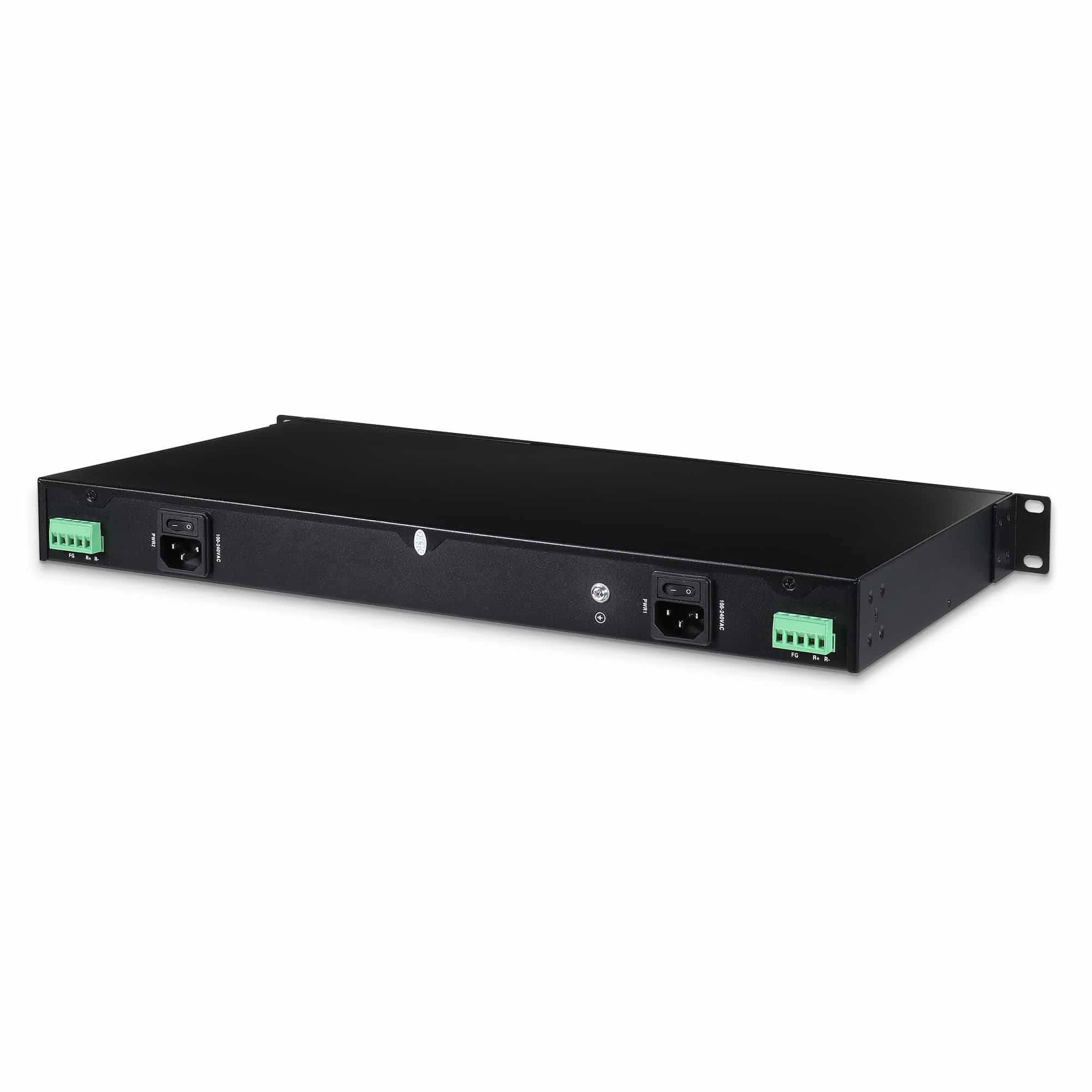

AC Model – Redundant 100~240VAC power inputs
DC Model – Redundant 36~72VDC power inputs
Power Consumption:
No-load: 10.5W@220VAC
Full-load: 25.3W@220VAC
Temperature:
-40°F to 158°F (-40°C to 70°C)
Humidity:
5%~95% non-condensing
Docs
General Information
Numbers
RLH-GSM081604-AC-1
RLH-GSM081604-DC-1
Ordering
8+16+4 Gigabit Ethernet Fiber Switch
| Short description | Part number | Price | |
|---|---|---|---|
| Managed 28 Port Industrial Gigabit Fiber Switch with Redundant AC Power Inputs | RLH-GSM081604-AC-1 | $3,950.00 | |
| Managed 28 Port Industrial Gigabit Fiber Switch with Redundant DC Power Inputs | RLH-GSM081604-DC-1 | $3,950.00 |
