Managed Industrial Light Layer 3 Gigabit SFP+ Switch
RLH managed industrial switches are engineered to provide reliable network performance in harsh environments. The 8+2 Managed Gigabit SFP+ Switch provides both copper and fiber Gigabit Ethernet access, including two dual-rated SFP+ ports that also support 10G bandwidth. This environmentally hardened Light Layer 3 switch is fully manageable and offers a wide array of configuration and monitoring options.
Our feature rich industrial switches meet the demands of a variety of applications, and are an ideal solution for a wide range of utility and automation environments.
System
- 2 Dual Rate SFP ports – 1G/10G
- 8 Copper Ports of Gigabit Ethernet
- 9.6K Bytes Jumbo Frame Support
- Auto MDI/MDI-X
- Store-and-forward switching architecture
- Rugged case rated to IP-30
- Redundant power inputs with built-in alarm
- 2kV surge protection
- DIN rail & wall mountable
- UL Listed
Managed
- Static Routing: Light Layer 3 Switch – Supports Static Routes, Inter-VLAN Routing, ACLs, IPv4/IPv6, and DHCP Option 66/67/82
- Configuration via Web, Serial, Telnet, & SSH
- Supports SNMPv3
- Supports IEEE 802.1Q/VLANs
- Supports QoS, LACP bandwidth control
Environment
- Hardened to operate in -40°F to +140°F (-40°C to +60°C)

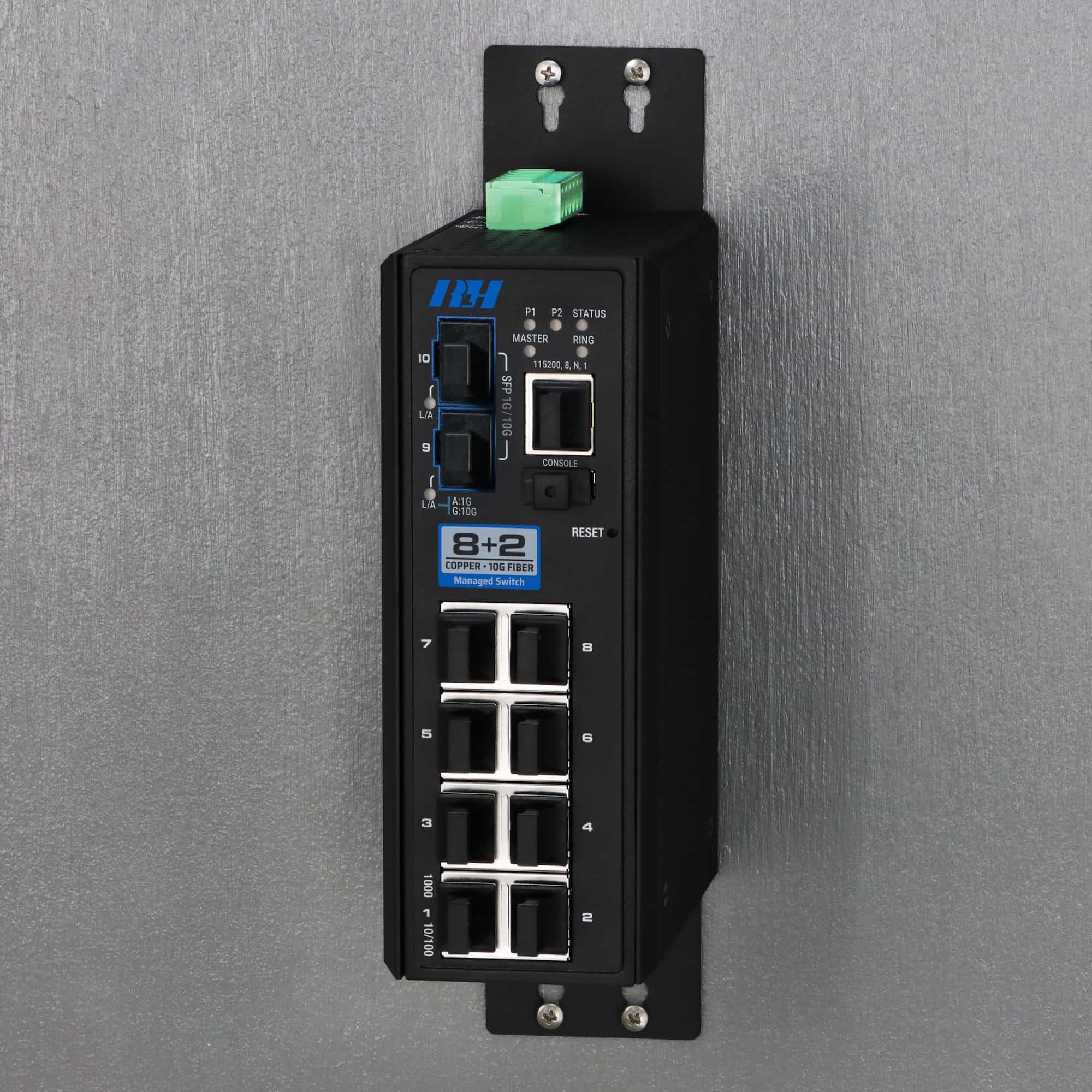

- DIN rail or Wall Mount (Wall mount ears included)
Power
- 12~48VDC redundant power inputs (6 position pluggable terminal block)
Quality
Construction:
Powder coated IP30 steel housing
Ethernet Ports:
(8 Copper) RJ45 Ports, 10/100/1000 Mbps
(2 Fiber) Dual-rated SFP+ Slots, 1/10 Gbps
Ethernet Interface:
Supports Jumbo Frames (up to 9.6KB), Auto MDI/MDI-X, Auto-Negotiation
Transfer Rates:
14,880pps – Ethernet port
148,800pps – Fast Ethernet port
1,488,000pps – Gigabit Ethernet port
14,880,000pps – 10 Gigabit Ethernet Port
Installation:

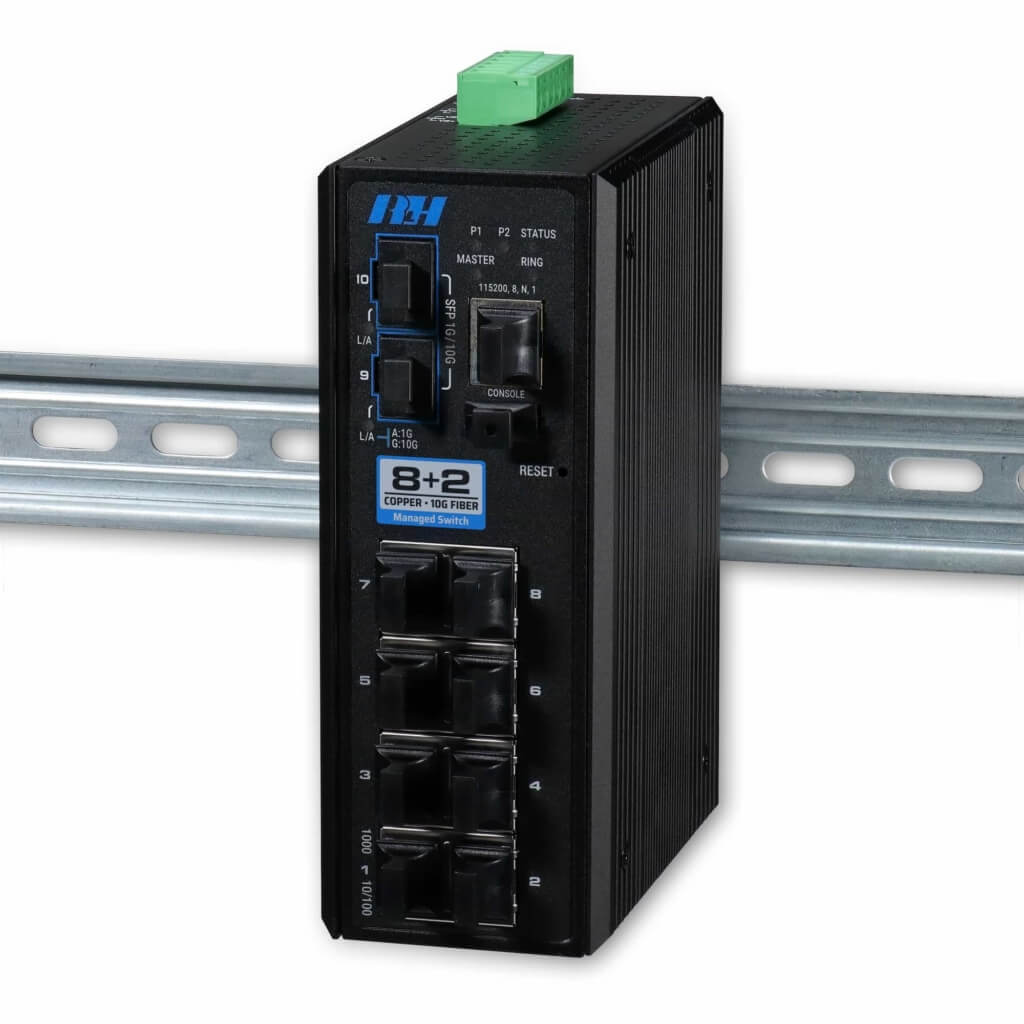

Standard DIN rail (TS-35) or wall mount
*Wall mount brackets included

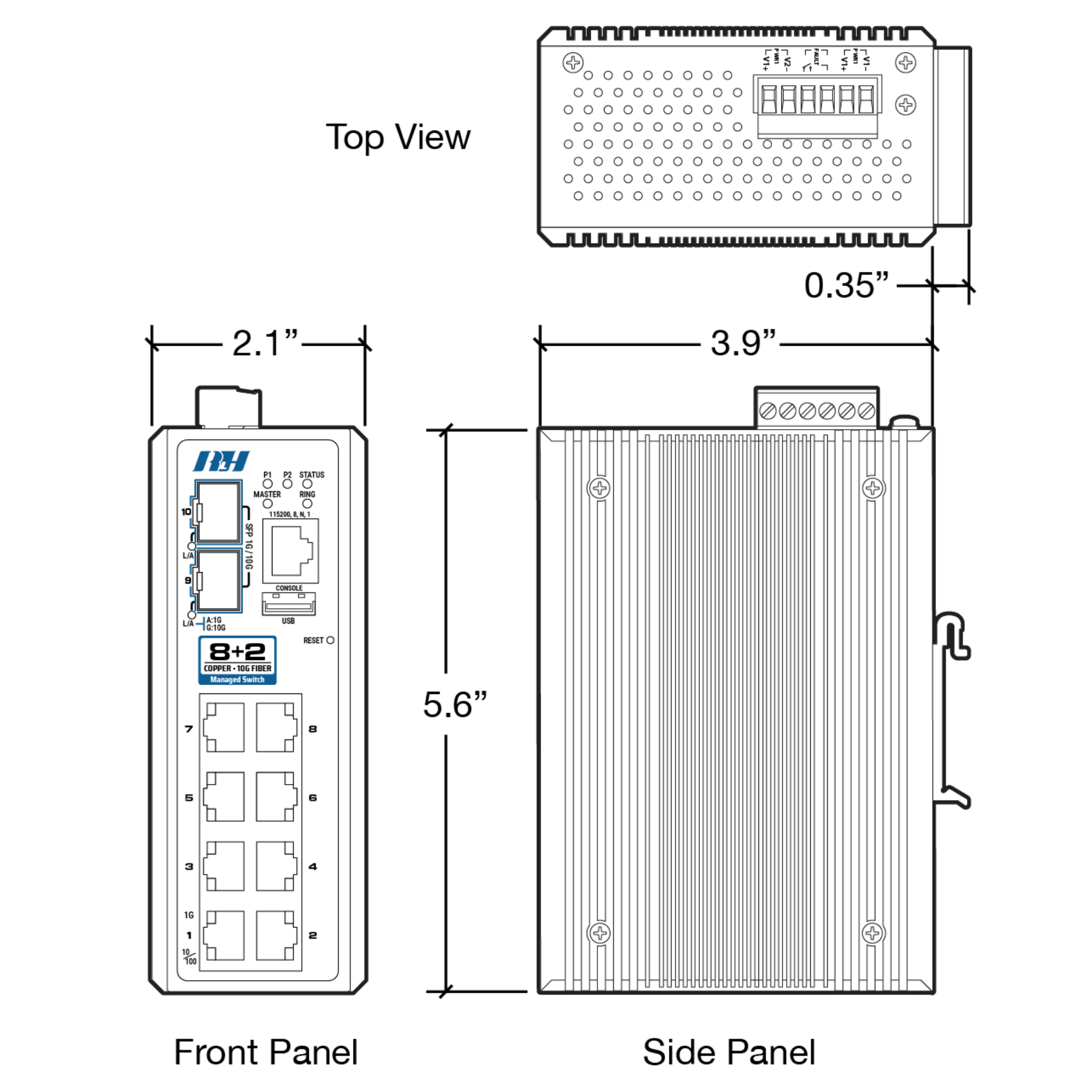

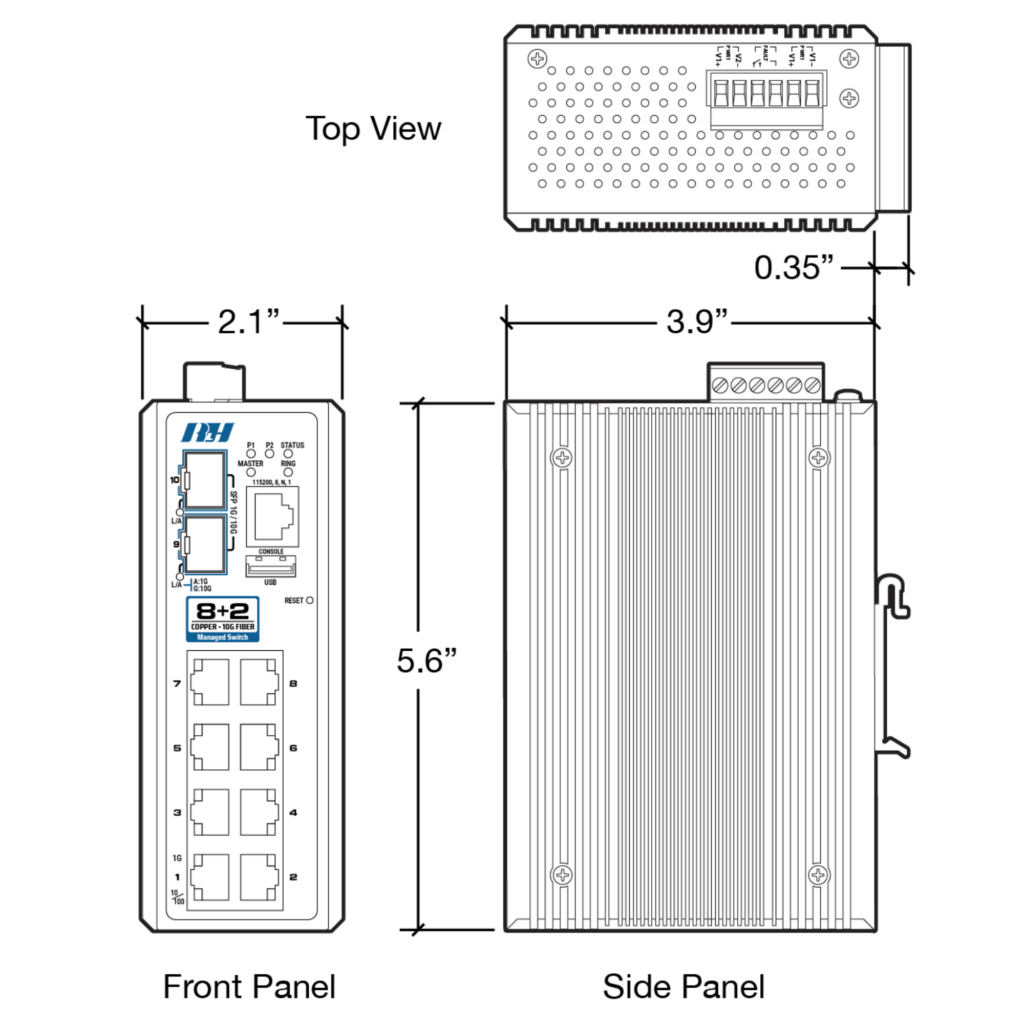

Case Dimensions:
2.14” (W) x 3.90” (D) x 5.59” (H), (55mm x 99mm x 142mm)
*Not including connectors or DIN bracket
Operating Temperature:
-40°C to 60°C (-40°F to 140°F)
Fault Output:
1 Relay output (SPST) rated for 24VDC @ 1 Amp
Power Protection:
Power Failover, Reverse Input Polarity
Power Input:
12~48VDC redundant power inputs (6 position pluggable terminal block)
Safety:
CE, FCC Class A, UL 61010-1 3rd Edition and UL 61010-2-201 1st Edition, File Number: E480850
Warranty:
Limited 5 Year
General Information
ETH-82GXM-1
Ordering
8+2 Managed Gigabit SFP+ Switch
| Short description | Part number | Price | |
|---|---|---|---|
| 8+2 Gigabit Managed Industrial Ethernet Switch, 2 Dual Rate 1G/10G SFP Slots, Powering Range: 12-48VDC | ETH-82GXM-1 | $1,840.00 |
- View our compatible Gigabit SFPs
