RLH managed industrial switches are engineered to provide reliable network performance in harsh environments. The 8+2 Managed Gigabit SFP switch provides both copper and fiber Gigabit Ethernet access. This environmentally hardened Light Layer 3 switch is manageable and offers a wide array of configuration and monitoring options.

Our feature rich industrial switch meets the demands of a variety of applications, and are an ideal solution for a wide range of utility and automation environments.

Features

System:

Hardened design has a wide operating temperature range -40°C to +75°C (-40°F to +167°F)
2 Dual Rate SFP ports – Fast Ethernet & Gigabit
8 Ports of Gigabit Ethernet
9.6K Bytes Jumbo Frame Support
Auto MDI/MDI-X
Store-and-forward switching architecture
Rugged case rated to IP-30
Redundant power inputs with built-in alarm
2kV surge protection
DIN rail & wall mountable
UL Listed

Management:

Static Routing – Light Layer 3 Switch – Supports Static Routes, Inter-VLAN Routing, ACLs, IPv4/IPv6, and DHCP Option 66/67/82
Configuration via Web, Serial, Telnet, & SSH
Supports SNMPv3
Supports IEEE 802.1q Vlans
Port Mirroring, Control, & Monitoring

Please see the product documentation for the complete list of specifications

Construction:
Powder coated IP30 steel housing

Ethernet Ports:
(8) 10/100/1000 Mbps

SFP Sides:
(2) Dual Rate SFP
Supports both 100 &1000 Mbps speed modules

Ethernet Interface:
Supports Jumbo Frames, Auto MDI/MDI-X, Auto Negotiation

Management:
Light Layer 3 – See User Guide for complete management details

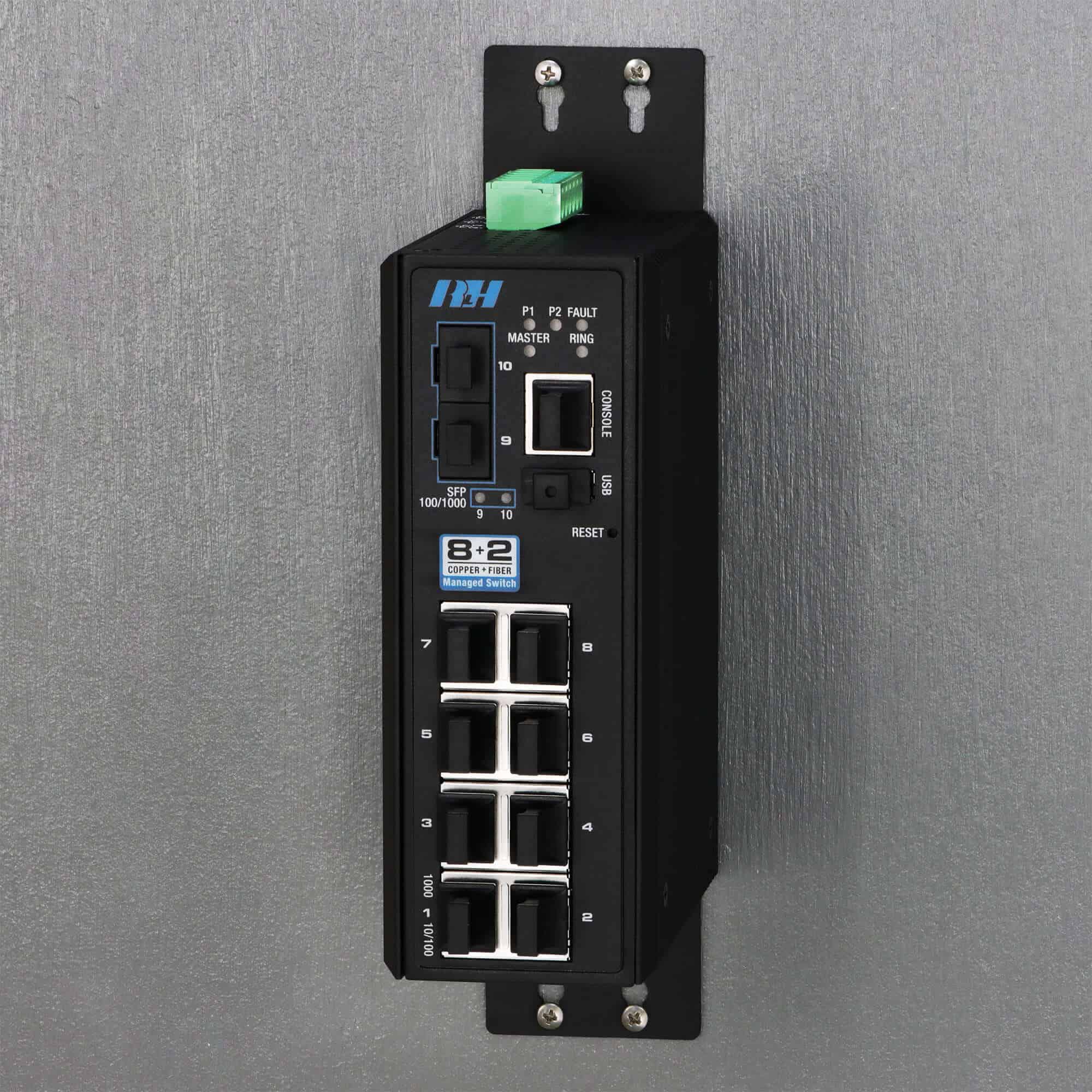

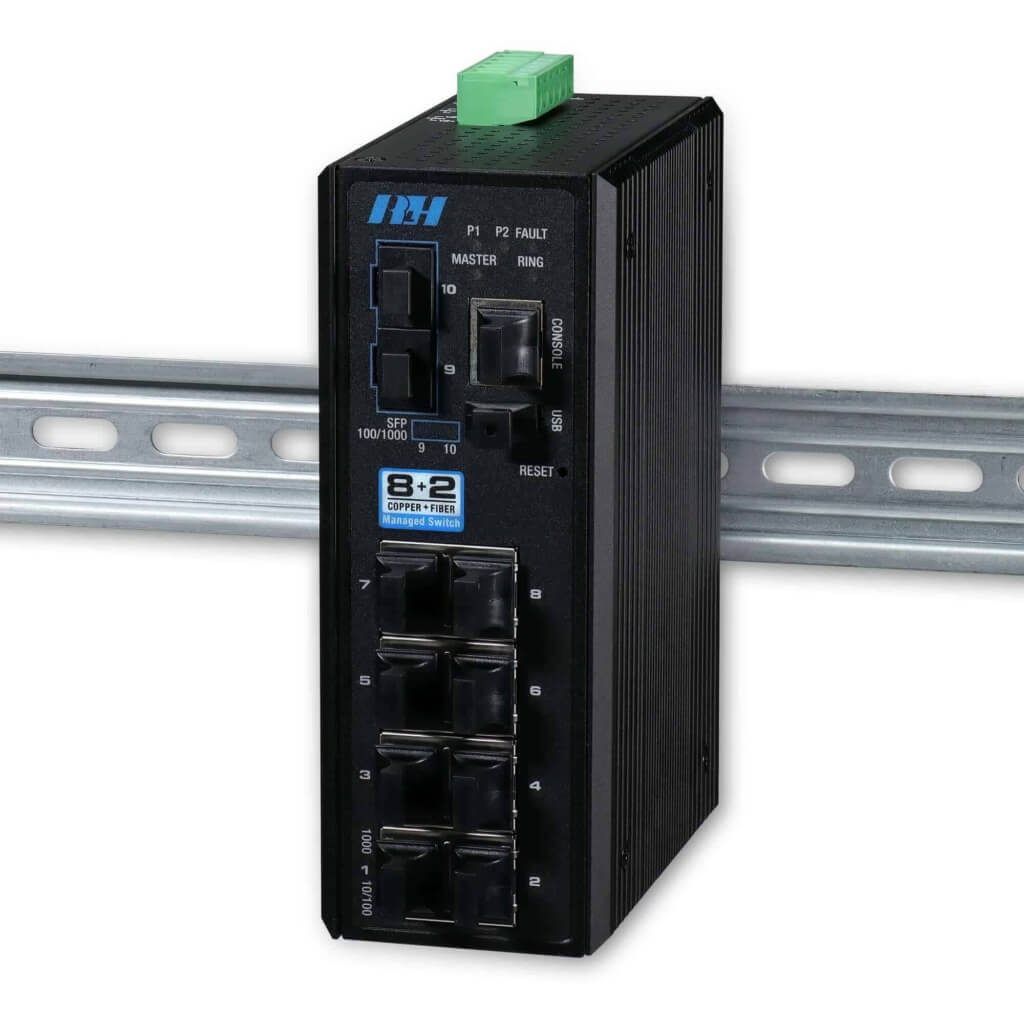

Mounting Style:
Standard DIN rail (TS-35) or wall mount
Wall mount brackets included

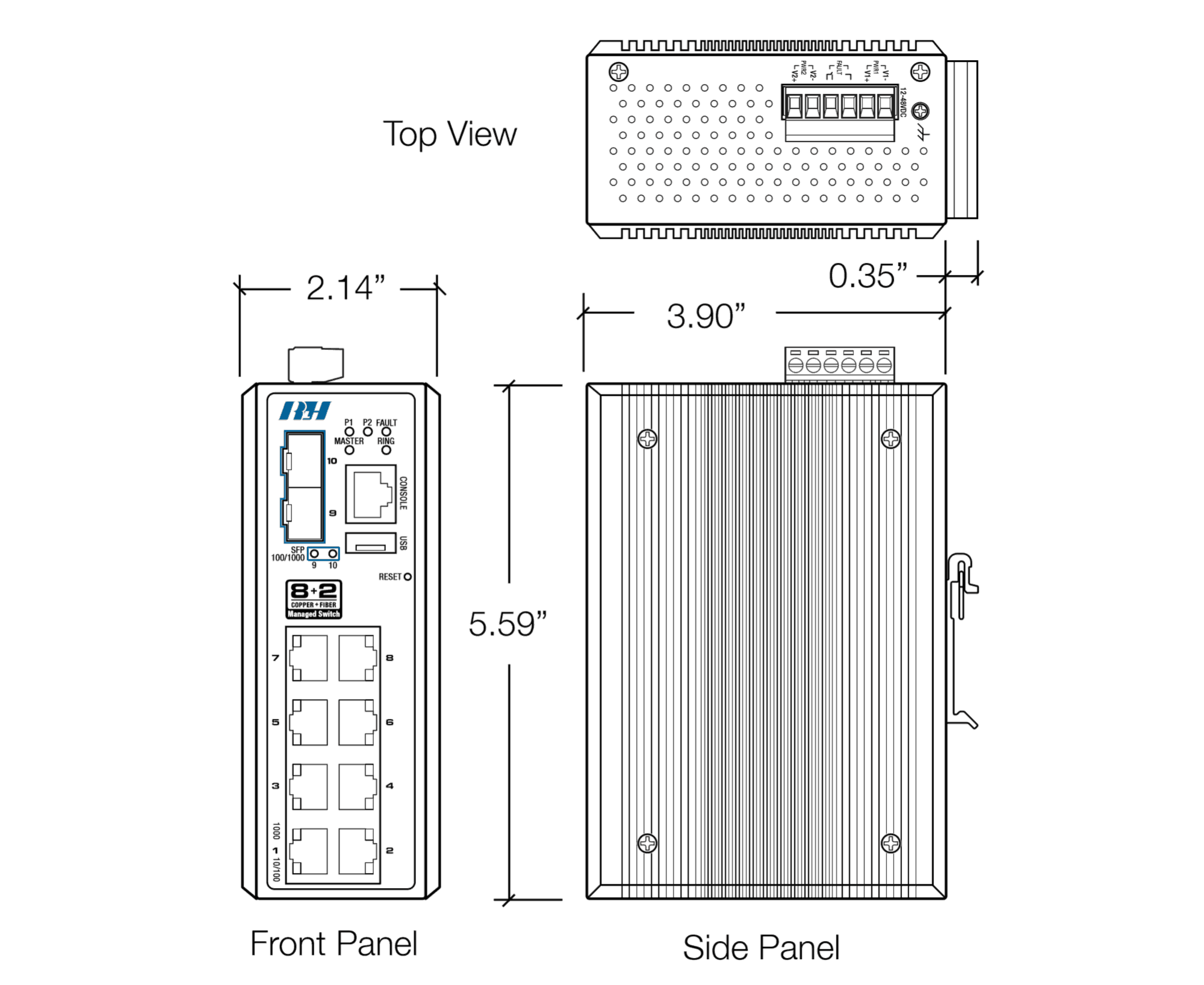

Dimensions:
2.14” (W) x 3.90” (D) x 5.59” (H), (54mm x 99mm x 142mm)

*Not including connectors or DIN bracket

Operating Temperature:
-40°F to 167°F (-40°C to 75°C)

Fault Output:
1 Relay output rated for 24VDC @ 1 Amp

Power Protection:
Over Current, Power Reversal, Polarity Protection
