Industrial, Rugged and Compact
RLH industrial switches are engineered to provide reliable network performance in harsh environments. The 8+4 Gigabit SFP switch is an unmanaged switch that accepts both copper and fiber Gigabit Ethernet access. Dual rate industrial grade SFPs are recommended.
It is environmentally hardened to operate over a wide temperature range, which makes it ideal for locations that are found in industrial locations, such as in factory, utility, equipment closets, and other uncontrolled environments.
Our industrial switches robust features and construction meet the demands of a variety of applications, and are an ideal solution for a wide range of utility and automation environments.
Features
- Hardened design has a wide operating temperature range -40°F to +167°F (-40°C to +75°C)
- 4 Dual Rate SFP ports – 100Mbps & 1Gbps
- 8 ports Gigabit Ethernet
- Supports Jumbo Frames
- Auto MDI/MDI-X
- Store-and-forward switching architecture
- Rugged case rated to IP30
- 12-48VDC redundant power inputs with built-in alarm
- 2kV surge protection

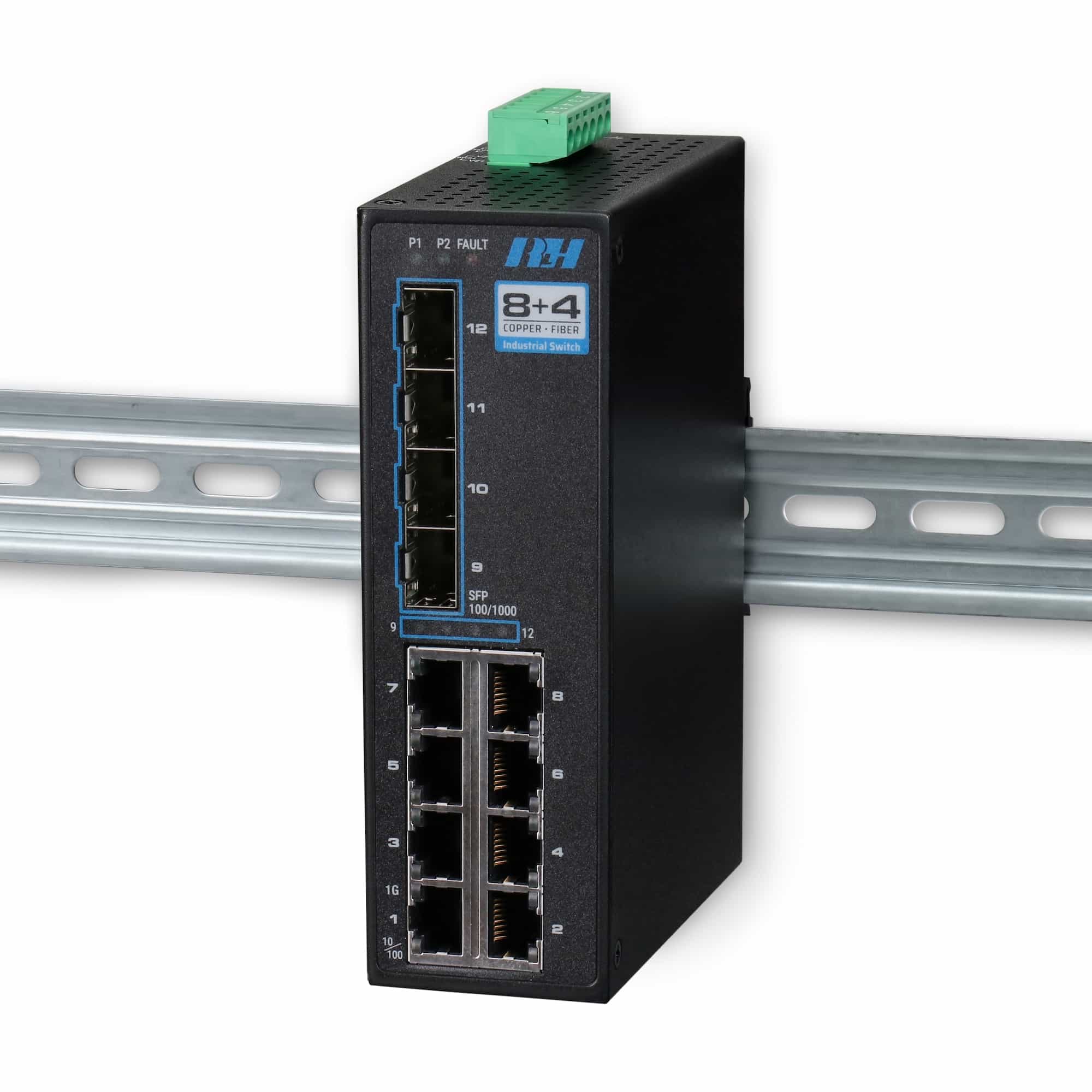

- DIN rail & wall mountable
- UL Listed
Construction
Powder coated IP30 steel housing
Transfer Rates
14,880pps – Ethernet port
148,800pps – Fast Ethernet port
1,488,000pps – Gigabit Ethernet port
Transfer Distance
Up to 100 Meters over twisted pair
Ethernet Interface
Supports Jumbo Frames, Auto MDI/MDI-X, Auto-Negotiation
Ethernet Ports
(8) 10/100/1000 Mbps
(4) SFP Slots, Accepts 100 or 1000 Mbps speed transceivers
Power Protection
Over Current, Power Reversal, Polarity Protection
Power Input
12~48VDC redundant power inputs (6 position pluggable terminal block)
Operating Temperature
-40°F to 167°F (-40°C to 75°C)

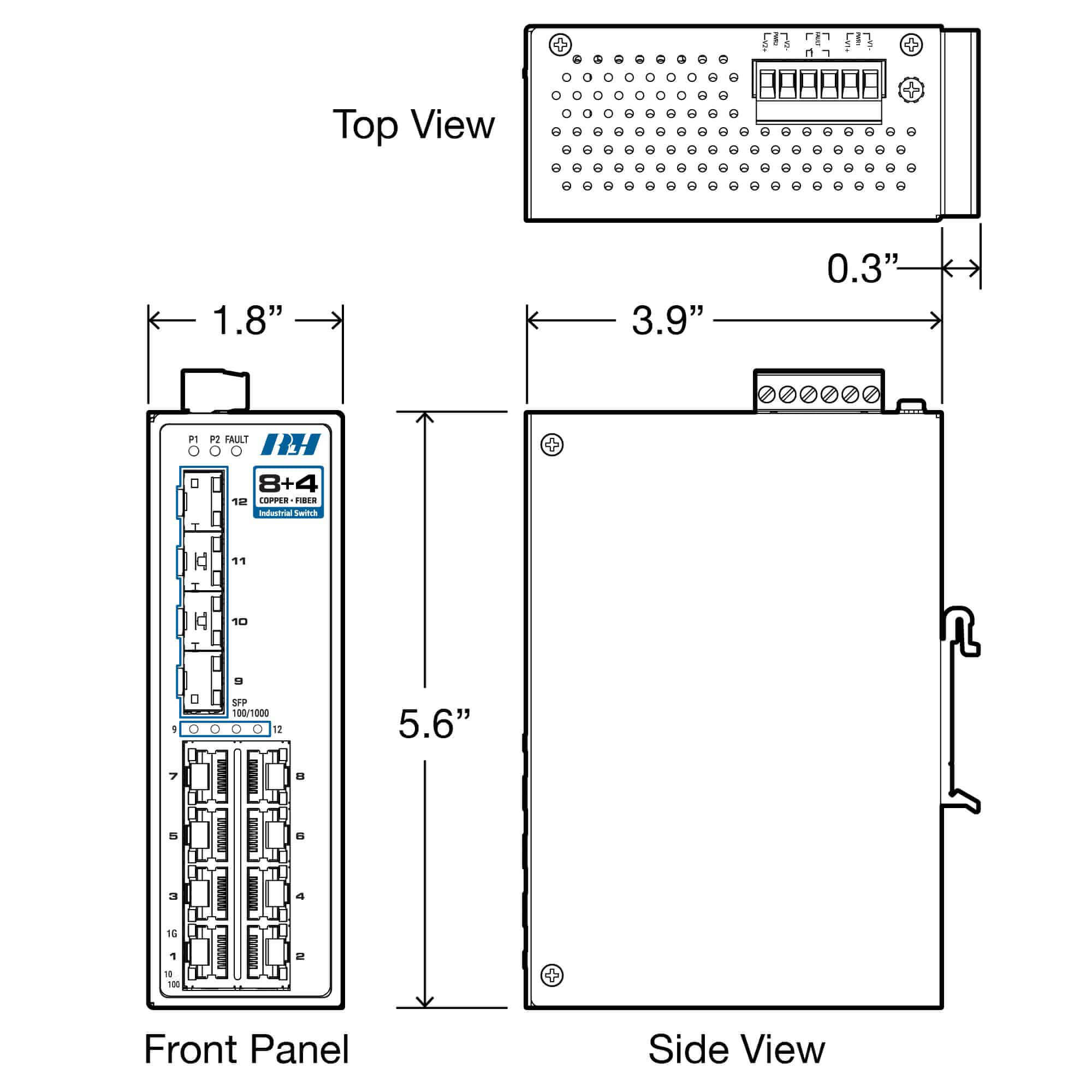

Case Dimensions
1.18” (W) x 3.90” (D) x 5.59” (H), (30mm x 99mm x 142mm)
*Not including connectors or DIN bracket
Safety
CE, FCC Class A, UL 61010-1 and UL 61010-2-201, File Number: E544369, RoHS and REACH compliant
Warranty
Limited 5 years
General Information
ETH-84G-1
Ordering
8+4 Gigabit SFP Switch
| Short description | Part number | Price | |
|---|---|---|---|
| 8+4 Gigabit SFP Switch, 12~48VDC, (8) Gigabit Ethernet, (4) SFP Slots | ETH-84G-1 | $785.00 |
- View our compatible Fast Ethernet SFPs
- View our compatible Gigabit SFPs
