Managed Industrial Light Layer 3 Gigabit Switch
RLH managed industrial switches are engineered to provide reliable network performance in harsh environments. The 8+4 Managed Gigabit SFP switch provides both copper and fiber Gigabit Ethernet access. his environmentally hardened Light Layer 3 switch is manageable and offers a wide array of configuration and monitoring options.
Our feature rich industrial switch meets the demands of a variety of applications, and are an ideal solution for a wide range of utility and automation environments.
- Hardened design has a wide operating temperature range -40°C to +75°C (-40°F to +167°F)
- 4 Dual Rate SFP ports – 100Mbps & 1Gbps
- 8 Ports of Gigabit Ethernet
- 9.6K Bytes Jumbo Frame Support
- Auto MDI/MDI-X
- Store-and-forward switching architecture
- Rugged case rated to IP-30
- Redundant power inputs with built-in alarm
- 2kV surge protection
- DIN rail & wall mountable
- UL Listed
- Managed Features:
- Light Layer 3 Switch – Supports Static Routes, Inter-VLAN Routing, ACLs, IPv4/IPv6, and DHCP Option 66/67/82
- Configuration via Web, Serial, Telnet, & SSH
- Supports SNMPv3
- Supports IEEE 802.1q Vlans
- Port Mirroring, Control, & Monitoring
Construction:
Powder coated IP30 steel housing
Ethernet Ports:
(8) 10/100/1000 Mbps
SFP Sides:
(4) Dual Rate SFP
Supports both 100 &1000 Mbps speed modules
Ethernet Interface:
Supports Jumbo Frames, Auto MDI/MDI-X, Auto Negotiation
Management:
Light Layer 3 – See User Guide for complete management details

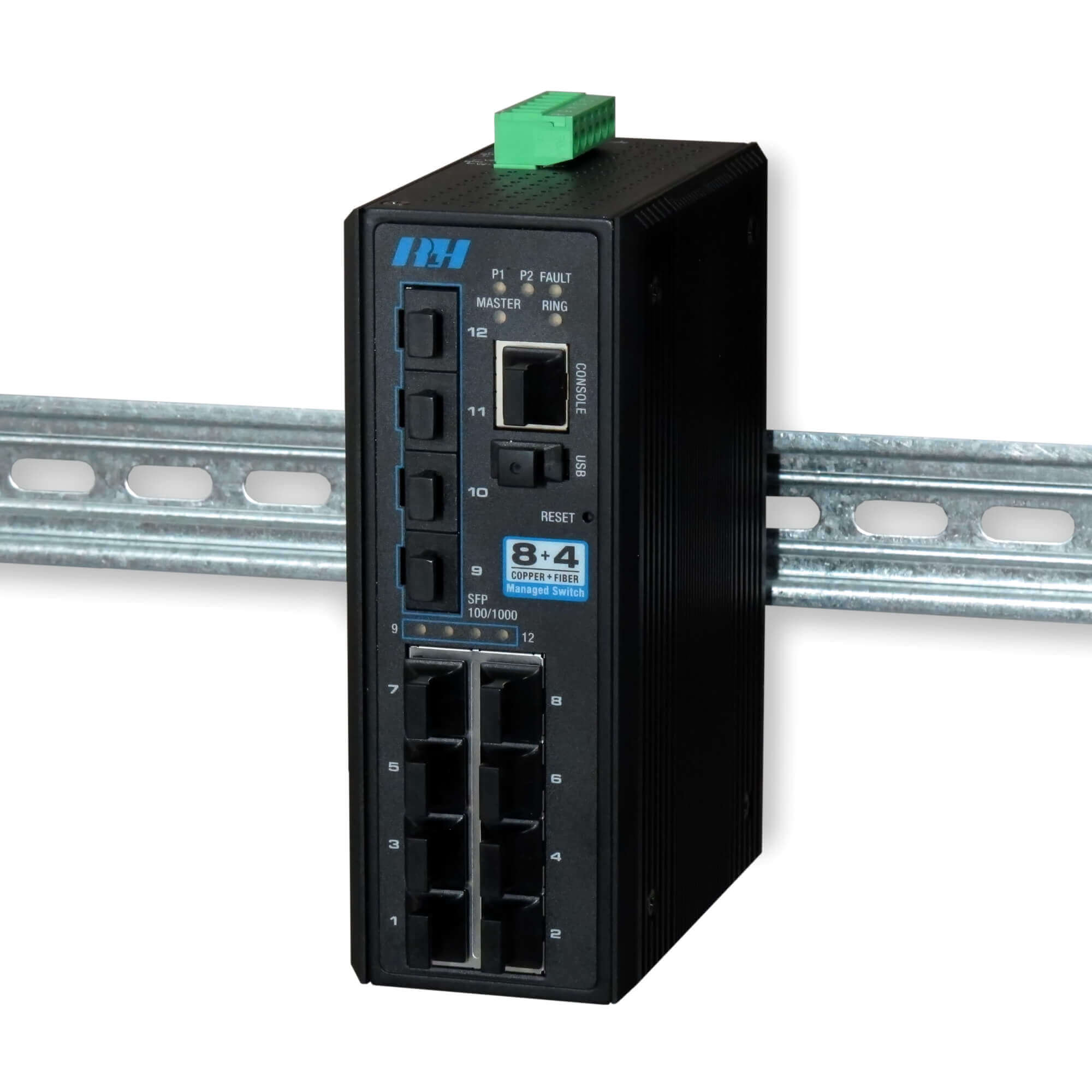

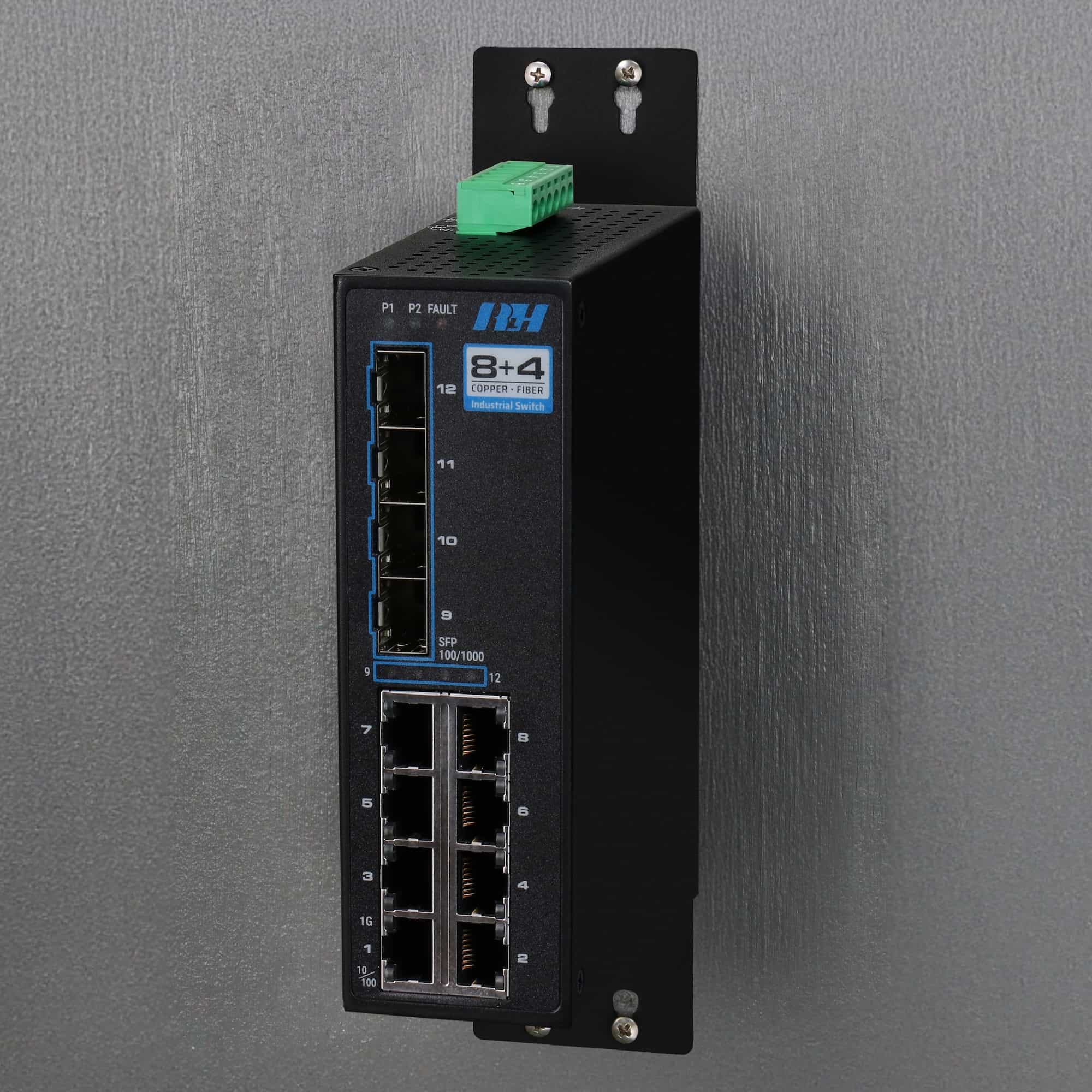

Mounting Style:
Standard DIN rail (TS-35) or wall mount
Wall mount brackets included

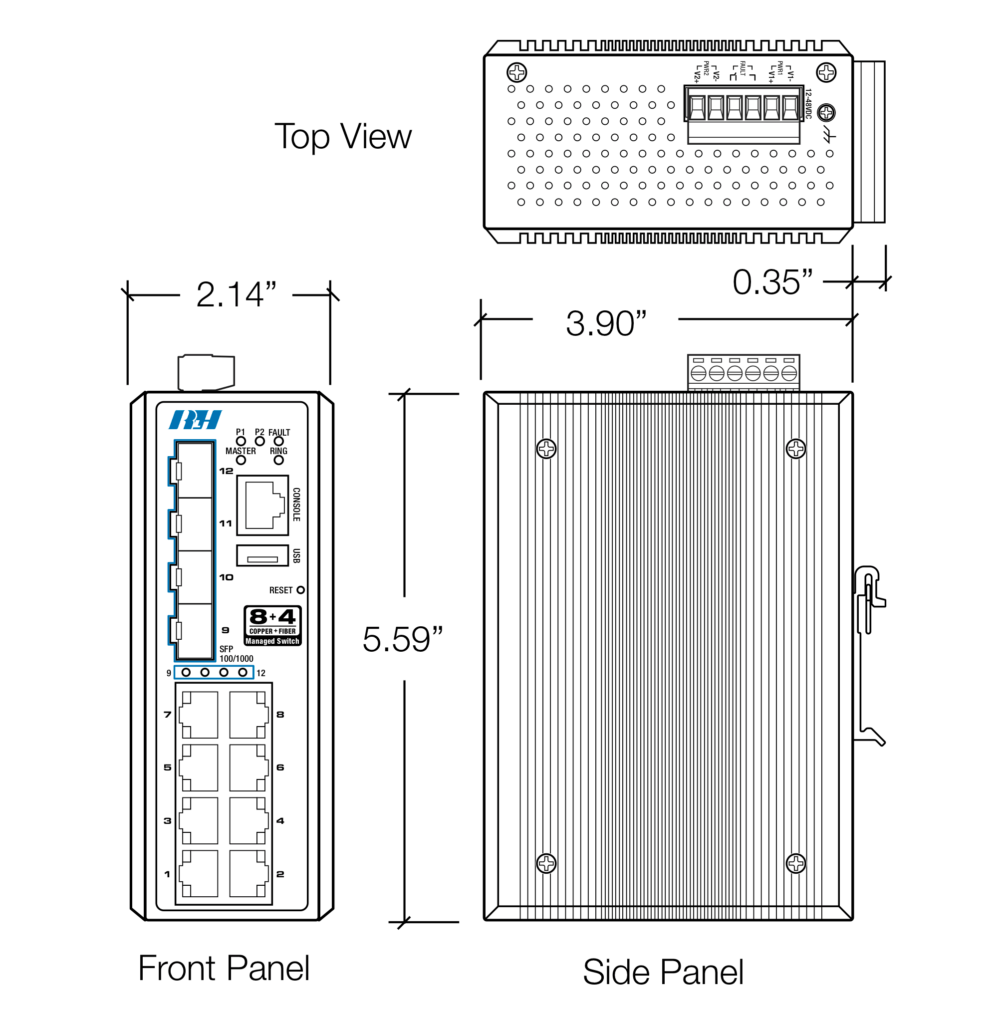

Dimensions:
2.14” (W) x 3.90” (D) x 5.59” (H), (54mm x 99mm x 142mm)
Not including connectors or DIN bracket
Operating Temperature:
-40°F to 167°F (-40°C to 75°C)
Fault Output:
1 Relay output rated for 24VDC @ 1 Amp
Power Protection:
Over Current, Power Reversal, Polarity Protection
Powering Requirement:
12~48VDC redundant power inputs
Safety:
UL Listed, FCC Class A, CE
General Information
Specialized Drawings
Miscellaneous
ETH-84GM-1
Ordering
8+4 Managed Gigabit SFP Switch
| Short description | Part number | Price | |
|---|---|---|---|
| Managed Switch, 8 Gigabit RJ-45 Ports, 4 Dual Rate SFP Ports, Powering Voltage 12-48 DC | ETH-84GM-1 | $1,145.00 |
- View our compatible Fast Ethernet SFPs
- View our compatible Gigabit SFPs
