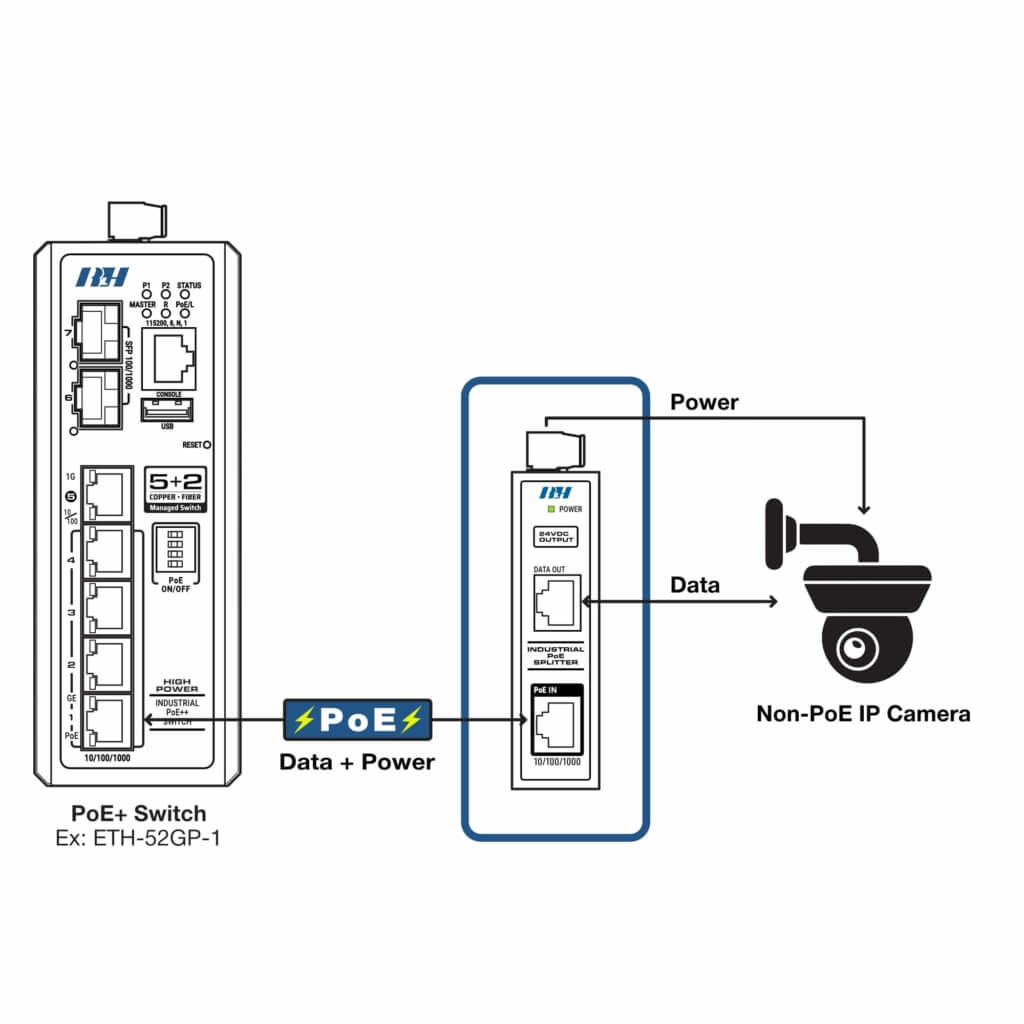

The RLH Industrial 1-Port Gigabit PoE+ Splitter is a high powered PoE splitter used in Power over Ethernet Systems to separate the Ethernet data and DC Power supplied by PoE. PoE inserted into its PoE IN port (Data + Power) is split between the Gigabit-rated DATA OUT port (Data only), and a DC Power terminal block (Power only) for outputting up to 24VDC/1.125A of power. This outputted DC Power is useful in applications that include non-PoE compliant Wireless APs, Security Cameras, IP Cameras.

The splitter’s internal current limit and short circuit/overload protection features enhance its ability to function reliably as a DC power supply. RLH Gigabit PoE Splitters are covered by our 5 year warranty.

Features

Fully compliant with IEEE802.3at (PoE+) standard
Supports 10/100/1000 Base-T(X)
Power Isolation and Short Circuit Protection for Power Output
Auto protection for Over Voltage Power Input
Supports Power Output up to 24VDC/1.125A (27Watts)
Hardened to operate in -4°F to +158°F (-20°C to +70°C)
DIN rail or Wall Mount (Wall mount ears included)
Power Input (36~57VDC) from PoE supplied to PoE IN port
Power Output (24V + 5%) @1.125A max on 4-pin terminal block
Covered by our 5 Year Warranty

Please see the product documentation for the complete list of specifications

Ethernet Ports:
PoE IN: 10/100/1000Base-T(X), PoE+ Input (RJ45 Female)
DATA OUT: 10/100/1000Base-T(X) (RJ45 Female)

Power:
Input: Power over Ethernet (PoE IN Port), 36~57VDC
Output: 4 Pin Terminal Block, 24V + 5% @1.125A max

Power Consumption:
27 Watts (Maximum)

Temperature:
Storage -40˚C to +85˚C (-40˚F to +185˚F)
Operating -20˚C to +70˚C (-4˚F to +158˚F)

Dimensions:

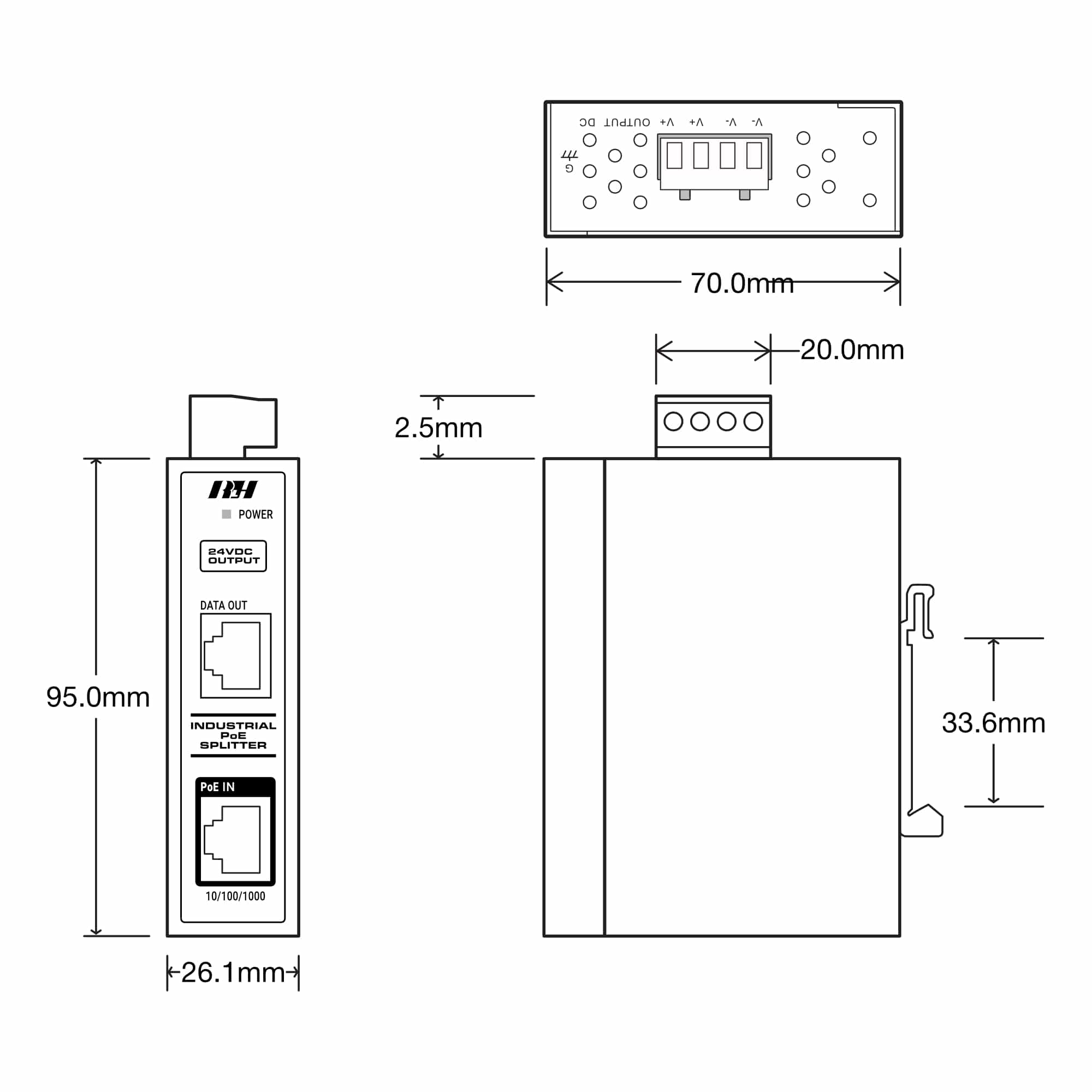

H 3.74” x W 1.03” x D 2.76”, (95mm x 26.1mm x 70mm) – not including DIN clip

Weight:
0.55 lbs. (250g)

Mounting:

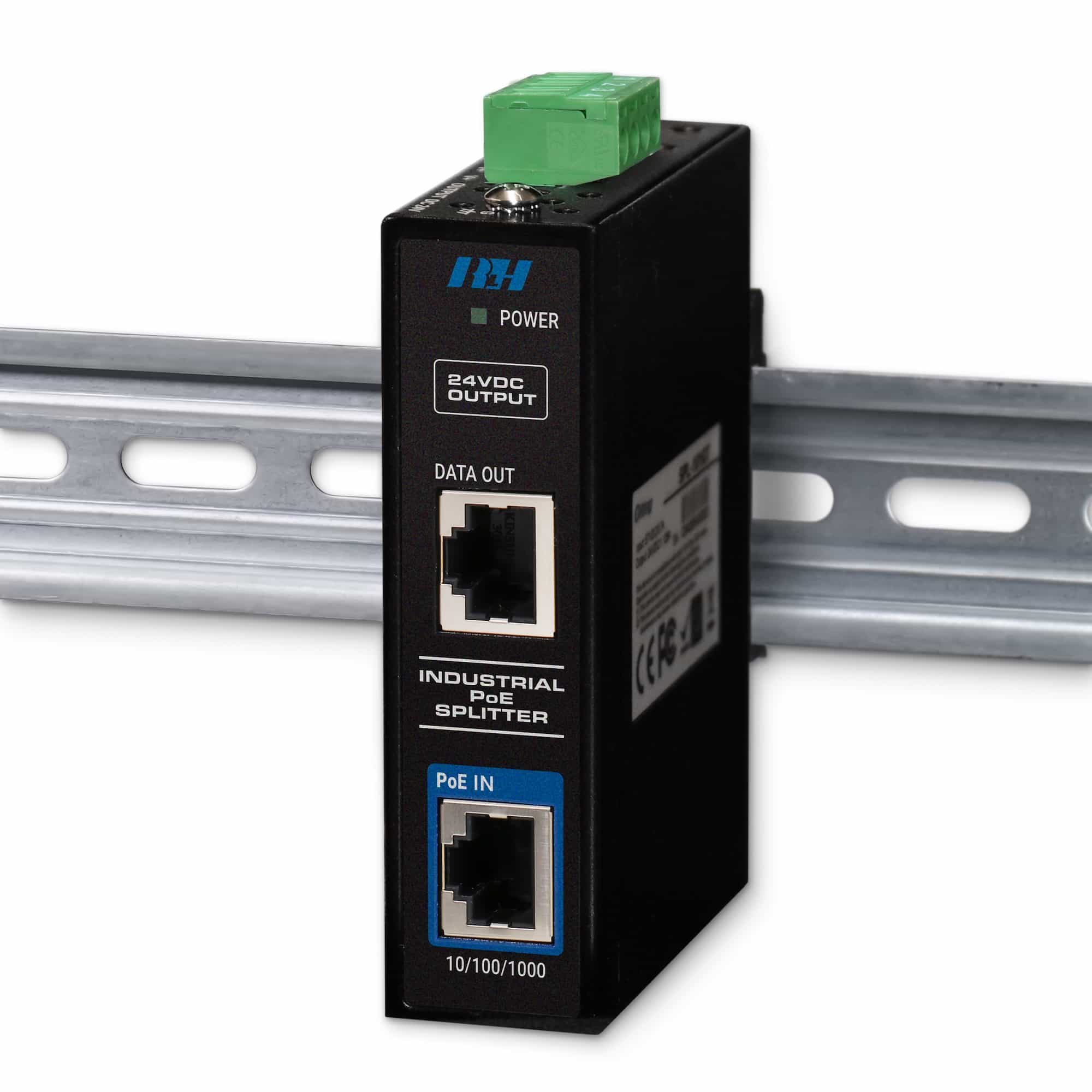

Standard T-35 DIN rail clip and wall mount ears (Included)

EMI:
FCC Part 15, CISPR (EN55022) class B

Stability Testing:
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8 (PFMF), EN61000-4-11 (Dips)

Safety:
FCC Class B, CE, RoHS

Warranty:
5 Years
