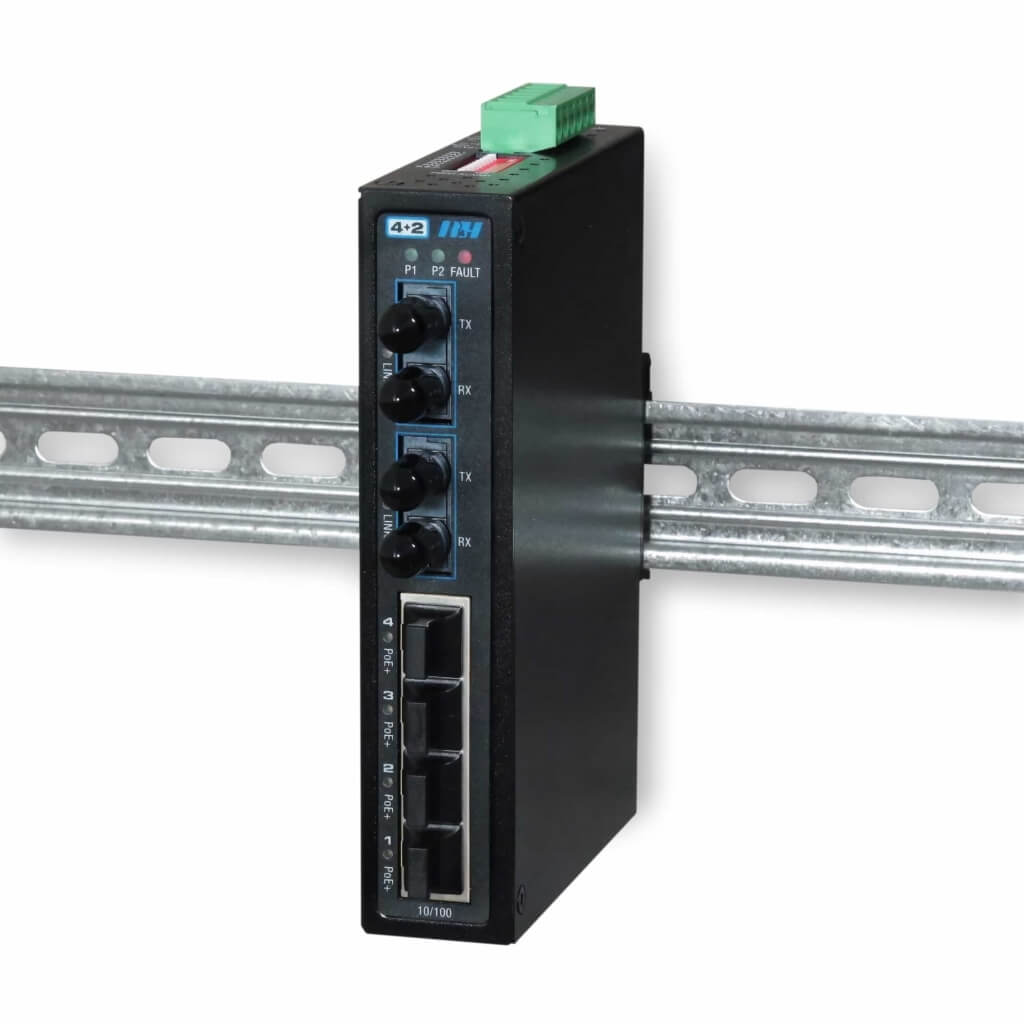

Industrial PoE+ Fiber Switch
RLH industrial switches are engineered to provide reliable network performance in demanding environments. The 4+2 Fiber PoE+ switch provides four Ethernet ports providing PoE+ power to networked equipment and two fiber ports. It is environmentally hardened to operate in a wide temperature range, which is the standard for RLH equipment.
The PoE+ ports provide up to 30 Watts of power to end devices following the IEEE 802.3af/at standard. The switch also comes with redundant power inputs and fault alarm relay for reliability.
Our industrial switches robust construction and features meet the demands of a variety of applications, and are an ideal solution for a wide range of utility and automation environments.
Features
- Hardened design has a wide operating temperature range -40°C to +75°C (-40°F to +167°F)
- 2 Fiber 100BaseFX ports
- Multimode and singlemode fiber, ST or SC connectors
- Extend Ethernet over fiber, up to 74 miles (120km)
- 4 PoE+ ports with up to 30 watts per port
- IEEE 802.3af/at Power Over Ethernet
- PoE Mode A (End Span)
- Auto MDI/MDI-X
- 48-55VDC redundant power inputs with built-in alarm
- 2kV surge protection
- DIN rail & wall mountable
- UL Listed
Please see the product documentation for the complete list of specifications
Construction:
Powder coated IP30 steel housing
Ethernet Ports:
(4) 10/100 PoE+
Ethernet Interface:
Auto MDI/MDI-X, Auto Negotiation
PoE Powering:
30 Watts @ 48VDC per port
IEEE 802.2af/at (Mode A / End Span)
Fiber Ports:
(2) 100BaseFX, ST or SC Connectors
Fiber Wavelength:
Multimode: 1310nm
Singlemode: 1310nm, 1550nm
Other wavelengths available by request
Mounting Style:
Standard DIN rail (TS-35) or wall mount
Wall mount brackets included
Dimensions:
1.18” (W) x 3.90” (D) x 5.59” (H), (30mm x 99mm x 142mm)
Not including connectors or DIN bracket
Operating Temperature:
-40°F to 167°F (-40°C to 75°C)
Fault Output:
1 Relay output rated for 24VDC @ 1 Amp
Power Protection:
Over Current, Power Reversal, Polarity Protection
Powering Requirement:
48~55VDC redundant power inputs
Safety:
UL Listed, FCC Class A, CE
General Information
CAD Files
ETH-42P-04-1
ETH-42P-03-1
ETH-42P-50-1
ETH-42P-51-1
ETH-42P-55-1
ETH-42P-40-1
ETH-42P-41-1
ETH-42P-45-1
ETH-42P-10-1
ETH-42P-11-1
ETH-42P-14-1
ETH-42P-15-1
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
Industrial 4+2 Fiber PoE+ Switch
| Product configuration | Mode | Connector | Distance | Fibers | Wavelength | Part number | Price | |
|---|---|---|---|---|---|---|---|---|
| 4 Fast Ethernet RJ-45 Ports, 2 Fiber Ports – Multimode, ST, 2km/1.2 miles, Dual Fiber, 1310nm, 30 Watt PoE+, Powering Voltage 48-55 DC | Multimode | ST | 2km/1.2 miles | Dual Fiber | 1310nm | ETH-42P-04-1 | $440.00 | |
| 4 Fast Ethernet RJ-45 Ports, 2 Fiber Ports – Multimode, SC, 2km/1.2 miles, Dual Fiber, 1310nm, 30 Watt PoE+, Powering Voltage 48-55 DC | Multimode | SC | 2km/1.2 miles | Dual Fiber | 1310nm | ETH-42P-03-1 | $440.00 | |
| 4 Fast Ethernet RJ-45 Ports, 2 Fiber Ports – Singlemode, ST, 20km/12.4 miles, Dual Fiber, 1310nm, 30 Watt PoE+, Powering Voltage 48-55 DC | Singlemode | ST | 20km/12.4 miles | Dual Fiber | 1310nm | ETH-42P-50-1 | $490.00 | |
| 4 Fast Ethernet RJ-45 Ports, 2 Fiber Ports – Singlemode, ST, 60km/37 miles, Dual Fiber, 1310nm, 30 Watt PoE+, Powering Voltage 48-55 DC | Singlemode | ST | 60km/37 miles | Dual Fiber | 1310nm | ETH-42P-51-1 | $710.00 | |
| 4 Fast Ethernet RJ-45 Ports, 2 Fiber Ports – Singlemode, ST, 120km/74 miles, Dual Fiber, 1550nm, 30 Watt PoE+, Powering Voltage 48-55 DC | Singlemode | ST | 120km/74 miles | Dual Fiber | 1550nm | ETH-42P-55-1 | $1,150.00 | |
| 4 Fast Ethernet RJ-45 Ports, 2 Fiber Ports – Singlemode, SC, 20km/12.4 miles, Dual Fiber, 1310nm, 30 Watt PoE+, Powering Voltage 48-55 DC | Singlemode | SC | 20km/12.4 miles | Dual Fiber | 1310nm | ETH-42P-40-1 | $490.00 | |
| 4 Fast Ethernet RJ-45 Ports, 2 Fiber Ports – Singlemode, SC, 60km/37 miles, Dual Fiber, 1310nm, 30 Watt PoE+, Powering Voltage 48-55 DC | Singlemode | SC | 60km/37 miles | Dual Fiber | 1310nm | ETH-42P-41-1 | $710.00 | |
| 4 Fast Ethernet RJ-45 Ports, 2 Fiber Ports – Singlemode, SC, 120km/74 miles, Dual Fiber, 1550nm, 30 Watt PoE+, Powering Voltage 48-55 DC | Singlemode | SC | 120km/74 miles | Dual Fiber | 1550nm | ETH-42P-45-1 | $1,150.00 | |
| 4 Fast Ethernet RJ-45 Ports, 2 Fiber Ports – Singlemode, SC, 20km/12.4 miles, Single Fiber – Side A , T-1310/R-1550, 30 Watt PoE+, Powering Voltage 48-55 DC | Singlemode | SC | 20km/12.4 miles | Single Fiber - Side A | T-1310/R-1550 | ETH-42P-10-1 | $650.00 | |
| 4 Fast Ethernet RJ-45 Ports, 2 Fiber Ports – Singlemode, SC, 20km/12.4 miles, Single Fiber – Side B , T-1550/R-1310, 30 Watt PoE+, Powering Voltage 48-55 DC | Singlemode | SC | 20km/12.4 miles | Single Fiber - Side B | R-1310/T-1550 | ETH-42P-11-1 | $650.00 | |
| 4 Fast Ethernet RJ-45 Ports, 2 Fiber Ports – Singlemode, SC, 60km/37 miles, Single Fiber – Side A , T-1310/R-1550, 30 Watt PoE+, Powering Voltage 48-55 DC | Singlemode | SC | 60km/37 miles | Single Fiber - Side A | T-1310/R-1550 | ETH-42P-14-1 | $830.00 | |
| 4 Fast Ethernet RJ-45 Ports, 2 Fiber Ports – Singlemode, SC, 60km/37 miles, Single Fiber – Side B , T-1550/R-1310, 30 Watt PoE+, Powering Voltage 48-55 DC | Singlemode | SC | 60km/37 miles | Single Fiber - Side B | R-1310/T-1550 | ETH-42P-15-1 | $830.00 |
- Single fiber (bi-directional) systems must always be paired, side A and side B
