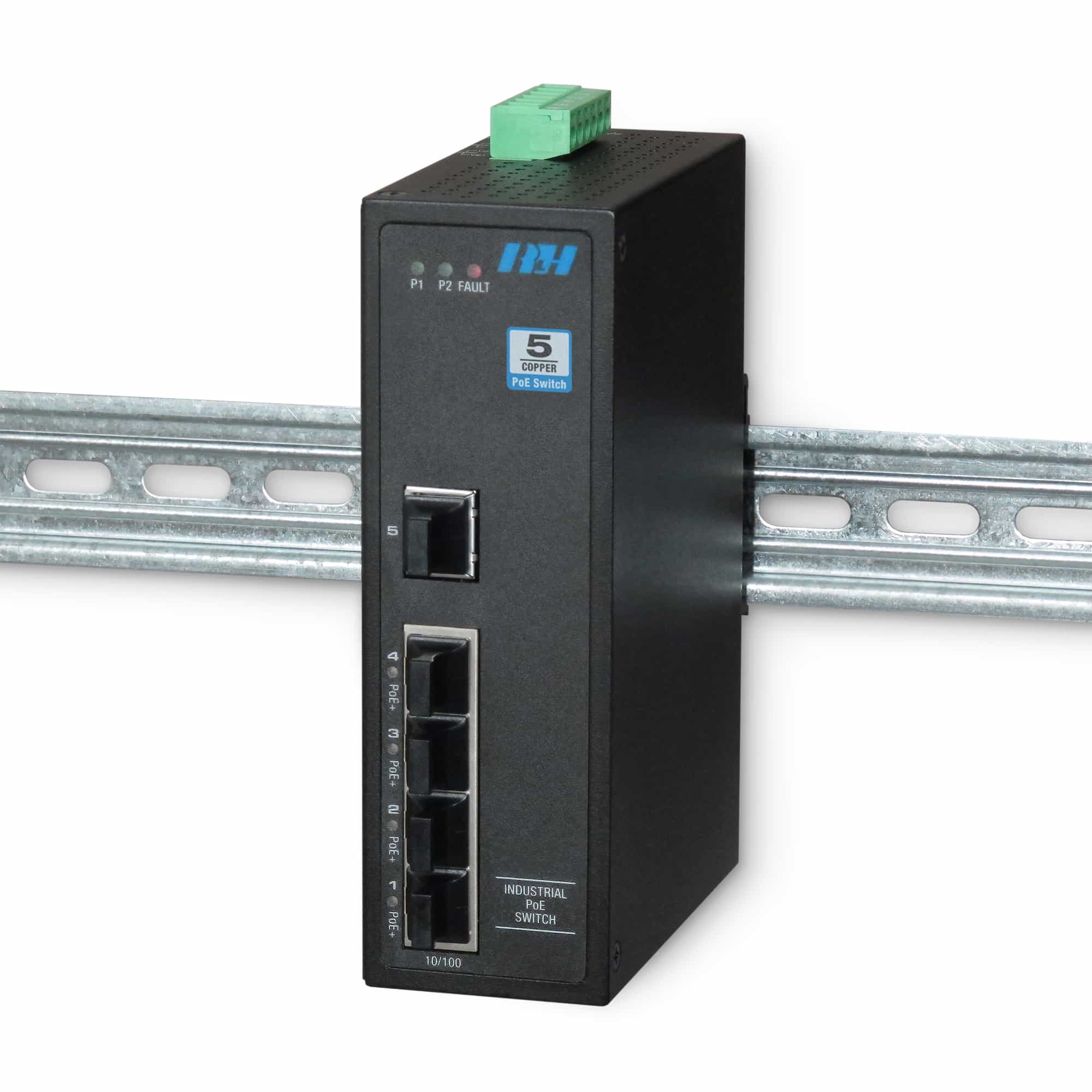

Industrial PoE+ Fast Ethernet Switch
RLH industrial switches are engineered to provide reliable network performance in harsh environments. This 5 port switch provides Ethernet access along with PoE+ powering. It is environmentally hardened to operate in a wide temperature range, which is the standard for RLH equipment.
The PoE+ ports provide up to 30 Watts of power to end devices following the IEEE 802.3af/at standard. The unique Flex Power feature allows the device to maintain a consistent PoE+ voltage to end devices regardless of the DC powering voltage provided.
Our industrial switches robust features and construction meet the demands of a variety of applications, and are an ideal solution for a wide range of utility and automation environments.
Features
- Hardened design has a wide operating temperature range -40°F to +167°F (-40°C to +75°C)
- Flex Power – Constant 48VDC PoE+ power (at low input voltages)
- Four PoE+ ports with up to 30 watts per port
- IEEE 802.3af/at Power over Ethernet
- PoE Mode A (End Span)
- Auto MDI/MDI-X
- Store-and-forward switching architecture
- Rugged case rated to IP-30
- 12~36VDC redundant power inputs with built-in alarm
- 2kV surge protection
- DIN rail & wall mountable
- UL Listed
Please see the product documentation for the complete list of specifications
Construction:
Powder coated IP30 steel housing
Ethernet Ports:
(4) 10/100 PoE+
(1) 10/100 Mbps
Ethernet Interface:
Auto MDI/MDI-X, Auto Negotiation
PoE Powering:
30 Watts @ 48VDC per port
IEEE 802.2af/at (Mode A / End Span)
Flex Power:
Maintains 48VDC PoE+ output when powered with voltages under 48VDC
Mounting Style:
Standard DIN rail (TS-35) or wall mount
*Wall mount brackets included

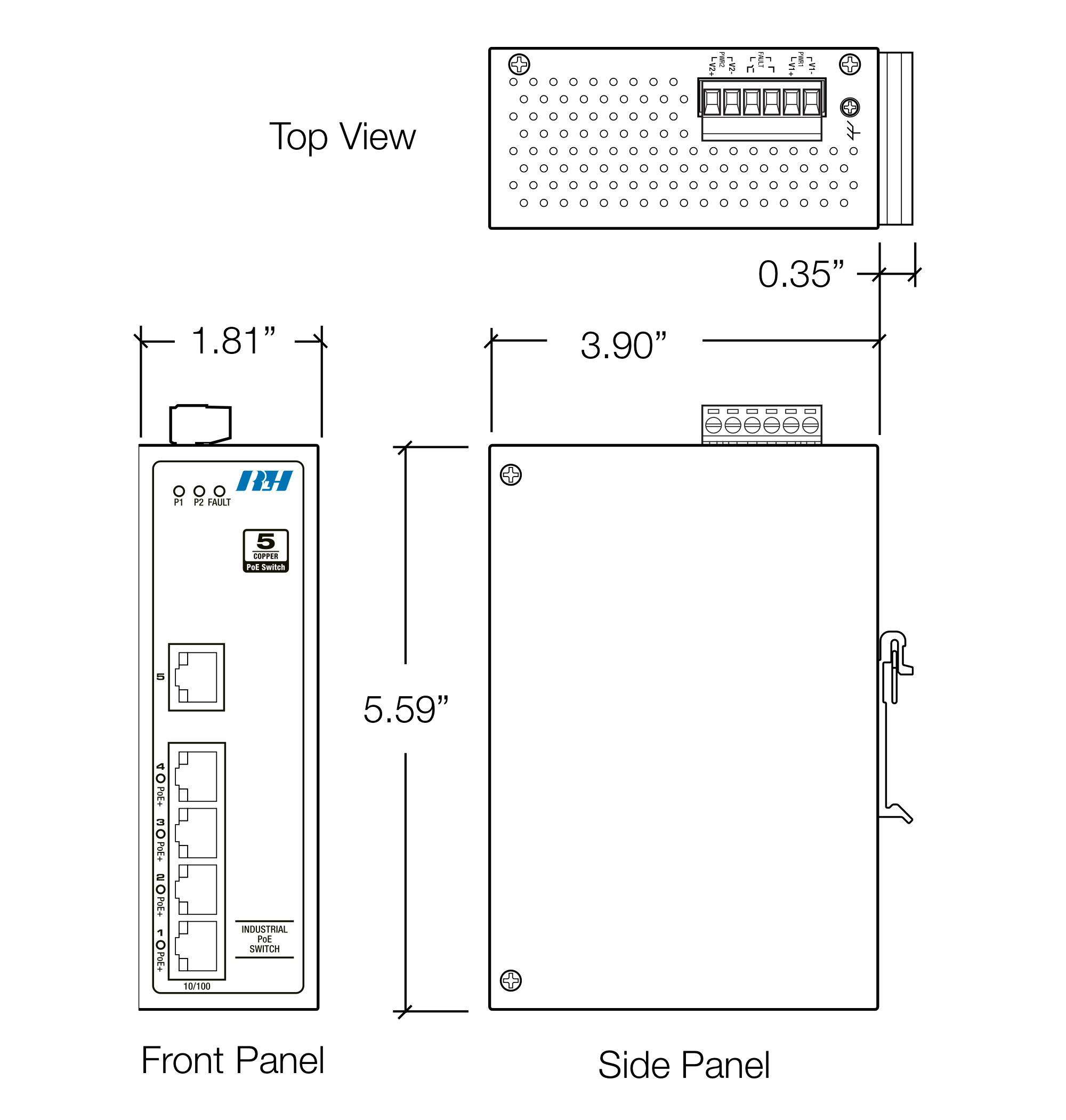

Dimensions:
1.81” (W) x 3.90” (D) x 5.59” (H), (46mm x 99mm x 142mm)
Not including connectors or DIN bracket
Operating Temperature:
-40°F to 167°F (-40°C to 75°C)
Fault Output:
1 Relay output rated for 24VDC @ 1 Amp
Power Protection:
Over Current, Power Reversal, Polarity Protection
Powering Requirement:
12-36VDC redundant power inputs
Safety:
UL Listed, FCC Class A, CE
General Information
CAD Files
ETH-5P-1
$365.00
Lead Time: 1 to 5 Days*
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
Industrial 5 Port PoE+ Switch
| Short description | Part number | Price | |
|---|---|---|---|
| 5 Port 10/100 POE+ Ethernet Switch | ETH-5P-1 | $365.00 |
