Managed Industrial Light Layer 3 Gigabit PoE++ Switch
Overview
Features
Specs
Docs
Diagrams
Numbers
Overview
RLH managed industrial switches are engineered to provide reliable network performance in harsh environments. The 5+2 Managed Gigabit SFP PoE++ switch provides both copper and fiber Gigabit Ethernet access, along with IEEE 802.3bt PoE++ powering capabilities. This environmentally hardened Light Layer 3 switch is manageable and offers a wide array of configuration and monitoring options.
The (4) PoE++ ports provide up to 90 Watts of power to end devices with a maximum total power budget of 240W shared between all 4 ports. The switch also comes with redundant power inputs and fault alarm relay for additional reliability.
Our feature rich industrial switch meets the demands of a variety of applications, and are an ideal solution for a wide range of utility and automation network environments.
Features
System
- 4 Ports of Gigabit PoE++ (90W/Port), IEEE 802.3bt
- 2 Dual Rate SFP ports – 100Mbps & 1Gbps
- 1 Port 10/100/1000Base-T
- Hardened design has a wide operating temperature range -40°F to +167°F (-40°C to +75°C)
- 48V DC redundant power inputs with alarm relay

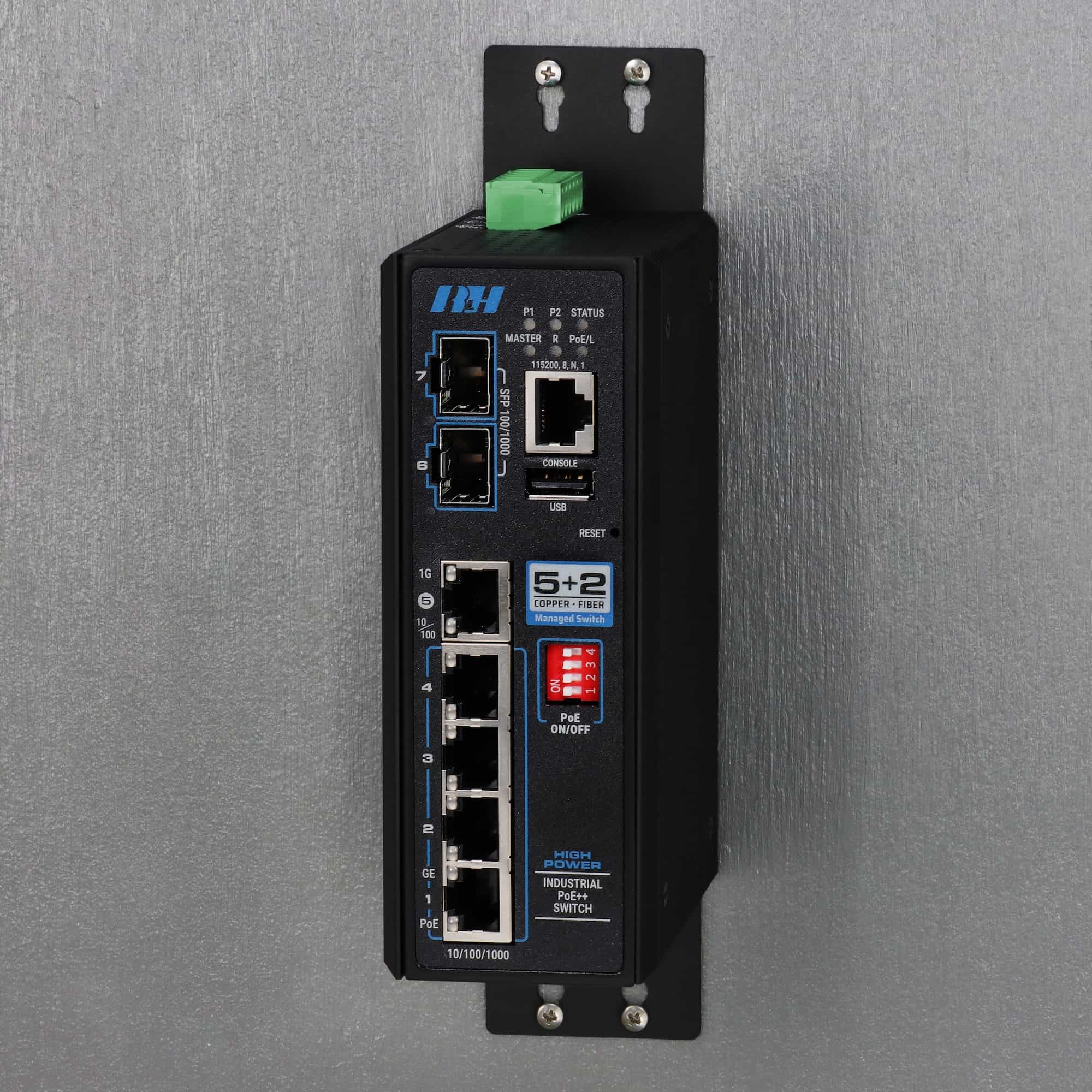

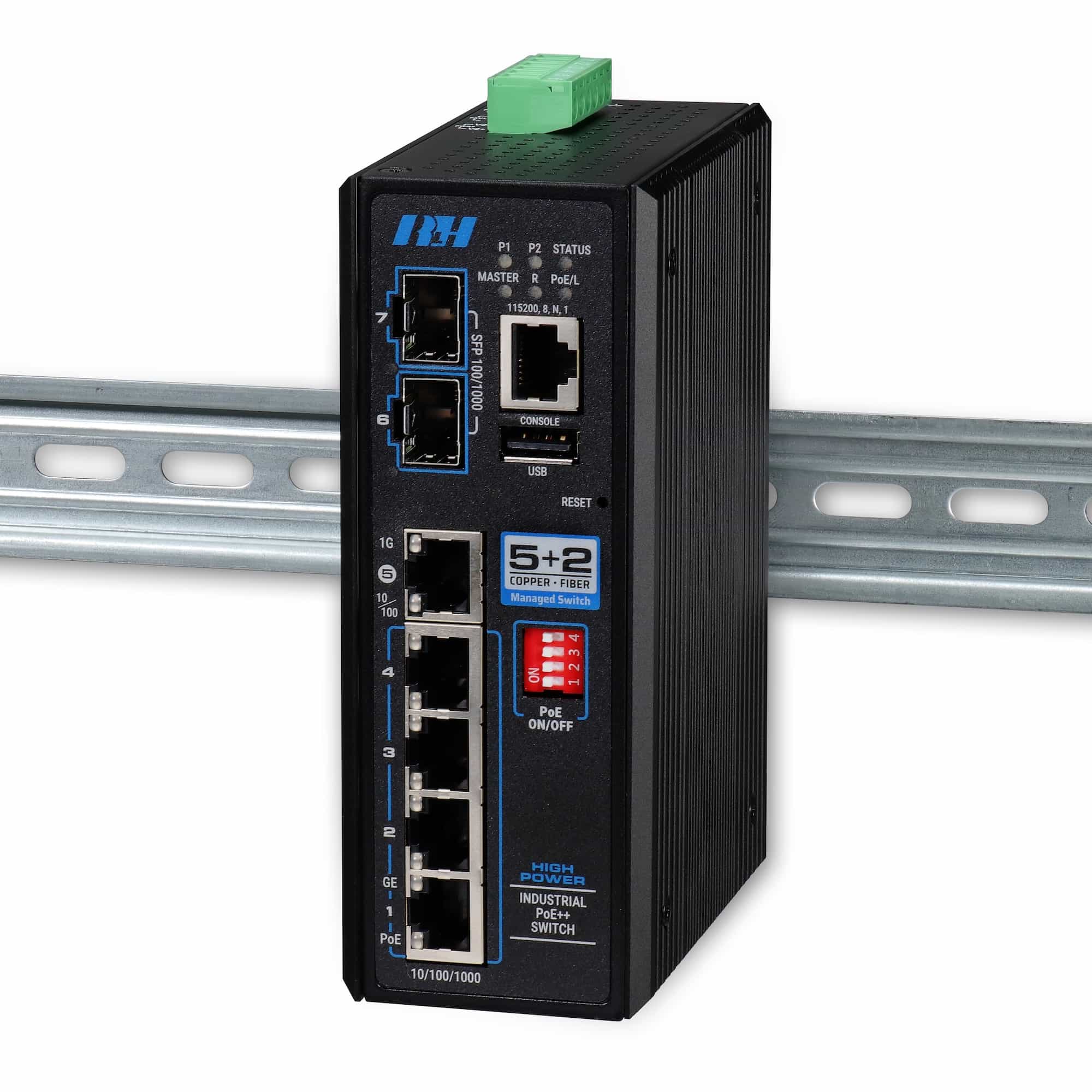

- DIN rail & wall mountable
- UL Listed
Management
- Light Layer 3 Switch – Supports Static Routes, Inter-VLAN Routing, ACLs, IPv4/IPv6, and DHCP Option 66/67/82
- Network Ring support: G.8032 ERPS v2/STP/RSTP/MSTP
- Configuration via Web, Serial, Telnet, & SSH
- Supports VLANs, SNMP v1/v2c/v3, and ACLs
- PoE Port Control & Monitoring
Specs
Construction:
Powder coated IP30 steel housing
Transfer Rates:
14,880pps – Ethernet port, 148,800pps – Fast Ethernet port, 1,488,000pps – Gigabit Ethernet port
Transfer Distance:
Up to 100 Meters over twisted pair
Ethernet Interface:
Supports Jumbo Frames (9.6K), Auto MDI/MDI-X, Auto-Negotiation
Ethernet Ports:
(4) 10/100/1000 Mbps PoE+
(4) SFP Slots, Accepts 100 or 1000 Mbps speed modules
PoE Power:
90 Watts (Mode A, Mode B, 4-Pair Mode)
Power Protection:
Over Current, Power Reversal, Polarity Protection
Power Input:
48~55VDC redundant power inputs (6 position pluggable terminal block)
Operating Temperature:
-40°F to 167°F (-40°C to 75°C)

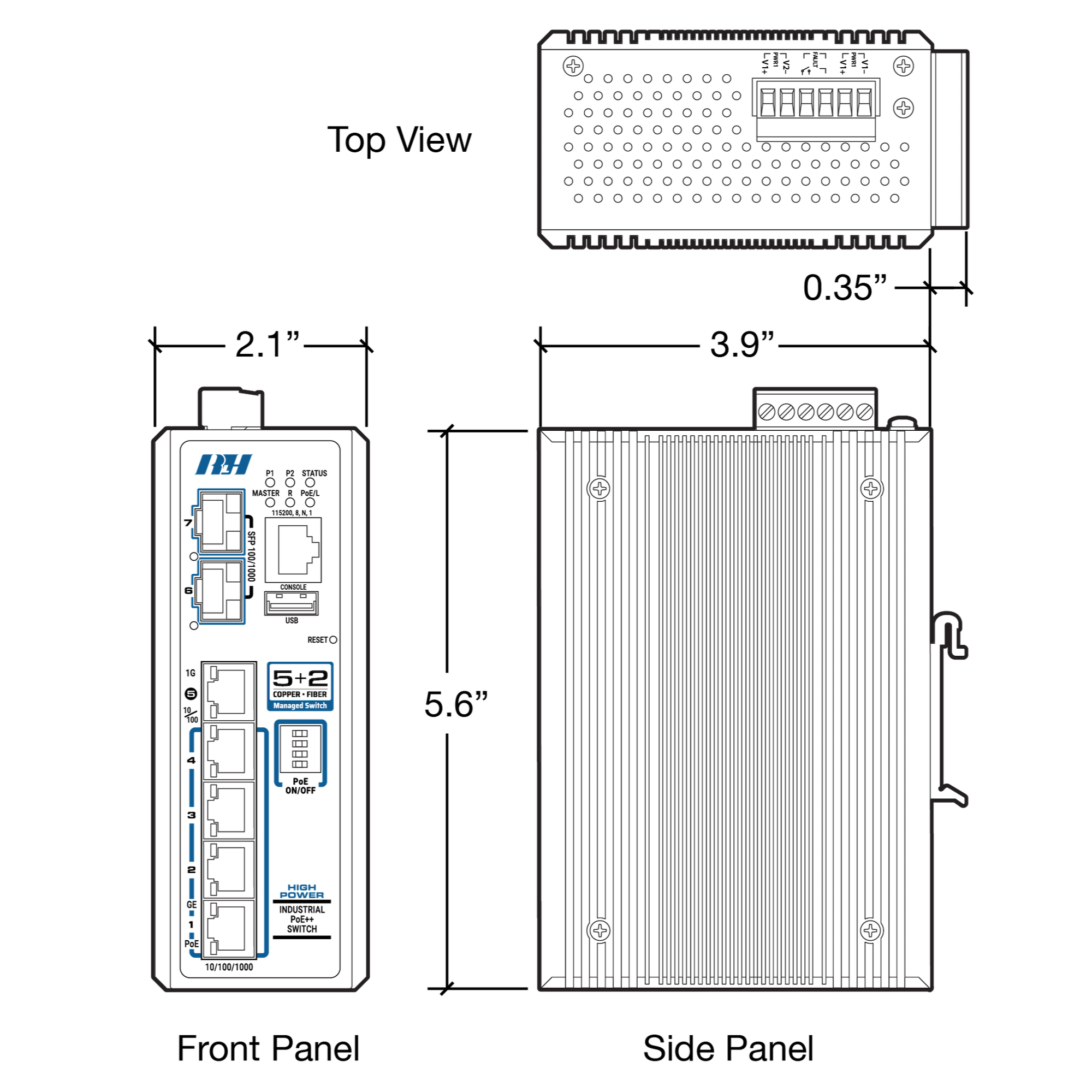

Case Dimensions:
2.12″ (W) x 3.90″ (D) x 5.59″ (H), (54mm x 99mm x 142mm)
Safety:
CE, FCC Class A, UL 61010-1 and UL 61010-2-201, File Number: E544369, RoHS and REACH compliant
Warranty:
5 years
Docs
General Information
Diagrams
Numbers
ETH-52GMP-BT-1
Ordering
Industrial 5+2 Managed Gigabit SFP PoE++ Switch
| Short description | Part number | Price | |
|---|---|---|---|
| Managed Switch, 5 Gigabit RJ-45 Ports, 2 Dual Rate SFP Ports, 90 Watt PoE++, Powering Voltage 48~55 DC | ETH-52GMP-BT-1 | $1,495.00 |
- SFP Transceivers are ordered separately
- View our compatible Fast Ethernet SFPs
- View our compatible Gigabit SFPs
