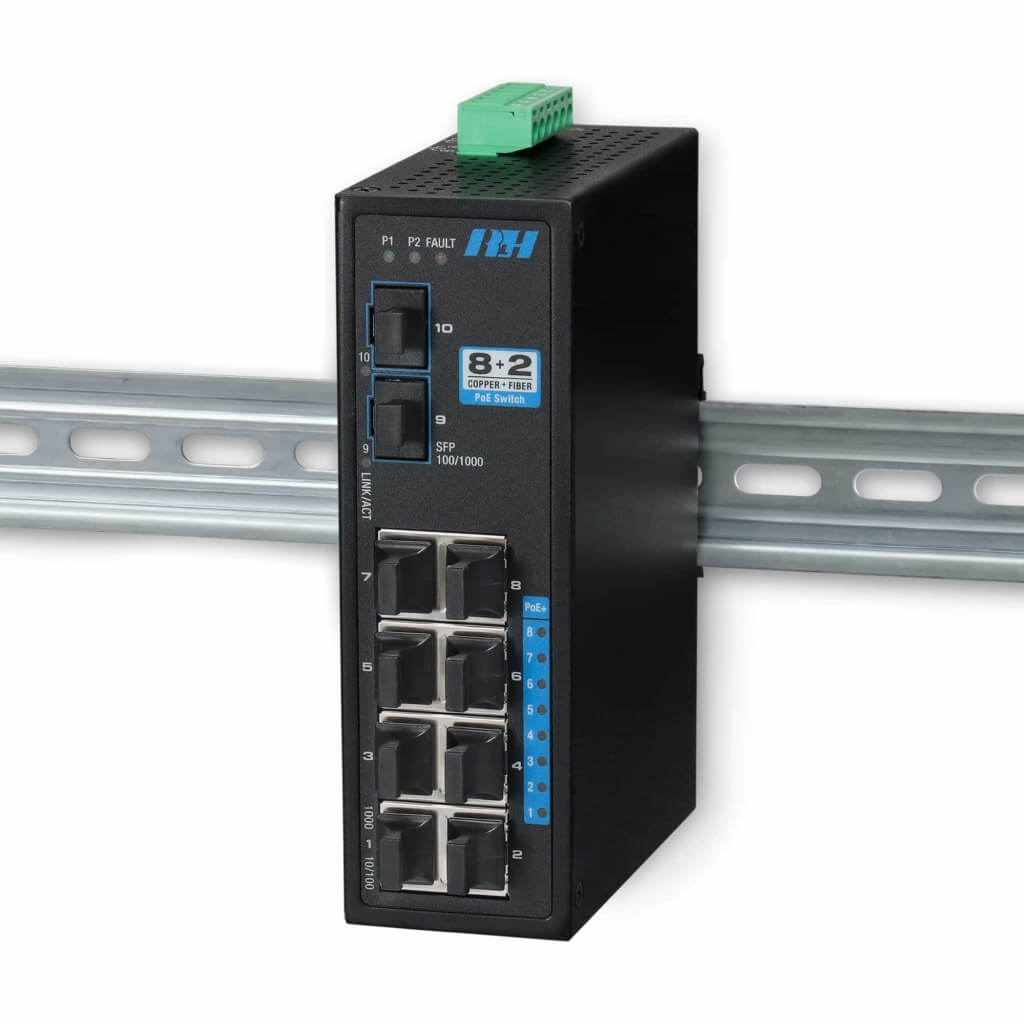

Industrial PoE+ Gigabit SFP Switch
RLH industrial switches are engineered to provide reliable network performance in harsh environments. The 8+2 Gigabit SFP PoE+ switch provides both copper and fiber Gigabit Ethernet access, along with PoE+ powering capabilities. It is environmentally hardened to operate in a wide temperature range, which is the standard for RLH equipment.
The PoE+ ports provide up to 30 Watts of power to end devices following the IEEE 802.3af/at standard. The SFP ports are dual rate, they can support both Fast Ethernet or Gigabit SFP Modules allowing for extra flexibility when implementing in the field.
Our industrial switches robust features and construction meet the demands of a variety of applications, and are an ideal solution for a wide range of utility and automation environments.
- Wide operating temperature range -40°F to +167°F (-40°C to +75°C)
- 2 Dual Rate SFP Ports – 100Mbps & 1Gbps
- 8 PoE+ ports with up to 30 watts per port
- Up to 240 Watts of PoE output power
- Redundant power inputs
- Integrated alarm relay
- IEEE 802.3af/at Power over Ethernet
- Rugged case rated to IP30
- DIN rail & wall mountable
- UL Listed
Please see the product Data Sheet for the complete list of specifications
Construction:
Powder coated IP30 steel housing
Ethernet Ports:
(8) 10/100/1000 PoE+
SFP Port:
(2) Dual Rate SFP Port – Accepts 100 or 1000 speed SFP Modules
Ethernet Interface:
Auto MDI/MDI-X, Auto Negotiation
PoE Powering:
IEEE 802.3af/at Power over Ethernet
30 Watts (Mode A / End Span)
Mounting Style:
Standard DIN rail (TS-35) or wall mount
Wall mount brackets included

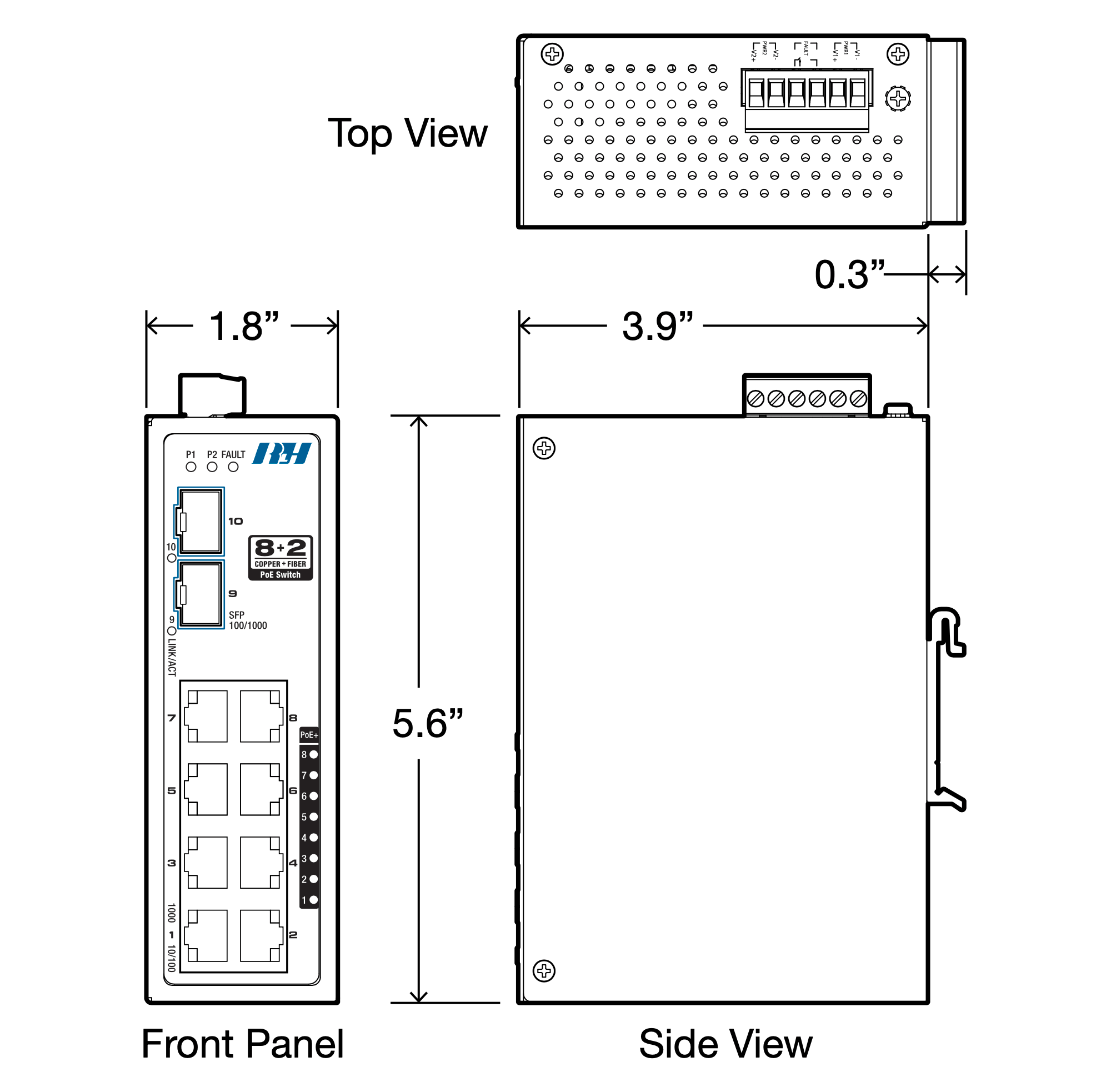

Dimensions:
1.81” (W) x 3.90” (D) x 5.59” (H), (46mm x 99mm x 142mm)
*Not including connectors or DIN bracket
Operating Temperature:
-40°F to 167°F (-40°C to 75°C)
Powering Requirement:
48~55VDC redundant power inputs
ETH-82GP-48-1
$785.00
Lead Time: 1 to 5 Days*
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
Industrial 8+2 Gigabit SFP PoE+ Switch
Short description | Part number | Price | |
---|---|---|---|
Industrial 8+2 Gigabit SFP PoE+ Switch | ETH-82GP-48-1 | $785.00 |
