Provide up to 90W of PoE and Gigabit Ethernet Data Transfer for Powered Devices
The RLH Industrial Gigabit Ultra PoE++ Injector simultaneously outputs power and Gigabit Ethernet data transmission to a connected Powered Device (PD). It can supply up to 90W of PoE in compliance with the IEEE 802.3bt standard’s Type 4 PoE designation, supporting an extensive range of high-powered applications. A unique Flex Power feature enables this 90W PoE output to persist while the injector’s power terminals receive an input voltage rated as low as 12VDC.
Its rugged, IP30-rated metal housing ensures that the injector can reliably operate in harsh industrial environments expressing temperatures between -40°C and 75°C. This injector’s design supports multiple power input terminals for redundancy, a fault relay terminal that communicates the loss of a redundant power source, and status LEDs on the housing’s front panel for the injector’s system power and PoE output.

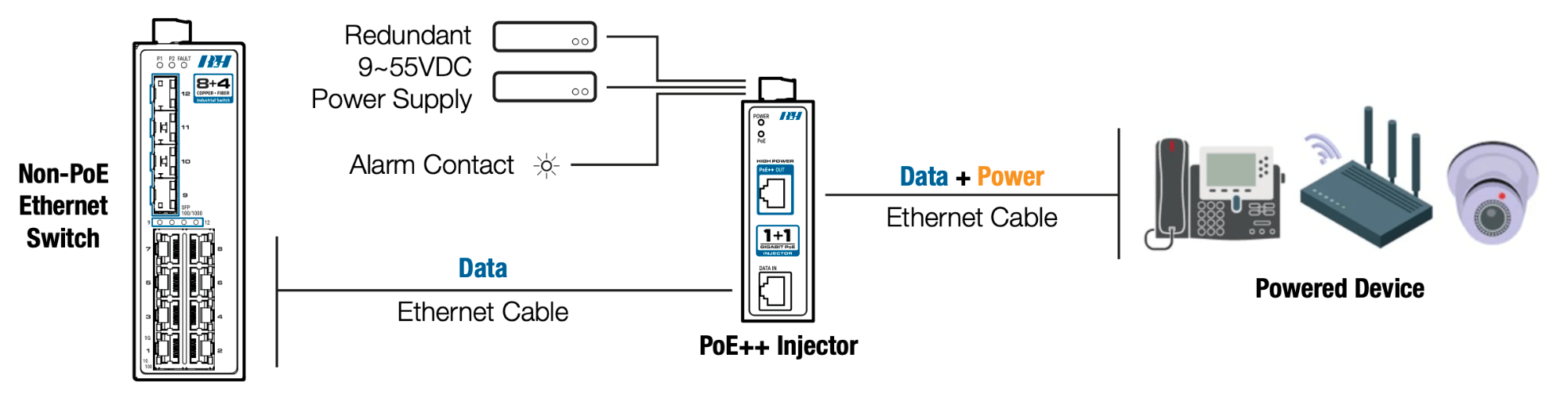

Injectors serve as an alternative power source and data transfer channel for Powered Devices when only non-PoE Ethernet switches are available in a network, or PoE switches are impractical to use. Injectors with PoE++ capabilities are ideal for applications with power-hungry PDs such as monitored PTZ IP cameras, gate and building access controllers, wireless access points, and thin clients. This RLH Injector is covered by our 5 Year Warranty.
System
- Inject up to 90W of PoE (IEEE 802.3af/at/bt-compliant)
- Supports up to Gigabit Ethernet data transfer rates (10/100/1000Mbps)
- Flex Power – Constant 48VDC PoE++ output at low input voltages
- Power redundancy/failover and redundant power loss fault relay
- Supports Mode A, Mode B, and 4-Pair Mode PoE power relaying
- Status LEDs for the injector’s system power and PoE output
- Overload current protection and reverse polarity protection
- “Plug and Play” system installation and usage
Environment
- Hardened to operate in -40°F to +158°F (-40°C to +70°C)
- DIN rail or Wall Mount (Wall mount ears included)
Power
- Redundant Power Inputs (9~55VDC)
Quality
- UL Listed
- TAA, NDAA and RoHS Compliant
- Highly reliable 762,640-hour MTBF
- 5 Year Warranty
Please see the product Data Sheet for the complete list of specifications
Construction:
Metal, IP30 protection
Ethernet Ports:
(Data) 10/100/1000Base-T(X)
(Data + Power) 10/100/1000Base-T(X) with PoE++ (IEEE 802.3af/at/bt-compliant)
Power Input:
Dual 9-55VDC redundant power input terminals
Mounting Style:

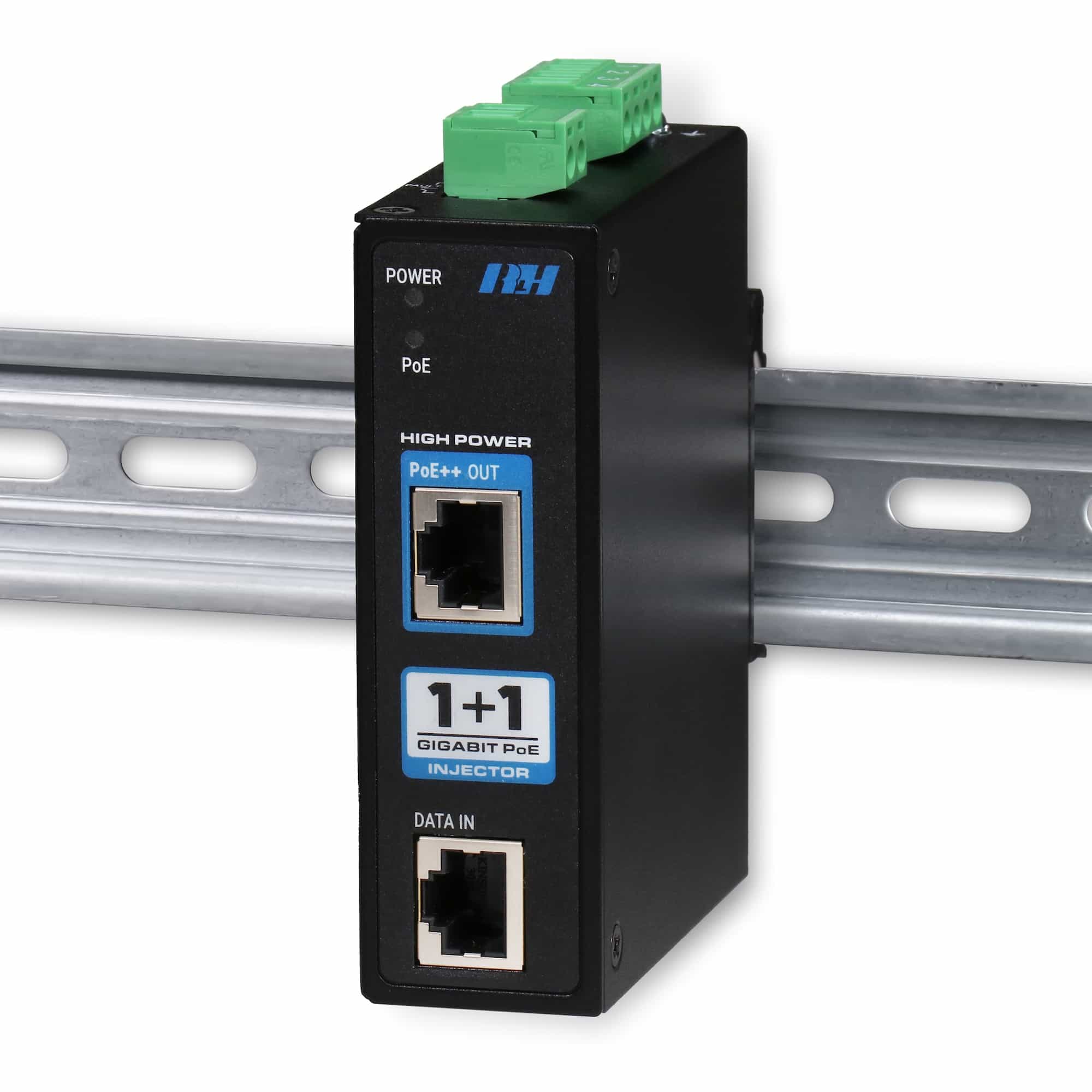

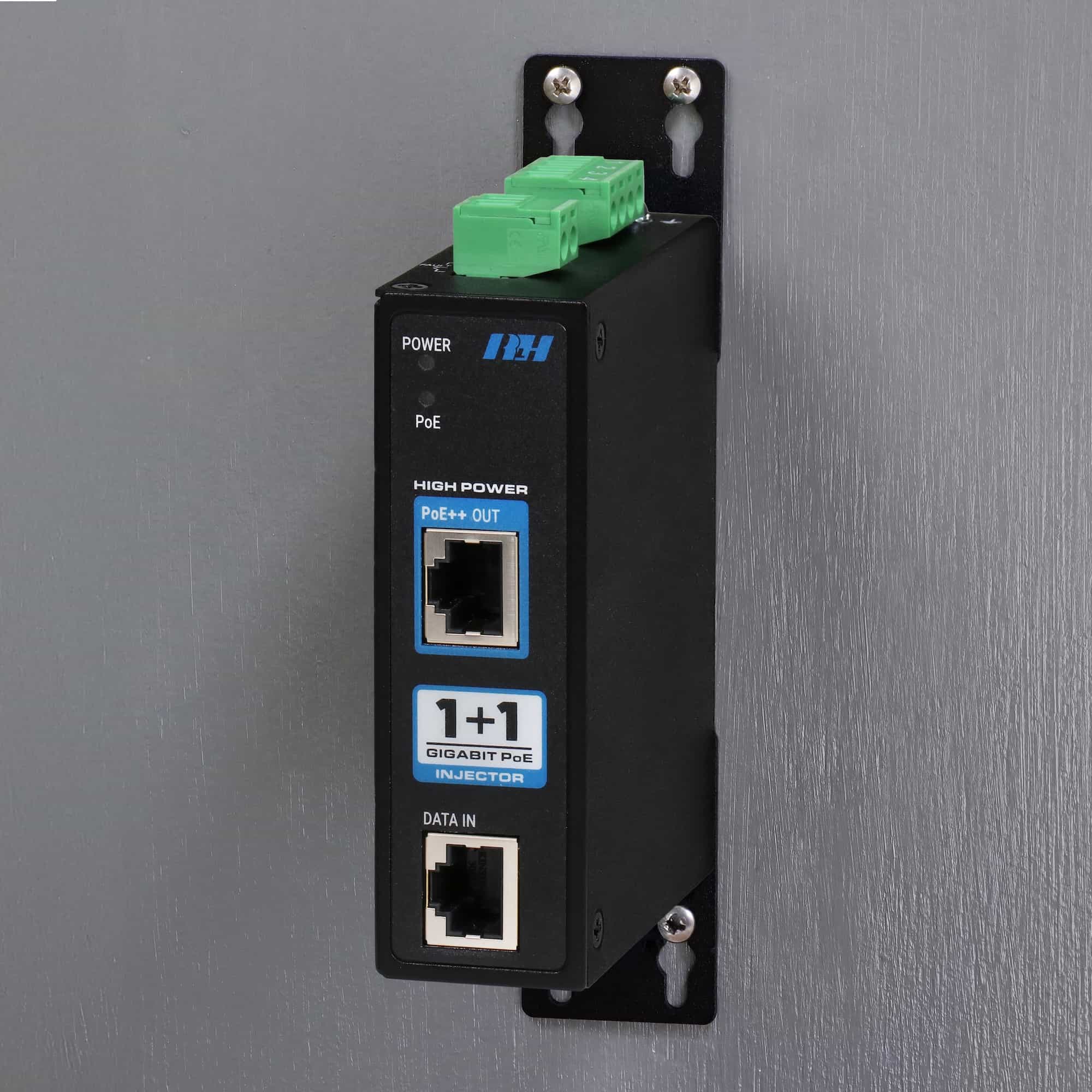

Standard DIN rail (TS-35) or wall mount ears (included)
Dimensions:
H 1.2″ x W 3.7″ x D 3.0″, (30mm x 95mm x 75mm) – not including DIN clip
Operating Temperature:
-40°C to +75°C (-40°F to +167°F)
Ambient Relative Humidity:
5% to 95% (non-condensing)
General Information
ETH-INJ-BT-1
$315.00
Lead Time: 1 to 5 Days*
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
Industrial Gigabit Ultra PoE++ Injector
Short description | Part number | Price | |
---|---|---|---|
1 Port Gigabit PoE++ (90W) Injector, Powering Range: 9-55VDC | ETH-INJ-BT-1 | $315.00 |
