Extend Analog Data up to 9600bps for AC Data Transmission Services – Line or Local​
The RLH 2 Wire Data fiber link card system provides 2-wire analog data service up to 9600 bps for AC data transmission services that do not require ringing. Such services may include 2-wire on-line modems, SCADA systems, and audio-tone protective relaying systems. The 2 Wire Data System provides a constant bidirectional transmission path in the VF range.

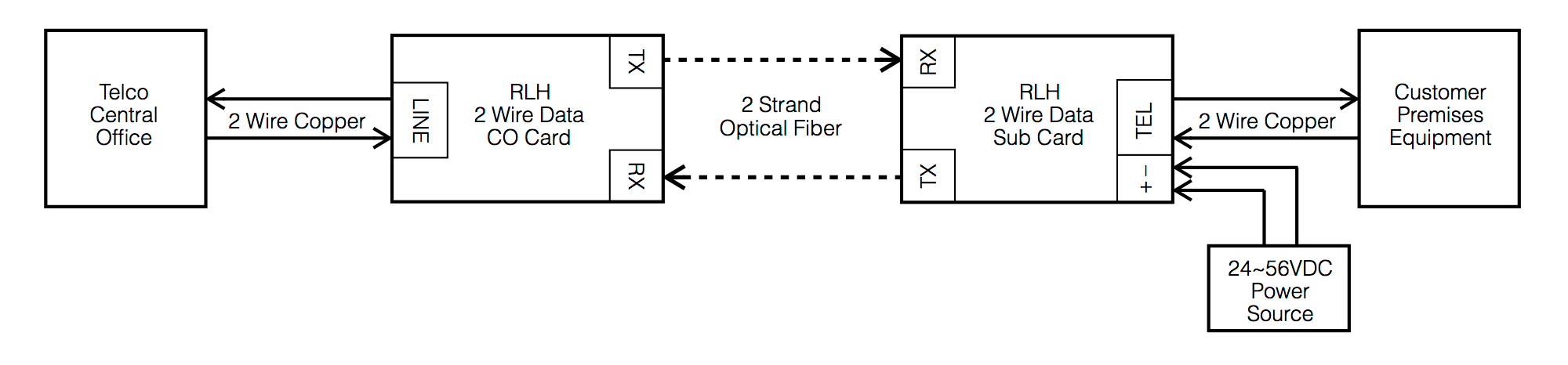

The copper signal is converted to optical, transmitted over fiber optic cable, and converted back into the original copper signal. This allows for network extension over long distances, and provides electrical isolation between both ends of the network.

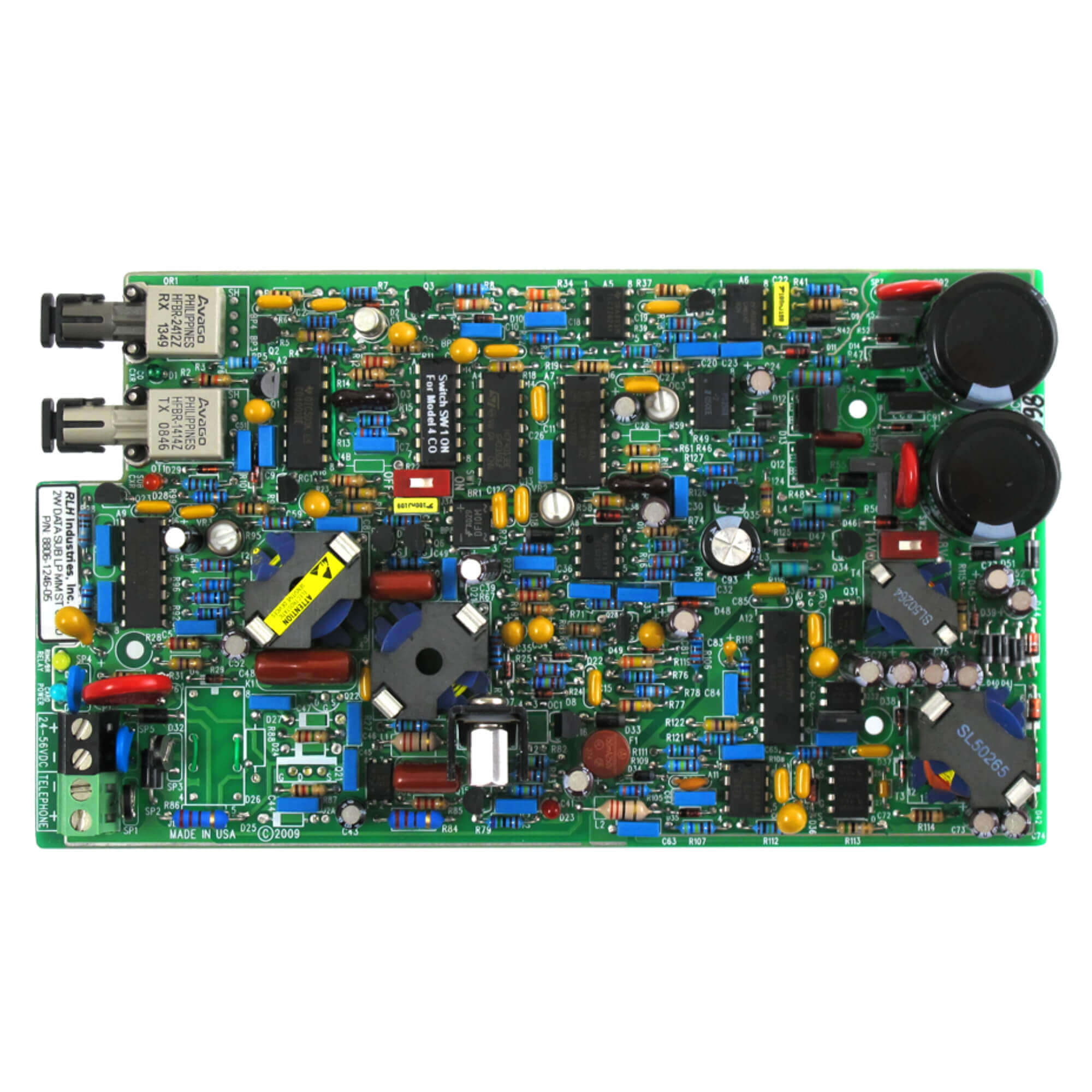

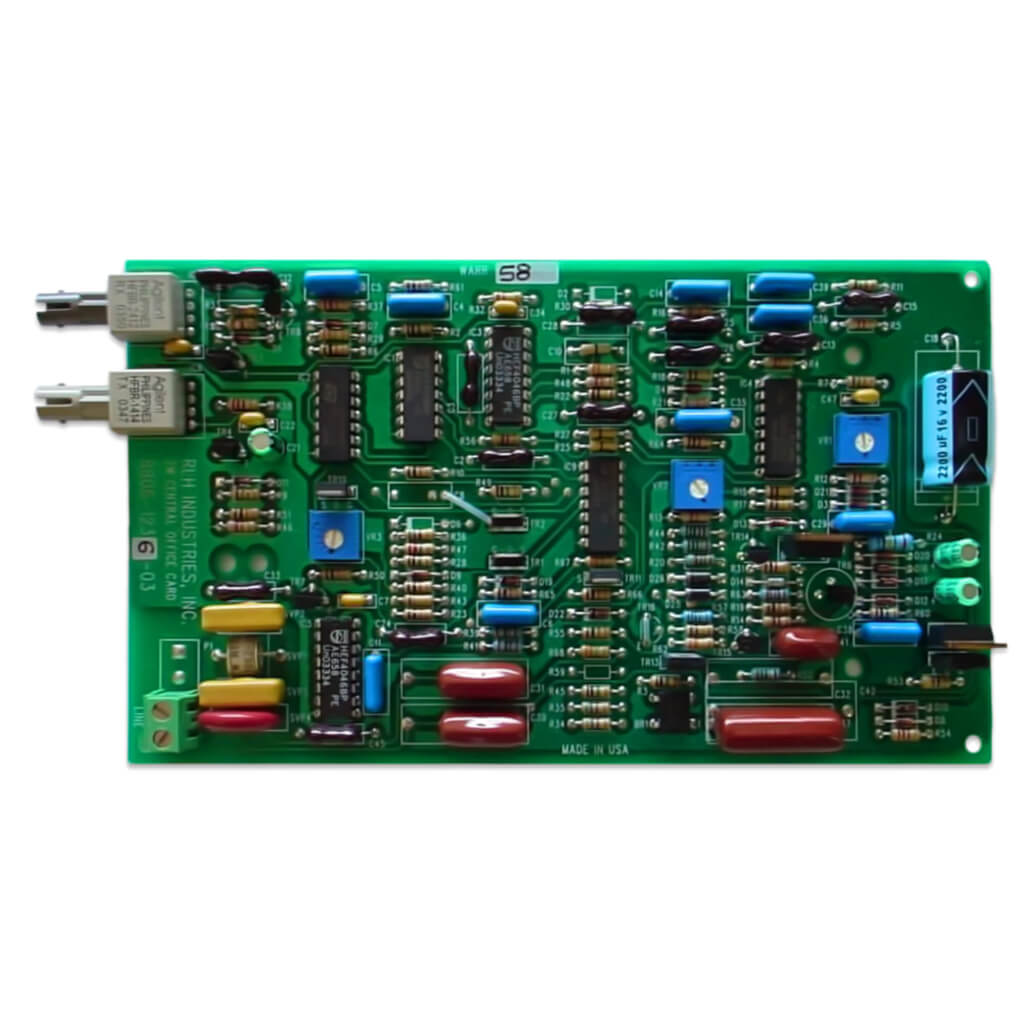

This fiber link card is designed to be installed into any of the RLH fiber link Card Housings, and occupies a single card slot.
- Compatible with 2 wire analog data
- CO side is simplex powered
- Can utilize 24-48VDC CO power
- Constant bidirectional transmission
- Available in Single and Multimode
- Available with ST or SC Connectors
- Compatible with a wide variety of Card Housings
- Limited Lifetime Warranty
- Made in USA
Transmission Method:
Frequency modulated light via two optical fibers
Wavelength:
Multimode: 850nm
Singlemode: 1310nm
Fiber Type/Distance:
Multimode (62.5/125µm): 1.2 miles/2km
Singlemode (9/125µm): 9 miles/15km; Long Haul 31 miles/50km
Fiber Connector Type:
ST or SC
Dimensions:
7in. x 4in. x 1in. (177.8mm x 101.6mm x 25.4mm)
(Standard RLH Fiber Link Card Form Factor)
Operating Temperature:
-40ËšF to +158ËšF (-40ËšC to +70ËšC)
Operating Humidity:
95% non-condensing
General Information
Specialized Drawings
Miscellaneous
8806-1236-02
8806-1236-02LP
8806-1246-05
8805-1236-02
8805-1236-02LP
8805-1246-05
8806-1363-01
8806-1363-01LP
8806-1373-03
8805-1363-01
8805-1363-01LP
8805-1373-03
8806-1363-01-LH
8806-1363-01LP-LH
8806-1373-03-LH
8805-1363-01-LH
8805-1363-01LP-LH
8805-1373-03-LH
