Extend Analog Phone Lines Over Fiber With Caller ID – Line Powered​​
Overview
Features
Specs
Docs
Diagrams
Numbers
Overview
The 2 Wire POTS (Plain Old Telephone Service) Enhanced system provides transmission of standard analog POTS, telemetering, or PBX loop start signals over two optical fibers. The system transmits signals in the voice-frequency or audio range (300Hz-3400Hz) while providing ringing and off-hook detection, and supports caller ID and forward disconnect. Common applications include telephone, fax, and dial-up modems.

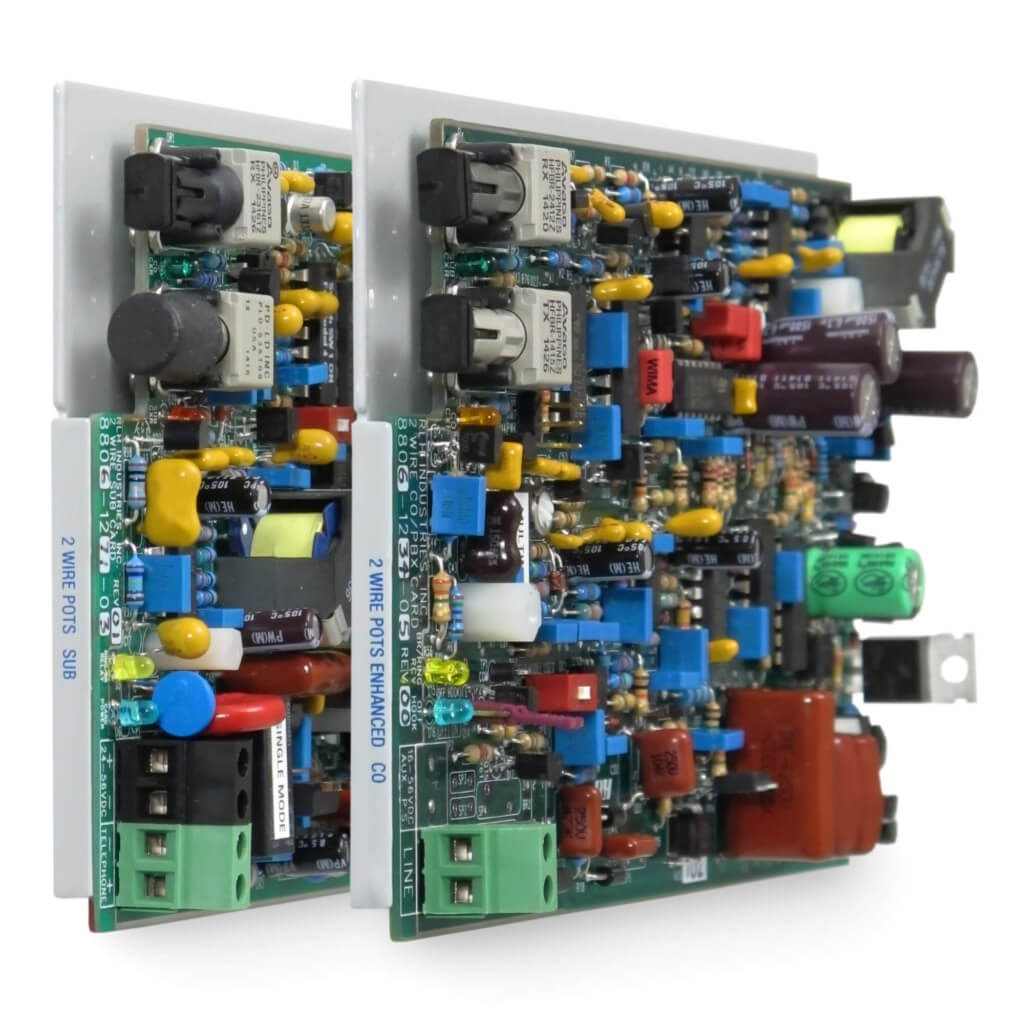

This fiber link card is NEBS compliant, occupies a single card slot, and is designed to be installed into any of the RLH Fiber Link Card Housings.

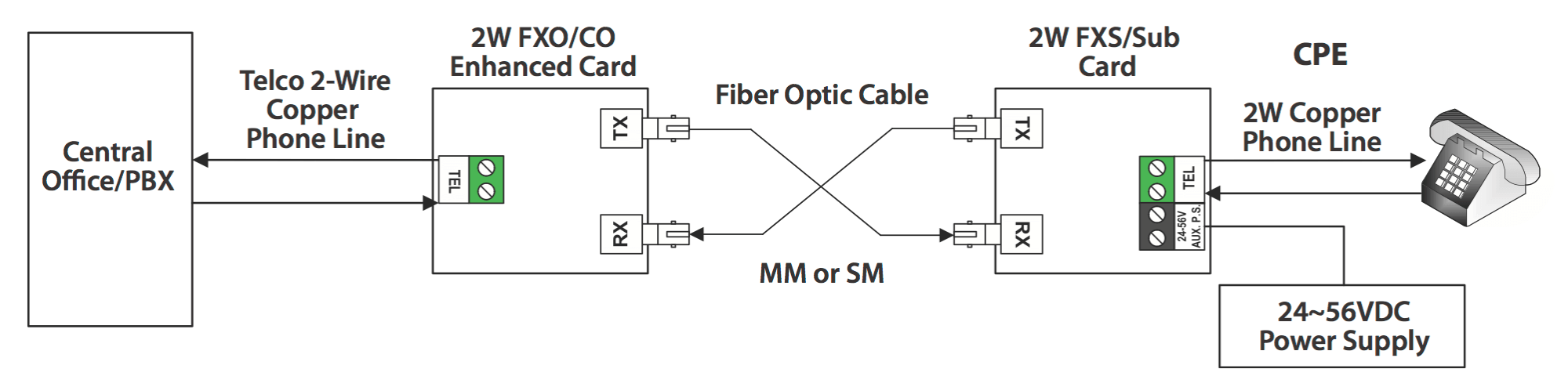

A complete system uses one CO and one Sub card.
Note: Square wave ringing option is available (SM10). Contact the factory for additional information.
Features
- Ideal for critical, high voltage, remote or un-manned locations that must remain operating 24/7/365
- Enhanced FXO/CO cards are loop powered
- Available in Single and Multimode, ST or SC Connectors
- Provides ringing and off-hook detection
- Supports Caller ID and Forward Disconnect
- Convenient sub card LED status indicators
- Standard RLH form factor compatible with wide variety of housings
- Environmentally hardened to operate in -40°F to +158°F (-40°C to +70°C) environments
- Limited Lifetime Warranty
- Made in USA
Specs
Transmission Method:
Frequency modulated light via two optical fibers
Wavelength:
Multimode: 850nm
Singlemode: 1310nm
SM Long Haul: 1310nm
Fiber Type/Distance:
Multimode (62.5/125µm, 50/125µm): 1.5 miles/2.5km
Singlemode (9/125µm): 20 miles/32km
Fiber Connector Type:
ST or SC
Dimensions:
7in. x 4in. x 1in. (177.8mm x 101.6mm x 25.4mm)
(Standard RLH Fiber Link Card Form Factor)
Operating Temperature:
-40ËšF to +158ËšF (-40ËšC to +70ËšC)
Operating Humidity:
95% non-condensing
Docs
General Information
Specialized Drawings
Miscellaneous
Diagrams
Numbers
8806-1234-03
8806-1244-05
8805-1234-03
8805-1244-05
8806-1261-01
8806-1271-03
8805-1261-01
8805-1271-03
8806-1261-01-LH
8806-1271-03-LH
8805-1261-01-LH
8805-1271-03-LH
