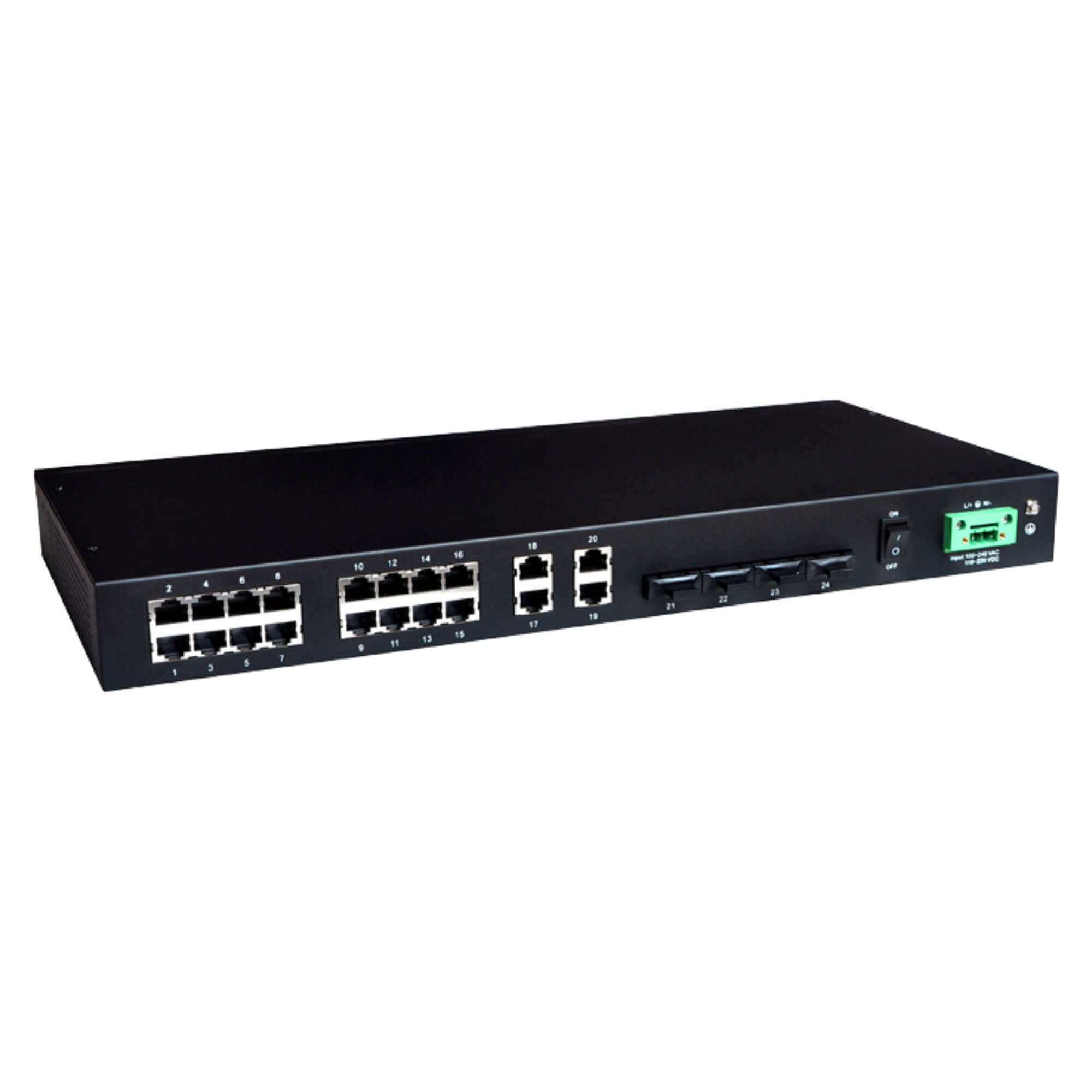

Managed Rack Mount Industrial Layer 2 Switch
The RLH Industrial Managed Ethernet Switch offers 20 x 10/100 Mbps RJ-45 ports together with 4 x 100BaseFX fiber ports and supports a wide operating temperature range. The optical ports may be dual fiber singlemode or multimode, or bidirectional single fiber, and can extend Ethernet over Fiber up to 120Km/74 miles.
The switch supports web based management as well as support for IEEE802.1Q VLANs, broadcast storm control, port based traffic shaping, QOS, along with many other features.
The RLH Managed Ethernet Switch uses only 1RU of rack space and comes complete with EIA19” rack ears for rack mount applications, or it may be used on a desktop or shelf. The fiber optic ports allow for Ethernet network extension over long distances, and fiber optic cable provides electrical isolation between devices. Our industrial switches robust features and construction meet the demands of a variety of applications, and are an ideal solution for a wide range of utility and automation environments.
- Hardened design has a wide operating temperature range -40°F to 167°F (-40°C to 75°C)
- No fan, low power consumption design
- 20 x 10/100 Mbps ports
- 4 x 100BaseFX fiber ports
- Supports 8K MAC addressing
- Available with ST or SC connectors
- Auto MDI/MDI-X & auto-negotiating
- Managed through the web interface
- Supports 802.1Q VLANs
- Supports port trunking, port mirroring, port priority, IEEE 802.1p priority
- Built-in power supply, 115/220VAC
- Supports Ring technology
- Supports Rapid Spanning Tree Protocol
- Available in Single or Multimode fiber, up to 74mi /120km fiber range
- EIA 19″ rack mountable, 1RU rack height
Construction:
Powder coated IP30 steel housing
Ethernet Ports:
(20) 10/100 Mbps
Ethernet Interface:
Auto MDI/MDI-X, Auto Negotiation
Fiber Ports:
(4) 100BaseFX, ST or SC Connectors
Fiber Wavelength:
Multimode: 1310nm
Singlemode: 1310nm, 1550nm
Other wavelengths available by request
Management:
Layer 2 – See User Guide for Complete management details
Mounting Style:
EIA 19″ rack mountable, 1RU rack height

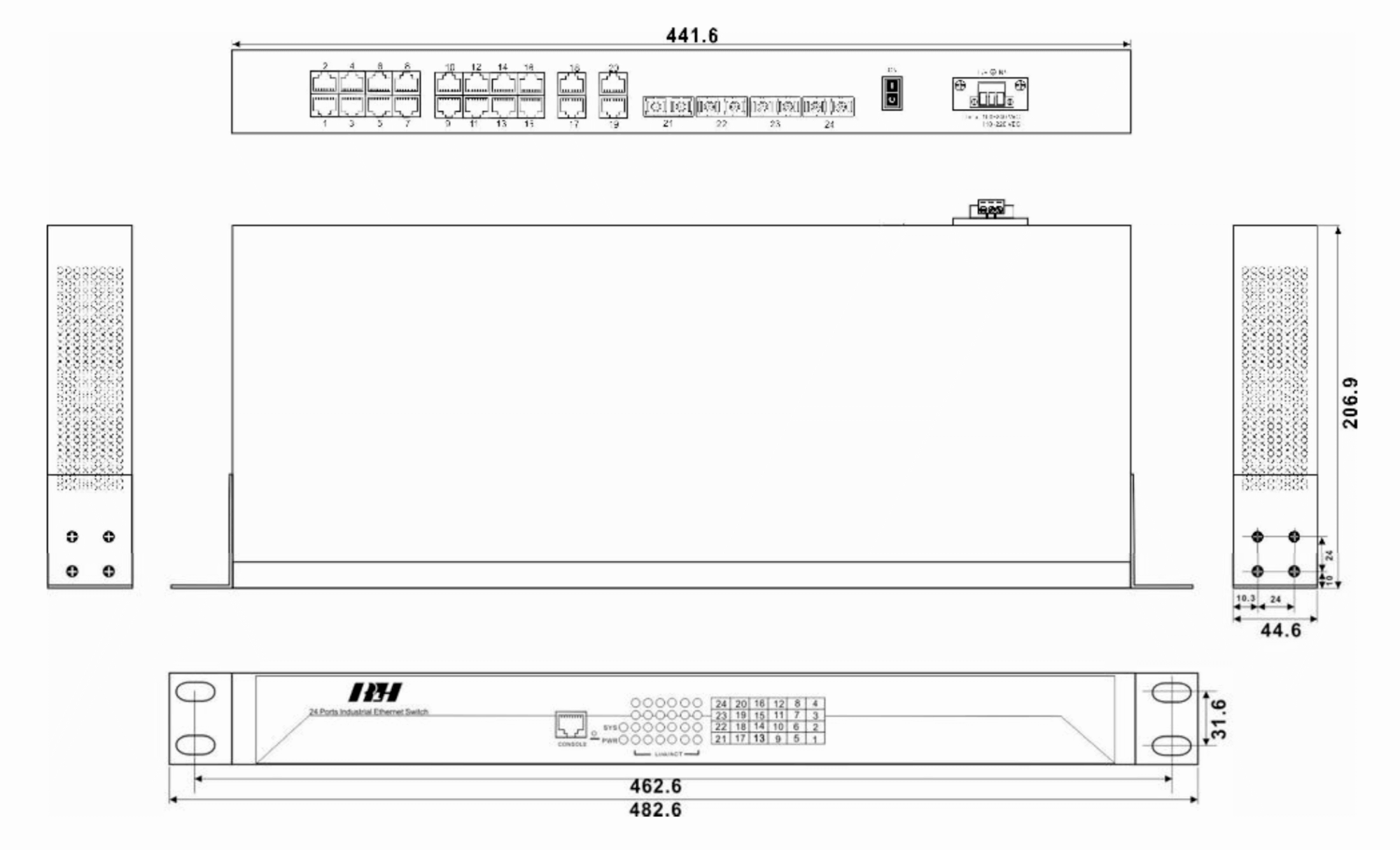

Dimensions:
W 17.4” x D 8.” x H 1.75” / 441.6mm x 206.9mm x 44.6mm
Operating Temperature:
-40°F to 158°F (-40°C to 70°C)
Powering Requirement:
115/220VAC, 50/60Hz, 35W
RLH-ESM2004-04-1
RLH-ESM2004-03-1
RLH-ESM2004-50-1
RLH-ESM2004-40-1
Contact Us for Pricing
Lead Time: Varies by Project*
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
20+4 Ethernet Fiber Switch (legacy)
