Outdoor Weatherproof Fiberglass Equipment Enclosure
Overview
Features
Specs
Docs
Diagrams
Numbers
Overview

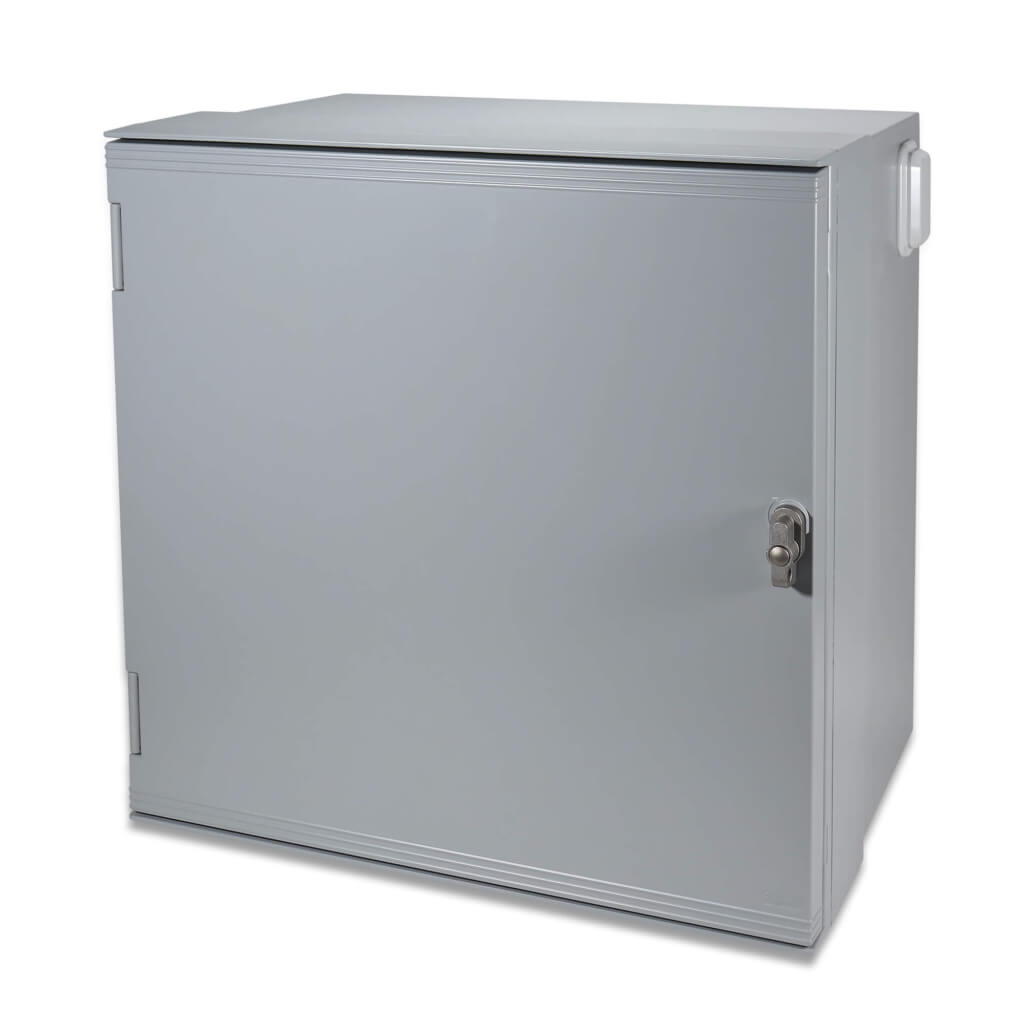

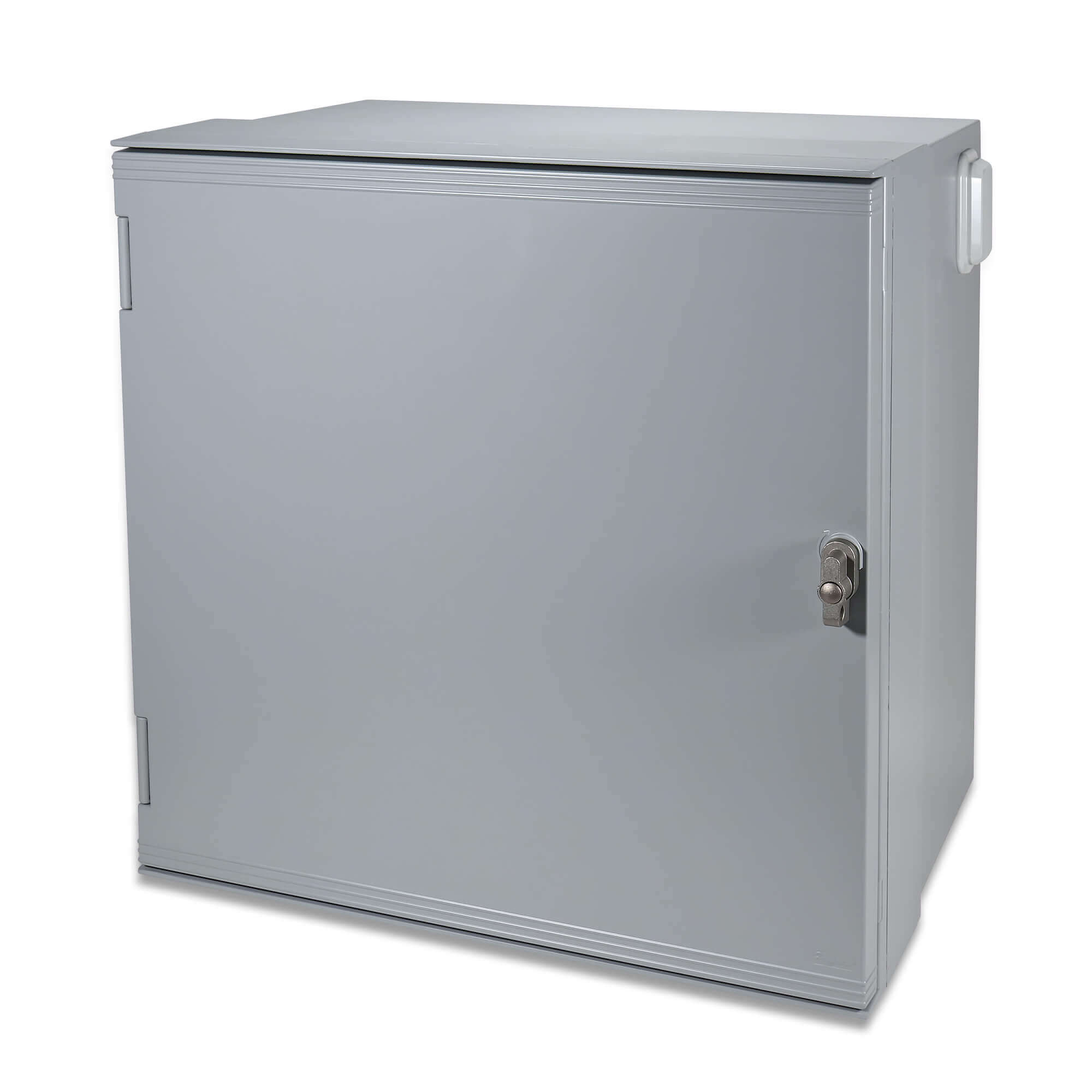

This NEMA 4X compression molded fiberglass enclosure features a fire treated and painted plywood backboard for easy field installation of communication devices and equipment in indoor or outdoor environments.
The enclosure is UL Listed, non-corrosive, non-conductive, light weight, and easy to modify. The added water and dust proof NEMA 4X vents provide convection cooling to further protect installed equipment. Enclosures can be secured with a padlock and the include mounting feet can be used for wall or strut mounting. An optional 19″ rack angle kit is available for order separately.
RLH also provides Custom Enclosure Configurations.
Features
- Weatherproof design for outdoor use
- Heavy duty fiberglass enclosure
- Fire treated and painted 3/4″ plywood backboard

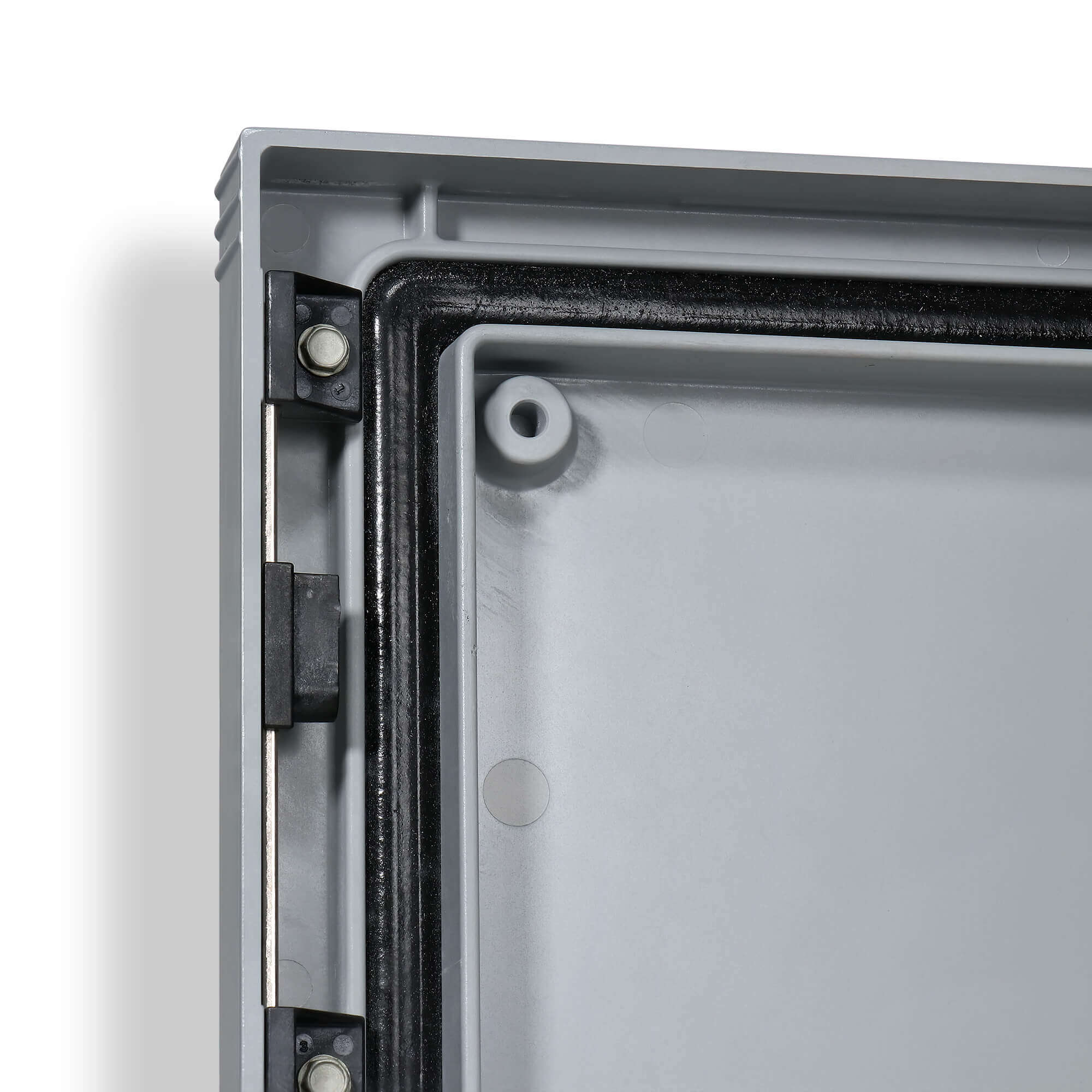

- Foam-in-place gasket for weathertight door seal
- Weatherproof NEMA 4X side and bottom vents
- 7 position ground bar, accepts #10 to #1/0 AWG ground wire
- Pad lockable quarter turn latch

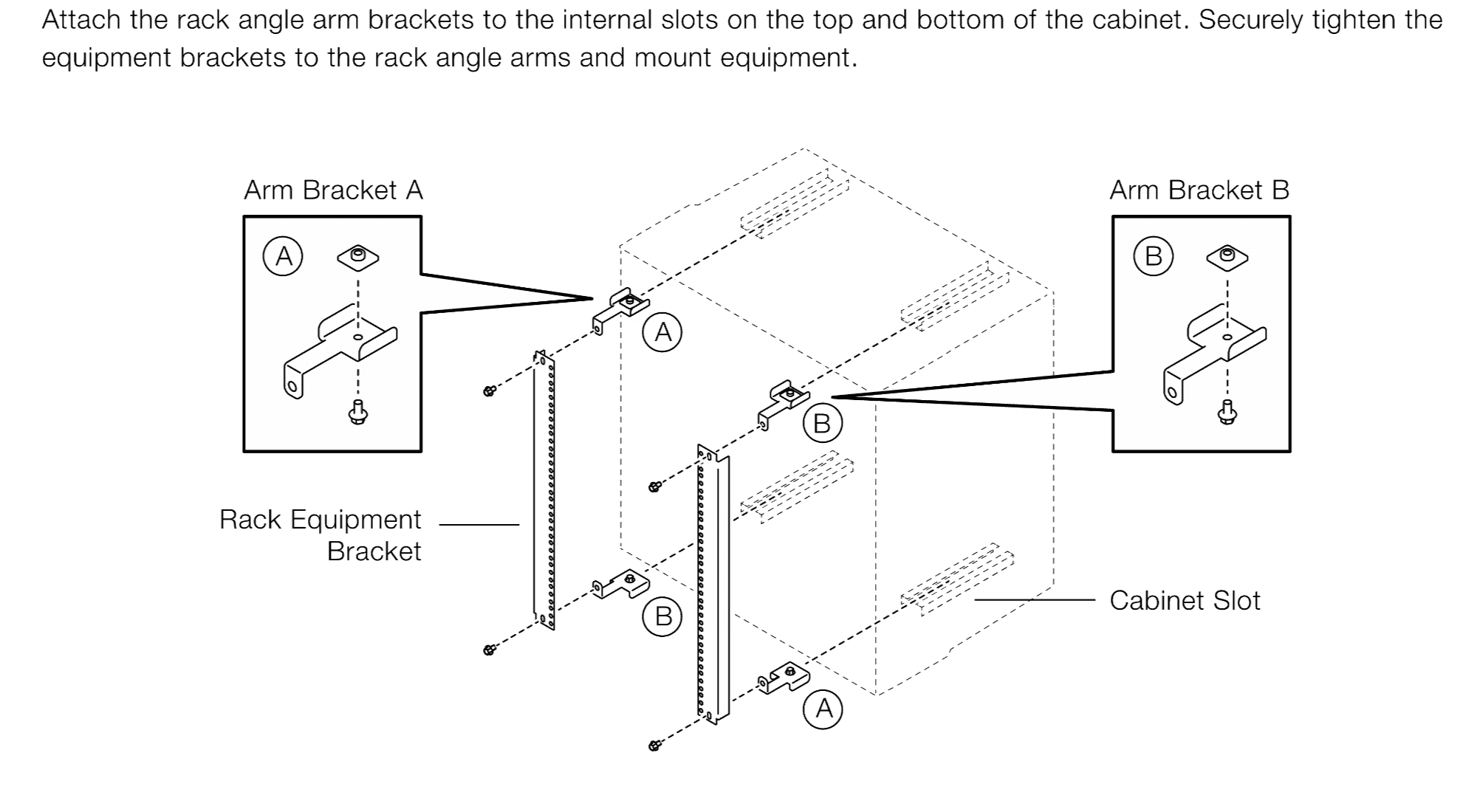

- Wall/Strut mount feet included, optional 19″ rack angle kit available
- Factory installed options available: include fans, heaters, thermostats, and more
- Made in USA
Specs
Construction
Material: Fiberglass
Weight Enclosure: 58 lbs. / 26.3kg
Weight Pole Mount Kit: 4 lbs. / 1.8kg

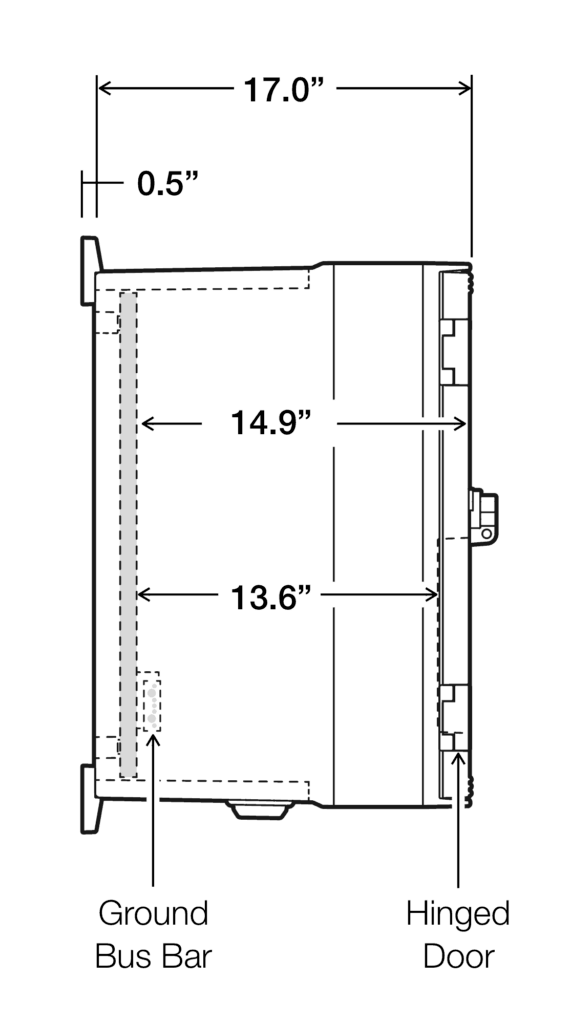

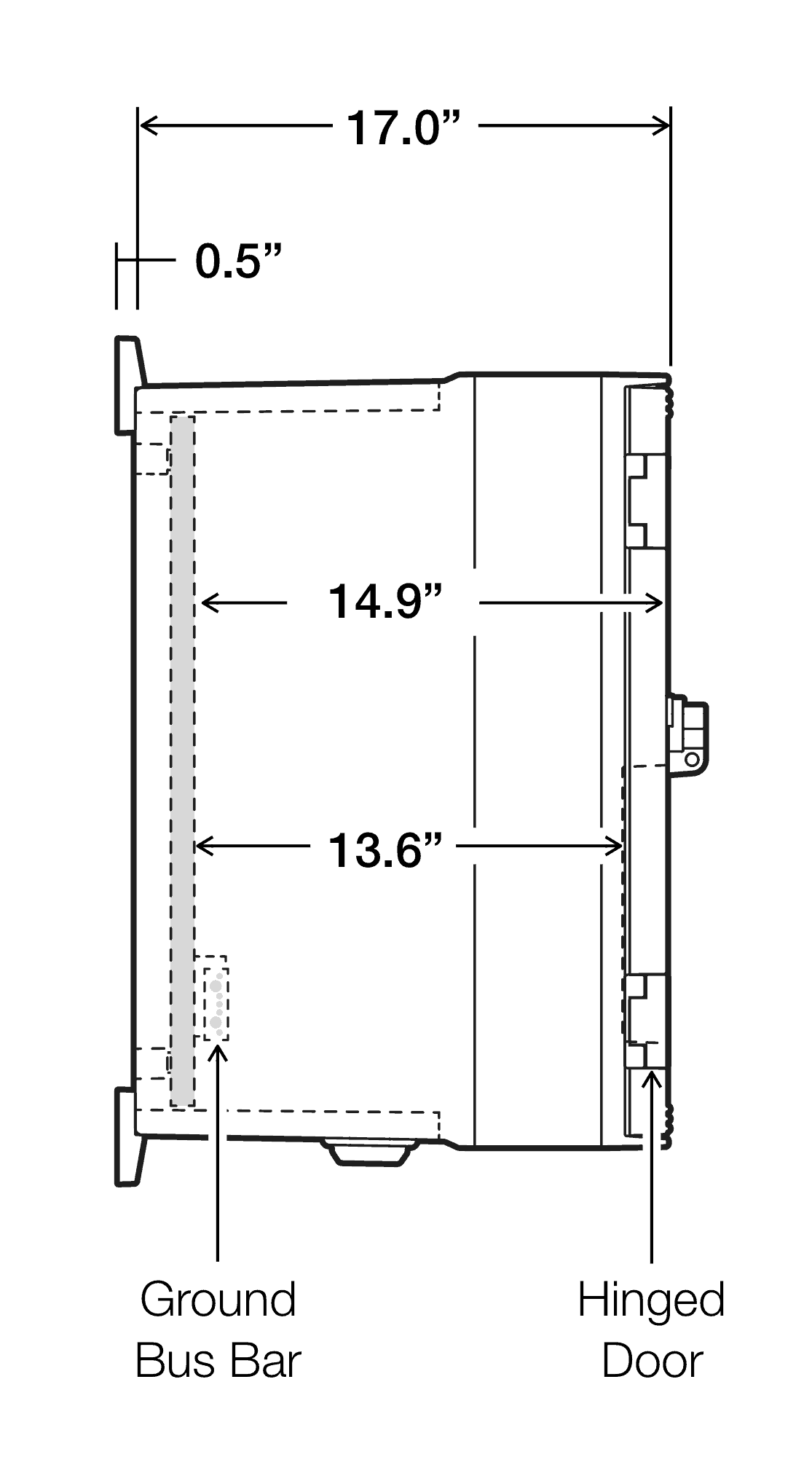

Exterior Dimensions: H 25.6” x W 25.6” x D 17.0”
Usable interior Depth: 13.6” to 14.9” (varies with document pocket on door)

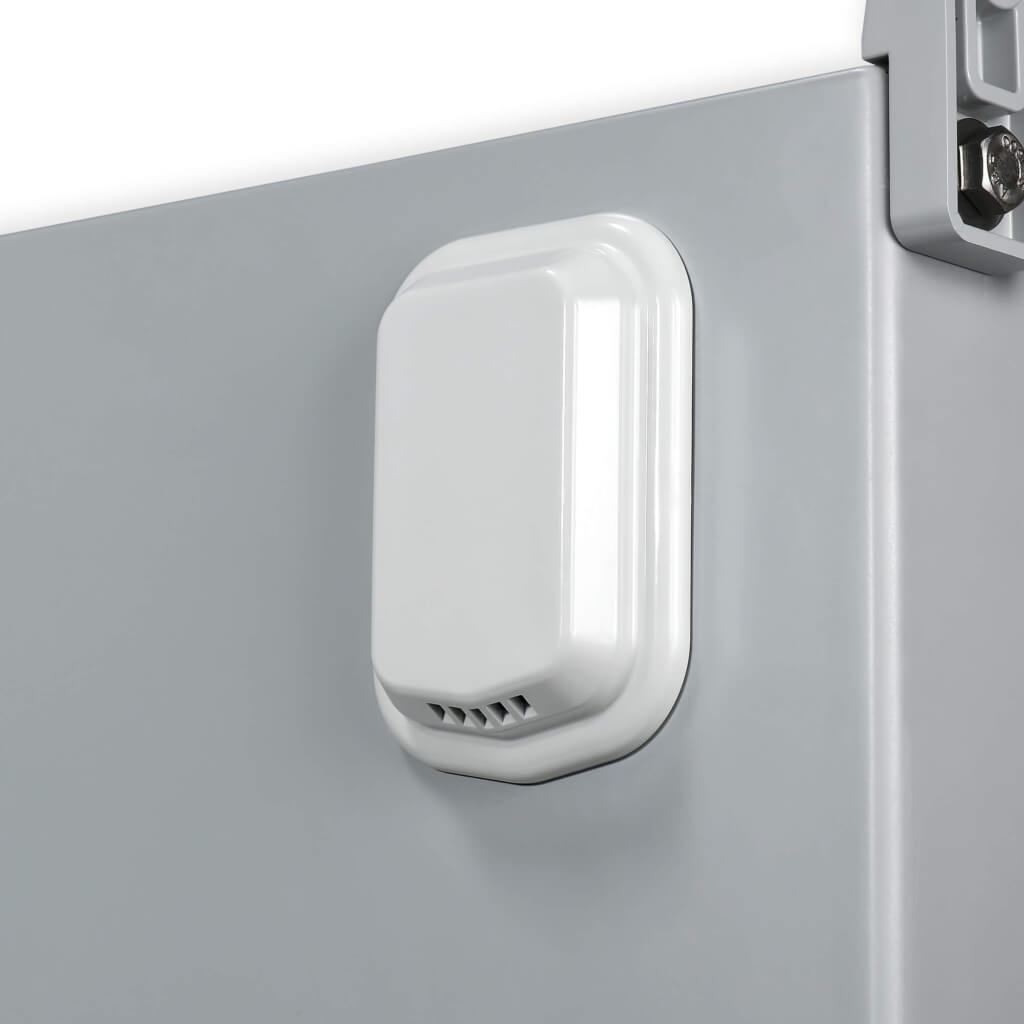

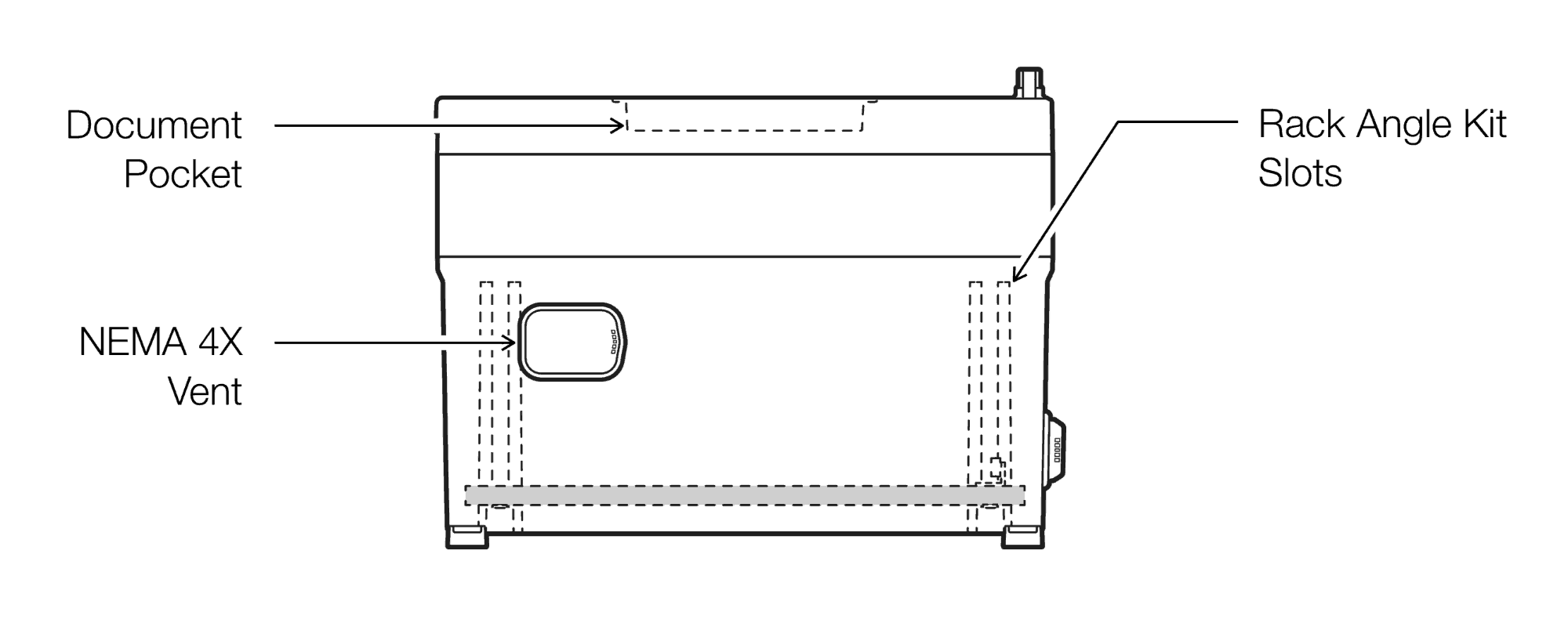

Venting: NEMA 4X Vents to provide air circulation, 1 side vent, 1 bottom vent
Mounting

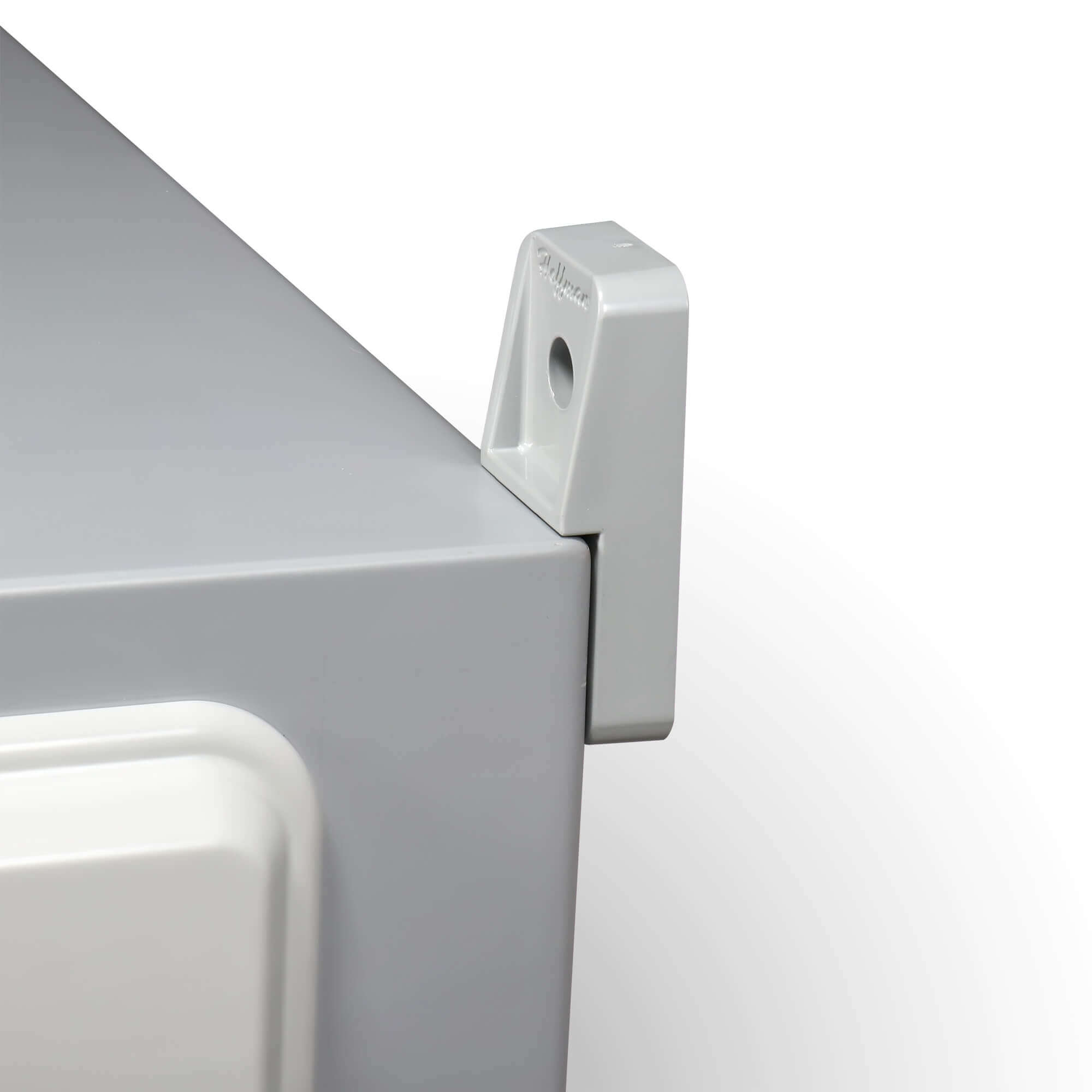

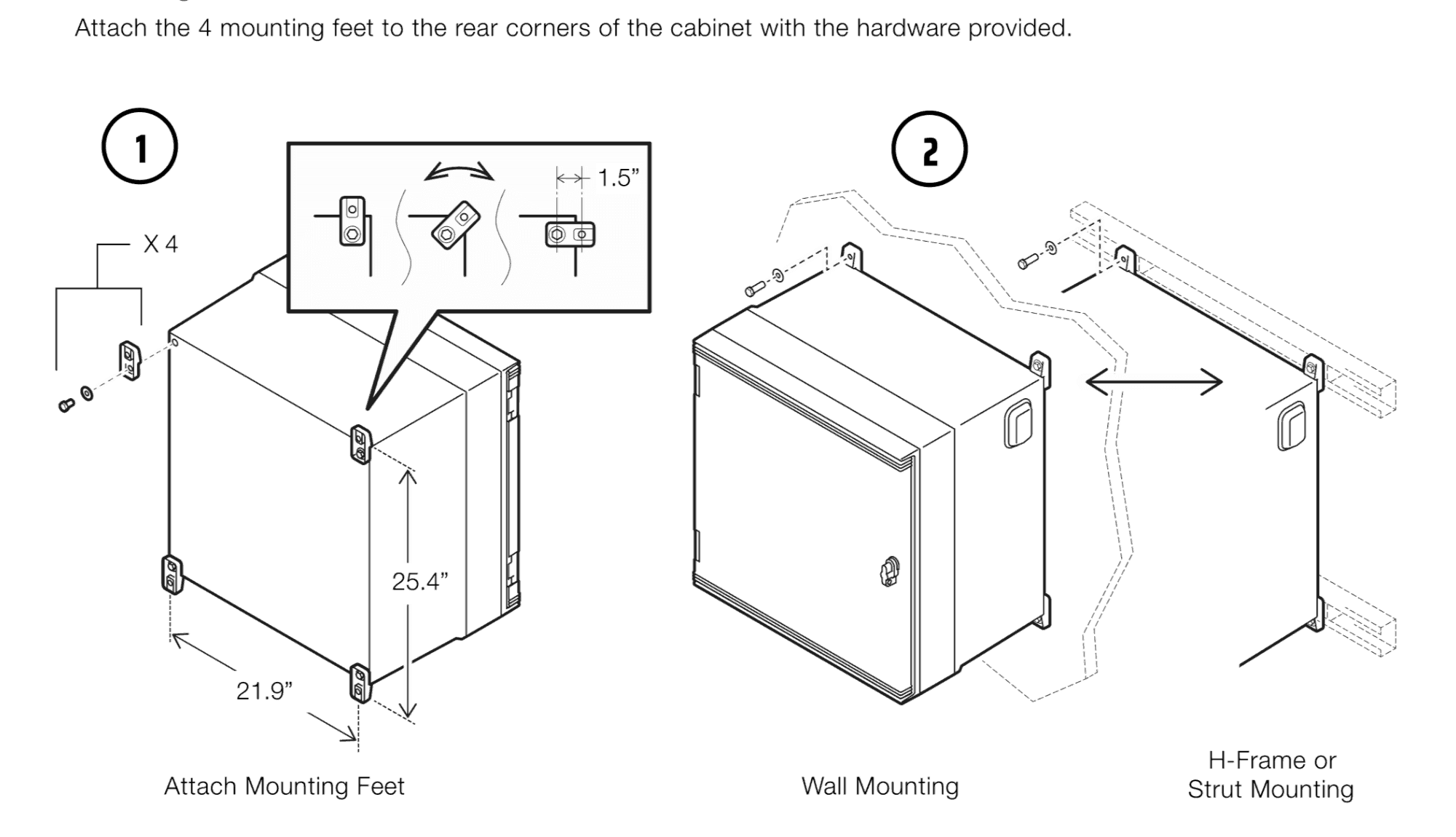

Wall/Strut Mounting with included feet
Accommodates 5/16” bolt for wall or strut mounting
Access
Hinged door with weatherproof gasket seal

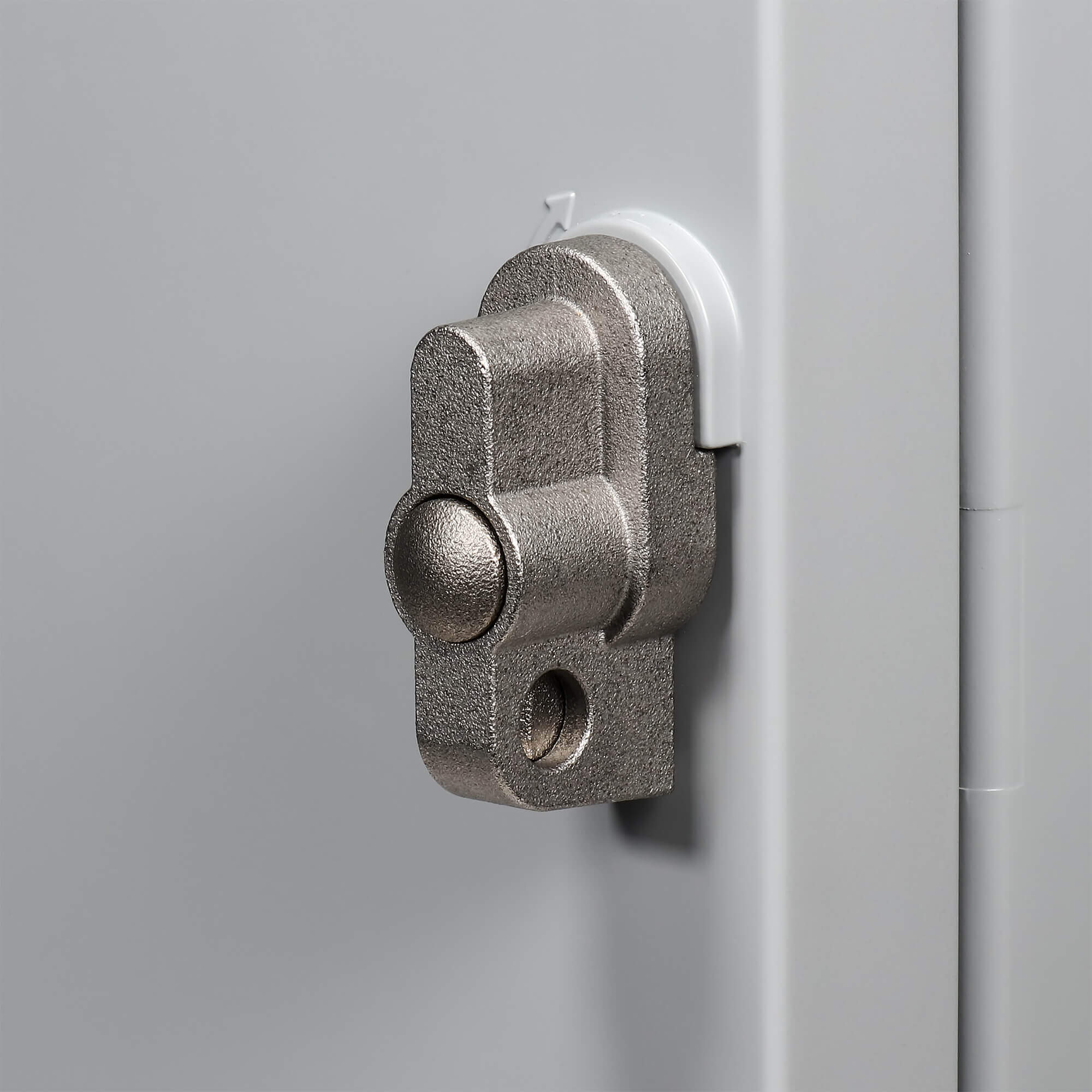

Quarter turn pad lockable latch

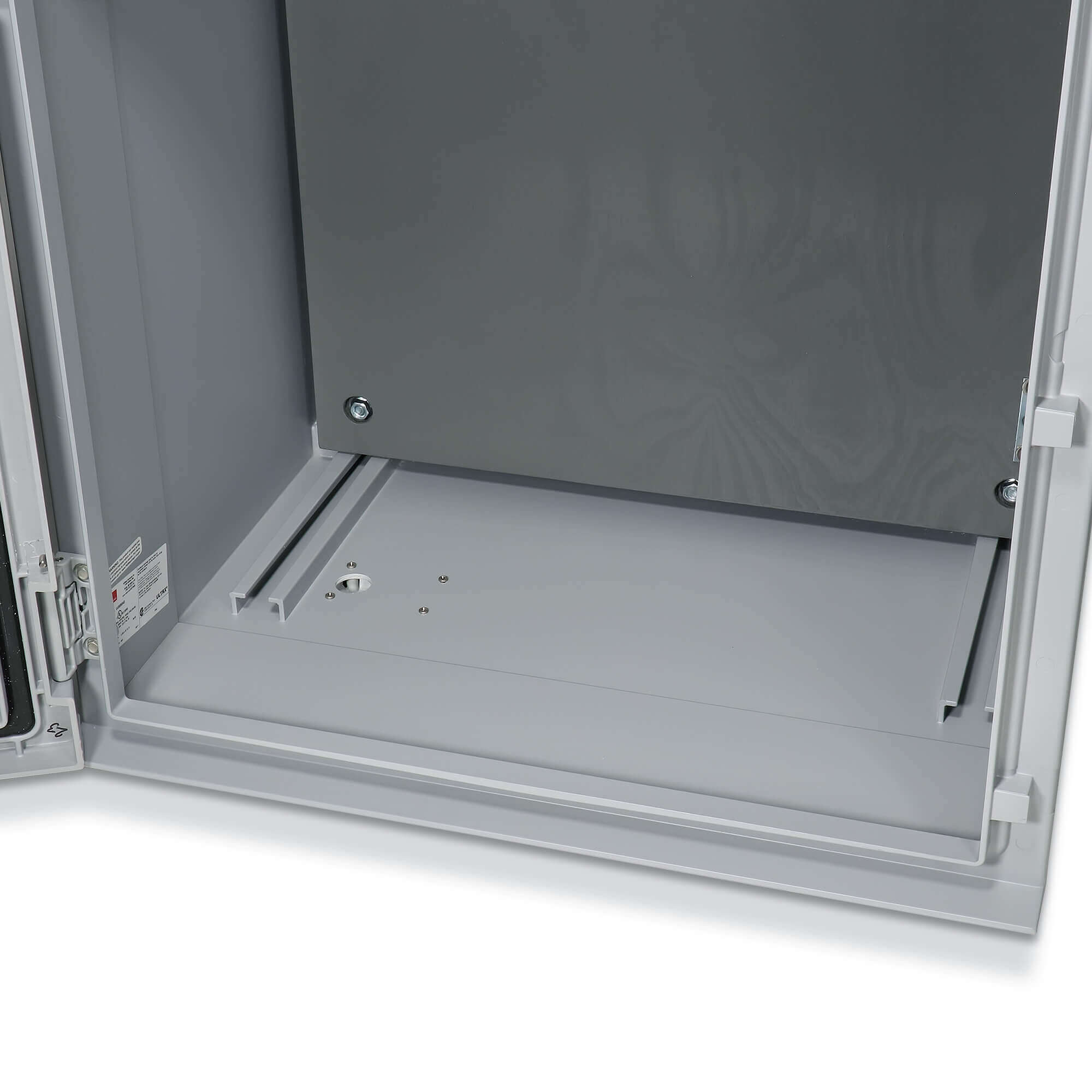

Interior Details

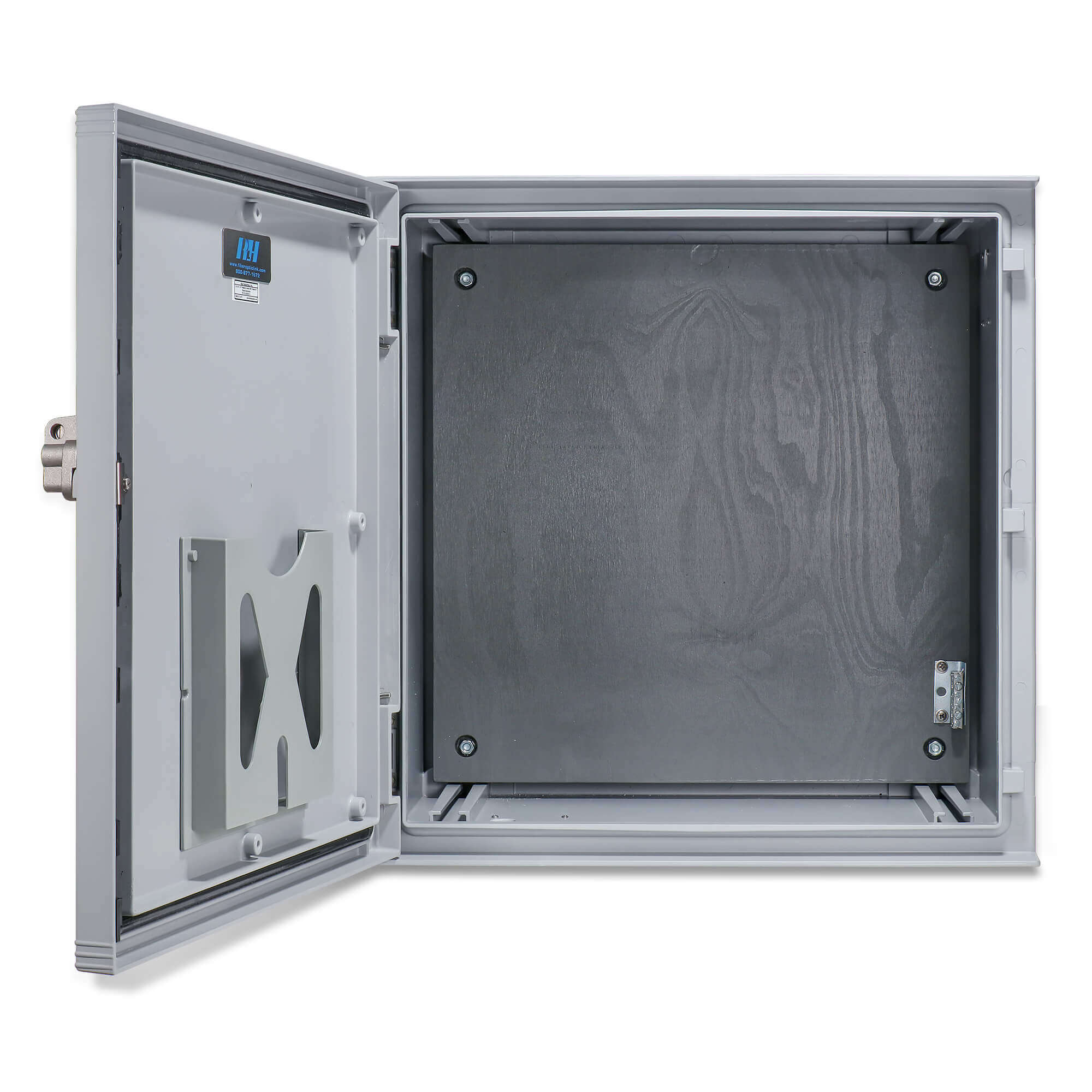

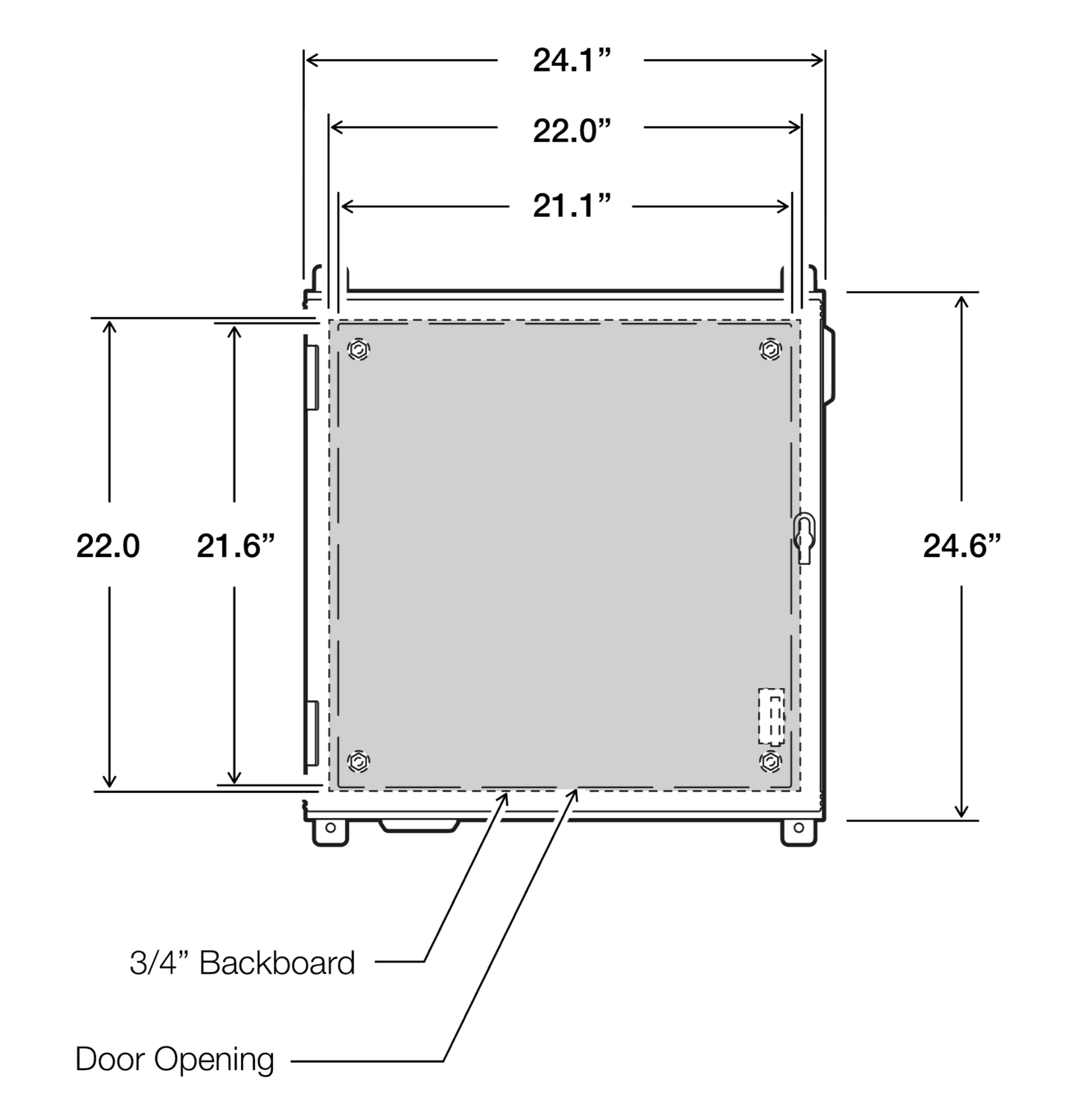

Usable Backboard: H 22 in. x W 22 in.
Backboard Type: 3/4” thick fire treated, painted plywood

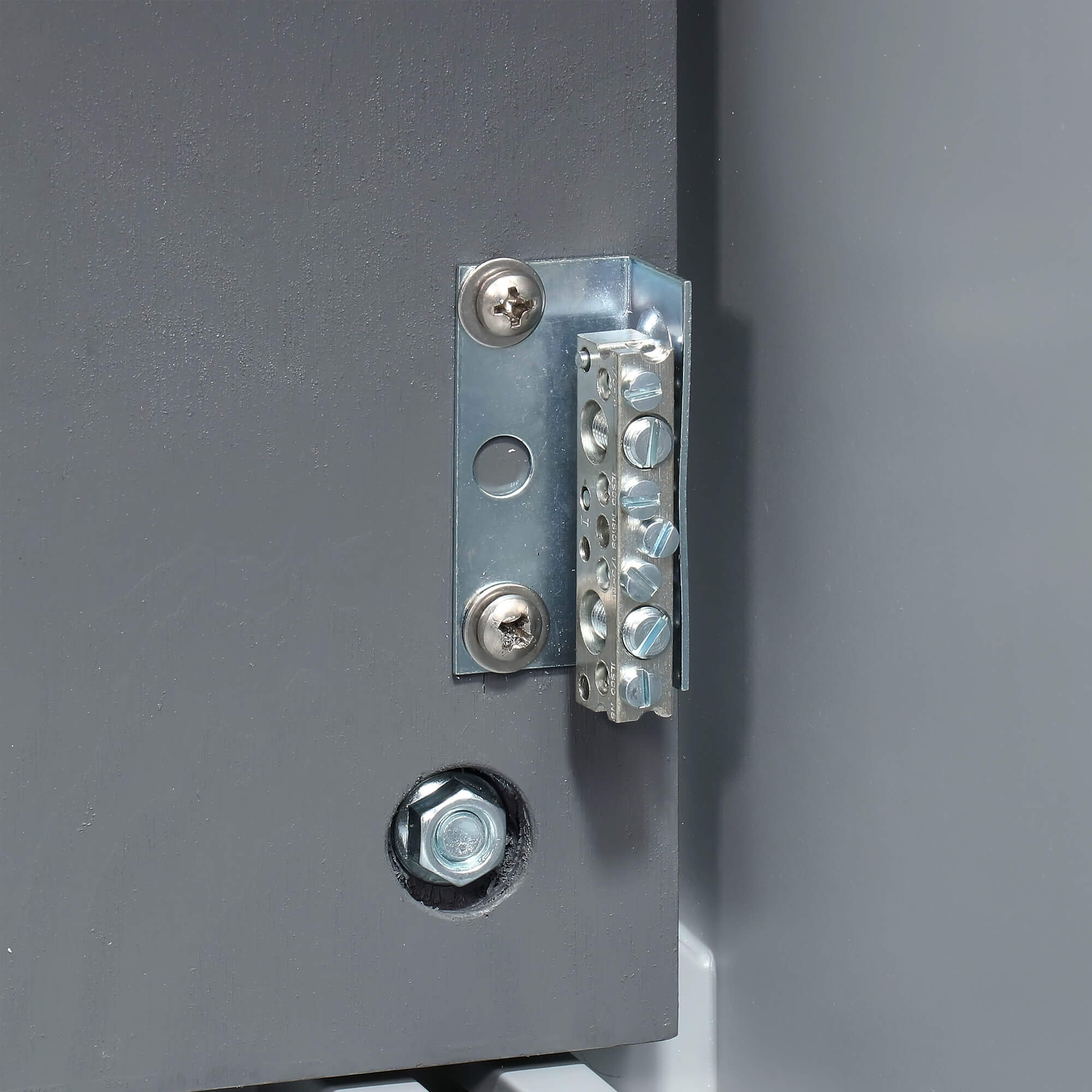

Ground Bus: 7 position ground wire capacity (Qty. 4 – #10 to #6 AWG, Qty. 3 – #10 to #1/0 AWG)
Docs
General Information
Specialized Drawings
Miscellaneous
Diagrams
Numbers
RLH-242416-F-1
RAK-242416-F-1
Ordering
24″ x 24″ x 16″ – Fiberglass Enclosure (legacy)
