Transmit 4 Analog Inputs Over a Single Fiber
Overview
Features
Specs
Docs
Diagrams
Numbers
Overview

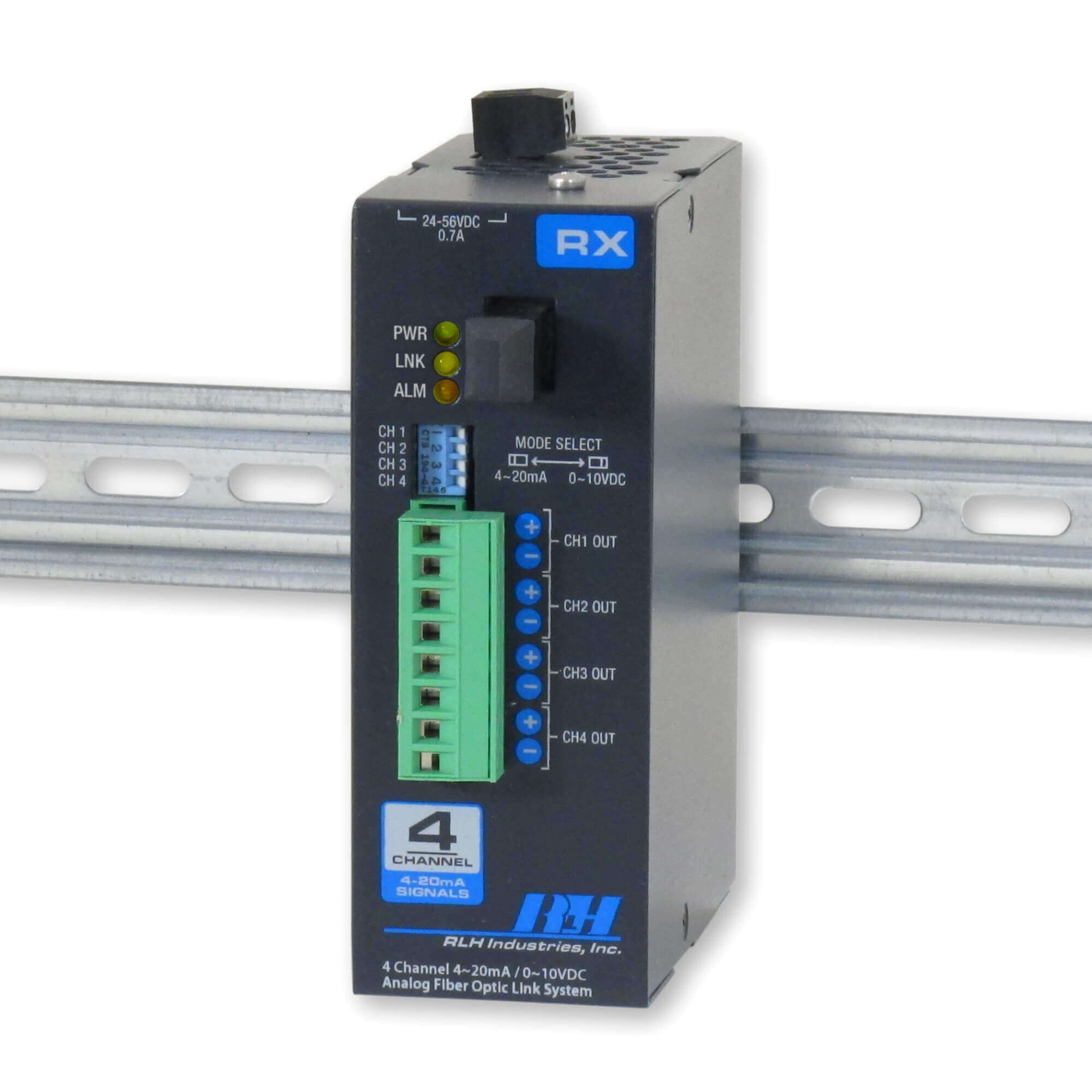

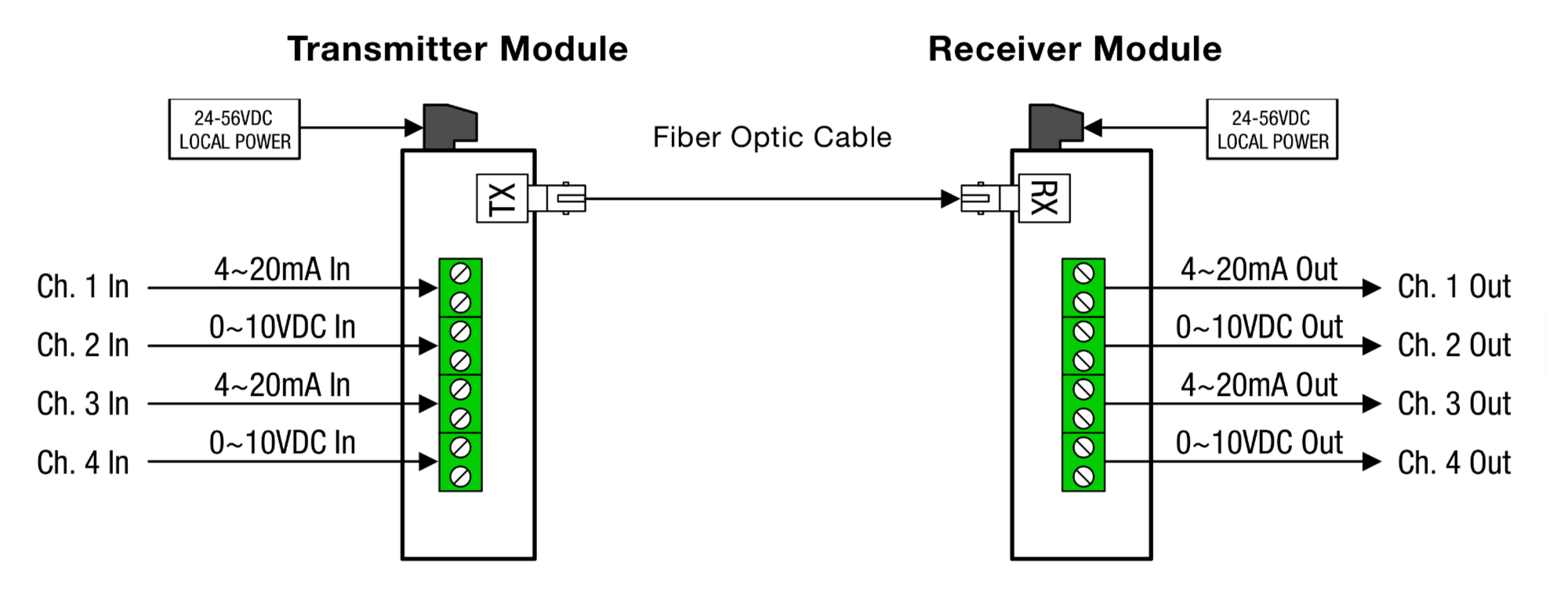

The DIN mount, 4 channel 4~20mA / 0~10VDC analog fiber optic link system provides a transmission of up to four independent analog signals over one optical fiber.
These rugged modules are designed to be mounted on any standard T-35 DIN rail or wall surface. They are temperature hardened, however if used outdoors they must be installed in a weatherproof housing.
Features
- Select voltage or current via a DIP switch for each channel
- Convenient LED status indicators
- 4 Channels over a single fiber
- Input and output may be individually configured
- Device powering terminal is not polarity sensitive
- Environmentally rugged with wide temperature range
- Available in Single or Multimode
- Available with ST or SC Connectors
- Convenient DIN Rail or Wall Mounting Clip
- Limited Lifetime Warranty
- Made in USA
Specs
Construction:
Steel and Aluminum Alloy, powder coated
Mounting Style:
Standard DIN rail (TS-35) or wall mount
Wavelength:
Multimode: 850nm
Singlemode: 1310nm
SM Long Haul: 1310nm
Fiber Type/Distance:
Multimode (62.5/125µm, 50/125µm): 6dB / 1.2 miles (2km)
Singlemode (9/125µm): 8dB / 9 miles (15km)
Singlemode Long Haul: 24dB* / 29 mi. (48 km), min. required loss *-8dB
*Distances equated using industry standard fiber and connector attenuation of 3dB/Km. Fiber condition, splices and connectors may affect actual range
Powering:
24~56VDC
Dimensions:
strong” x W1.9” x D3.9” (127mm x 48mm x 99mm) – Not including connectors
Not including DIN bracket
Operating Temperature:
-40˚F to +158˚F (-40˚C to +70˚C)
Docs
Diagrams
Numbers
420-01-1
420-02-1
420-03-1
420-04-1
420-10-1
420-11-1
420-12-1
420-20-1
420-21-1
420-22-1
Ordering
4 Channel 4~20mA / 0~10VDC (legacy)
Please contact us to get a quote for your project.
