Extend SCADA & Analog Data Circuits Over Fiber

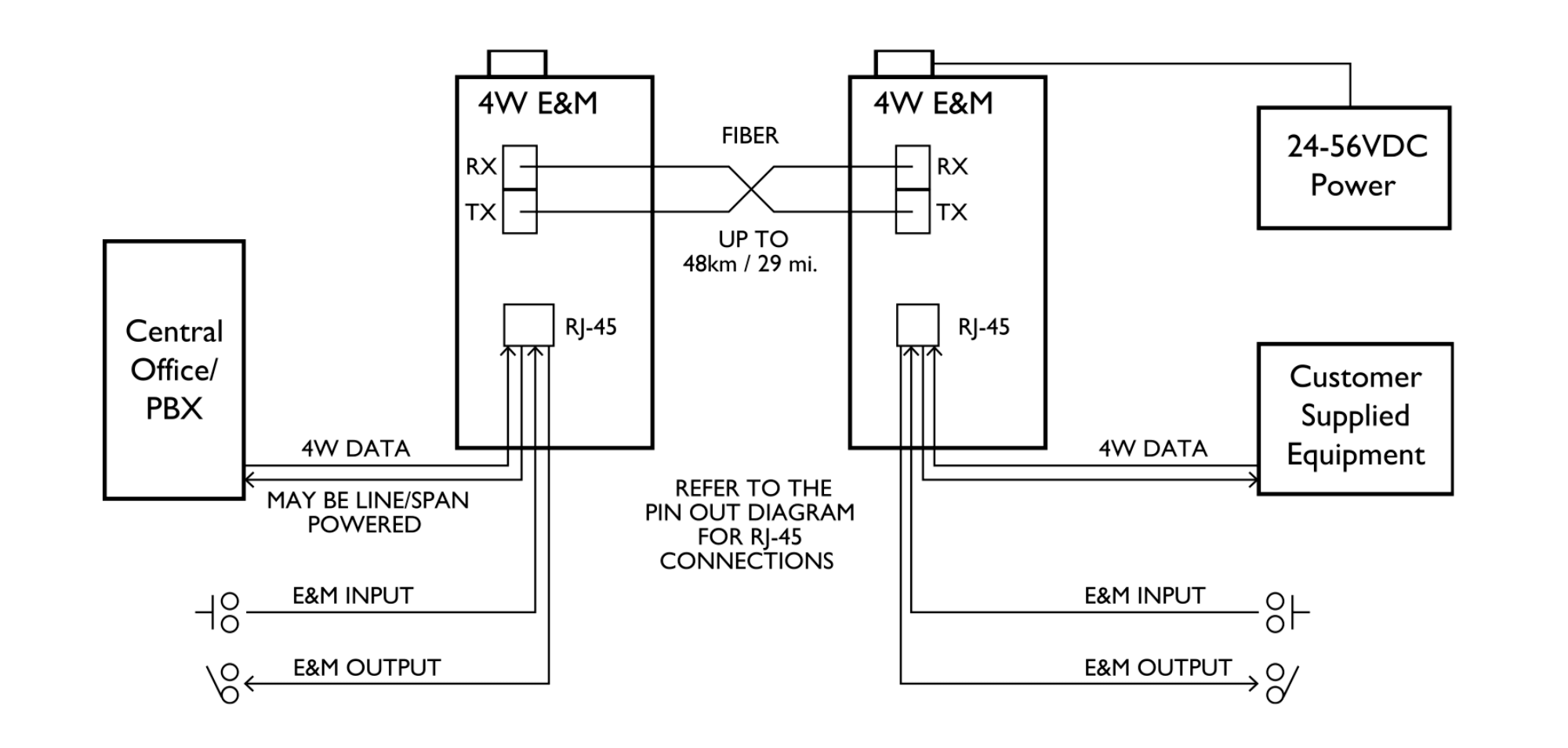

The RLH DIN Mount 4-Wire Data E&M Fiber Optic Link System provides simultaneous transmission of 2/4-wire data and single or bidirectional E&M over two optical fibers. Fiber optics are immune to RF interference, high voltages, and provide this system a range of up to 31 mi./50km.

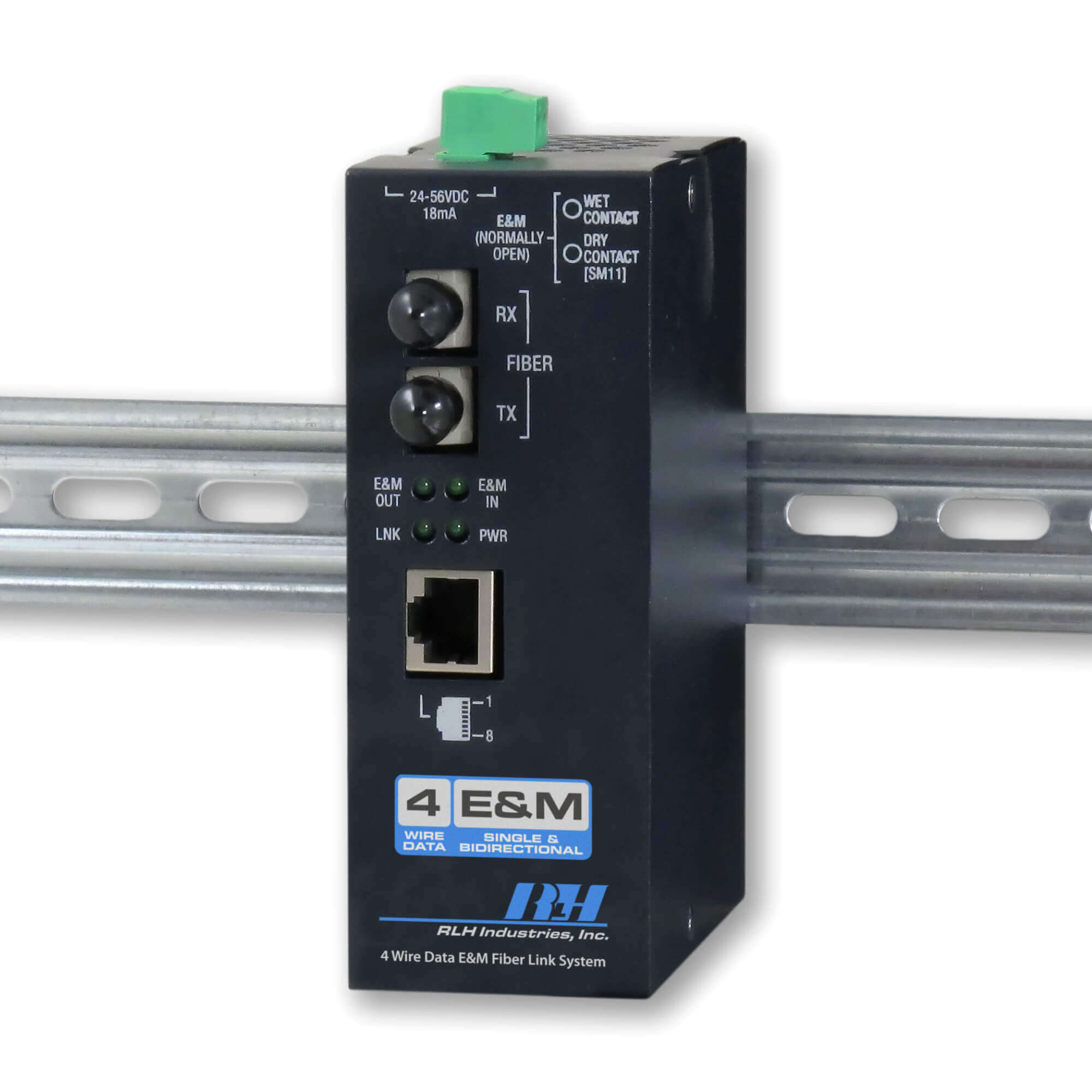

It supports full duplex constant transmission up to 9600 bps in voice frequency range (300Hz-3.4KHz), and interfaces with an E&M input providing a contact closure on the far end. The system has convenient E&M input and output status LED indicators and is housed in a rugged, powder-coated steel enclosure.
Features
- Transmits Voice Frequency 600 Ohm Audio Data
- Full duplex, constant transmission
- Dual power capable, line or 24-56VDC
- Available in Single or Multimode
- Available with ST or SC Connectors
- Convenient DIN Rail Mount
- Limited Lifetime Warranty
- Made in USA
Please see the product documentation for the complete list of specifications
Transmission Method:
Frequency modulated light via two optical fibers
Wavelength:
Multimode: 850nm
Singlemode: 1310nm
Fiber Type/Distance:
Multimode (62.5/125µm): 1.2 miles/2km
Singlemode (9/125µm): 9 miles/15km; Long Haul 31 miles/50km
Fiber Connector Type:
ST or SC
Dimensions:
strong” x W1.9” x D3.9” (127mm x 48mm x 100mm) – Not including connectors
Operating Temperature:
-40˚F to +158˚F (-40˚C to +70˚C)
Operating Humidity:
95% non-condensing
General Information
CAD Files
4ED-01-1
4ED-03-1
4ED-10-1
4ED-11-1
4ED-20-1
4ED-21-1
