There is a newer version of this product available.
Transport Multiple Services Over Fiber​

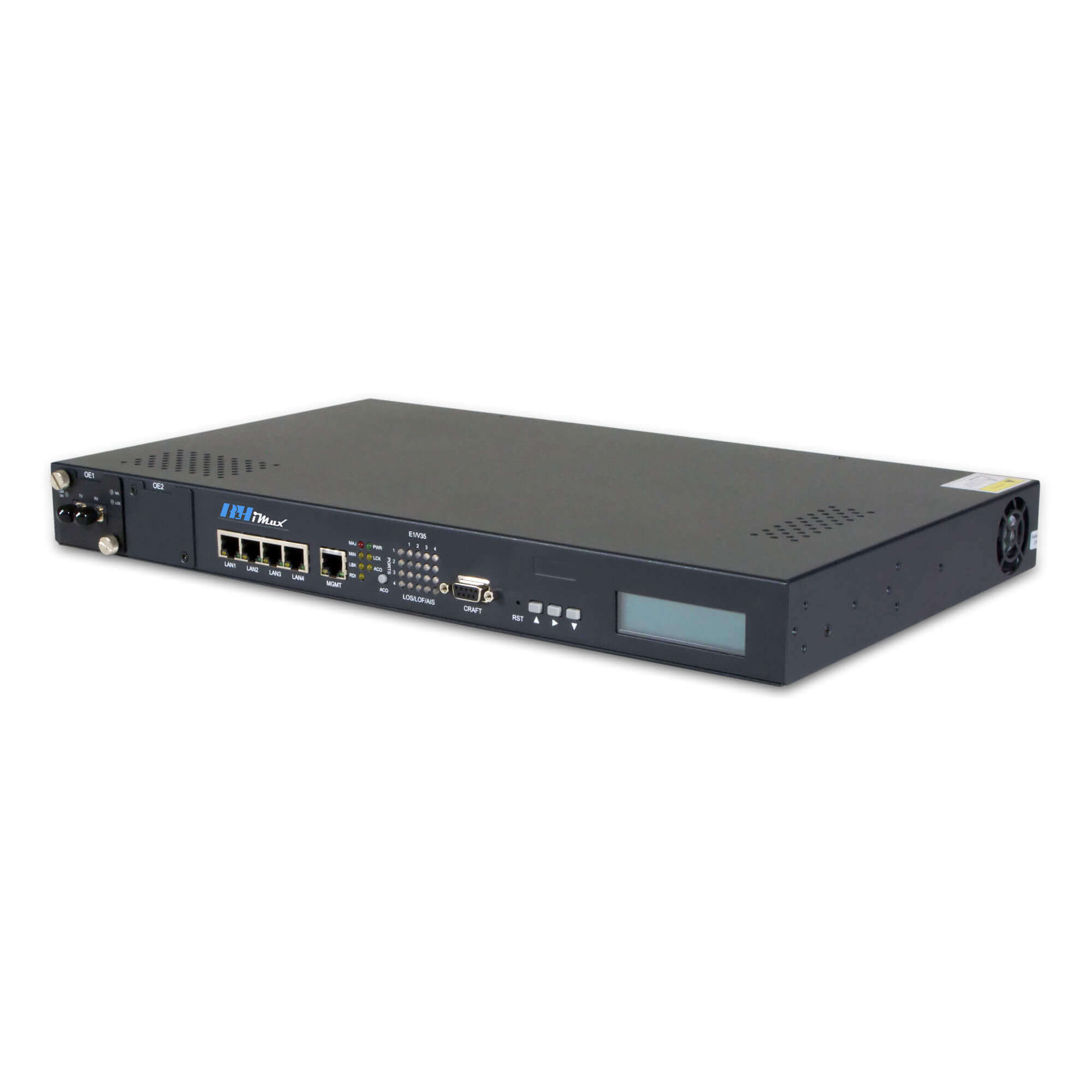

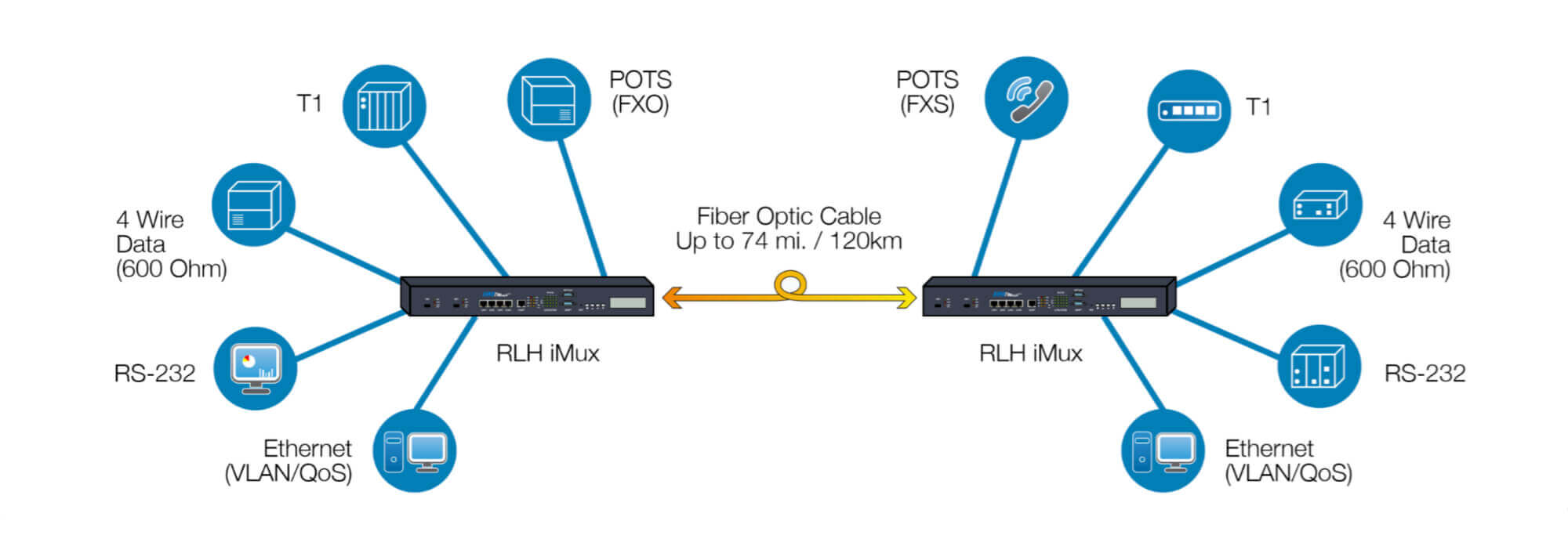

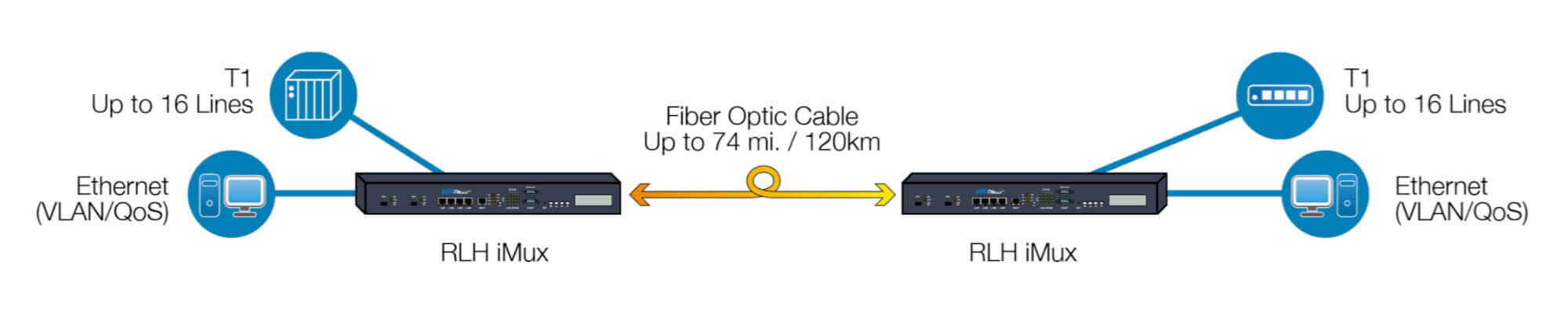

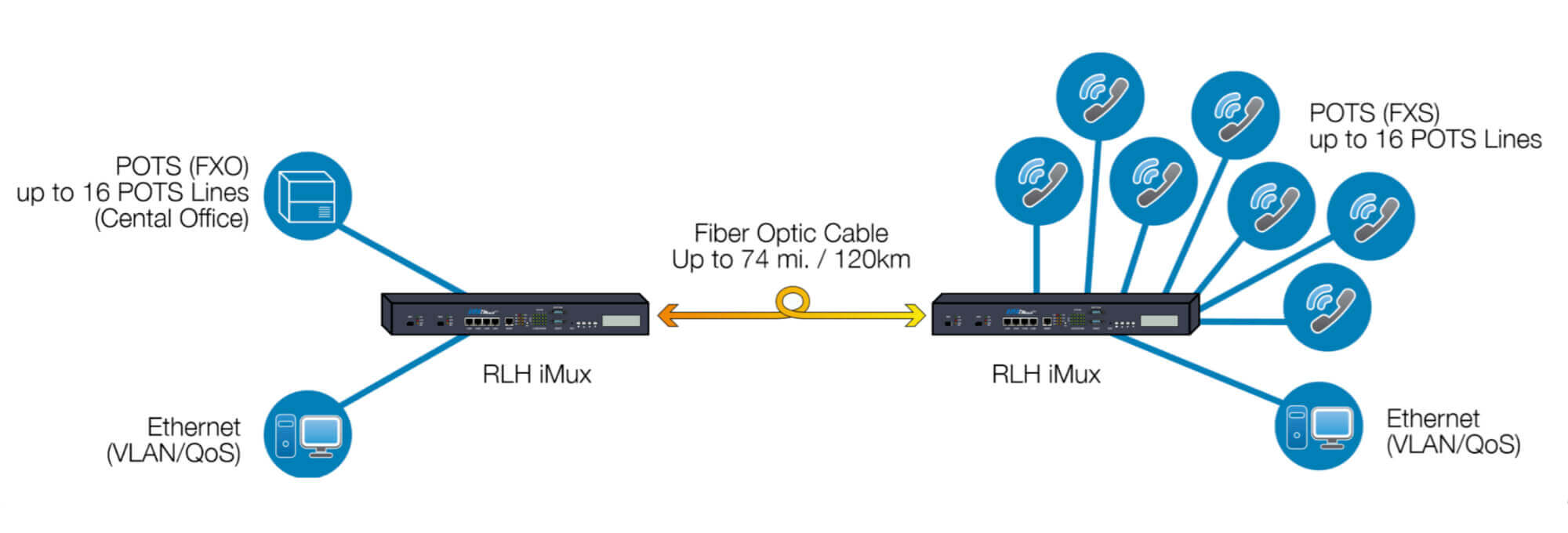

The iMux is a powerful fiber optic modular multiplexer capable of providing up to 16 channels of T1, RS-232, analog phone FXO/FXS, and 4 wire analog data/SCADA in addition to four built-in 10/100M Ethernet ports, over a single fiber port.

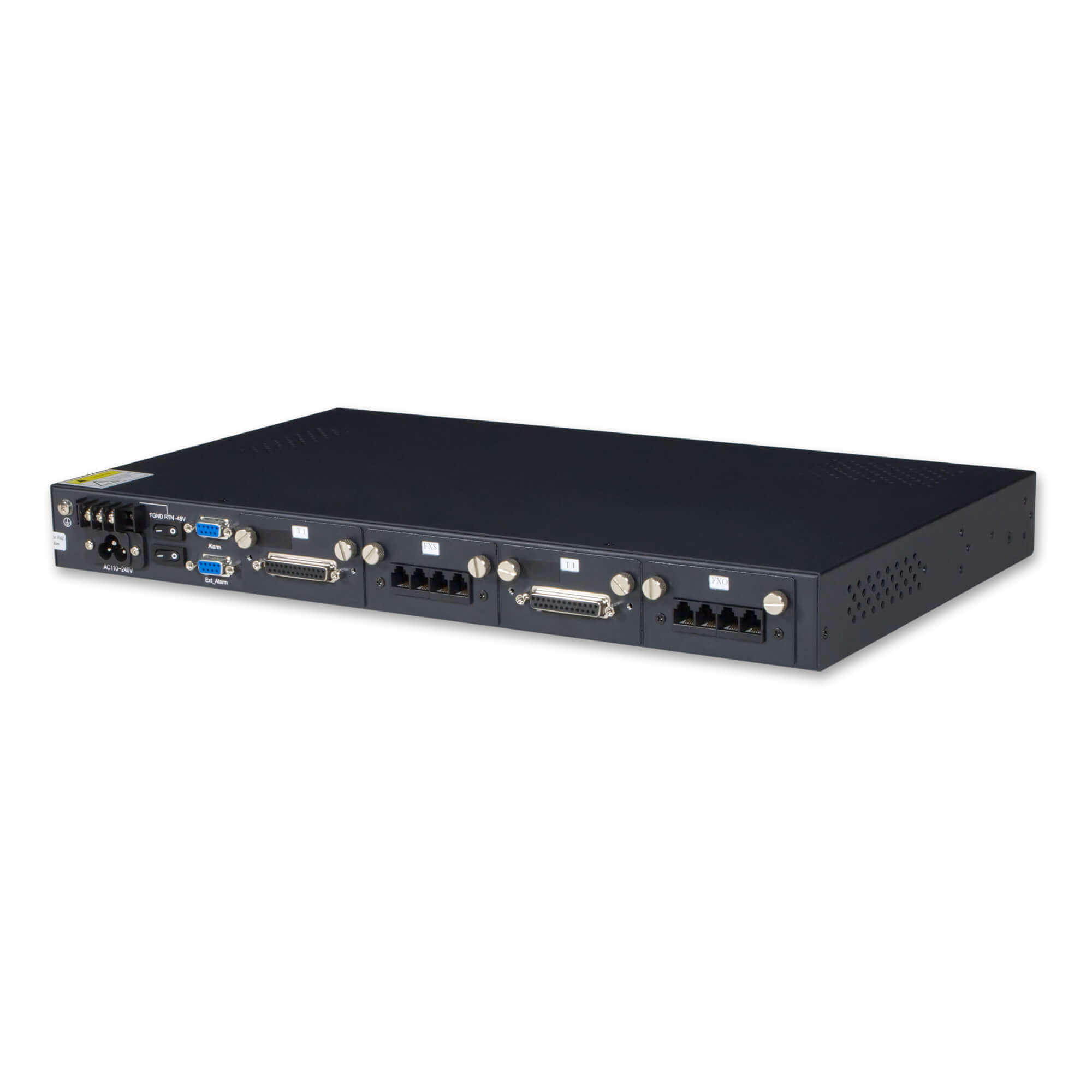

These services are supplied by modules that plug into slots in the back of unit, with each module and providing 4 ports per module. Up to 4 modules may be installed in any combination. Spares or add-on modules may be ordered separately. One or two dual fiber or single bidirectional fiber (WDM) optical plug-in modules may be installed into the front of the unit, making the best use of fiber availability and providing 1+1 hot-swappable optical protection.
The iMux may be managed through SNMP, web Interface, VT100 craft port or LCD/menu keys on the front panel. It also has an external alarm port for alarm input monitor purposes, and an alarm port with four alarm contacts.
An Embedded Operation Channel (EOC) is maintained between local and remote sides for system configuration, testing, performance and alarm monitoring of each channel and optical link.
It comes complete with EIA 19″ and 23″ rack ears using 1RU, or may be used on a desktop or shelf. The iMux provides local/remote loopback functions for optical and T1 interfaces, and is ideal for network testing and maintenance.
- T1, RS-232, FXO/FXS, Analog Data/Audio/SCADA port modules available
- Up to 4 modules (each with 4 ports) may be used in any combination to mix and match services
- Convenient front status indicators
- Optical module auto laser shutdown (ALS), hot-swappable 1+1 protection
- Aggregated Ethernet throughput up to 100Mbps
- Four integrated 10/100 Base-T Ethernet ports for LAN interconnection or VOIP
- Alarm relay has major and minor alarms (audible and visible alarm output)
- Supports SNMP , HTTP / FTP / TFTP remote software upgradable Supports TELNET function to configure and monitor local and remote devices through TCP/IP network
- Supports VLAN/QOS functions and port rate control
- Provides the parity error count for optical interface performance monitoring
- May be used with leased lines to build up private networks, private telephone networks (by interconnecting PBX’s) or access the internet or a partner network (extranet)
- Class 1 Laser optical module is safety standard IEC 825 compliant
- Modules may be mixed in any configuration
- Modules may be ordered separately to allow for spares and growing your system at a later time
- Dual and single optical fiber modules are available
- Available with ST or SC Connectors
- EIA 19″ / 23″ 1RU rack or wall mountable
- Available with dual redundant 48VDC power supplies, or 115/220VAC & 48VDC combo power supplies
Transmission Method:
Frequency modulated light via optical fibers
Wavelength:
Multimode: 1310nm
Singlemode: 1310nm/1550nm
Maximum Fiber Attenuation/Distance:
Multimode (62.5/125μm): 2km/1.25 miles range
Singlemode (9/125µm): 25km/15.5 miles range, 60km/36 miles range, 120km/74 miles range
Fiber Connector Type:
ST or SC
Powering:
48VDC or 115VAC
Operating Temperature:
-40º F to +158º F (-40º C to +70º C)
RLH-IMUX-V-2
RLH-IMUX-A-2
RLH-MM-T1
RLH-MM-D1
RLH-MM-AO
RLH-MM-AS
RLH-MM-D2
RLH-OM-04-1
RLH-OM-10-1
RLH-OM-11-1
RLH-OM-14-1
RLH-OM-15-1
RLH-OM-50-1
RLH-OM-40-1
RLH-OM-41-1
RLH-OM-42-1
Ordering
iMux Multiplexer System (legacy)
