Legacy Product
This is a legacy product and is not available for sale online. Contact sales for a special build or if you require additional information.
Transport 2 Circuits of ADSL Over Fiber
Overview
Features
Specs
Docs
Diagrams
Numbers
Overview

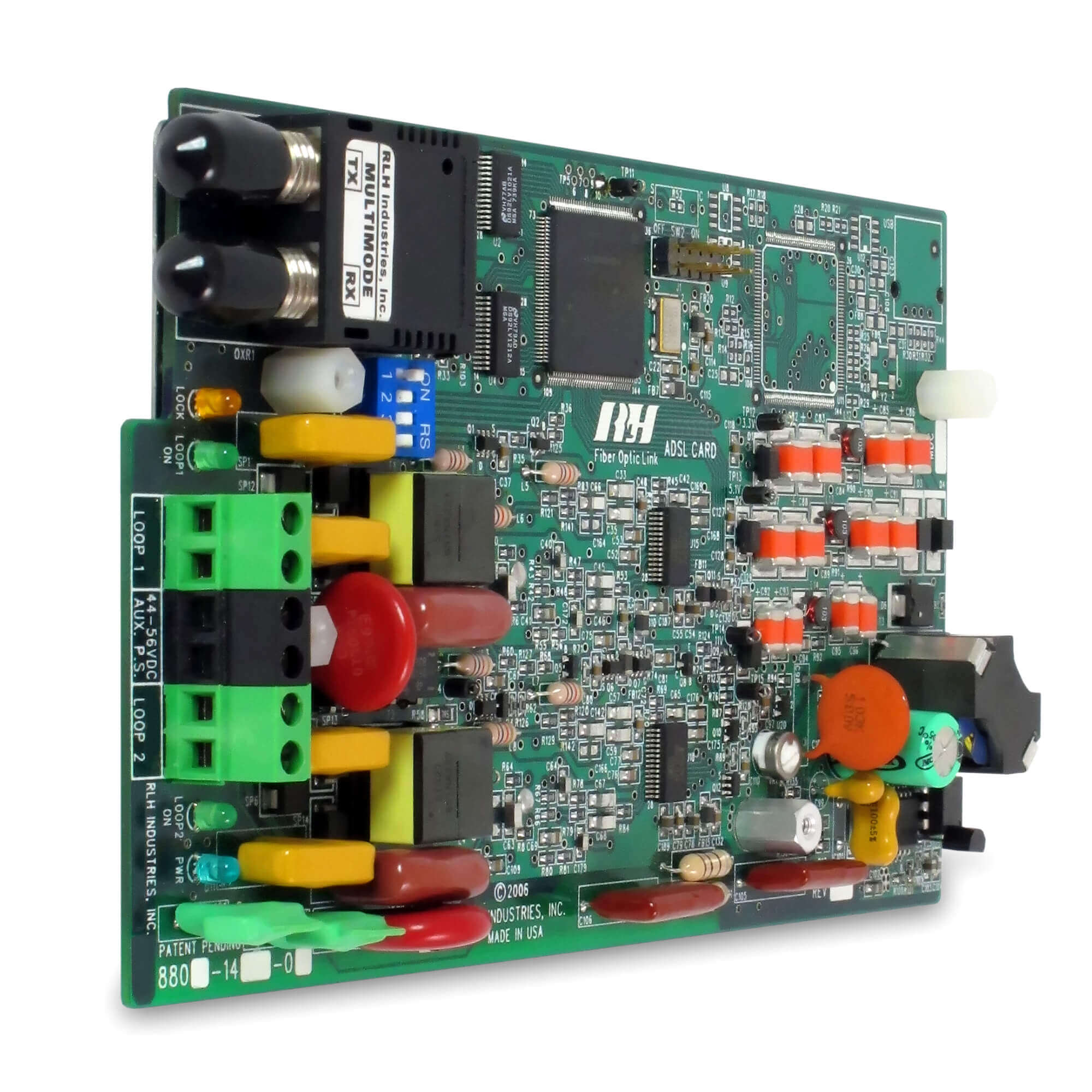

The RLH 2 Channel ADSL Fiber Link Card system supports two channels of ADSL copper service over a single pair of singlemode or multimode fiber optic cable. This environmentally hardened system converts the copper signals into an optical signal over fiber, then converts the fiber optic signal back into 2 Wire DSL copper service for customer use.
Transmitting ADSL signals over fiber optic cable allows for network extension over long distances, and provides electrical isolation between both ends of the network. The RLH ADSL fiber system is compatible with DSL download data rates of up to 2.75Mbps.
Each card requires a 44-56VDC 100mA local power source to operate. RLH carries several compatible power supplies, but any compatible DC power source is acceptable.This hardened, rugged system is covered by our Limited Lifetime Warranty.
This fiber link card is designed to be installed into any of the RLH Fiber Link Card Housings, and occupies a single card slot.
Features
- Hardened to operate in -40°F to +158°F (-40°C to +70°C)
- 44-56VDC 100mA local power source at each end
- Network extension, singlemode (8mi./13km) / multimode (1640 ft./500m)
- ST or SC fiber connector types
- Each card can accept 2 ADSL lines, maximizing throughput
- Critical, high voltage, remote or un-manned locations operating 24/7/365
- DSL download data rates of up to 2.75Mbps
- Limited Lifetime Warranty
- Made in USA
Specs
Transmission Method:
Amplitude modulated light via two optical fibers
Wavelength:
Multimode: 850nm
Singlemode: 1310nm
Fiber Type/Distance:
Multimode (50 or 62.5µm/125µm): 1640 feet/500m
Singlemode (8~9µm/125µm): 8 miles/13km
Fiber Connector Type:
ST or SC Fiber Female Connectors
Dimensions:
7in. x 4in. x 1in. (177.8mm x 101.6mm x 25.4mm)
(Standard RLH Fiber Link Card Form Factor)
Operating Temperature:
-40˚F to +158˚F (-40˚C to +70˚C)
Operating Humidity:
95% non-condensing
Maximum Data Range:
2.75Mbps Downstream and 2.75Mbps Upstream
Docs

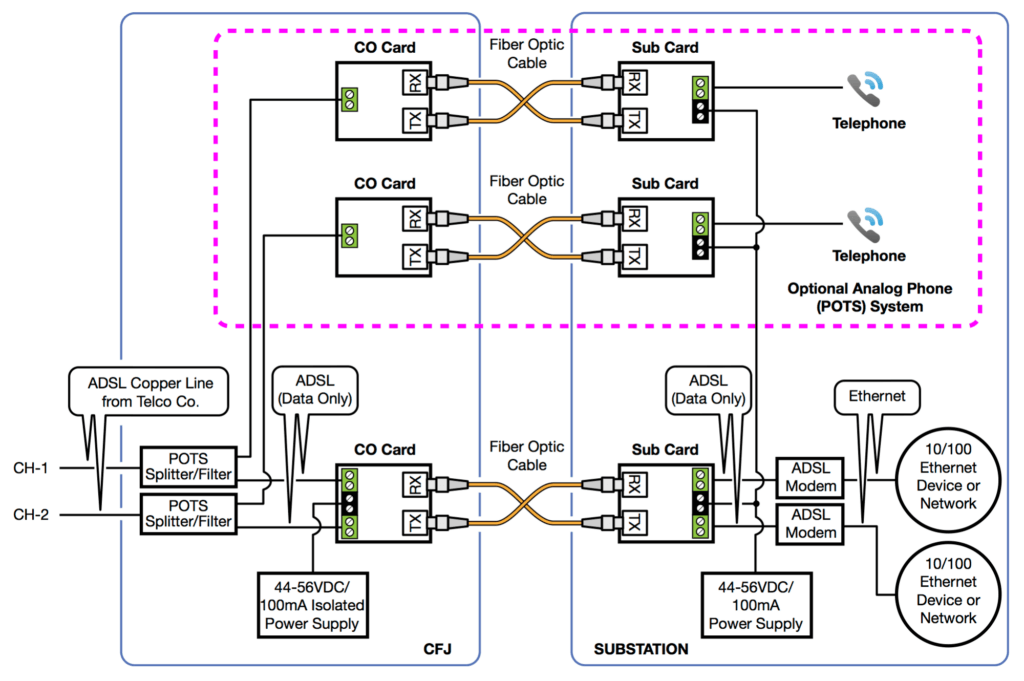

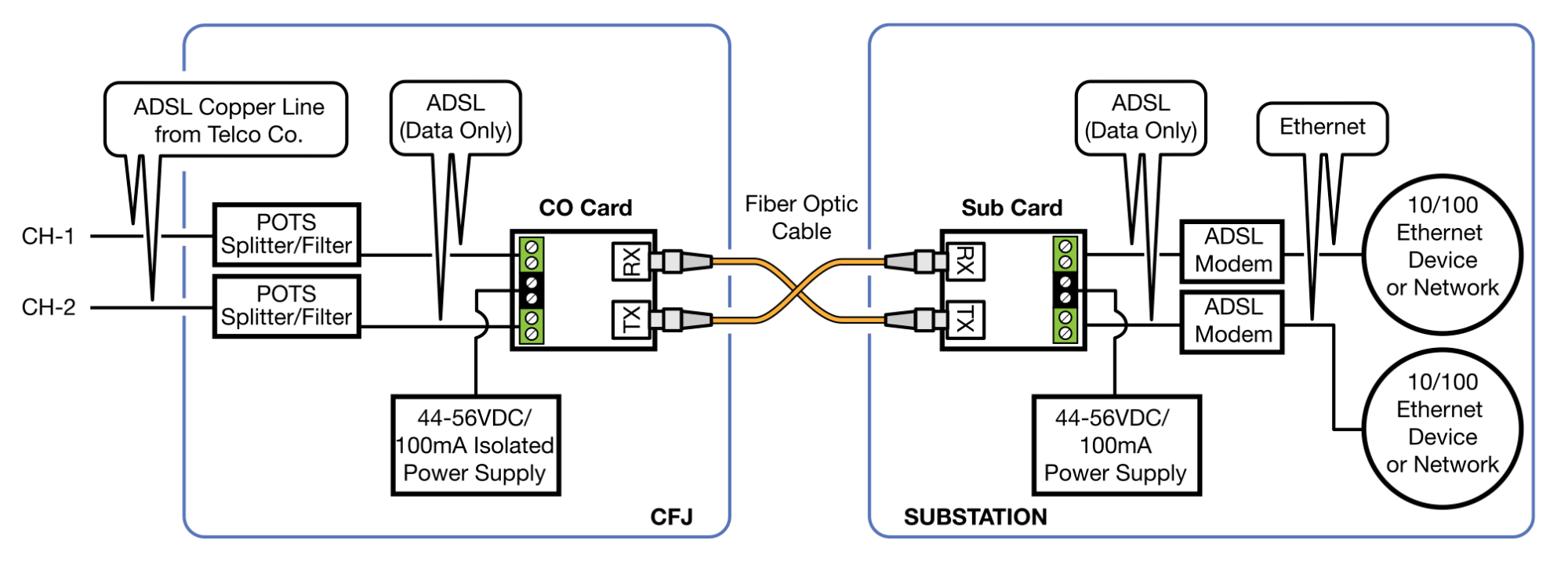

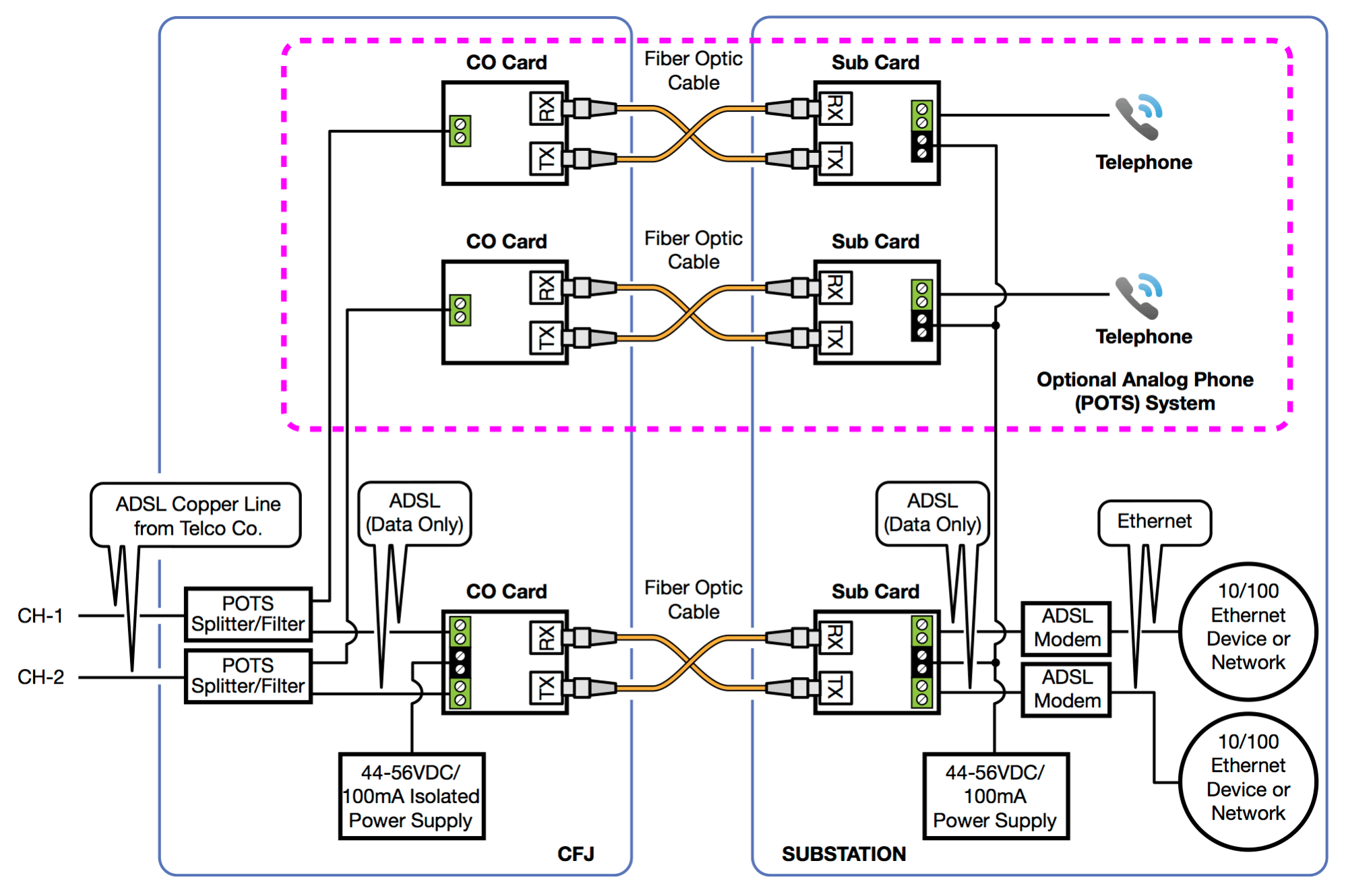

Diagrams
Numbers
8806-1550-01
8806-1560-01
8805-1550-01
8805-1560-01
8806-1570-01
8806-1580-01
8805-1570-01
8805-1580-01
*Lead times are estimates and may vary. You will be contacted within 1 business day to go over the details of your order. If you require a specific date, let us know!
*Days = Business Days
