Extend an Analog DID Trunk Line Over Fiber
Overview
Features
Specs
Docs
Diagrams
Numbers
Overview

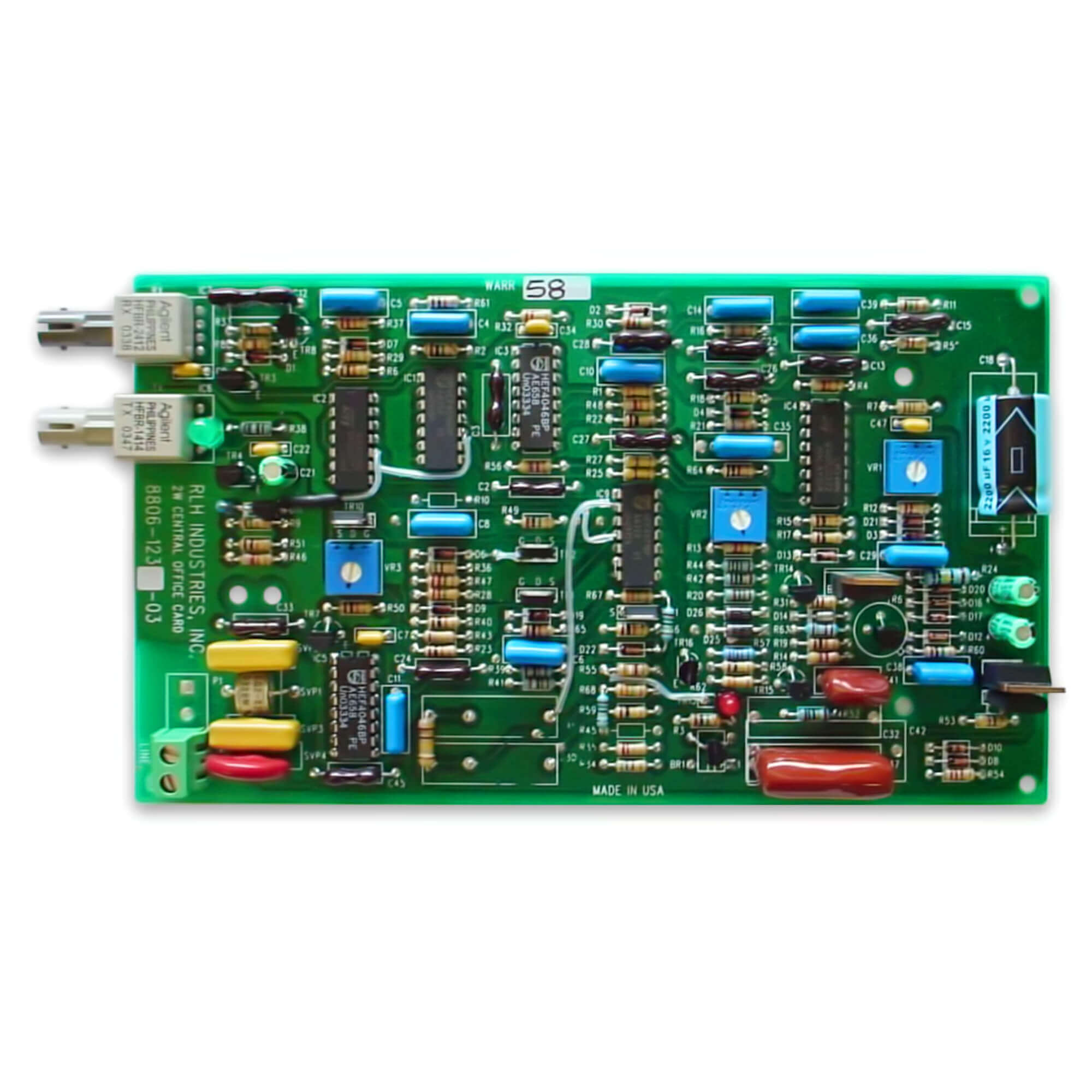

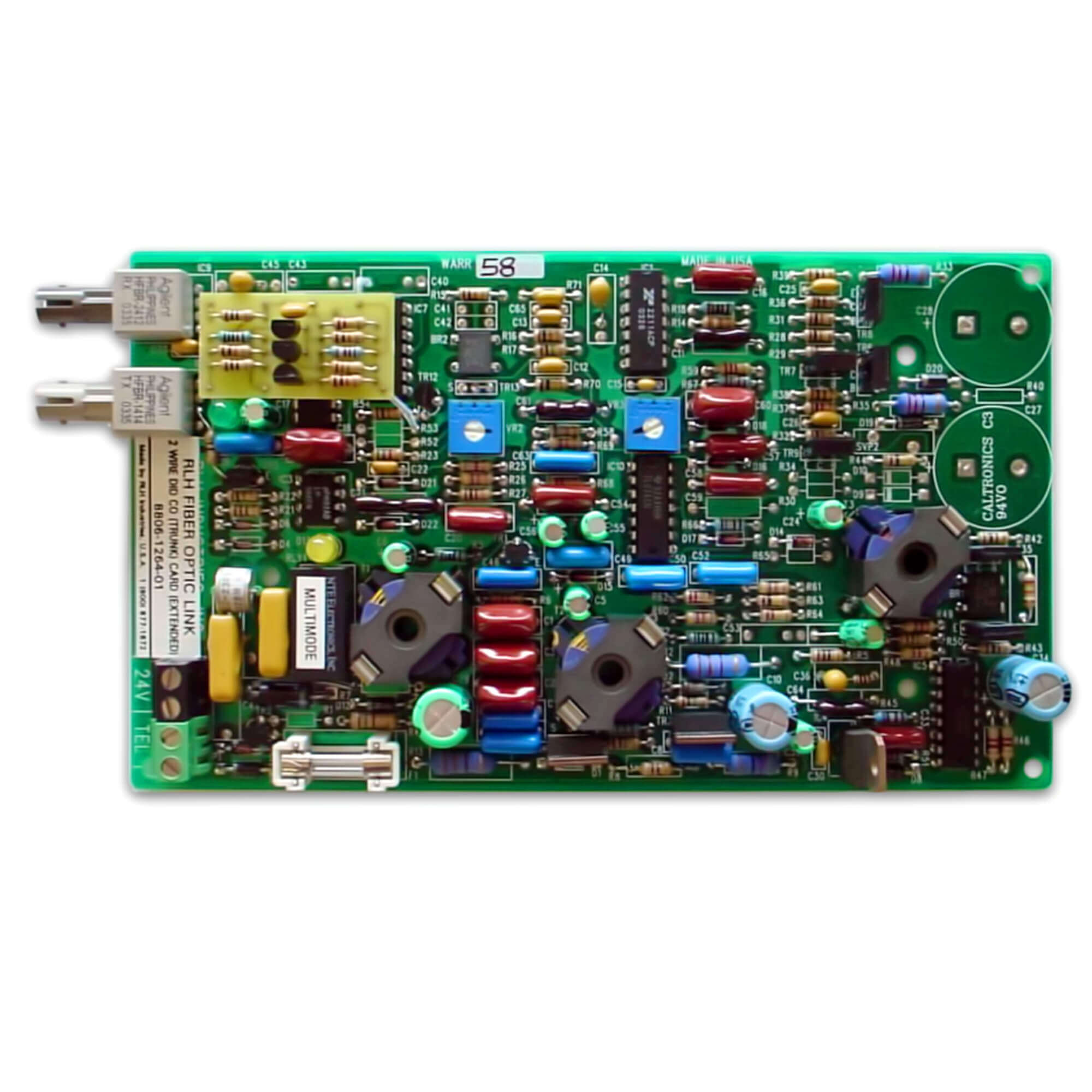

The 2 Wire DID (Direct Inward Dialing) fiber link card system provides a fiber optic transmission of a Telco DID TRUNK line to a PBX (loop start) over two optical fibers.

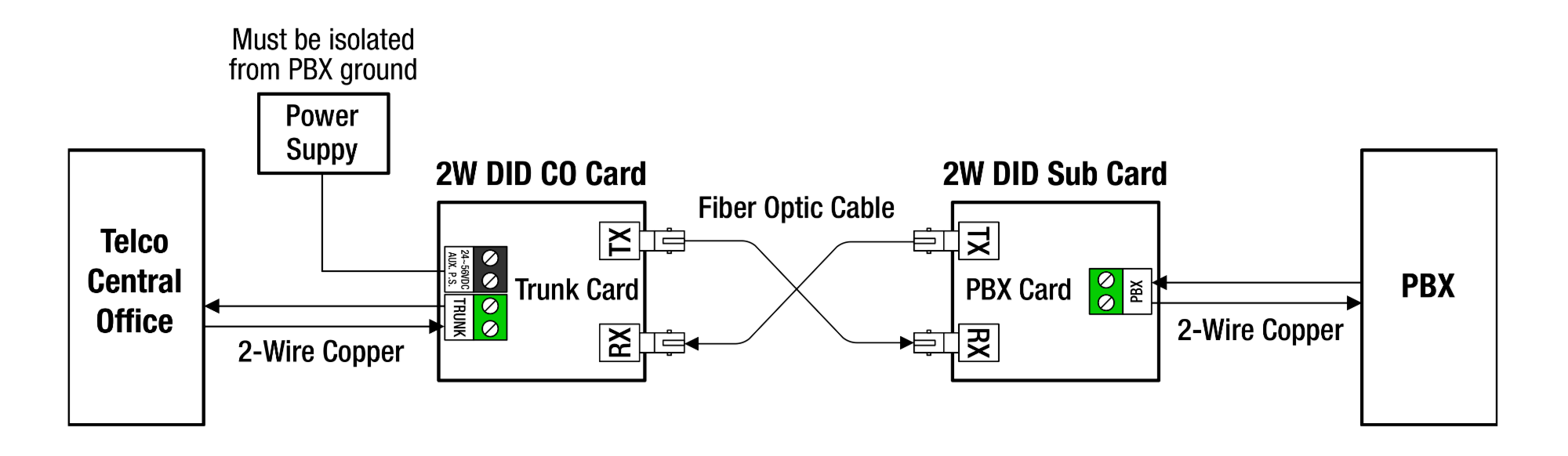

The signal provided over copper wiring is converted to optical, transmitted over fiber optic cable, and converted back into the original copper-based signal at the other end. This allows for network extension over long distances, and provides electrical isolation between both ends.
The 2-wire DID system transmits signals in the voice-frequency or audio range (300Hz-3.4KHz) while providing reverse battery signaling to communicate call status. The 2 Wire DID system is temperature hardened for tough environmental conditions where 24/7/365 operation and rugged reliability are critical, and is covered by our Limited Lifetime Warranty.

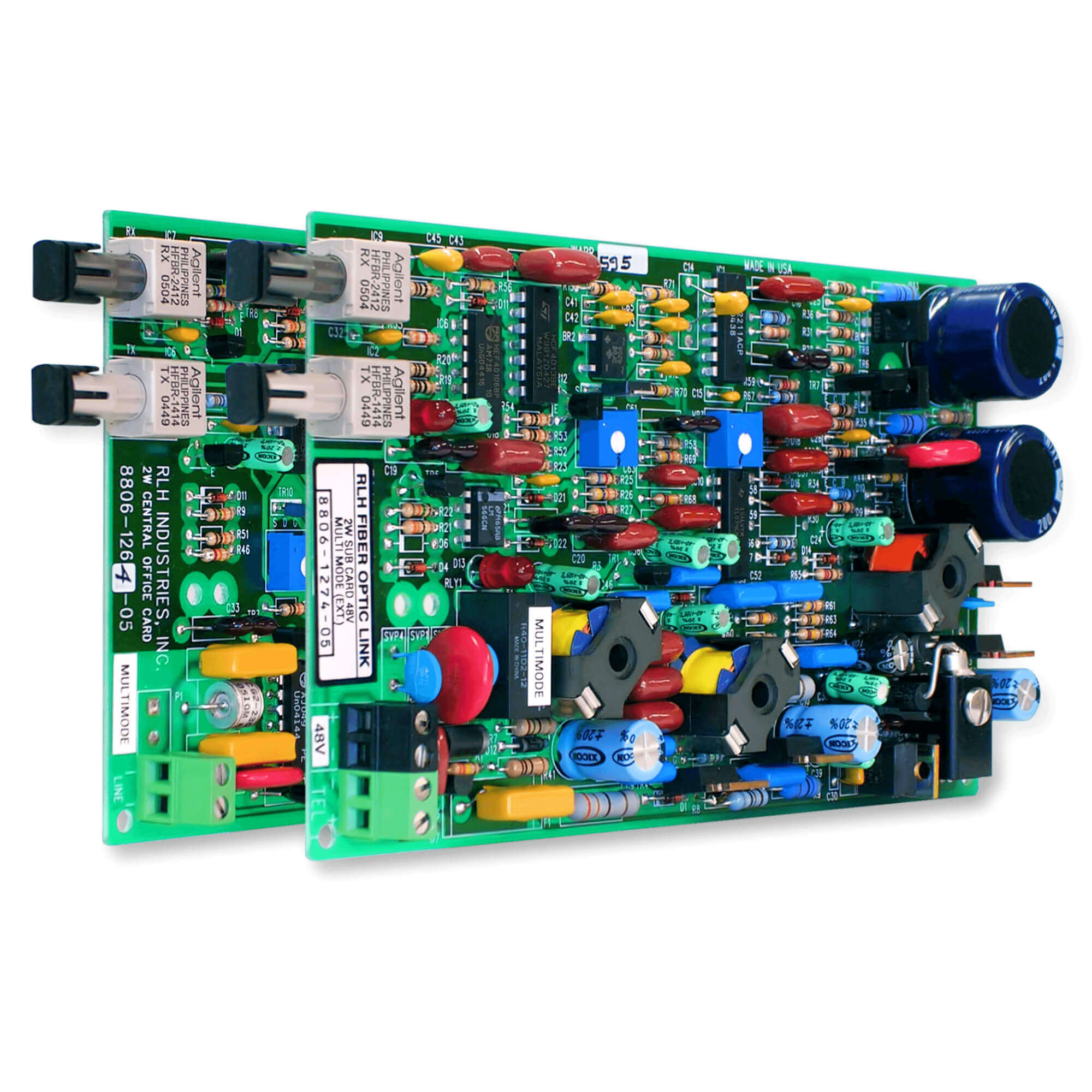

This fiber link card is designed to be installed into any of the RLH Fiber Link Card Housings, and occupies a single card slot.
Features
- Compatible with 2 wire DID Systems
- DID Sub (PBX) side is line powered
- DID CO (trunk) uses 24-56VDC power
- Uses reverse battery switching
- Available in Single and Multimode
- Available with ST or SC Connectors
- Uses 24~48VDC Local Power
- Compatible with a wide variety of Card Housings
- Limited Lifetime Warranty
- Made in USA
Specs
Transmission Method:
Frequency modulated light via two optical fibers
Wavelength:
Multimode: 850nm
Singlemode: 1310/1550nm
Fiber Type/Distance:
Multimode (62.5/125µm): 1.5 miles/2.4km
Singlemode (9/125µm): 9 miles/15km; Long Haul 37 miles/60km
Fiber Connector Type:
ST or SC
Dimensions:
7in. x 4in. x 1in. (177.8mm x 101.6mm x 25.4mm)
(Standard RLH Fiber Link Card Form Factor)
Operating Temperature:
-40˚F to +158˚F (-40˚C to +70˚C)
Operating Humidity:
95% non-condensing
Docs
General Information
Specialized Drawings
Miscellaneous
Diagrams
Numbers
8806-1264-05
8806-1274-05
8805-1264-05
8805-1274-05
8806-1262-03
8806-1272-05
8805-1262-03
8805-1272-05
8806-1262-03-LH
8806-1272-05-LH
8805-1262-03-LH
8805-1272-05-LH
