Extend Digital PBX Handsets Over Fiber
Overview
Features
Specs
Docs
Diagrams
Numbers
Overview

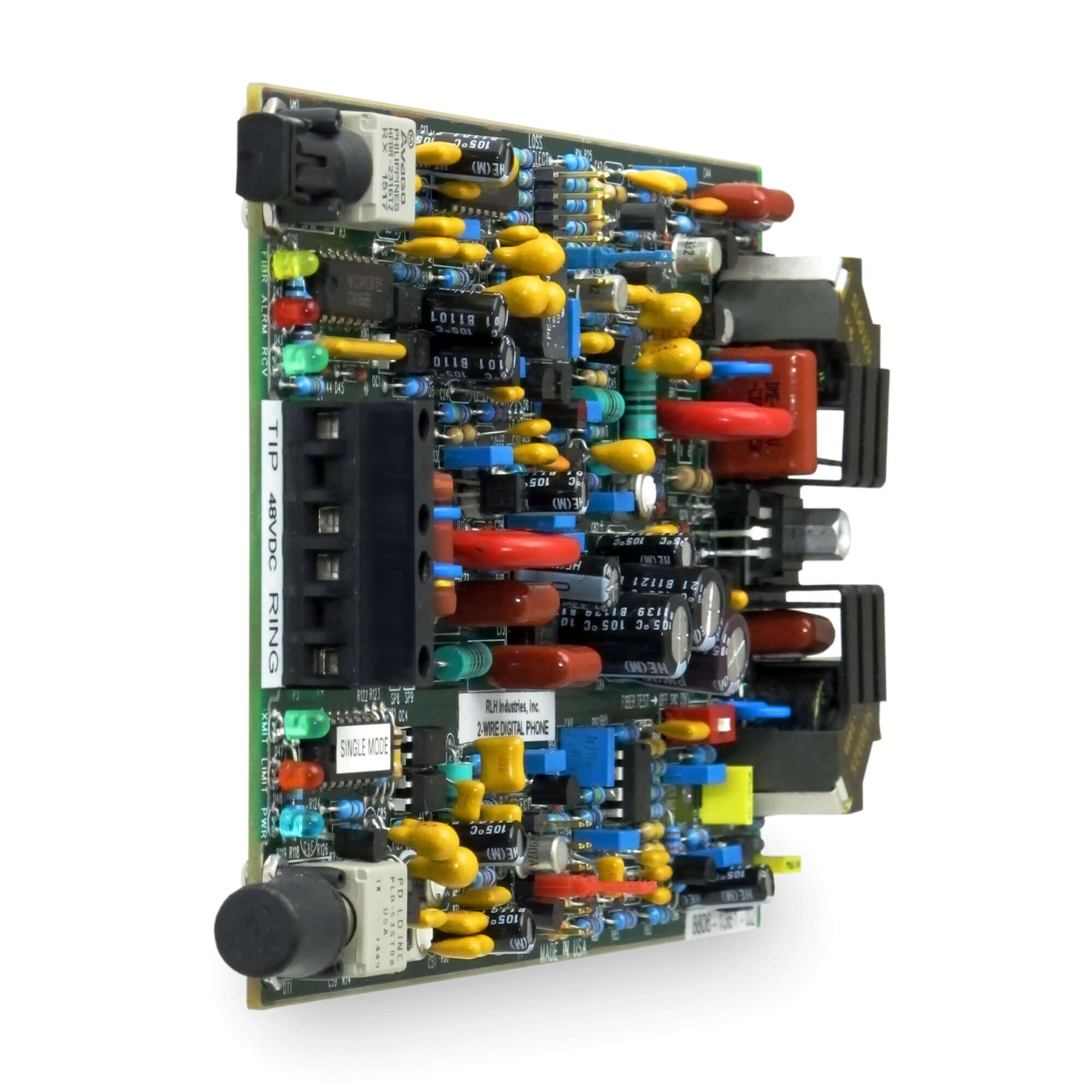

The Digital Phone Fiber Link Card system processes incoming bipolar signal connecting a digital phone set (TEL) and switch or PBX. The Digital Phone card has an informative LED display for status monitoring. This Fiber Link Card system is compatible with most commonly used systems.
This fiber link card is designed to be installed into any of the RLH Fiber Link Card Housings, and occupies a single card slot.
Features
- Processes digital phone signals
- Utilizes 24-56VDC power source
- Available in Single and Multimode
- Available with ST or SC Connectors
- Compatible with a wide variety of Card Housings
- Limited Lifetime Warranty
- Made in USA
Specs
Transmission Method:
Frequency modulated light via two optical fibers
Wavelength:
Multimode: 850nm
Singlemode: 1310nm
Fiber Type/Distance:
Multimode (62.5/125µm) and Singlemode (9/125µm), up to 1.6km / 1 mi
Fiber Connector Type:
ST or SC
Dimensions:
7in. x 4in. x 1in. (177.8mm x 101.6mm x 25.4mm)
(Standard RLH Fiber Link Card Form Factor)
Operating Temperature:
-40˚F to +158˚F (-40˚C to +70˚C)
Operating Humidity:
95% non-condensing
Docs

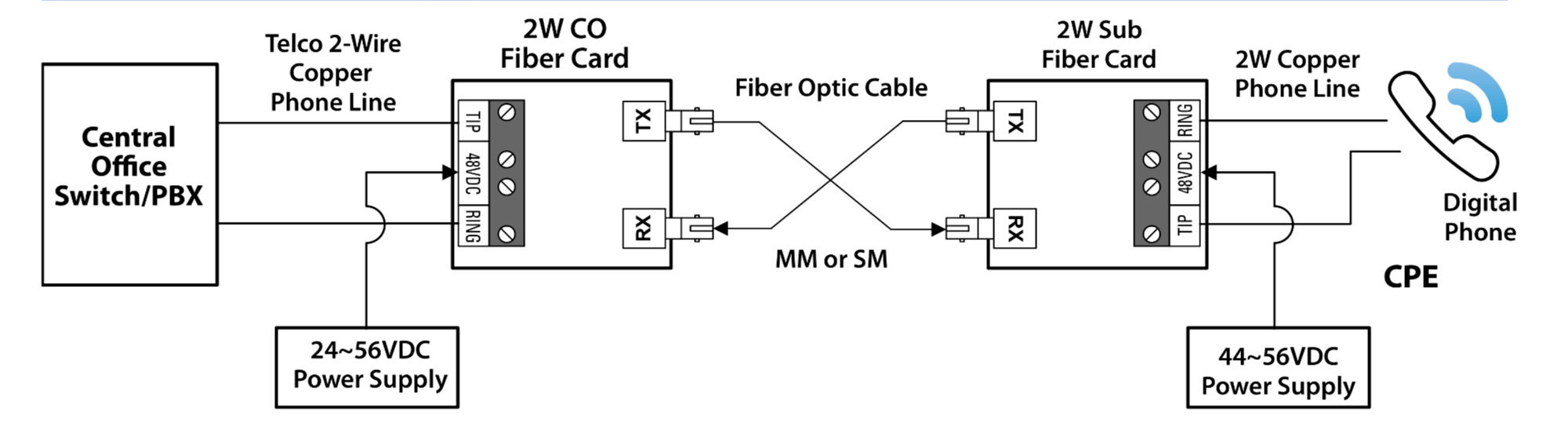

Diagrams
Numbers
8806-1334-02
8806-1344-02
8805-1334-02
8805-1344-02
8806-1361-02
8806-1371-02
8805-1361-02
8805-1371-02
Ordering
2 Wire Digital Phone (legacy)
