Legacy Product
This is a legacy product and is not available for sale online. Contact sales for a special build or if you require additional information.
Extend HDSL 1, HDSL 2, or HDSL 4 Telco Circuits Over Fiber – Line Powered
Overview
Features
Specs
Docs
Diagrams
Numbers
Overview

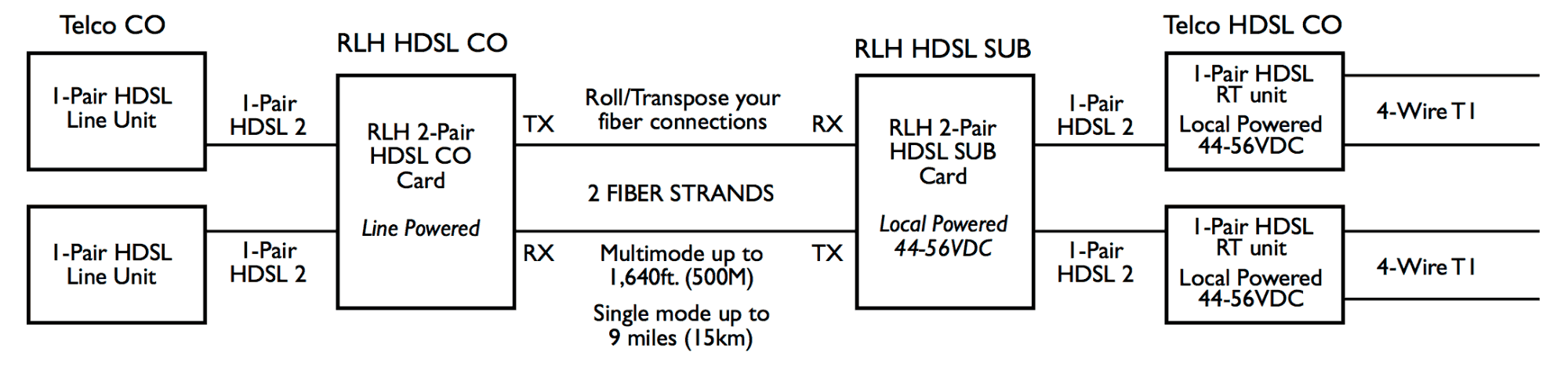

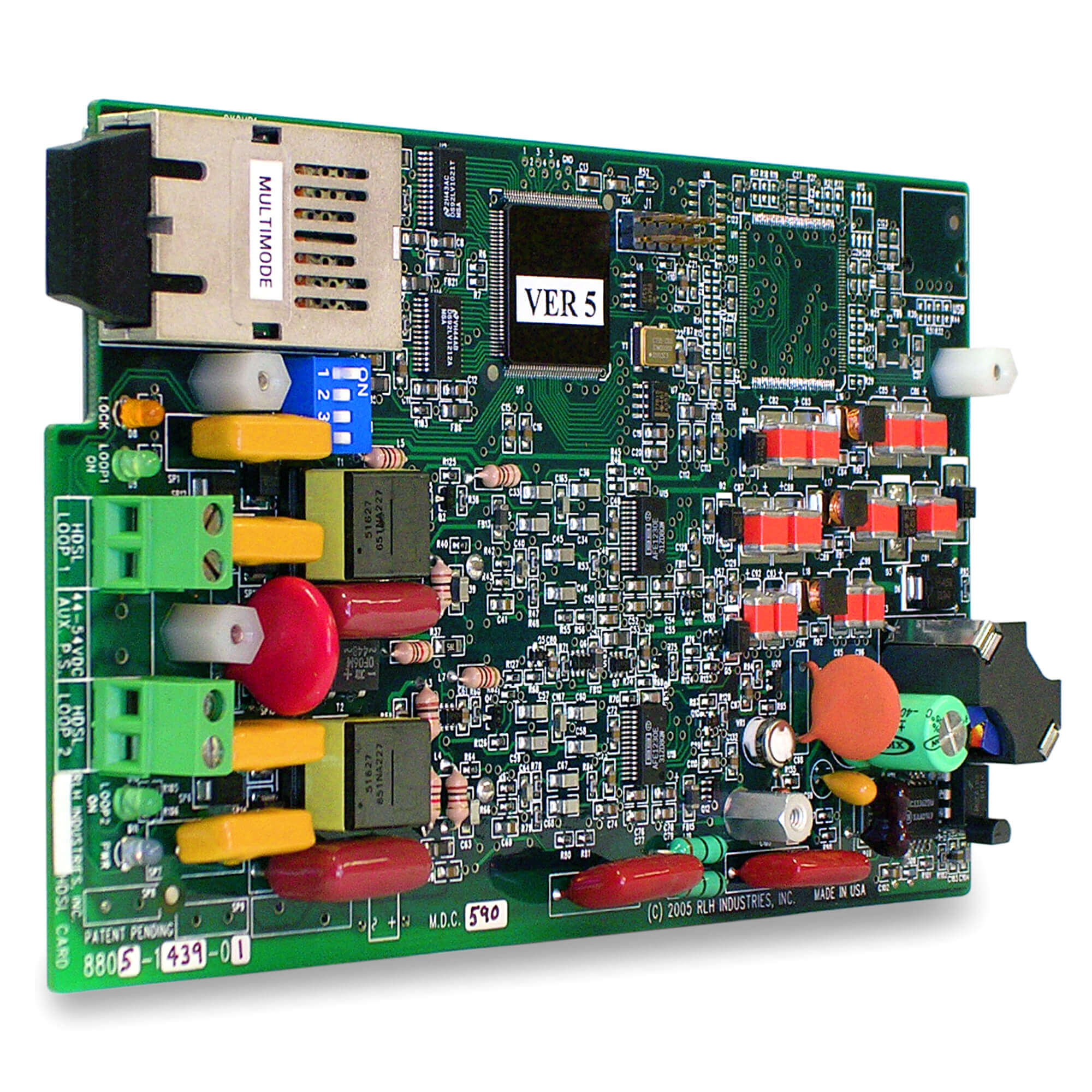

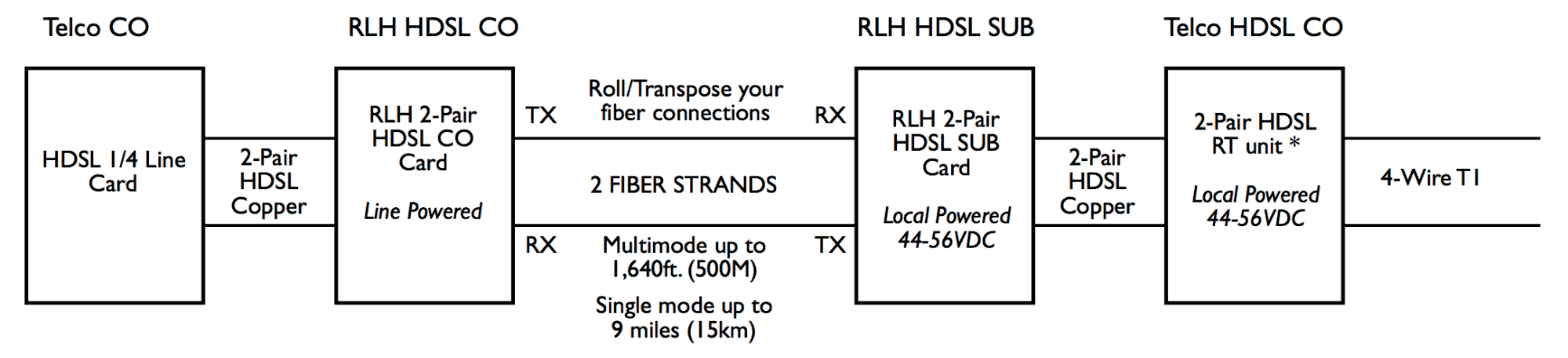

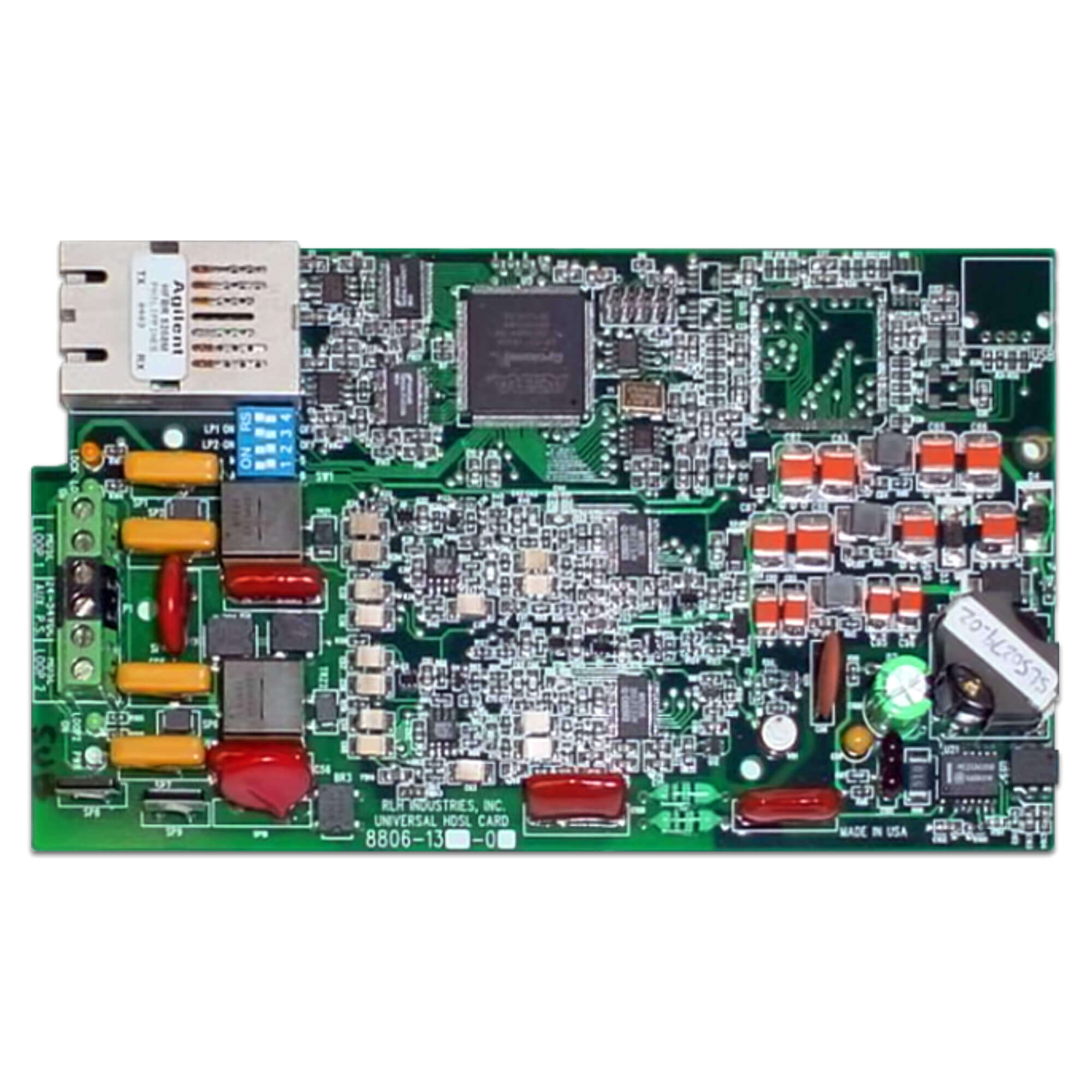

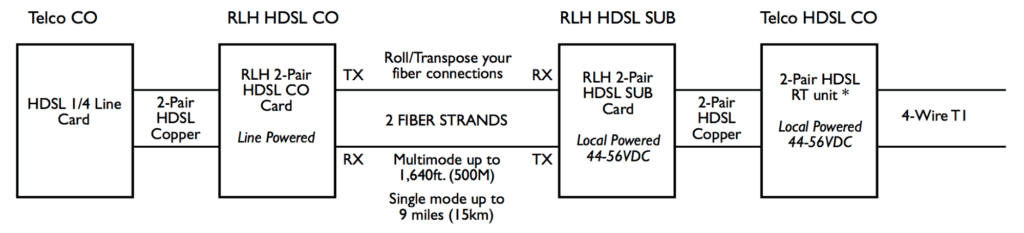

The RLH HDSL (Universal) fiber link card interfaces with any HDSL technology. The system interfaces one 2-pair HDSL1 or HDSL4 line, or up to two 1-pair HDSL2 lines.
This fiber link card is NEBS Level III approved, is designed to be installed into any of the RLH Fiber Link Card Housings, and occupies a single card slot.
Features
- Universal HDSL compatibility
- CO side is simplex powered
- HDSL1, HDSL2 or HDSL4 compatible
- Available in Single or Multimode
- Available with ST or SC Connectors
- Compatible with a wide variety of Card Housings
- Limited Lifetime Warranty
- Made in USA
Specs
Transmission Method:
Frequency modulated light via two optical fibers
Wavelength:
Multimode: 850nm
Singlemode: 1310nm
Fiber Type/Distance:
Multimode (62.5/125µm): 1640 feet/500m
Singlemode (9/125µm): 9 miles/15km
Fiber Connector Type:
ST or SC
Dimensions:
7in. x 4in. x 1in. (177.8mm x 101.6mm x 25.4mm)
(Standard RLH Fiber Link Card Form Factor)
Operating Temperature:
-40˚F to +158˚F (-40˚C to +70˚C)
Operating Humidity:
95% non-condensing
Docs
General Information
Specialized Drawings
Miscellaneous
Diagrams
Numbers
8806-1439-01
8806-1449-01
8805-1439-01
8805-1449-01
8806-1459-01
8806-1469-01
8805-1459-01
8805-1469-01
