Angled Adapter Plates, Cable Strain Relief Kits, & Unparalleled Access for Splicing

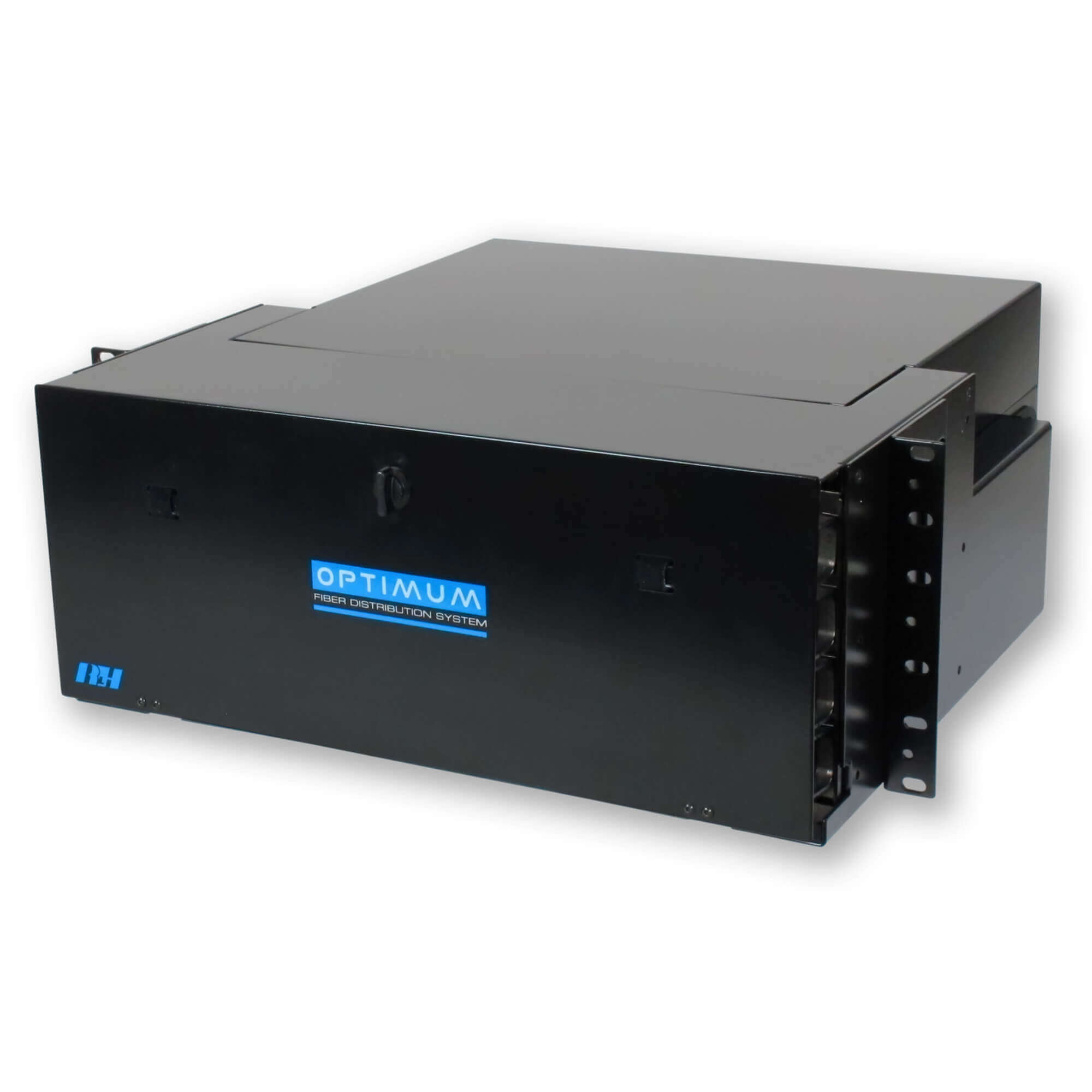

The RLH Optimum 4RU fiber patch panel is part of a series of fully integrated fiber distribution systems. The user friendly design makes the Optimum series the superior solution for fiber patching and/or splicing optical fiber in a 19/23″ rack. It holds up to 8 fiber adapter plates (up to 192-fibers), 8 splice trays, and is ideal for installation in a wide variety of environments including substations, equipment rooms, central offices, and outdoor enclosures.

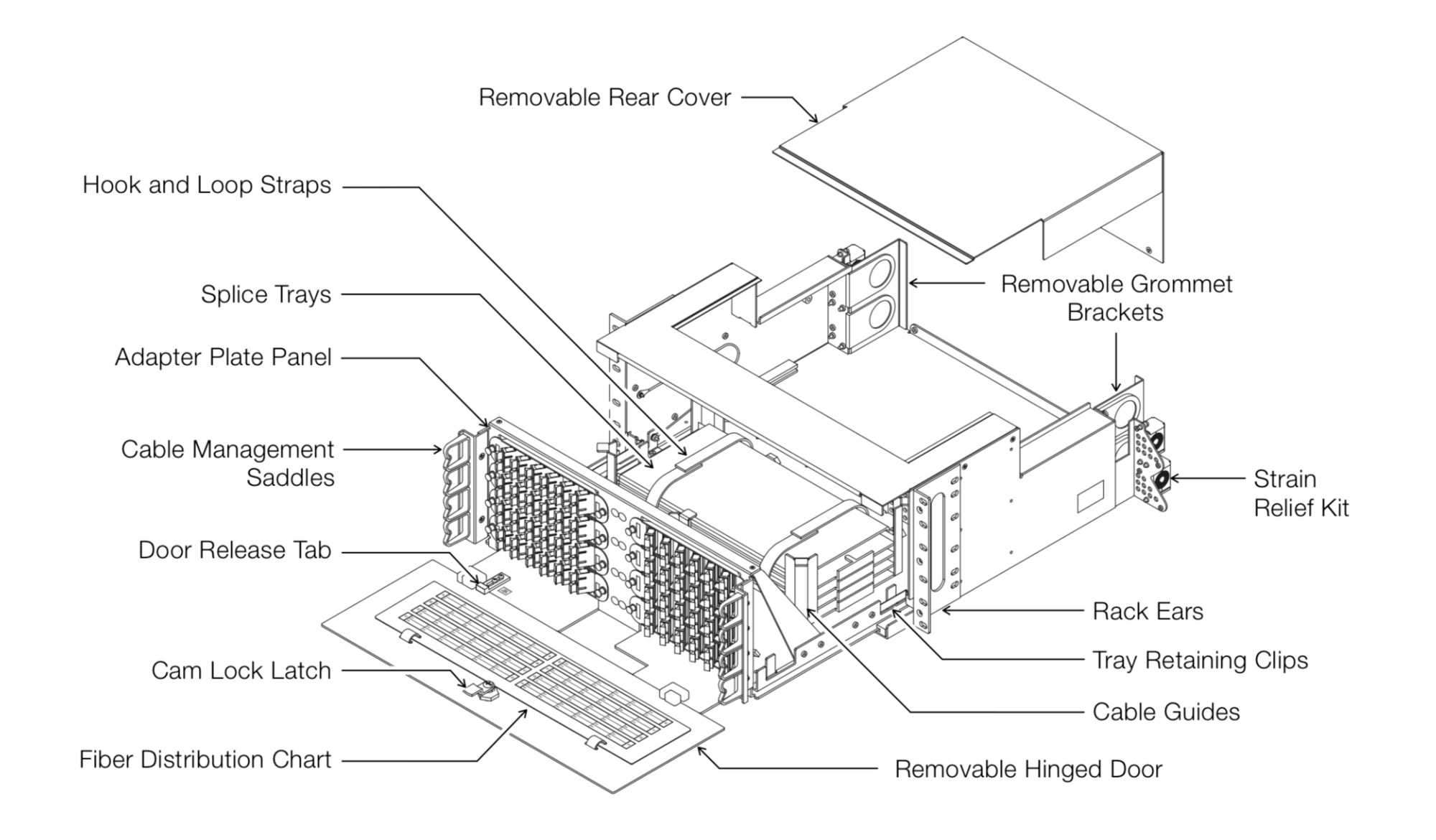

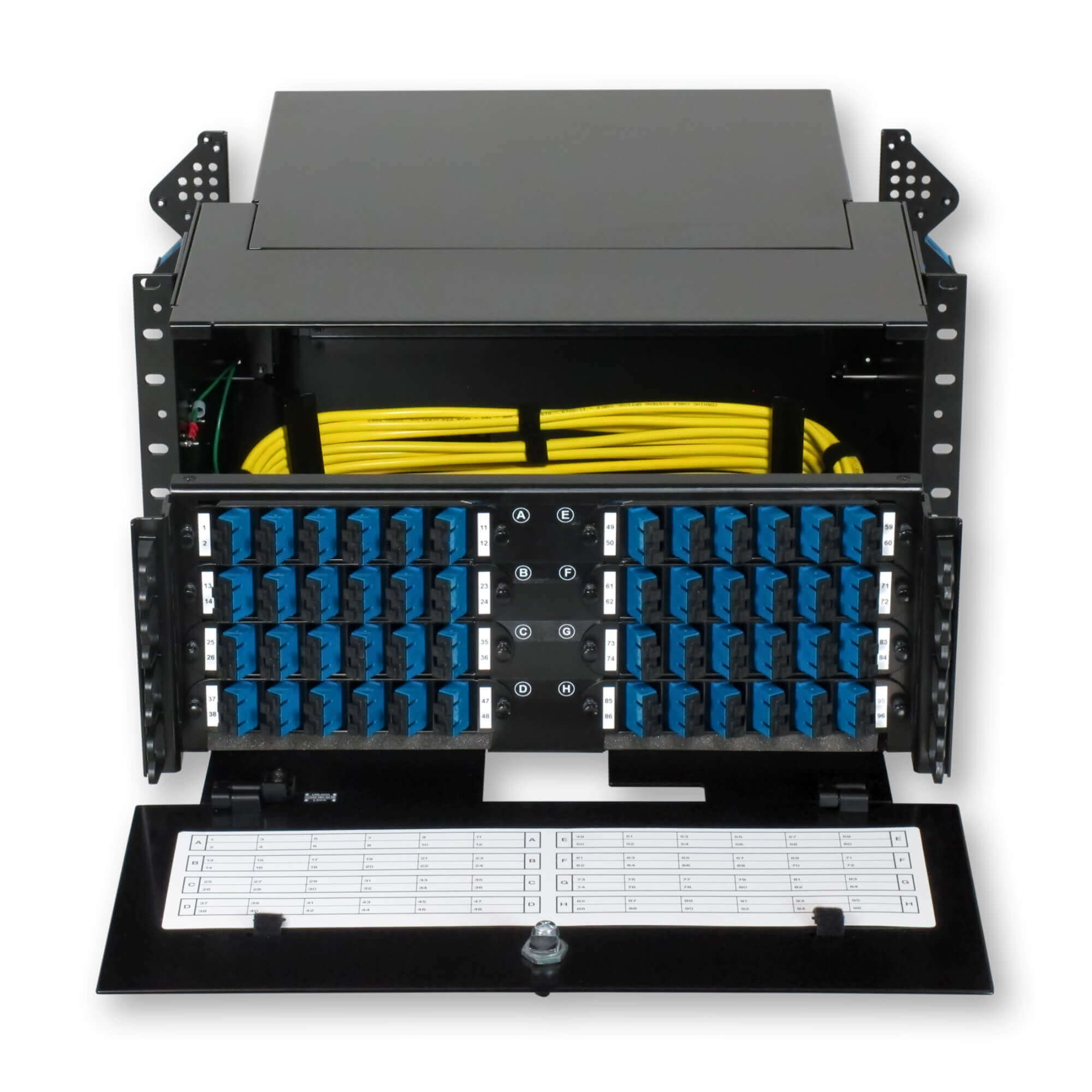

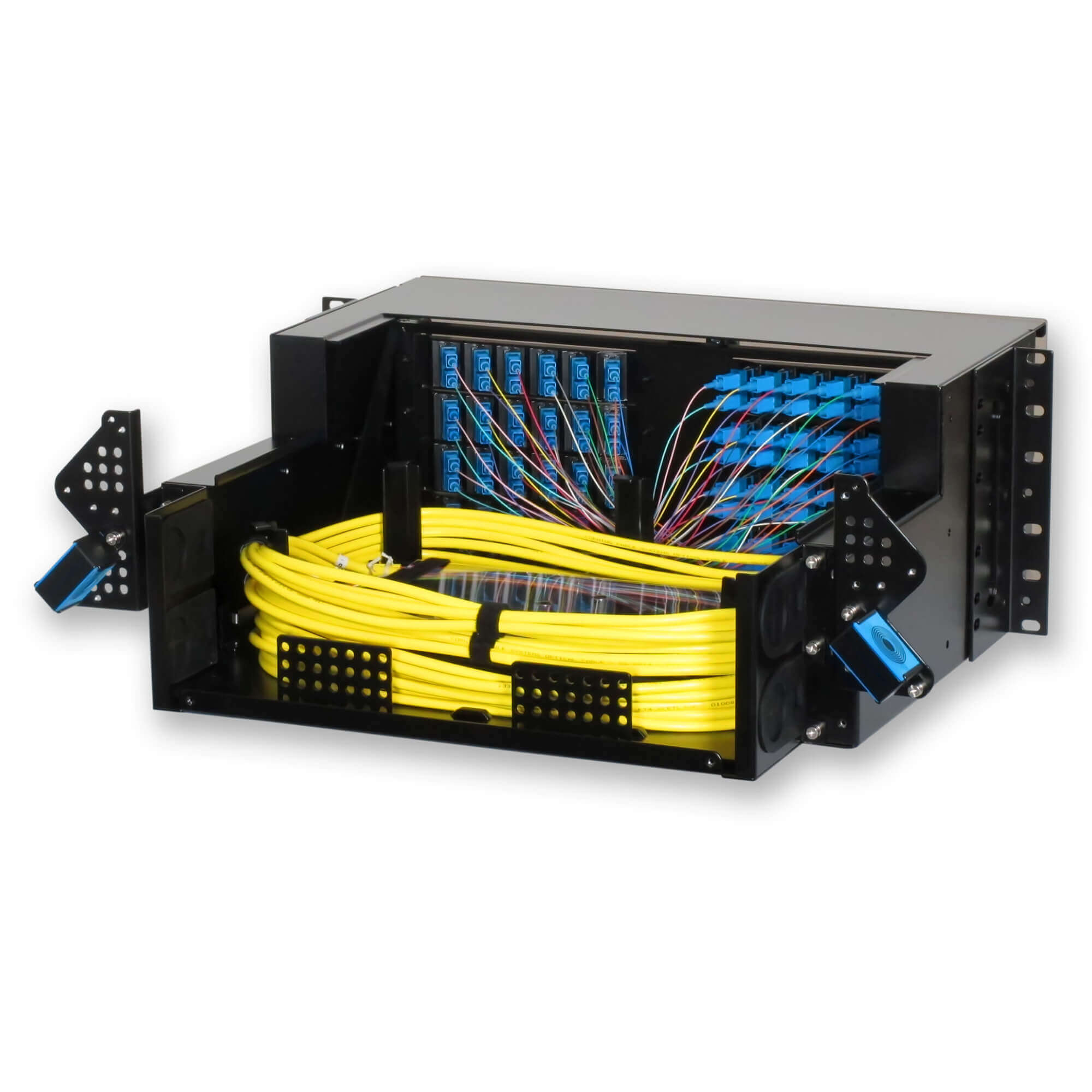

Optimum Series patch panels are constructed from powder coated aluminum alloy, and feature a removable hinged powder-coated aluminum door with quarter-turn cam-lock, removable slide out tray, and removable rear access self-sealing entry grommets. Optional strain relief kits featuring Peel n’ Seal technology provide proper routing and securing of fiber optic entrance cables at the rear, from above, the side or below.
Fiber assemblies or pigtails can be custom ordered and pre-terminated into the patch panel for a complete turn-key solution. The patch panels, splice trays and adapter plates may also be ordered separately. The plates are held securely in the housing with push-pull retainers that require no tools.
- Installer friendly built-in cable management & splice tray storage
- Holds up to 8 adapter plates, up to 192 fiber capacity
- EIA 19″ or 23″ rack front or mid/center mounting
- Removable heavy-duty hinged door
- Self-sealing grommets provide superior dust and rodent protection
- Convenient fiber identification system
- Angled adapter plates for optimal fiber routing
- Removable sliding tray, rear cover, and entry grommets allow a for a variety of cable arrangements and maximum ease of fiber installation and maintenance
- Entry grommet brackets allow incoming fiber to be removed from the housing without cutting
- Additional options include our peel and seal fiber cable strain relief kits, splice trays, adapter plates, and fiber pigtails
- Configurable strain relief kits support cable entering from above, below or to the side, for maximum compatibility
- May be custom ordered with fully terminated cable or pigtails
- Made in USA
General Information
PRO-4B-1
RLH-FST-03
PRO-SRK-4A
PRO-SRK-4B
APO-BLANK
APO-ST12-LSSM
APO-ST12-LSMM
APO-SC12-LSSM
APO-SC12-LSSA
APO-SC12-LSMM
APO-SC12-LSMX
APO-SC6-LDSM
APO-SC6-LDSA
APO-SC6-LDMM
APO-SC6-LDMX
APO-LC12-LDSM
APO-LC12-LDSA
APO-LC12-LDMM
APO-LC12-LDMX
Ordering
Optimum 4RU Fiber Patch Panel (legacy)
*Lead times are estimates and may vary. You will be contacted within 1 business day to go over the details of your order. If you require a specific date, let us know!
*Days = Business Days
