Wall Mount, Small Footprint, Splicing and Patching up to 48 Fibers
Overview
Features
Specs
Docs
Diagrams
Numbers
Overview

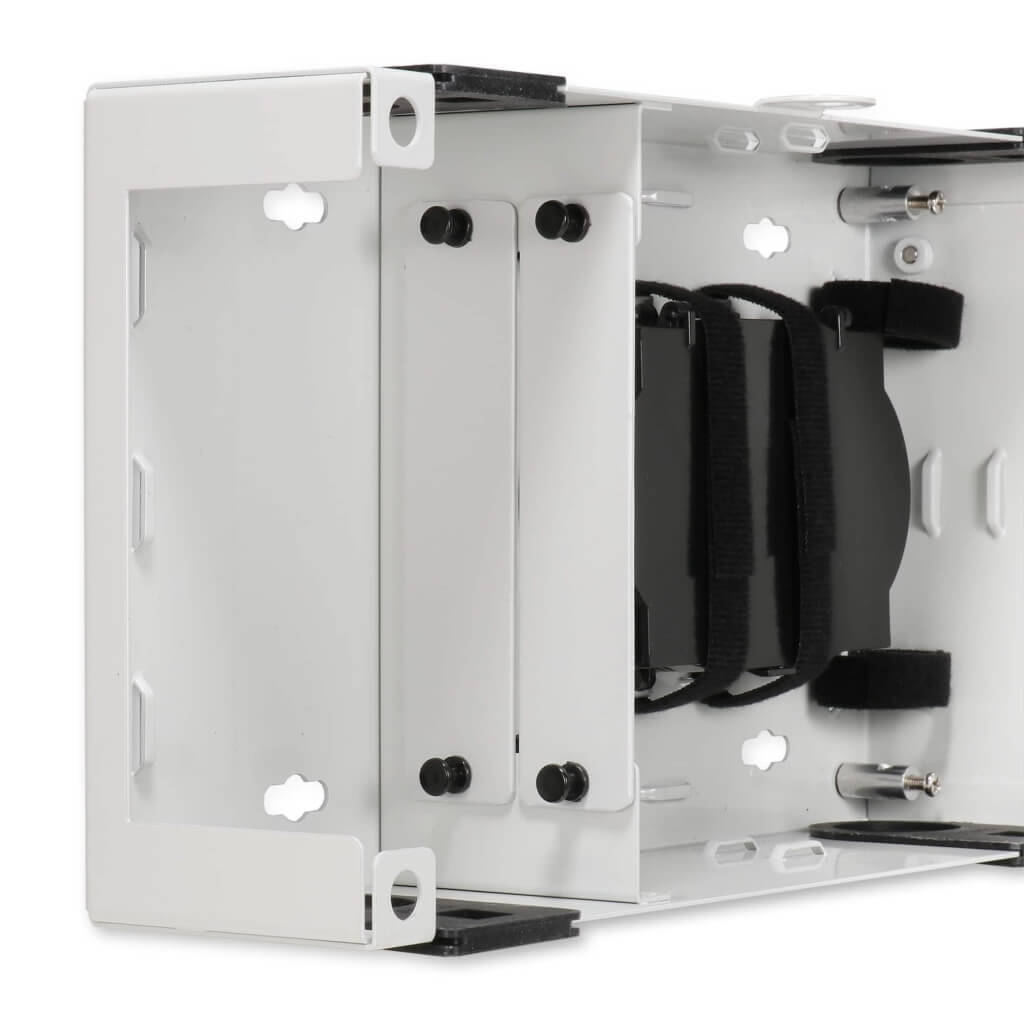

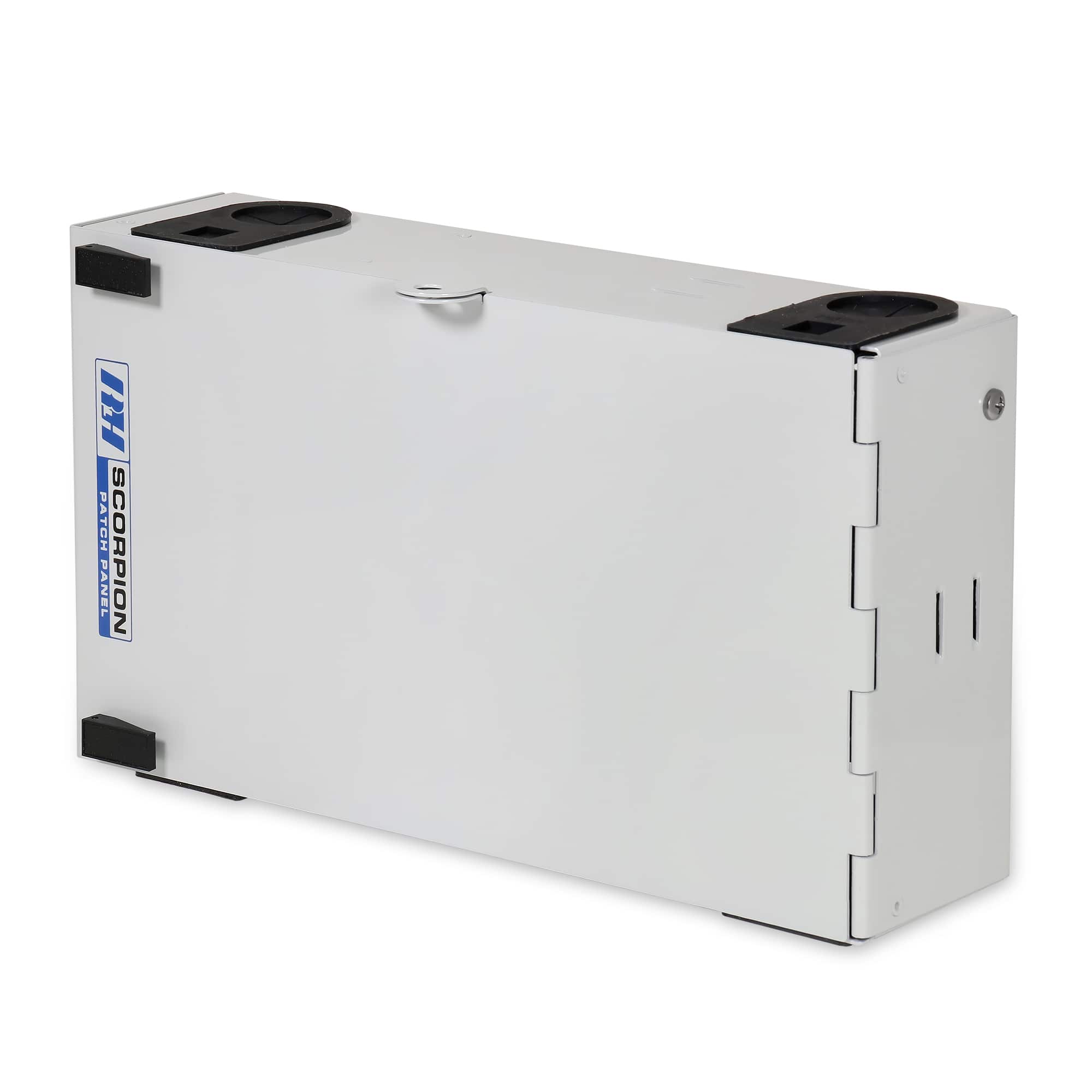

The RLH Scorpion 2 Plate Fiber Patch Panel is designed for fiber optic patching and splicing applications where wall or back board space is at a premium. It is designed to fit into small enclosures, the small footprint and door design allow the patch panel to be opened & closed without taking up additional backboard room for clearance.

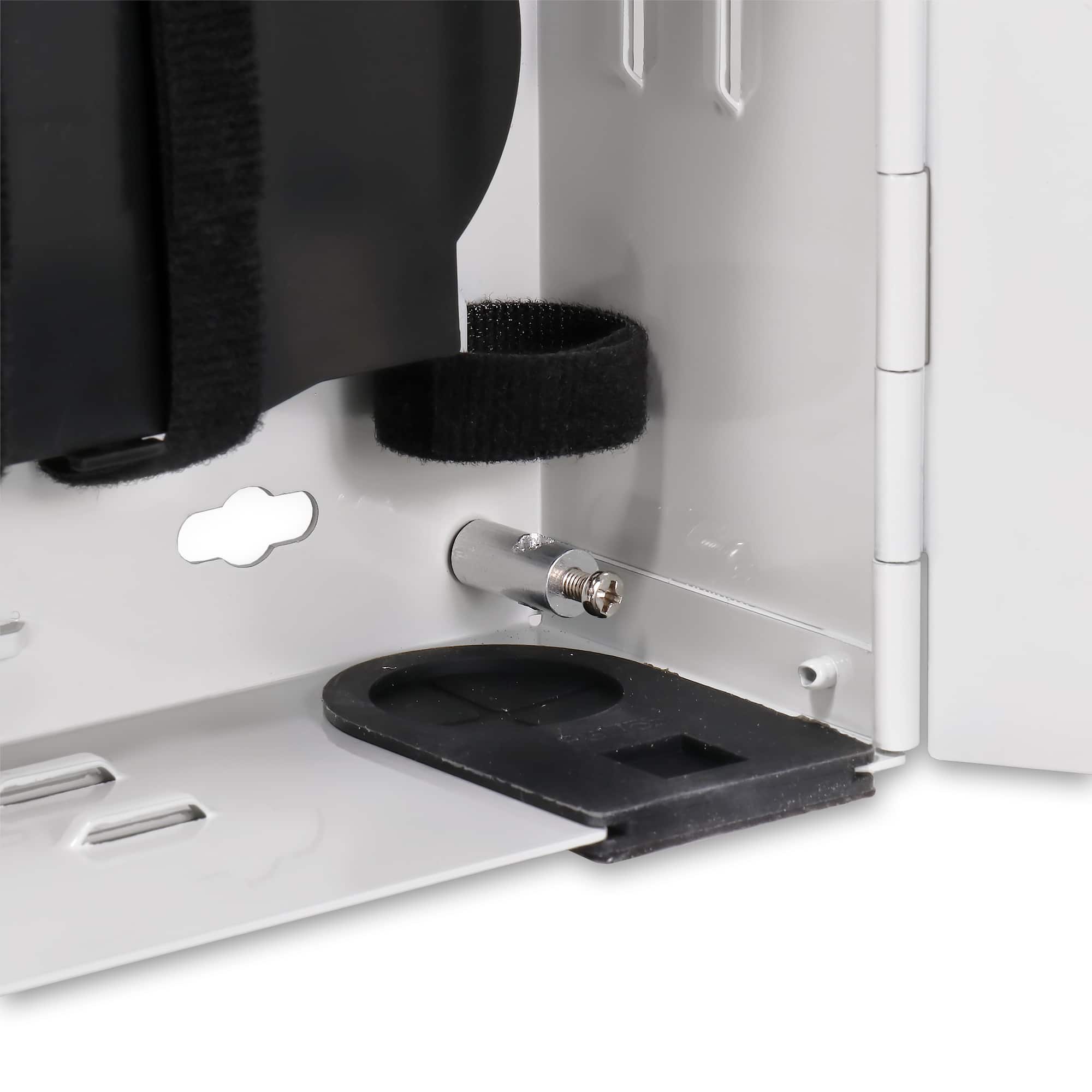

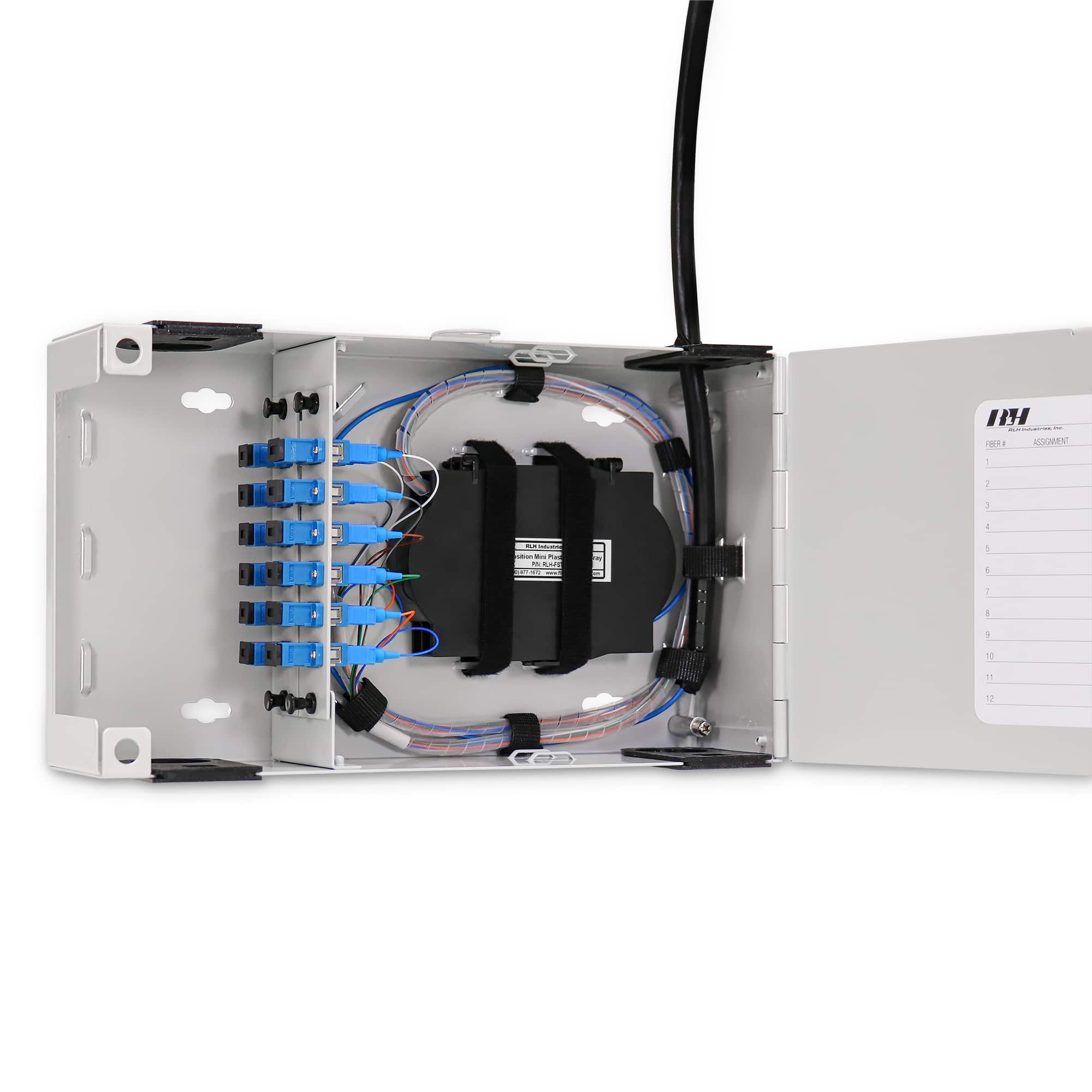

The fiber patch panel has a large wrap around door for easy access, which is secured with flip latches. A built-in padlock hasp provides additional security if desired. It comes standard with fiber management spools, fiber splice trays with splice protection sleeves, distribution chart, cable mounting tiedowns, and Velcro® straps for securing splice trays and fiber cable. Self-sealing removable 1-1/4” grommets on the top and bottom of the enclosure, together with fiber strength member clamps, allow for safe entrance and exit of fiber optic cable. Wall mounting hardware is also included.

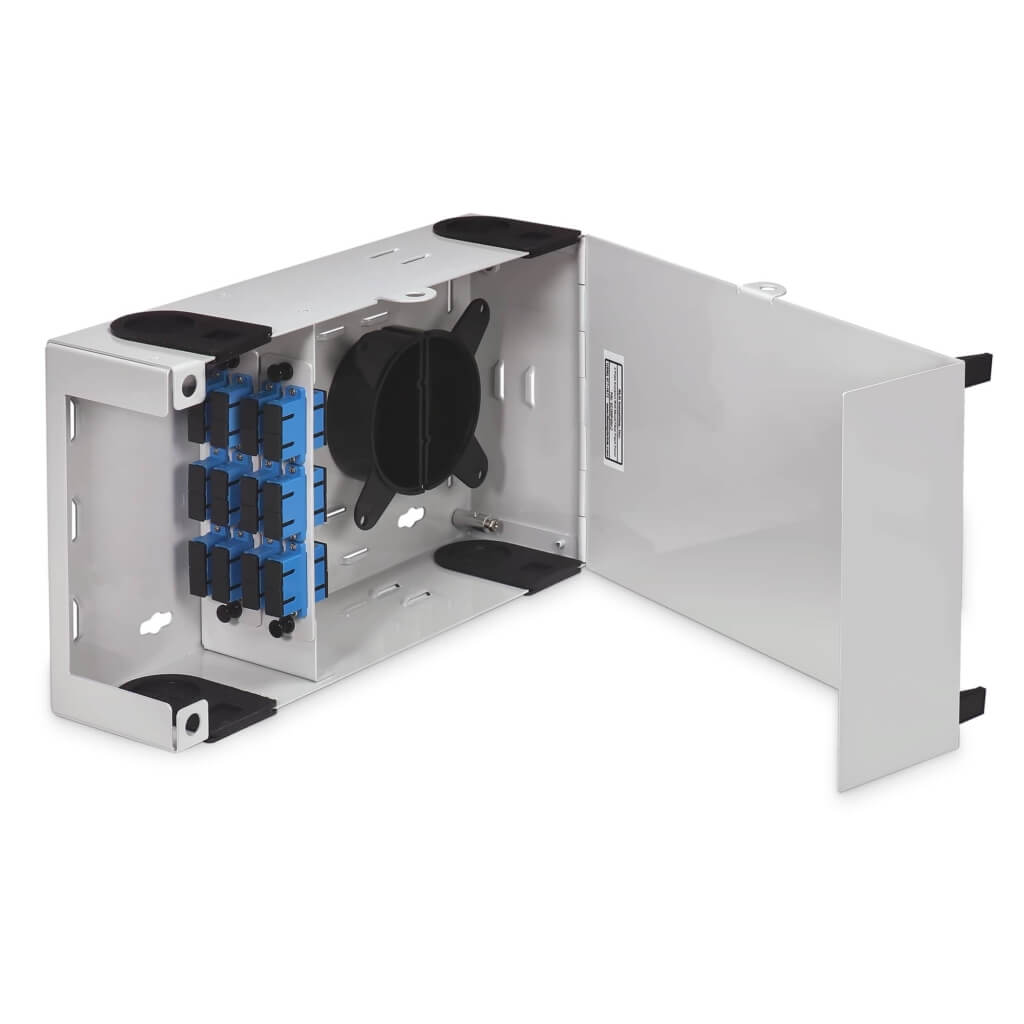

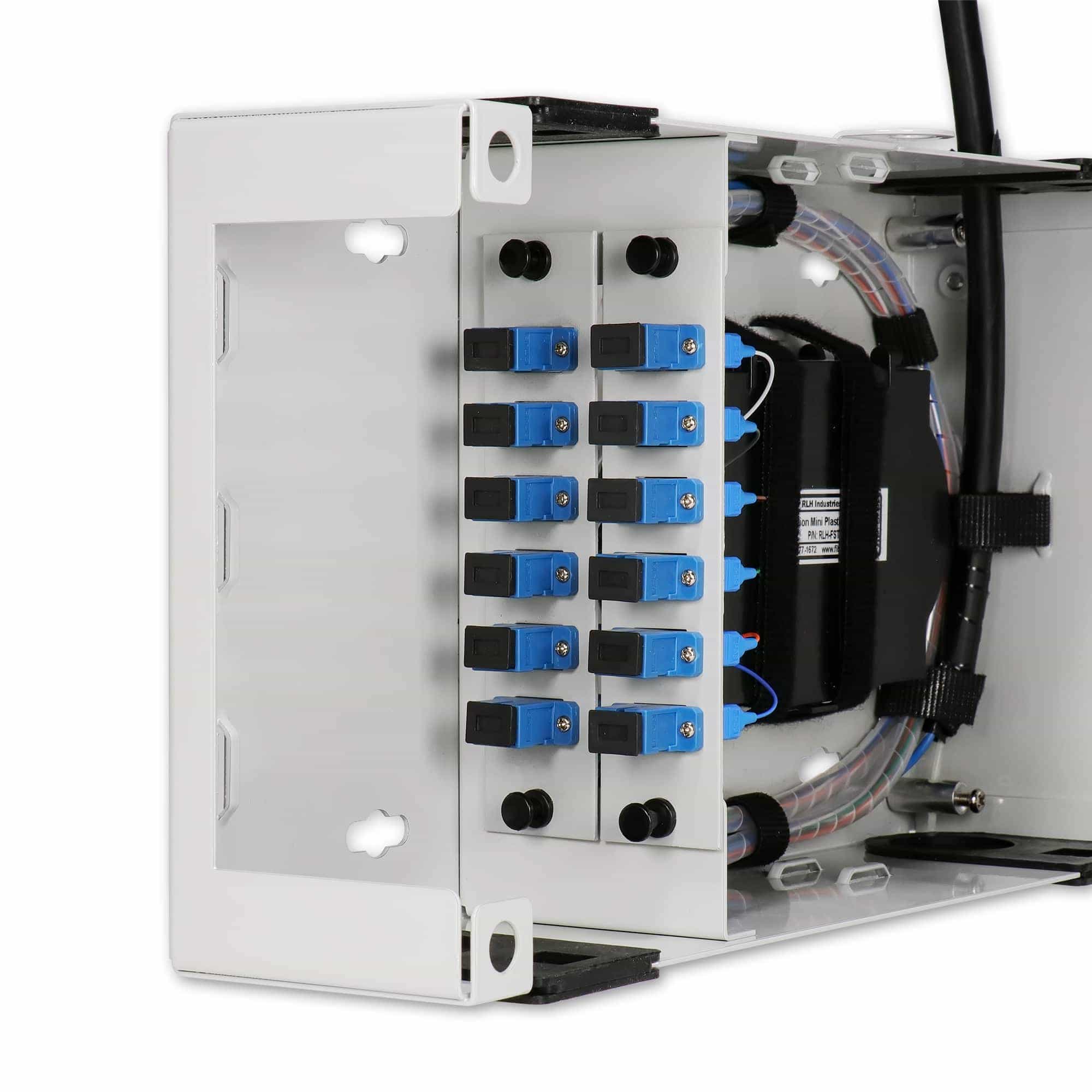

Adapter plates may be ordered separately or preinstalled and are available with ST, SC, FC, LC, MTRJ, UPC and APC style adapters. When ordered using our configurator, the Adapter Plates (grey) and Splice on Fiber Pigtails are preinstalled for convenience.
This patch panel was designed and is made in the USA.
See Scorpion 4 Plate
Features
- Holds 2 LGX® adapter plates, blank adapter plates included

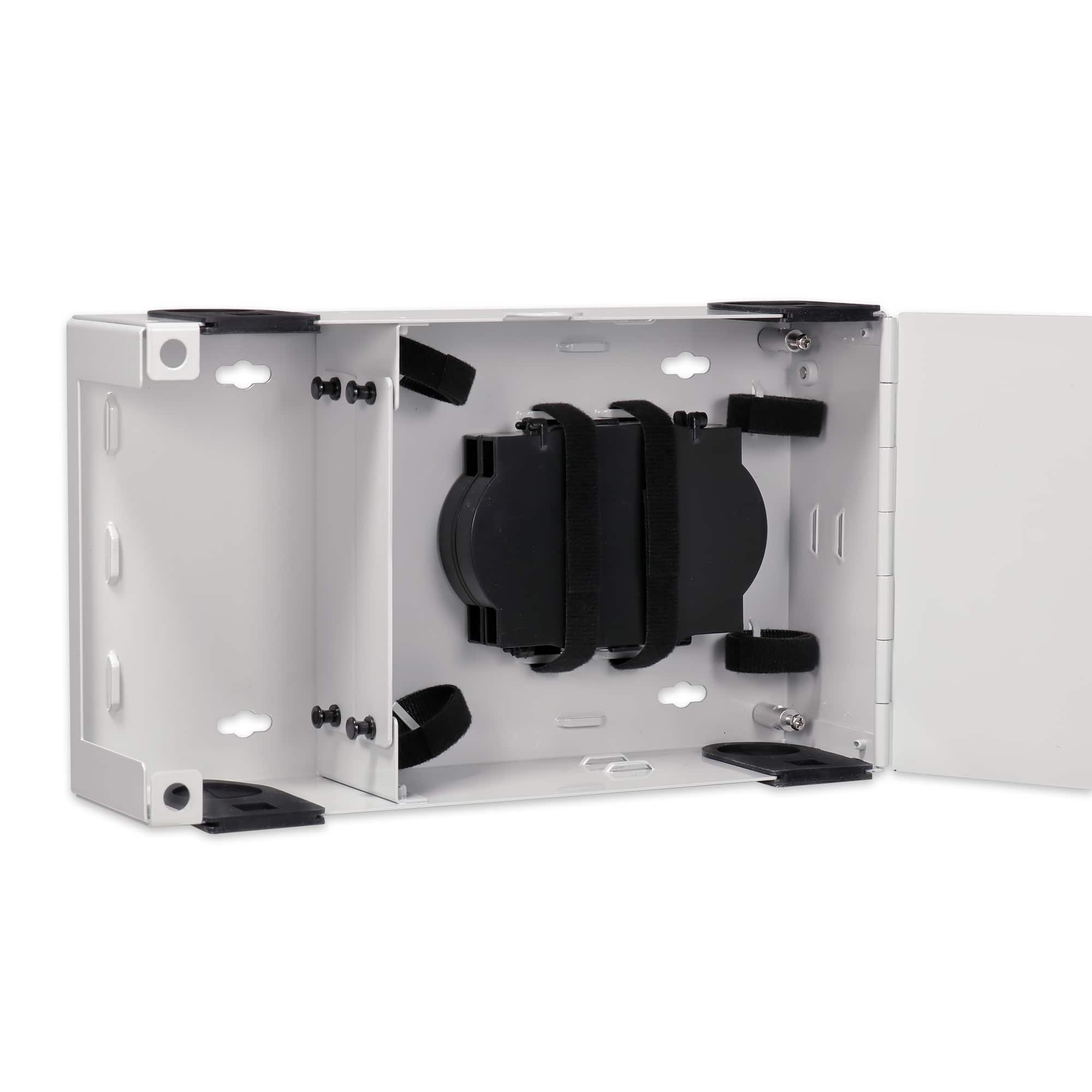

- Ready to patch or splice, splice trays and sleeves included
- Small Footprint, Fully encloses distribution fiber
- Self-sealing removable grommets (up to 1-1/4”) on the top and bottom
- Hinged door with flip latches
- Includes 2 strain relief clamps for securing entry cable
- Adapter plates may be removed with fibers attached

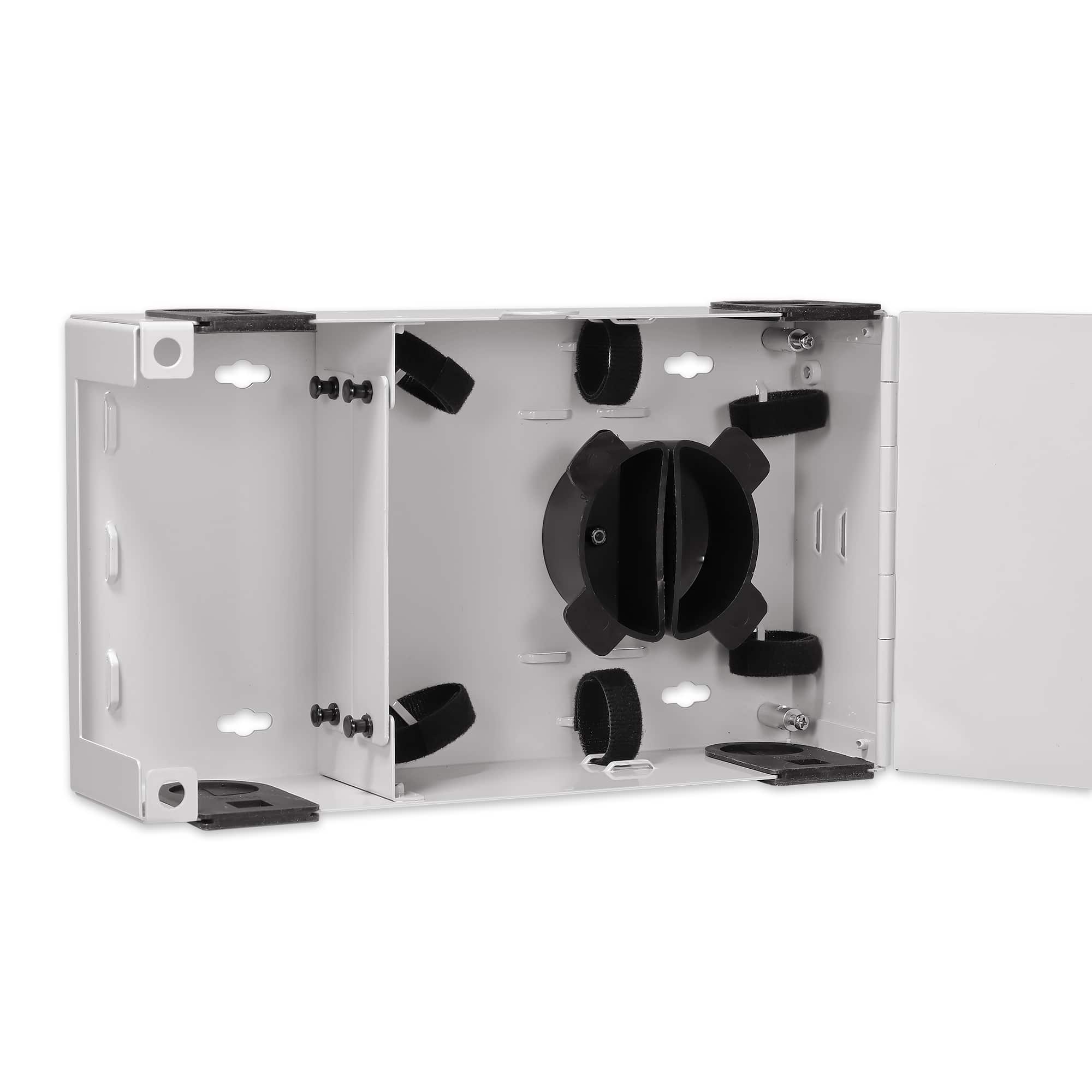

- Includes hook and loop straps for easy and flexible fiber management
- Durable powder coated steel construction
- Multiple built in anchor points to secure fiber cable inside
- Holds ST, SC, FC, LC, MTRJ, UPC, APC style adapters
- Wall mounting hardware included
- Made in USA
Specs
Adapter Plates:
Holds 2 adapter plates
Mounting Style:
Wall or panel mount
Environmental:
Indoor or inside weatherproof enclosure
Construction:
Powder coated steel, hinged door with padlock hasp and flip latches

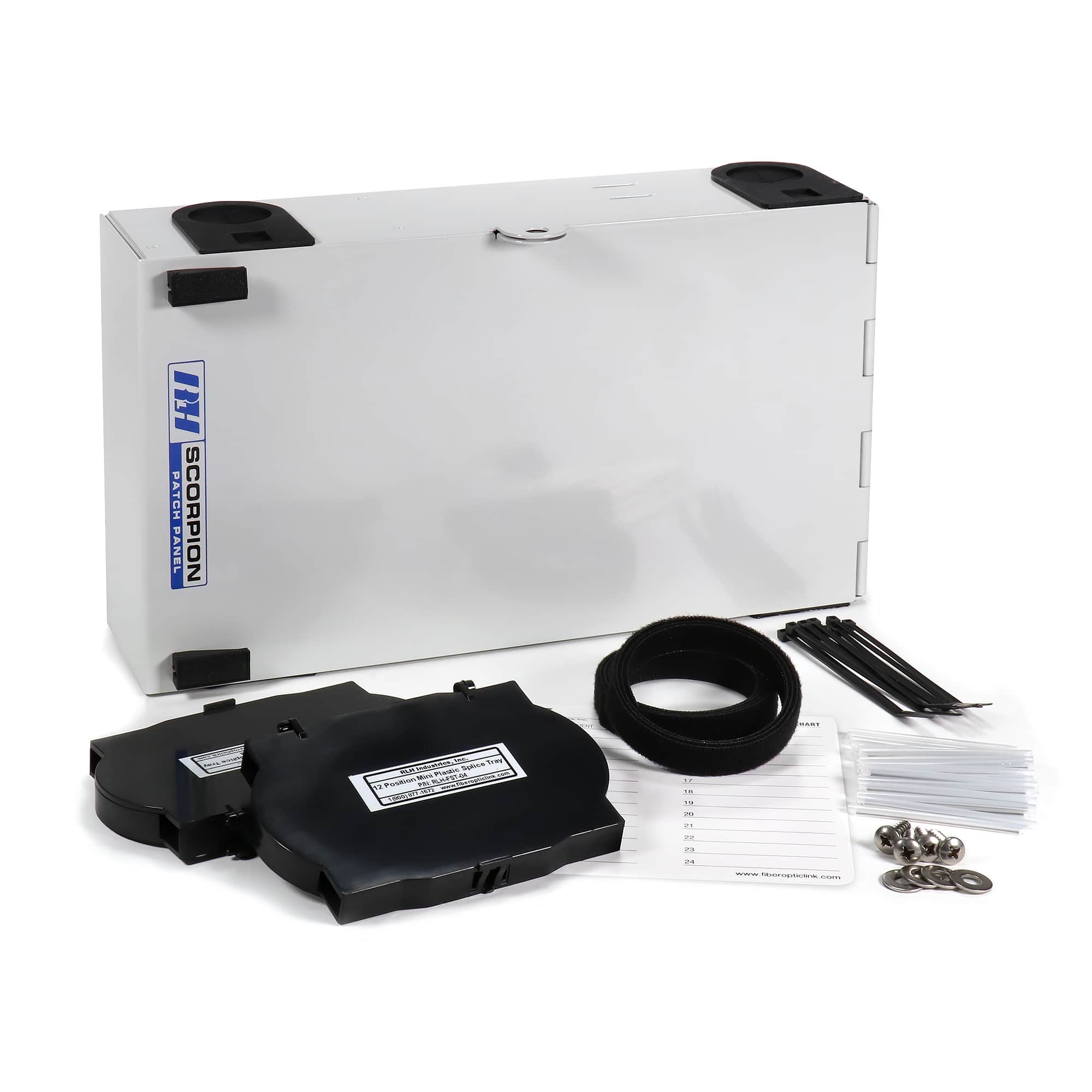

Accessory Kit:
Qty. 2 – Splice trays, 12 position
Qty. 30 – Splice sleeves
Qty. 6 – 5” x 1/2” Velcro® straps for securing fiber
Qty. 2 – 12” x 1/2” Velcro® straps for securing Splice Trays
Qty. 10 – Cable ties
Qty. 1 – Distribution chart label
Qty. 4 – #10 x 3/4” Mounting screws and washers

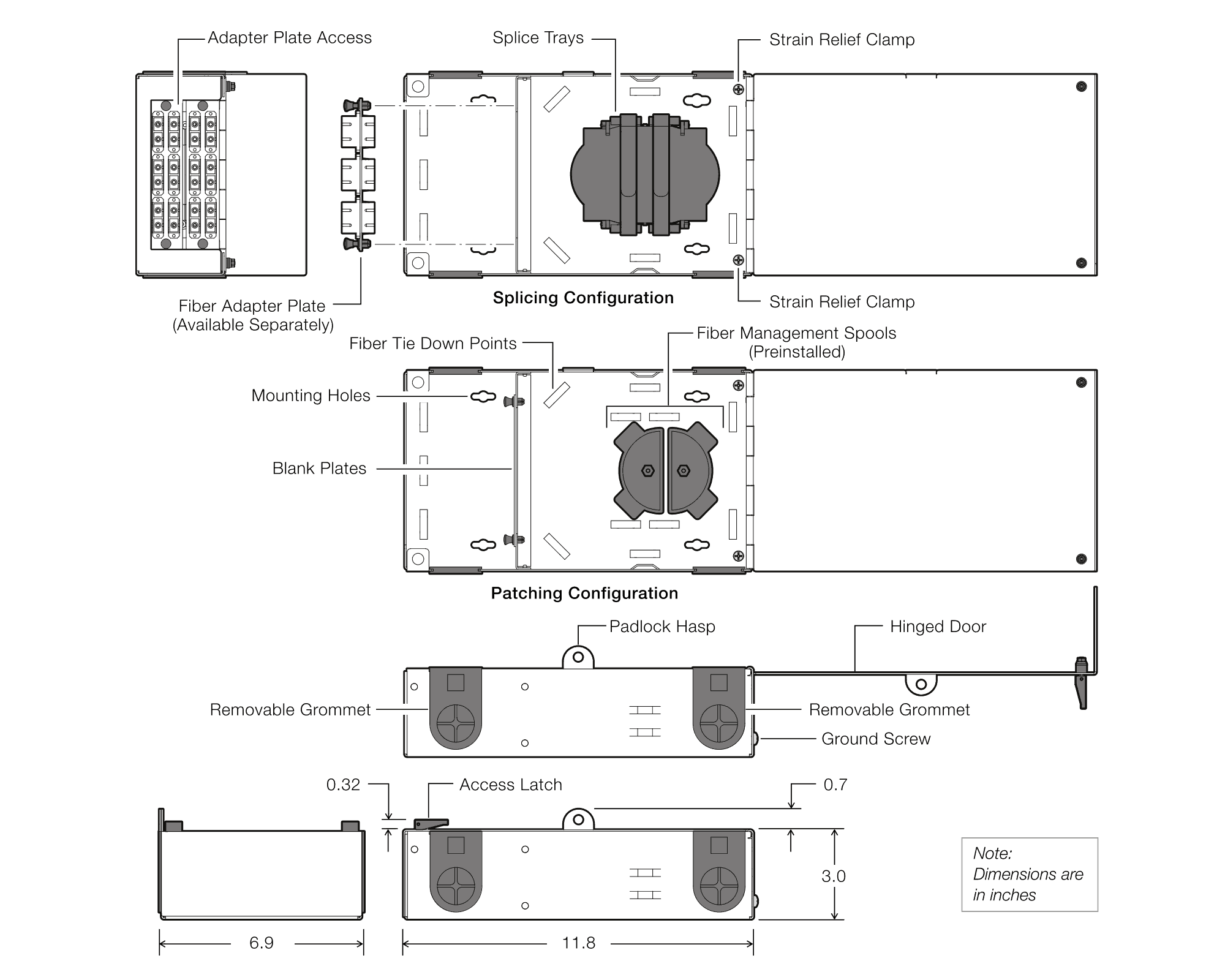

Dimensions:
W 11.8 in. x H 6.9 in. x D 3.7 in. (300mm x 176mm x 94mm)
Docs
General Information
Specialized Drawings
Miscellaneous
Diagrams
Numbers
SCORP2-1
