Ideal for Temporary Backup for Low-Powered Electronics
Overview
Features
Specs
Docs
Numbers
Overview

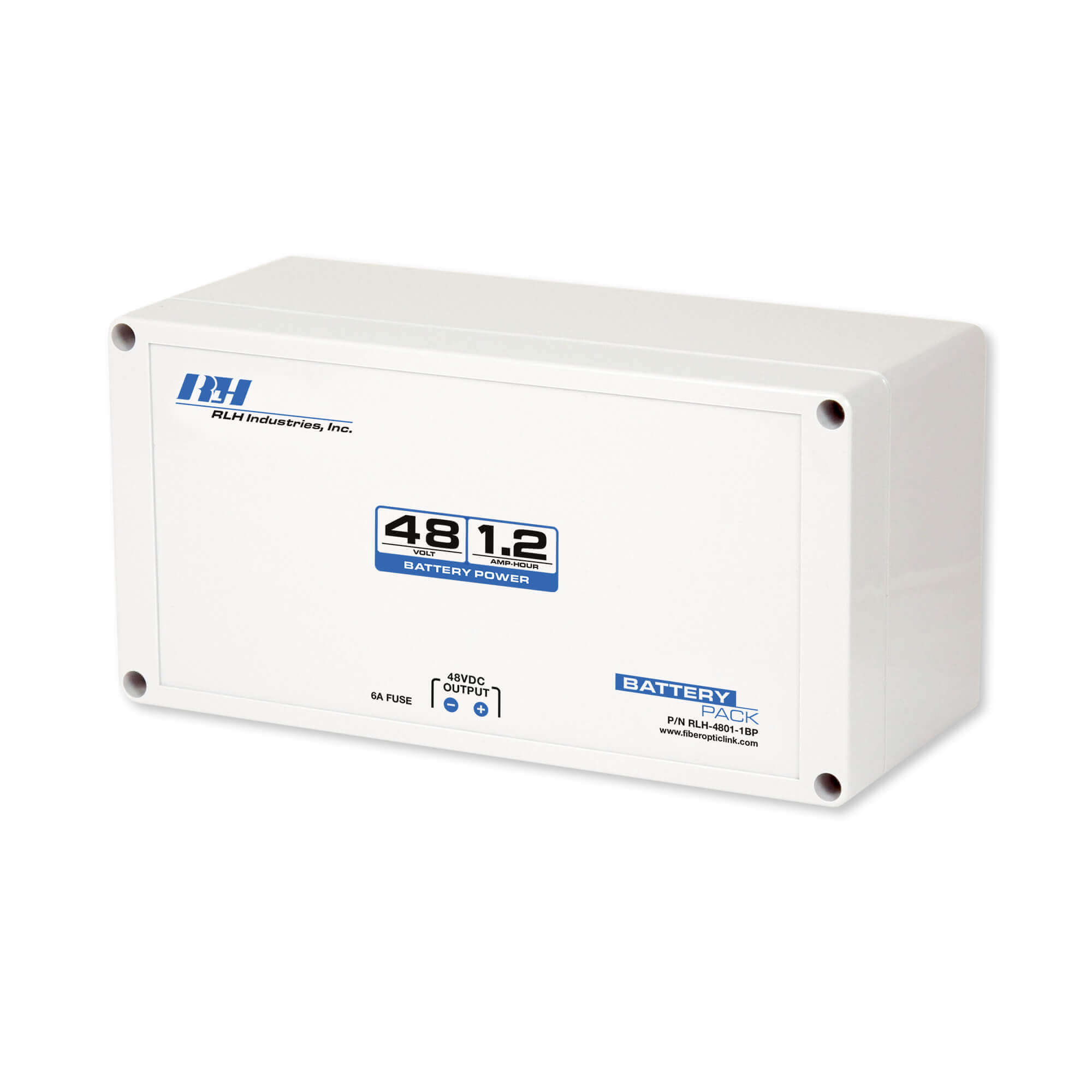

The 1.2AH backup battery pack is a compact sealed battery unit ideally suited for 48VDC UPS applications, or other industrial applications where battery reserve power is required.
Backup batteries are used with RLH AC/DC DIN mount power supplies and charge controller to provide backup power in the event of an AC outage. Each battery pack has two leakproof and maintenance free internal lead/acid batteries. The battery pack has a life expectancy of 5 years in standby service, or more than 250 cycles at 100% discharge in cycle service. Excessive hot or cold temperatures will decrease battery life.
The battery pack is DIN rail mounted, and includes 2 DIN rail clips for stability. Use the DIN rail to mount the battery to a wall or equipment rack. The quick release DIN brackets allow for easy removal of the battery pack for servicing or replacement.
Battery packs connect to a battery charge controller via screw down terminals on the bottom. An externally replaceable fuse is included to protect the battery circuit.
Depleted and/or defective batteries are field replaceable by qualified personnel. Refer to ordering information for replacement batteries.
Features
- Includes Dual DIN clips for extra stability
- Compact design
- Durable ABS thermoplastic with gasket sealed cover
- Easy to access screw down terminals
- Ideally suited for 48VDC UPS applications
- External replaceable fuse
- Includes sealed, maintenance free, lead acid batteries
- Up to 5 years of stand by service
Specs
Battery Pack Construction:
Durable ABS thermoplastic with gasket sealed cover
Dimensions:
L 9.5in. x D 4.5in. x H 6.5 (W 241mm x D 114mm x H 165mm)
Mounting:
Dual DIN Clips for T35 DIN Rail
Power Connection:
Screw down power terminals
Weight:
17lbs. (7.71kg)
Internal Batteries:
Quantity 4, 12VDC, 1.2Ah
Battery Type:
Lead acid deep cycle, spill proof, maintenance free
Nominal Voltage:
48VDC
Capacity:
1.2 Ah @ 25˚C
Fuse:
6A, user replaceable
Operating Temperature Range:
Discharge -20˚C ~ 60˚C (-4˚F ~ 140˚F)
Charge -20˚C ~ 60˚C (-4˚F ~ 140˚F)
Storage -20˚C ~ 60˚C (-4˚F ~ 140˚F)
Charging Voltage:
54 to 55.2VDC average @25˚C (77˚F)
Maximum Charging Current Limit:
0.39A
Self Discharge:
After 3 months Approx. 90% @25˚C (77˚F) Remaining Charge
After 6 months Approx. 82% @25˚C (77˚F) Remaining Charge
After 12 months Approx. 70% @25˚C (77˚F) Remaining Charge
* Extreme temperatures will reduce storage time
Docs
General Information
Numbers
RLH-4801-1BP
RLH-4801-1RB
Ordering
48VDC 1.2Ah DIN Mount Battery Pack (legacy)
