A Compact Switching Supply
Overview
Features
Specs
Docs
Numbers
Overview

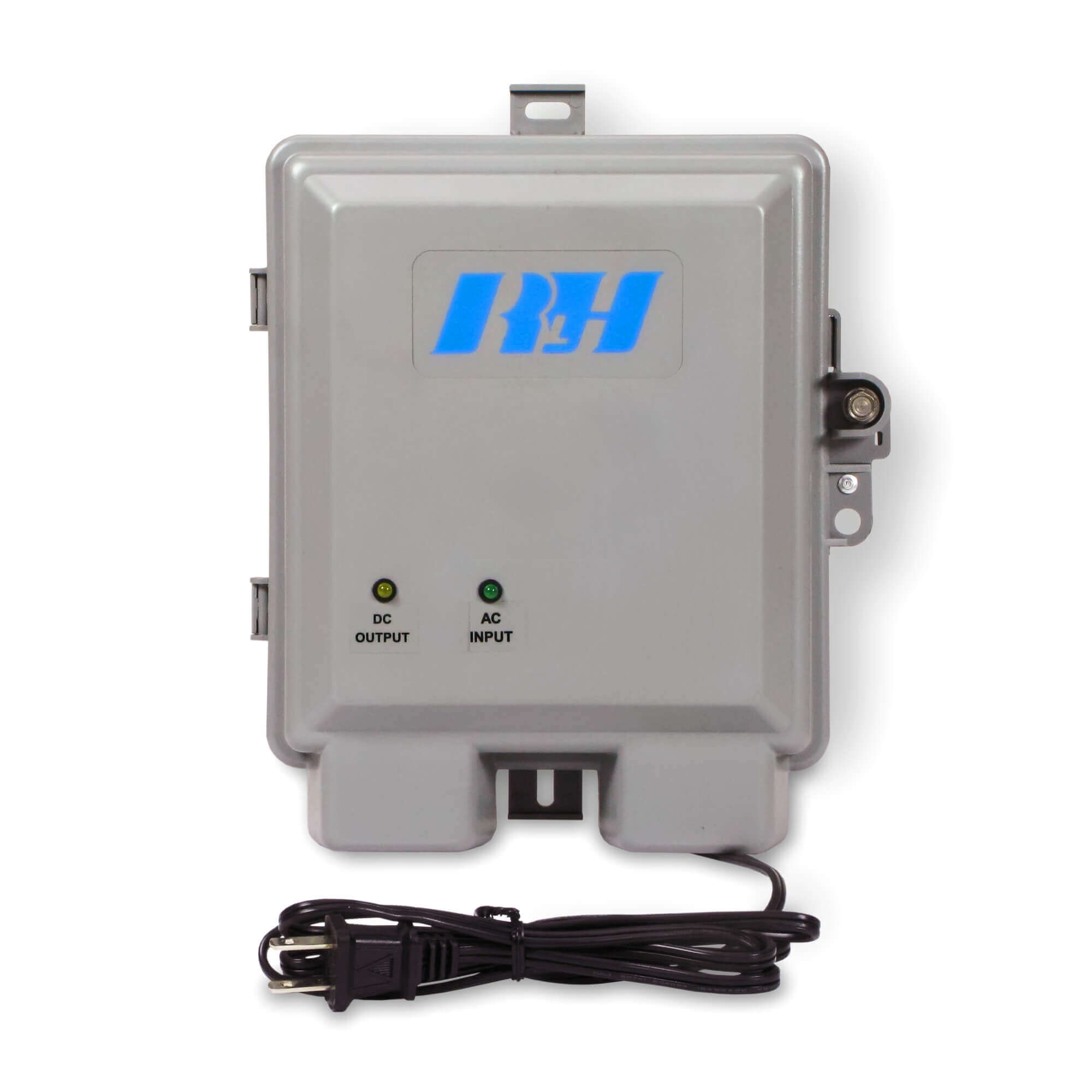

The RLH AC/DC wall mount power supply is a compact switching supply designed to convert AC power to regulated 24VDC power for a wide range of industrial equipment, all mounted inside a rugged thermoplastic wall mount housing.
Includes an internal power supply with 2.1 Amp output, and battery charge controller. It is available as a power supply only, or as a kit with either a 7AH or 20AH external backup battery pack to provide uninterruptible power.
Features include 12 screw-down terminals for connecting equipment, status LEDS for quick operational assessment, and field replaceable, sealed gel batteries. They have low output ripple along with short circuit, overvoltage and overload protection. AC mains cords are preinstalled, and may be easily removed for direct connection to source power.
Features
- Wall mountable
- Thermoplastic, vented housing
- LED status indicators
- Power terminals for up to 12 devices
- Wide operating temperature range
- Hinged door secured with 3/8″ hex nut
- Available with 7.2AH or 20AH backup battery
- Replacement Battery Sets are available (see ordering section below)
- Made in USA
Specs
Construction:
Thermoplastic molded
Power Supply Dimensions:
W11.4” x H13.4” x D4.5” Including mounting tabs
With Door Closed
External 24V Battery Pack Dimensions:
7AH – 8.25in. x W8.25in. x D4.5in. (210mm x 210mm x 114mm)
20AH – 8.25in. x W8.25in. x D7.5in. (210mm x 210mm x 191mm)
Mounting Style:
Wall Mount
Docs
Numbers
8806-1206-03
8806-1206-03-20
8806-1206-03-NB
Ordering
AC/DC 24V Wall Mount Power Supply (legacy)
Please contact us to get a quote for your project.
*Lead times are estimates and may vary. You will be contacted within 1 business day to go over the details of your order. If you require a specific date, let us know!
*Days = Business Days
