Rugged Industrial Power Supplies with Universal AC Input​
The RSPC series is a family of high performance industrial DIN-rail power supplies for harsh environments. These compact modules are the best choice for reliable industrial systems and machines. For system applications all models provide a Power-Good signal.
The RSPC series power supplies complies with the latest safety and EMC standards for industrial environments and include ATEX EN 60079 certification for applications in hazardous locations.
These rugged power supplies features a tough aluminum alloy chassis with zinc plated steel cover for superior corrosion resistance. When used in combination with the optional battery charge controllers and battery packs, RSPC power supplies make a compact and reliable UPS system.
- Selectable input voltage range 100-120VAC / 220-240VAC
- Output voltage adjustable
- Short circuit, overload, over voltage and over temperature protection
- Low ripple and noise
- Power boost up to 120%
- Shock and vibration rated
- Cooling by free air convection
- Wide operating temperature range
- Designed for 35mm DIN rail mounting
- LED power indicator and Power Good signal
- Convenient screw down terminals
- 100% full load tested
Construction:
Durable dielectric thermoplastic housing
Dimensions:

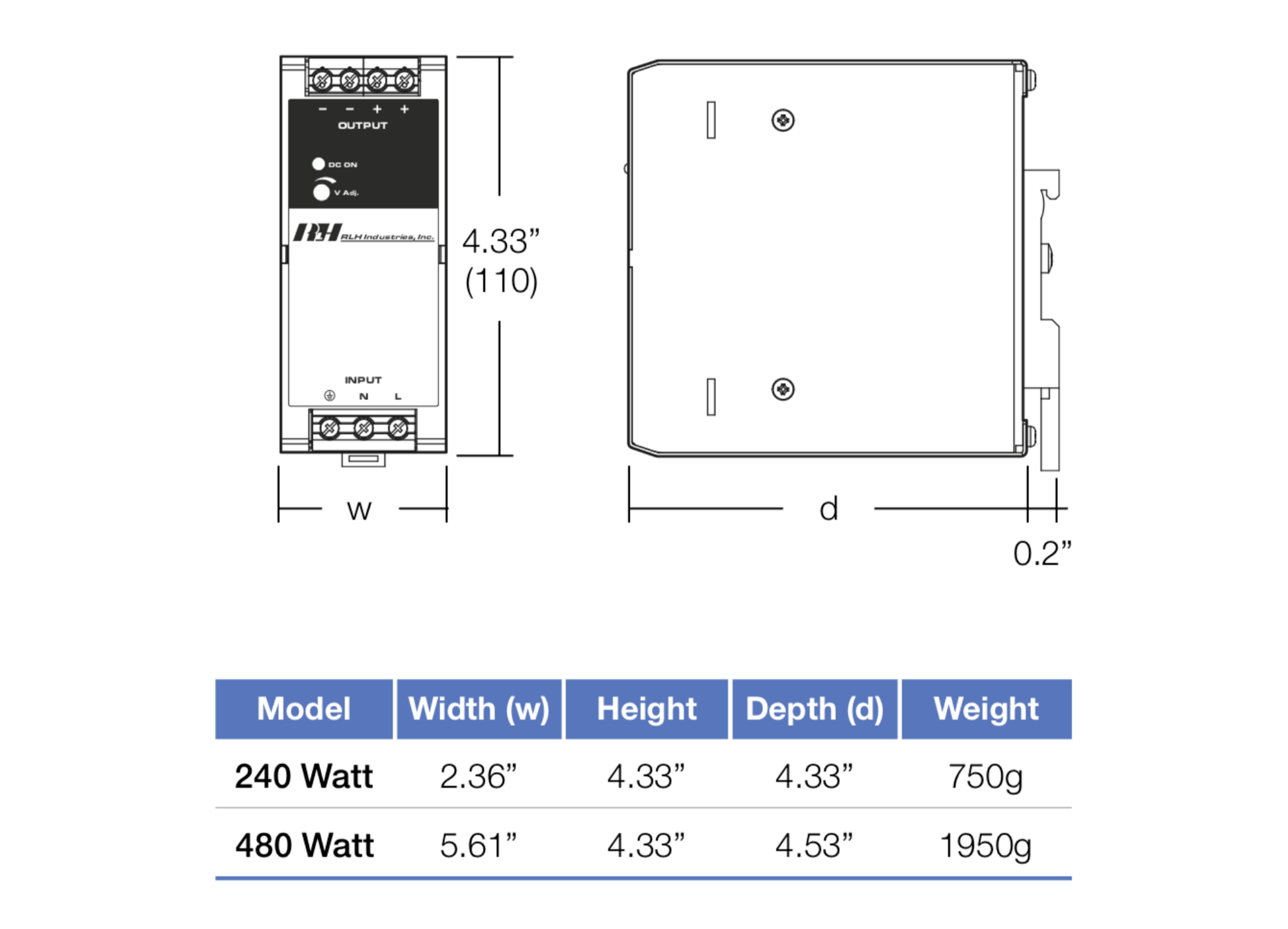

See size chart on Diagrams tab
Mounting Style:
Standard 35mm DIN rail (TS-35)
Operating Temperature:
-25°C – +70°C max (above +50°C see derating information)
-13°F – +158°F max at nominal load (above +122°F see derating information)
Power Input:
Nominal Rated: 100-120 / 220-240VAC (by voltage switch)
Operational: 85-132 / 187-264VAC

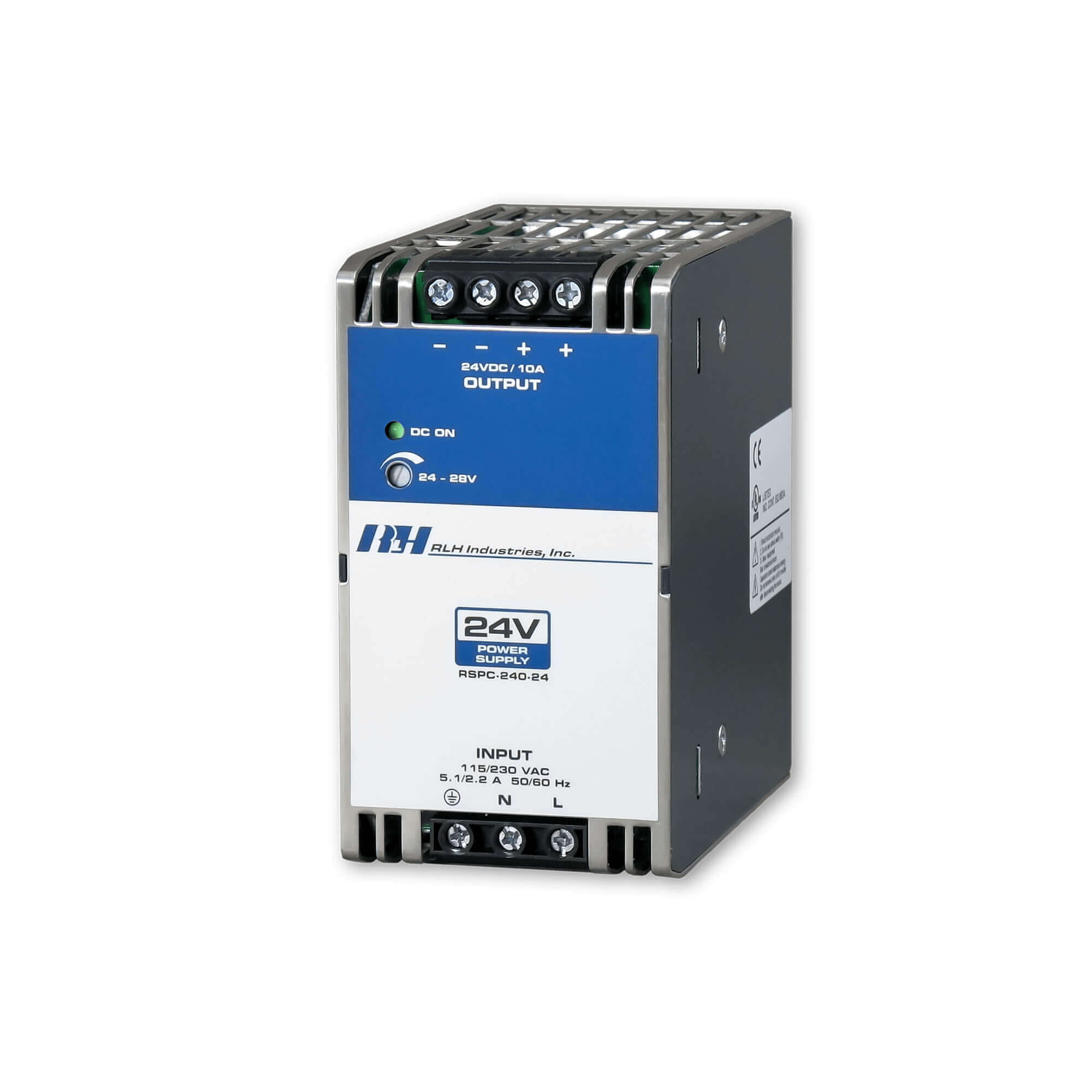

RSPC-240-24
Ordering
