Compact Industrial Power Supplies with Universal Input​​
Overview
Features
Specs
Docs
Diagrams
Numbers
Overview
The RPC series is a family of compact industrial DIN-rail power Supplies. They feature a universal input of 85-264VAC or 90-375VDC, and are designed for class I operation in industrial and residential environments.
These power supplies consume very little standby power, and operate with high efficiency to comply with the requirements of the European Eco-design directive.
When used in combination with the optional battery charge controllers and battery packs, RPC power supplies make a compact and reliable UPS system.
Features
- Wide 110 – 240VAC 50 – 60Hz AC input range
- 130 – 300VDC input range
- Short circuit, overload, over voltage and over temperature protection
- Low ripple and noise
- Easily accessible output trim adjustment
- Cooling by free air convection
- Wide operating temperature range
- Designed for 35mm DIN rail mounting
- LED power indicator
- Convenient screw down terminals accept 20 – 14 AWG wiring
- 100% full load tested
Specs
Construction:
Durable dielectric thermoplastic housing
Dimensions:

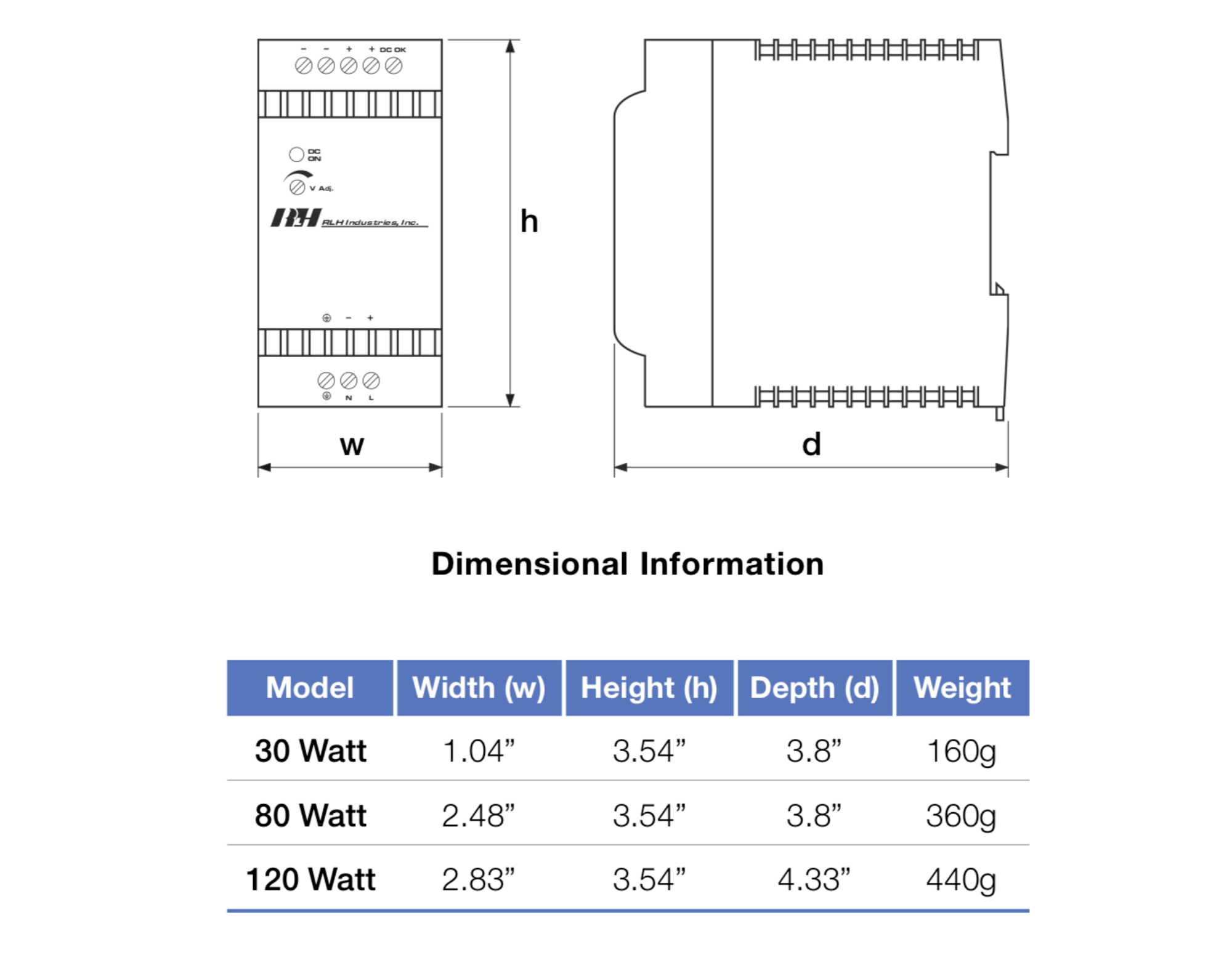

See size chart on Diagrams tab
Mounting Style:
Standard 35mm DIN rail (TS-35)
Operating Temperature:
-25°C – +70°C max (above +50°C see derating information)
-13°F – +158°F max at nominal load (above +122°F see derating information)
Power Input:
Nominal Rated: 110 – 240VAC 50 – 60Hz, 130 – 300VDC
Operational: 85 – 264VAC 47 – 63Hz, 90 – 375VDC
Docs
Diagrams
Numbers

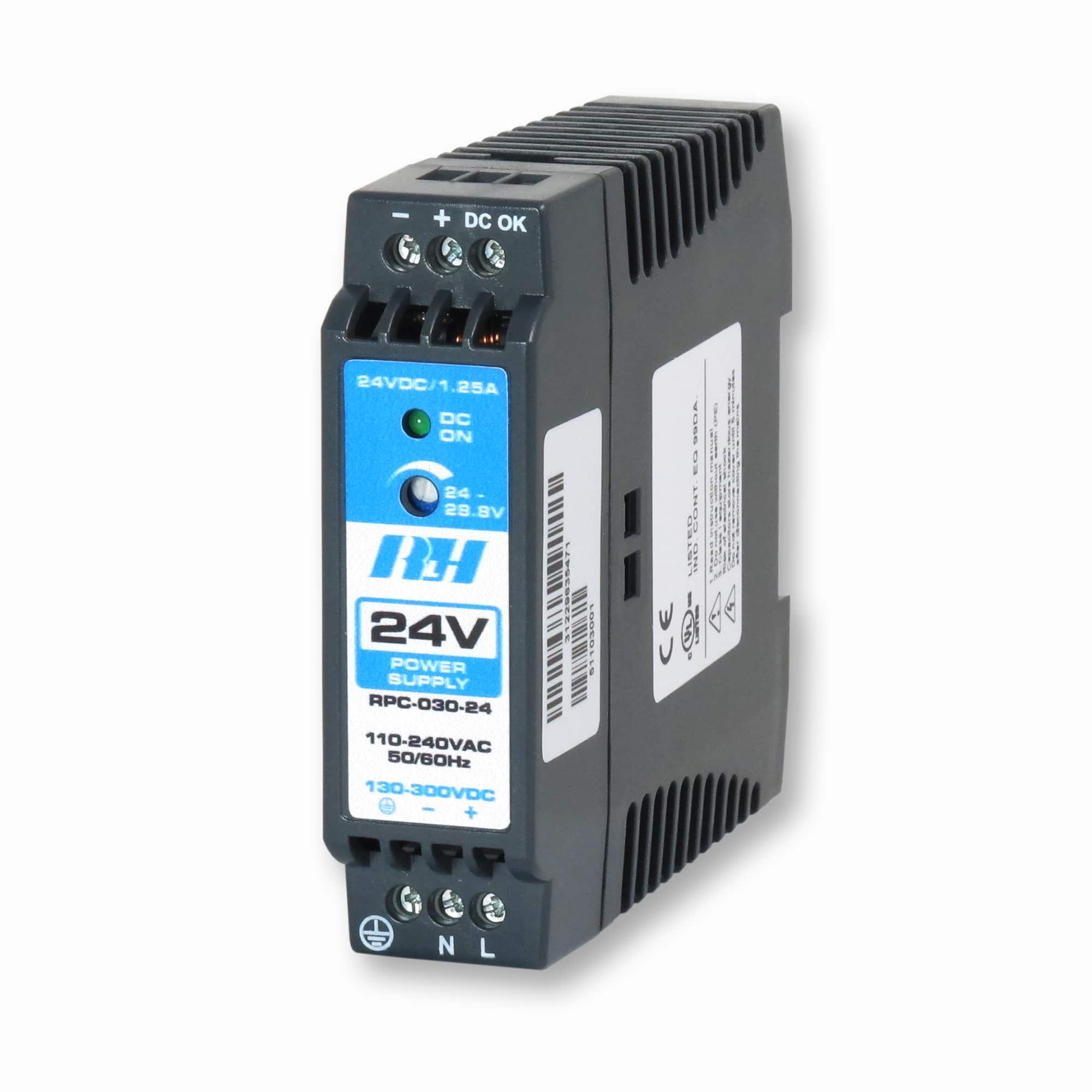

RPC-030–48
RPC-080–24

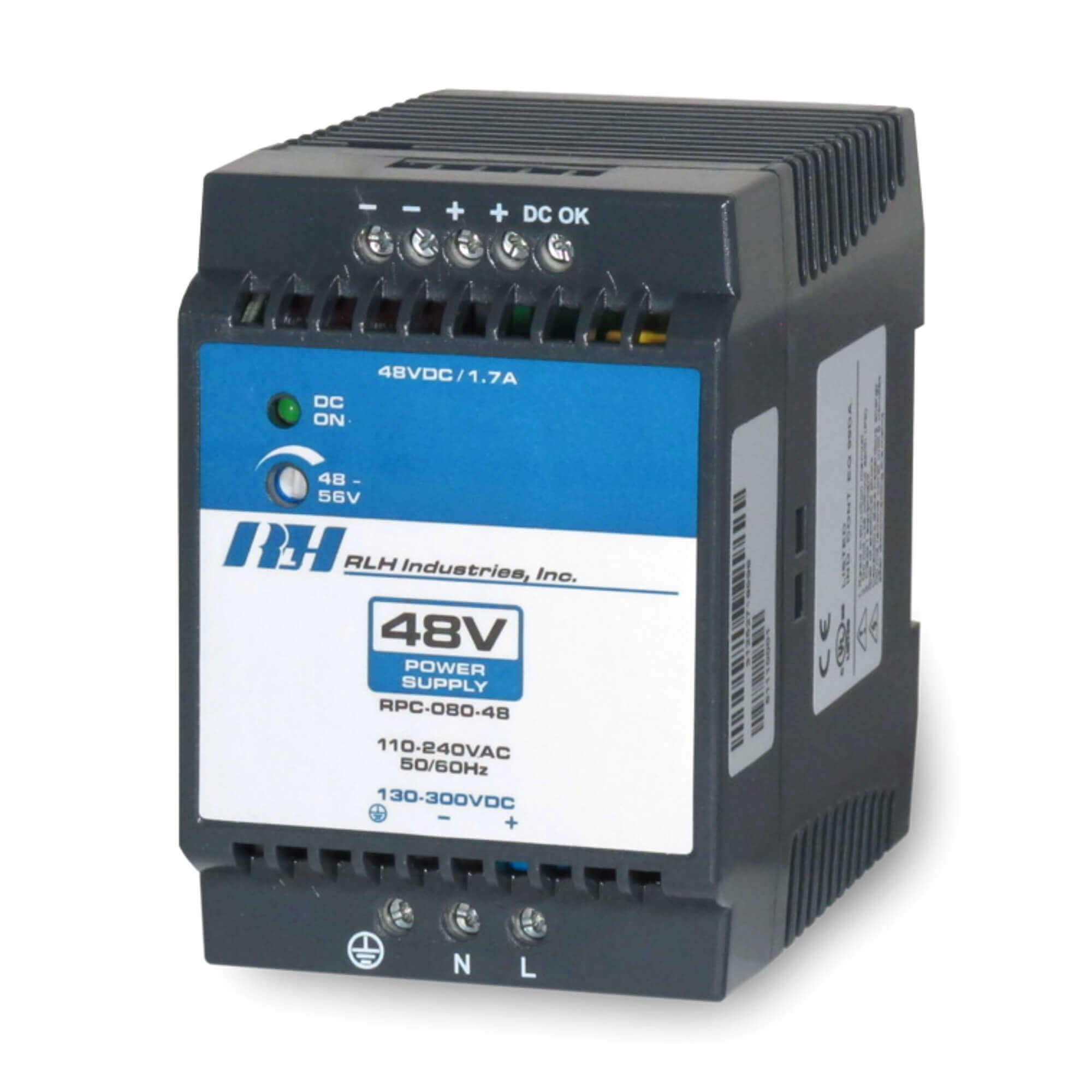

RPC-080-48
RPC-120–24

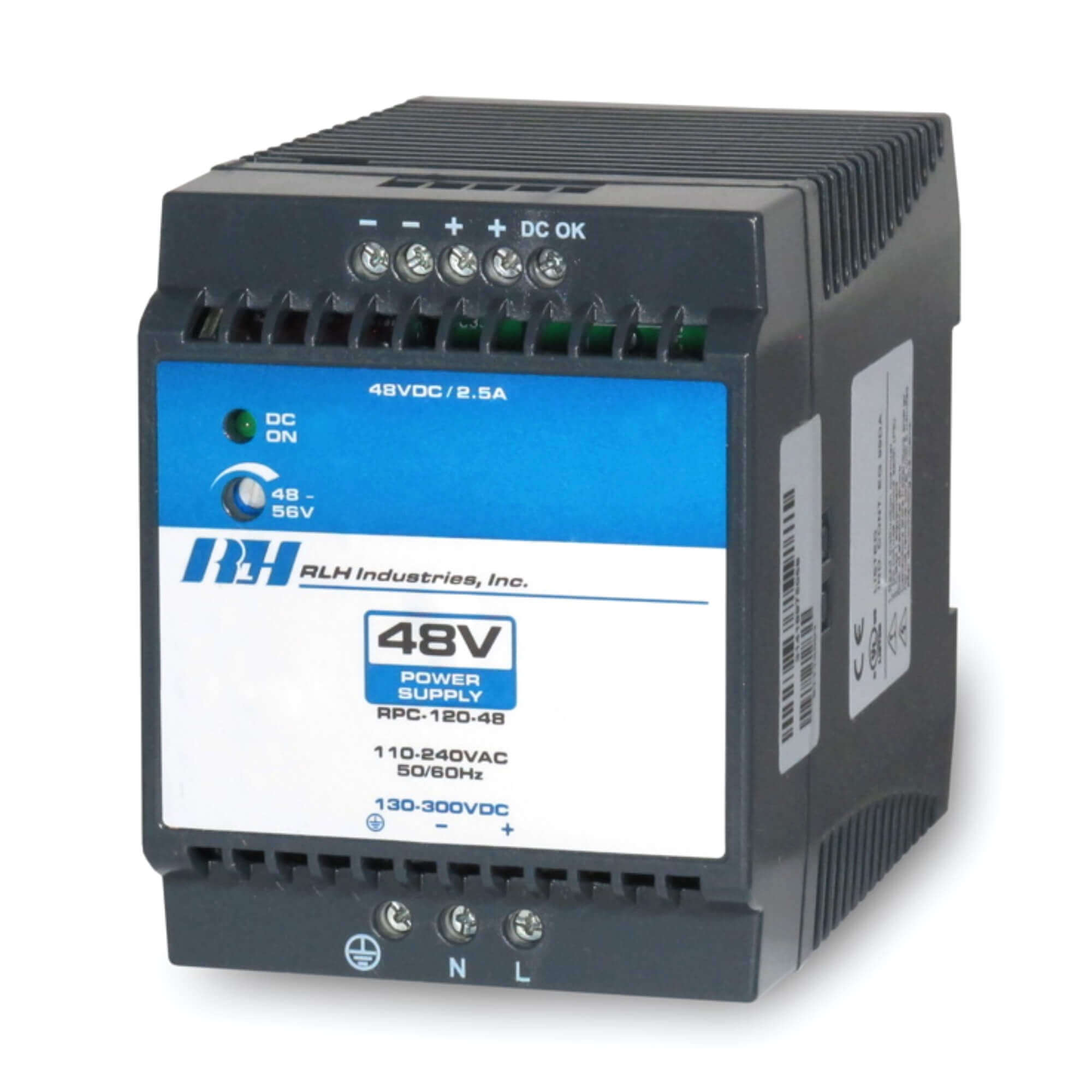

RPC-120–48
