Legacy Product
This is a legacy product and is not available for sale online. Contact sales for a special build or if you require additional information.
There is a newer version of this product available.
There is a newer version of this product available.
Patch Panel Accessory​
Overview
Features
Specs
Docs
Numbers
Overview

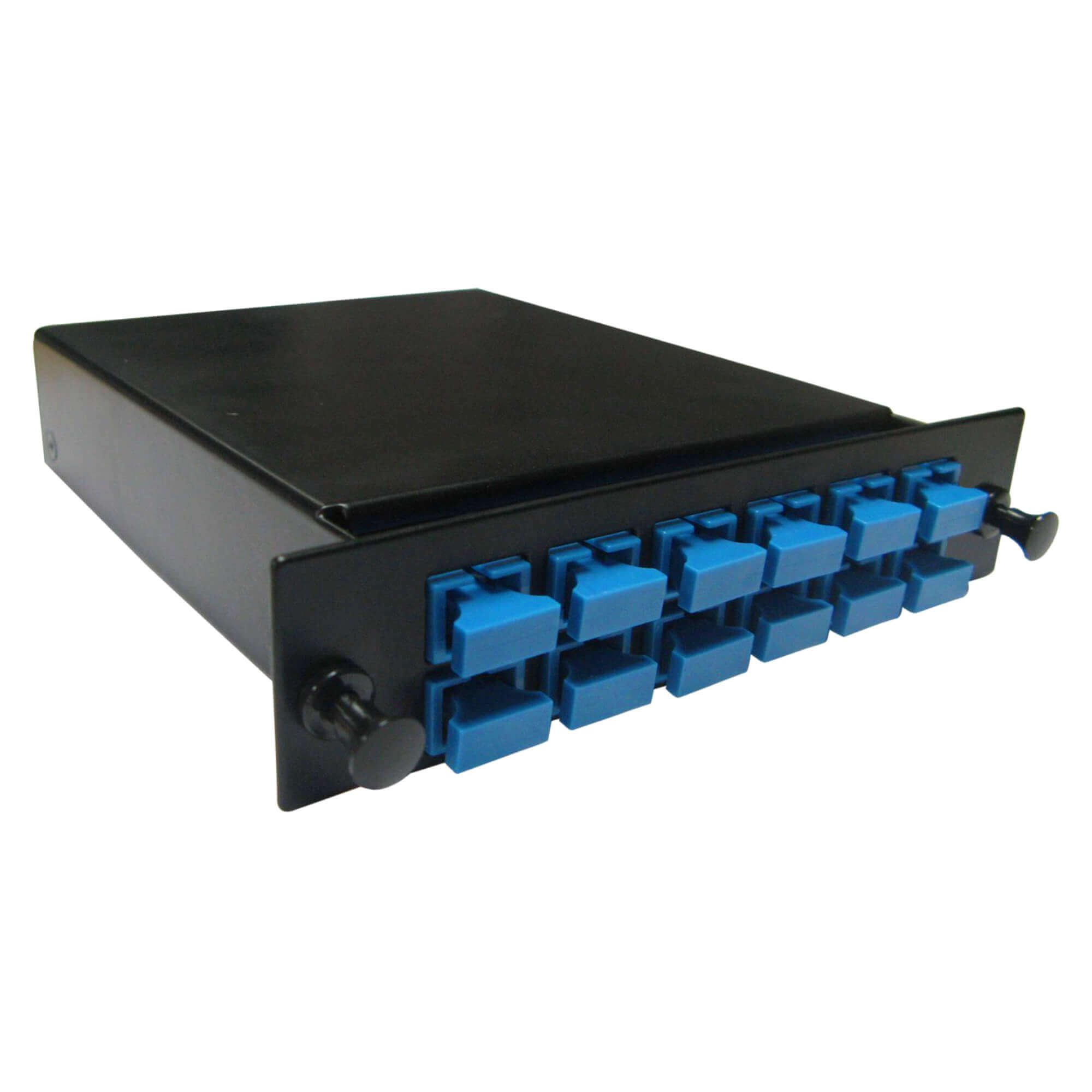

RLH MTP Fiber Cassettes are specially designed to reduce installation time and cost for an optical network infrastructure in the premises environment. The Cassette is compact in size with SC or LC duplex port adaptors at the front and MPO/MTP adaptor(s) at the back. This system enables a multifiber MTP trunk cable connection break-out into simplex- or duplex-style connectors.
Features
- Space-saving design
- 100% performance guarantee
- Save installation time and labor
- Can be loaded with wall or rack LGX enclosures
- Cable terminated in high-density MTP/MPO connectors
- Singlemode or multimode fiber types available
- Available in 12-fiber and 24-fiber configurations
Specs
Application:
Data center LAN/SAN
Dimensions:
5.1″ (W) x 3.55″ (D) x 1.19″ (H), (128mm x 90mm x 30mm)
Insertion Loss:
≤ 0.3dB; ≤ 0.5dB (MPO)
Docs
General Information
Numbers
RLH-MTPC-12MMSC
RLH-MTPC-12M5SC
RLH-MTPC-12MXSC
RLH-MTPC-12SMSC
RLH-MTPC-12MMLC
RLH-MTPC-12M5LC
RLH-MTPC-12MXLC
RLH-MTPC-12SMLC
RLH-MTPC-24MMLC
RLH-MTPC-24M5LC
RLH-MTPC-24MXLC
RLH-MTPC-24SMLC
Ordering
MTP/MPO Fiber Cassettes (legacy)
Please contact us to get a quote for your project.
*Lead times are estimates and may vary. You will be contacted within 1 business day to go over the details of your order. If you require a specific date, let us know!
*Days = Business Days
