Semi-Buried Pedestal Enclosure
Overview
Features
Specs
Docs
Numbers
Overview

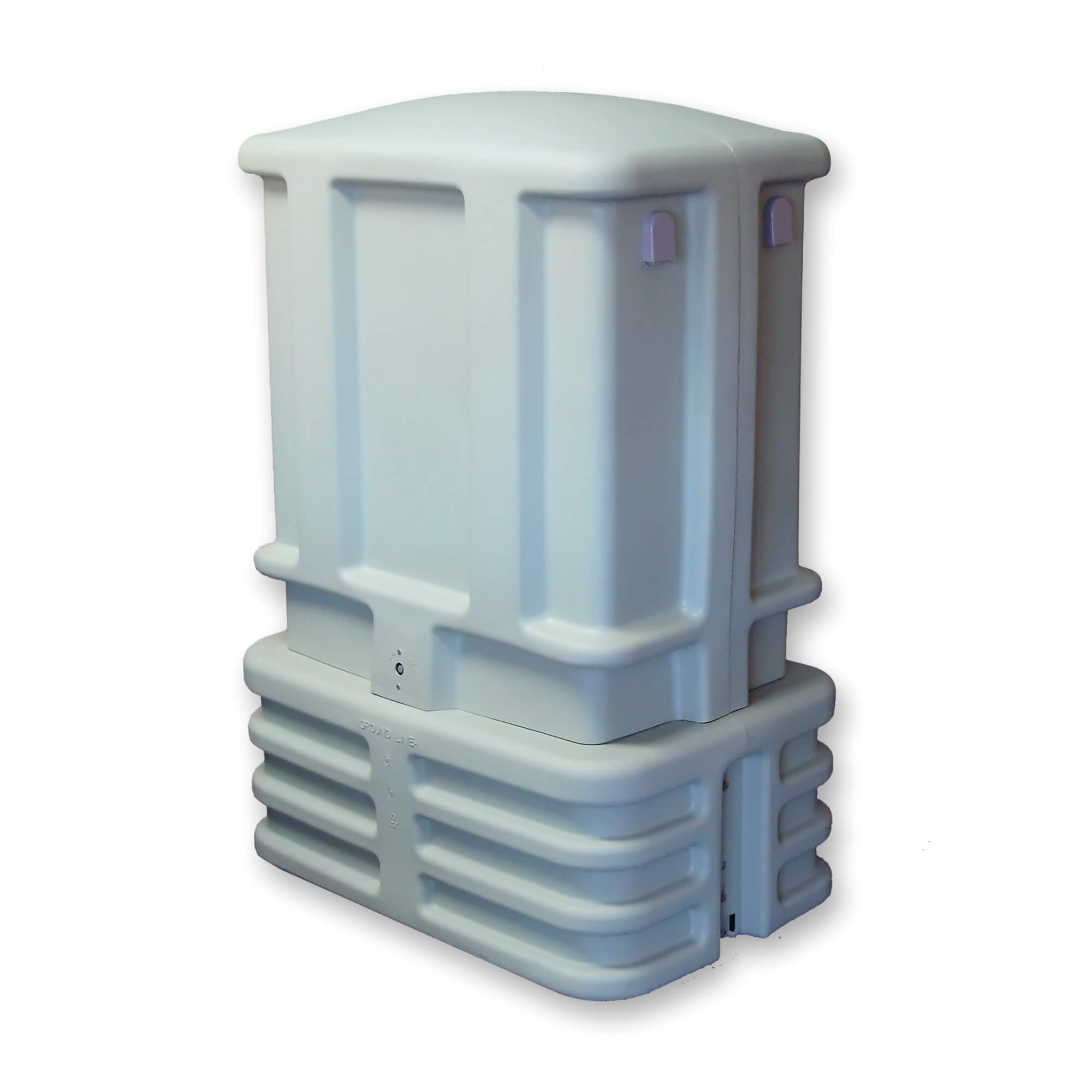

RLH Type-07 Semi-Buried Pedestals are tough, outdoor rated, all- dielectric equipment pedestals that include a treated plywood backboard, lockable covers with hex head self-locking system, and padlock hasp. The pedestal stands approximately 36″ tall when the base is buried. No mounting stakes or platforms are required for installation.

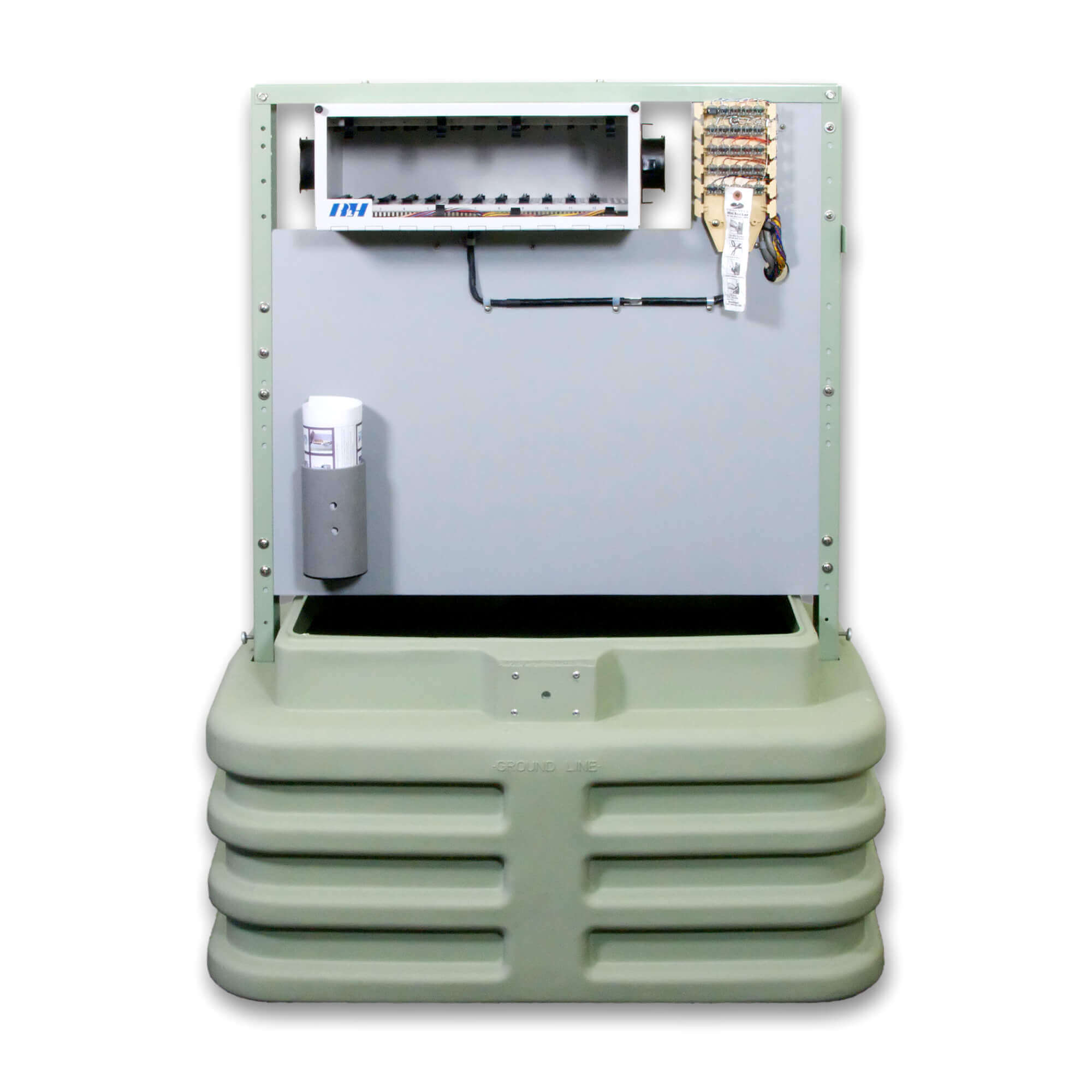

These pedestals have enough room to install a 12-Card Fiber Optic Link housing in addition to other telecommunications equipment. Several housings may be mounted inside a single pedestal for high density applications. Pedestals are constructed of all-dielectric plastic with a steel support frame.
RLH offers standard Fiber Optic Link configurations pre-installed into enclosures. These Telco Interface Units allow for faster and more uniform field installations (see Ordering tab).
Features
- All-dielectric construction
- Internal steel frame
- Fire treated and painted 3⁄4″ plywood backboard
- Self-locking cover with hex head release
- Spring latch and padlock locking hasp
- Ground lug connections
- Snap-Lock connection terminal with feedback loop tool
- 7” mounting depth on front of backboard (RLH side)
- 8” mounting depth on back of backboard (Telco Side)
- Available in 5-, 8-, or 12-Card configurations
- Available with gas tube terminal protection
- Made in USA
Specs
Construction:
GR-13 compliant all-dielectric LLDPE molded plastic with metal backboard frame
Mounting Style:
Semi-buried, 36″ X 24″ approximate footprint
Included:
Pre-wired, gel filled, snap-lock 25 pair copper terminal, feedback loop clip, ground lug with attaching hardware
Options:
2-Card Fiber Optic Link housing, 5-, 8-, or 12-Card Fiber Optic Link shelf, Gas Tube Protection
Docs
General Information
Numbers
8806-1409-07NT
8806-1406-07NT
8806-1408-07NT
Ordering
Semi-Buried Pedestal with Optional Card Housing (Type-07) (legacy)
| Short description | Housing | Part number | |
|---|---|---|---|
| H48” x W36” x L24” with ¾” Fire Retardant Plywood Backboard | Empty Backboard | 8806-1285-07 | Get a Quote |
*Lead times are estimates and may vary. You will be contacted within 1 business day to go over the details of your order. If you require a specific date, let us know!
*Days = Business Days
