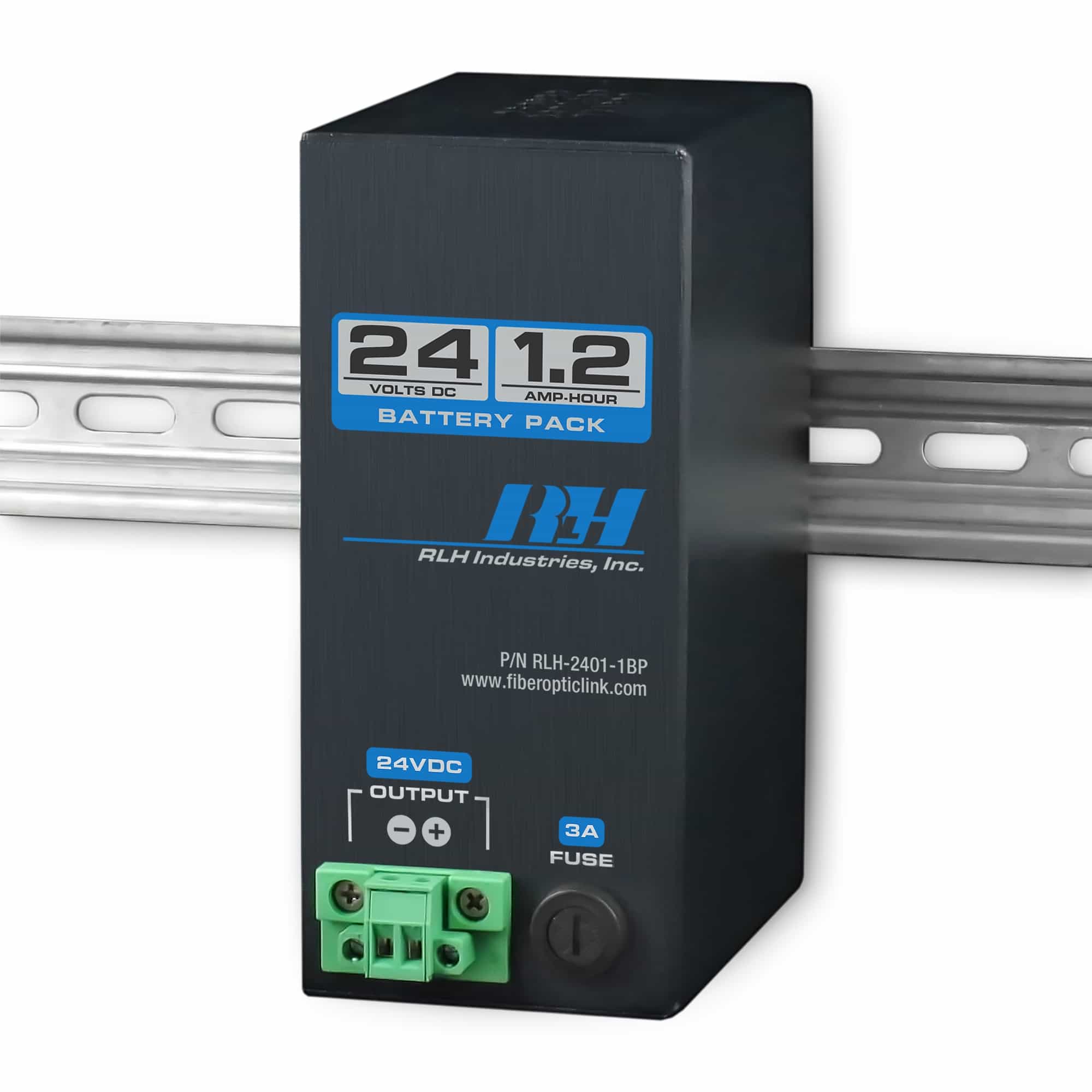

Ideal for Temporary Backup for Low-Powered Electronics
This battery pack is designed to be part of a UPS system and supply temporary power to industrial equipment in the event of a primary power loss. These are a great way to add backup battery power to RLH power supplies with a compatible UPS charge controller, and the compact design allows for installation where space is tight.
They mount quickly to standard T35 DIN rails, and include a wall mount adapter plate for wall mount applications. The housing is constructed of durable powder coated aluminum alloy with easily accessible screw down terminals for wiring, and includes an externally replaceable fuse to protect the battery circuit.
The internal batteries are maintenance free sealed lead acid batteries rated for up to 5 years of standby service or more than 400 cycles at 50% discharge depth. Depleted batteries are field replaceable and replacement sets are available.
- DIN or Wall mount
- Compact design
- Ideally suited for 24VDC UPS applications
- Removable terminal block for easy disconnec
- Externally accessible and user replaceable fuse
- Sealed, no-spill lead acid battery design
- Up to 5 years of stand by service
- Made in USA
Battery Pack Construction:
Powder coated aluminum alloy with screw down cover plate

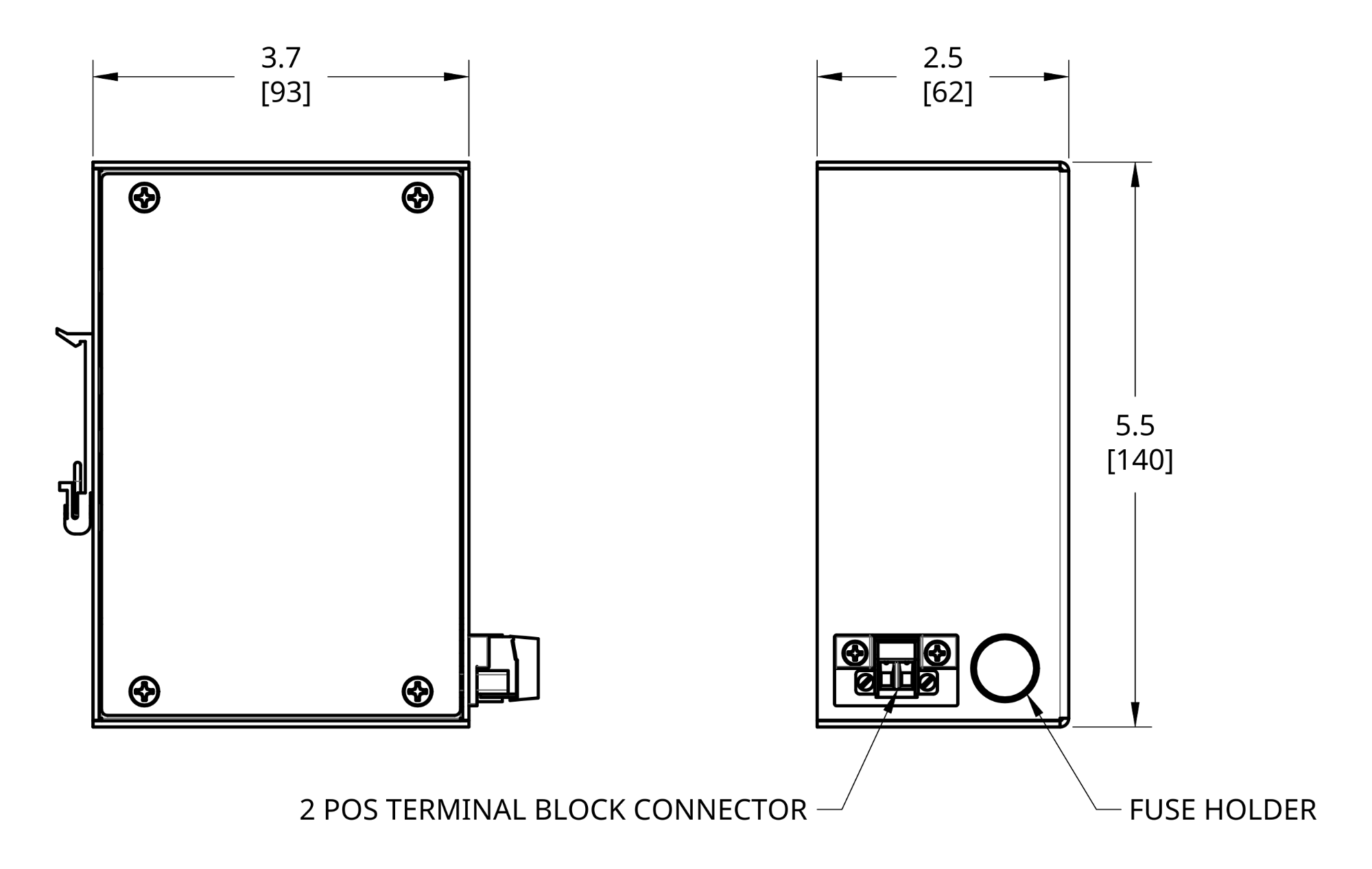

Dimensions:
2.5” (W) x 3.7” (D) x 5.5” (H), (64mm x 94mm x 140mm)
Weight:
1.4 kg/3 lbs.
Mounting:
DIN Clip for T35 DIN Rail

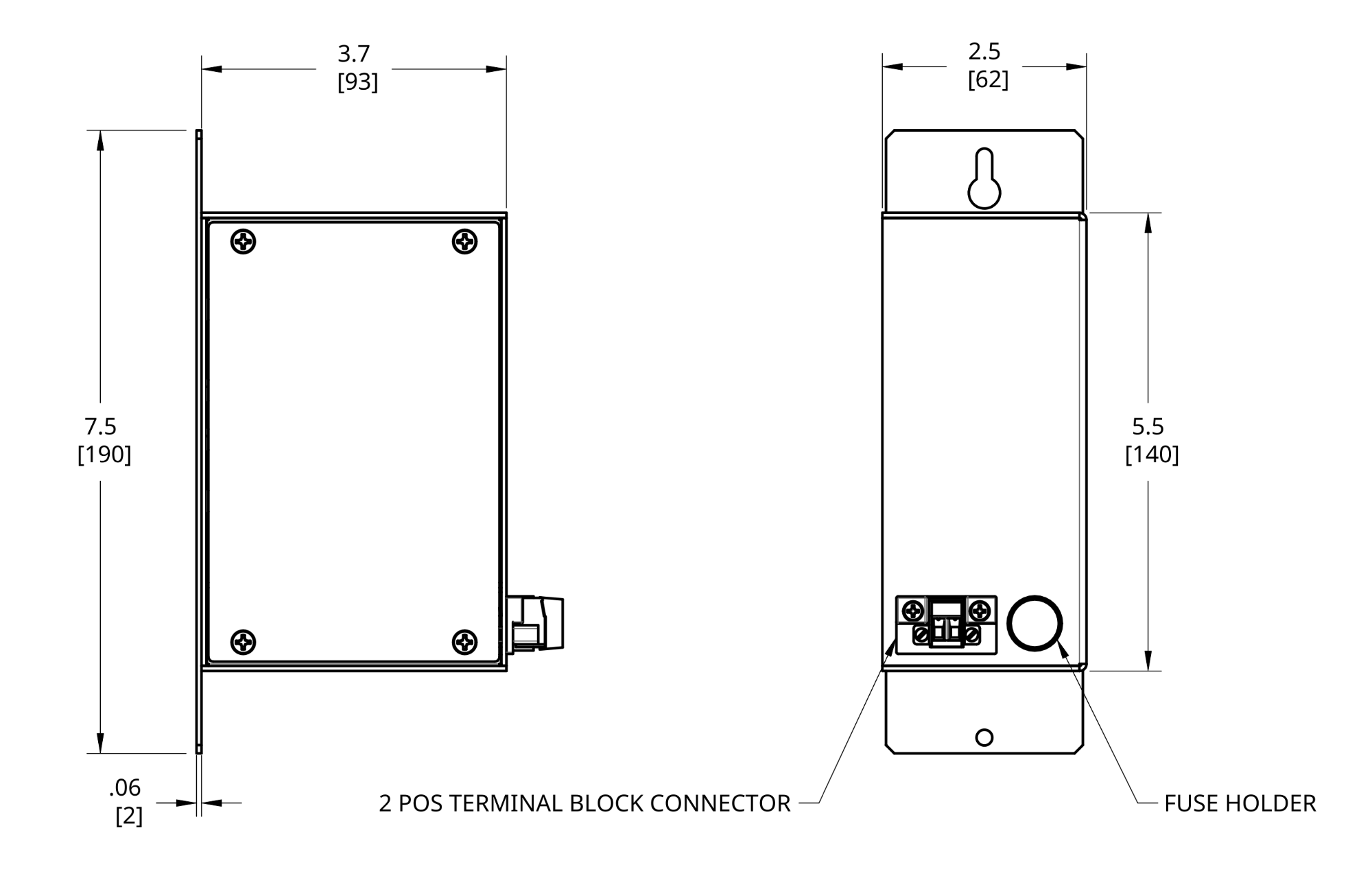

Wall mount plate included for non-DIN rail mounting applications
Power Connection:
Removable screw down power terminals
Internal Batteries:
Quantity 2, 12VDC, 1.2Ah
Battery Type:
Lead acid deep cycle, spill proof, maintenance free
Nominal Voltage:
24VDC
Capacity:
1.2Ah @ 25°C
Included Fuse:
3A, user replaceable
Operating Temperature Range:
Discharge: -20°C ~ 60°C (-4°F ~ 140°F)
Charge: -20°C ~ 60°C (-4°F ~ 140°F)
Storage: -20°C ~ 60°C (-4°F ~ 140°F)
*Extreme temperatures will reduce the storage time as well as the life of the batteries
Charging Voltage:
Standby Use: 27.3V ±0.3V @25°C (77°F)
Cycle Use: 29.4V ±0.6V @25°C (77°F)
Maximum Recommended Charging Current Limit:
0.39A
Self Discharge:
After 3 months Approximately 90% @25°C (77°F) Remaining Charge
After 6 months Approximately 82% @25°C (77°F) Remaining Charge
After 12 months Approximately 70% @25°C (77°F) Remaining Charge
RLH-2401-1BP
RLH-2401-1RB
$145.00
Lead Time: 1 Week*
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
24VDC 1.2Ah DIN Mount Battery Pack
Short description | Part number | Price | |
---|---|---|---|
24 Volt DC Battery Pack with 1.2Ah Capacity, DIN or Wall Mountable | RLH-2401-1BP | $145.00 |
Replacement Battery Set
Short description | Part number | Price | |
---|---|---|---|
Replacement Battery Set For RLH-2401-1BP | RLH-2401-1RB | $45.00 |
