Ideal for Temporary Backup for DIN-Mounted Electronics

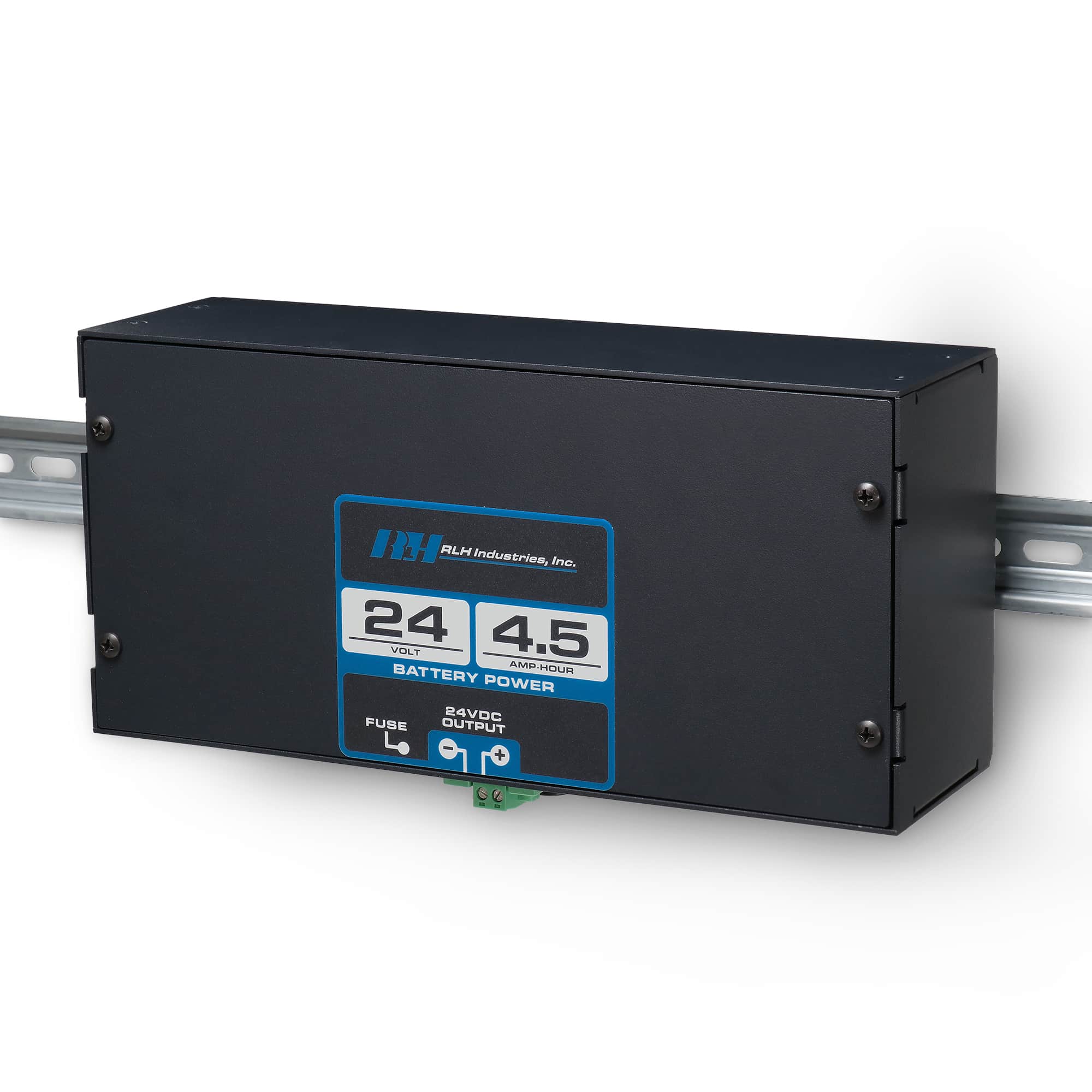

The 4.5Ah 24VDC battery pack is an ideal battery solution suited for 24VDC UPS applications, or other industrial applications where battery reserve power is required.
The aluminum powder coated housing includes a pluggable screw down terminal, and an externally accessible fuse for easy installation and maintenance. This battery pack mounts on standard T35 DIN rail and has dual clips for extra stability on the rail.
The two internal batteries are maintenance free, AGM sealed lead acid, and rated for up to 5 years of standby service. Spent batteries are easily replaced in the field and replacement battery sets are readily available.
RLH offers a variety of compatible DIN rail power supplies and charge controllers to complete your battery backup solution.
Features

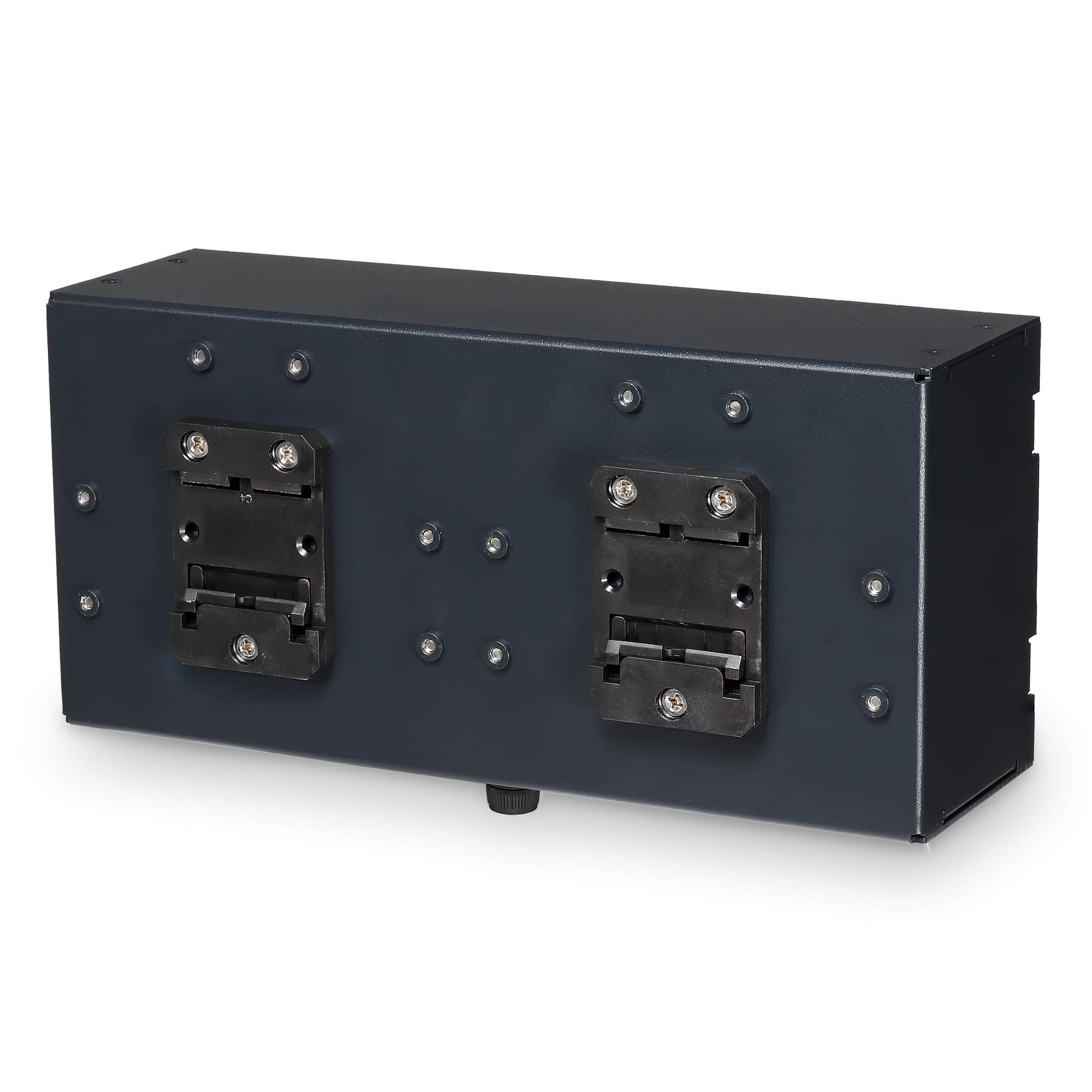

- Includes dual DIN clips for extra stability
- DIN mountable
- Powder coated aluminum construction

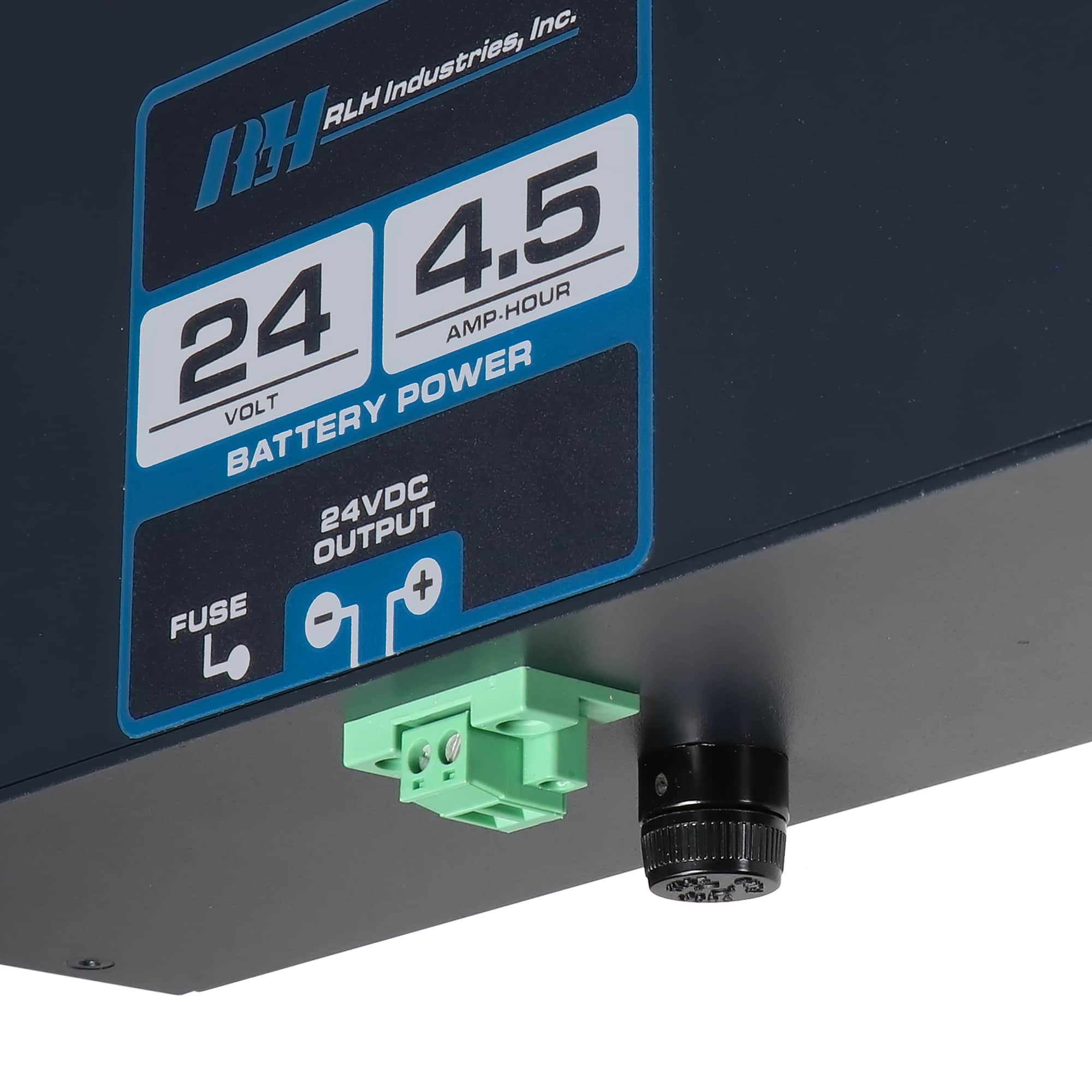

- Easy to access pluggable screw down terminal
- Ideal solution for 24VDC battery backup applications
- Externally accessible replaceable fuse
- Includes sealed, maintenance free, lead acid batteries with AGM technology
- Up to 5 years of standby service
- Made in USA
Please see the product documentation for the complete list of specifications
Battery Pack Construction:
Powder Coated Aluminum

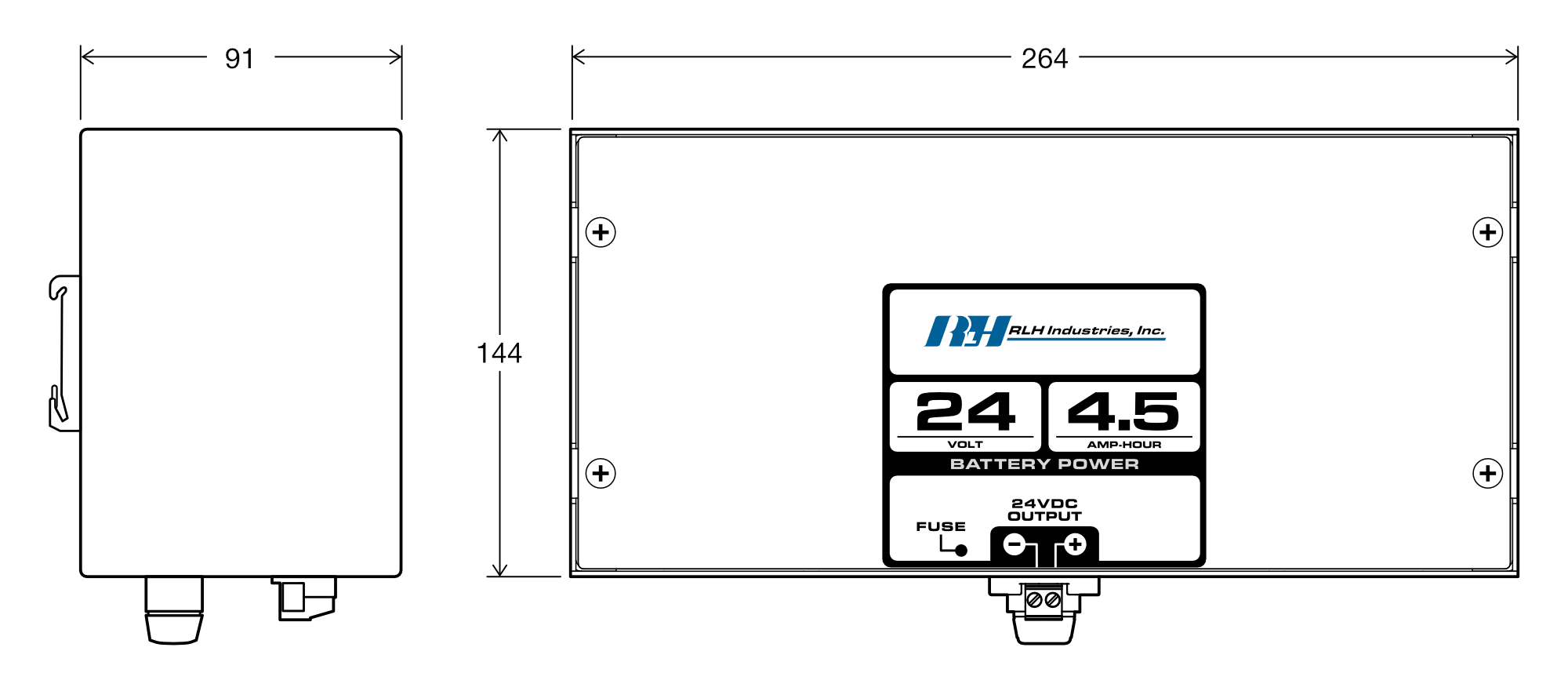

Dimensions:
10.38” (W) x 3.58” (D) x 5.64” (H), (264mm x 91mm x 144mm)
Mounting:
DIN Clip for T35 DIN Rail
Power Connection:
Screw down power terminals
Weight:
7 lbs. (3.2kg)
Internal Batteries:
Quantity 2, 12VDC, 4.5Ah
Battery Type:
Lead acid deep cycle AGM, spill proof, maintenance free
Nominal Voltage:
24VDC
Capacity:
4.5Ah @ 25˚C
Fuse:
6A, user replaceable
Operating Temperature Range:
Discharge -15˚C ~ 50˚C (5˚F ~ 122˚F)
Charge -15˚C ~ 40˚C (5˚F ~ 104˚F)
Storage -15˚C ~ 40˚C (5˚F ~ 104˚F)
Recommended Charging Voltage:
26.3VDC
Recommended Charging Current Limit:
0.45A
Maximum Recommended Charging Current Limit:
1.35A
Self Discharge:
Less than 10% after 90 days; battery pack can be stored for up to 6 months at 25˚C (77˚F)
*Batteries must be charged prior to use
General Information
CAD Files
RLH-2404-2BP
RLH-2404-1RB
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
24VDC 4.5Ah DIN Mount Battery Pack
| Short description | Part number | Price | |
|---|---|---|---|
| DIN 24VDC Battery Pack with 4.5Ah Capacity | RLH-2404-2BP | $170.00 |
Replacement Battery Set
| Short description | Part number | Price | |
|---|---|---|---|
| Replacement Battery Set For RLH-2404-2BP | RLH-2404-1RB | $65.00 |
