Ideally Suited for Industrial 24VDC UPS Systems

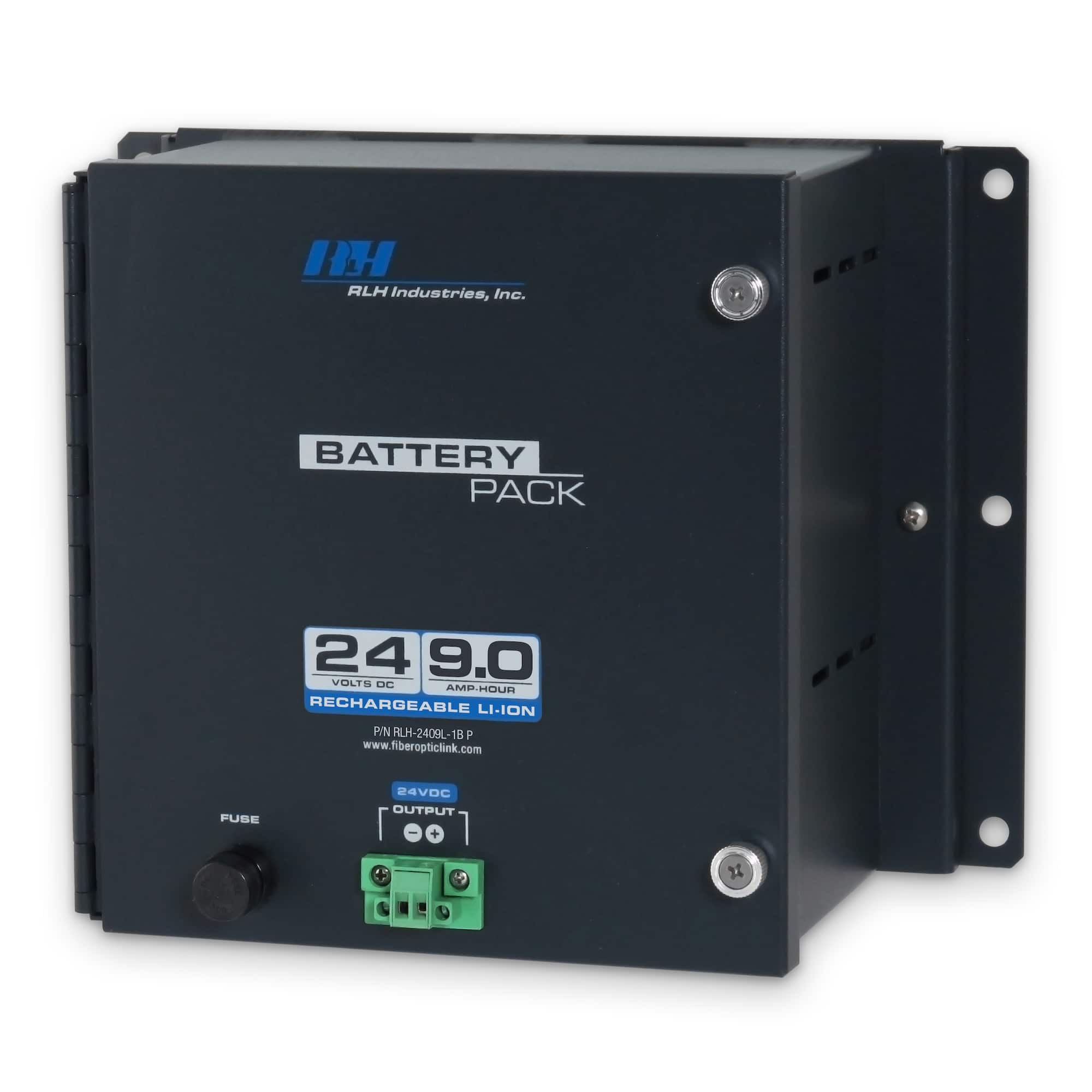

The RLH 24V 9.0Ah battery pack contains two 12 volt lithium-ion (LiFePO4) batteries mounted inside a powder coated steel housing with a hinged door secured with thumb screws. These battery packs are commonly used with AC/DC power supplies and a charge controller to provide uninterrupted backup power in the event of a power outage.
It is designed to be easily mounted using the quick-mount plate that is first attached to the wall, then the battery housing is hooked onto the plate and secured with mounting screws. The battery back is designed to be used indoors, or in a weatherproof enclosure.
The life expectancy of the internal Li-ion batteries is approximately 5 years at one cycle per day. This high cycle count is well suited for demanding UPS applications, or where rapid charge time and deep discharge cycles are expected. Excessive hot or cold temperatures will decrease battery power and life. Depleted batteries may be replaced in the field by qualified personnel.
- Ideally suited for industrial 24VDC UPS systems
- Durable powder coated steel construction
- RLH quick-mount system for easy installation
- Safe & reliable lithium iron phosphate (LiFePO4) chemistry
- Built-in Battery Management System (BMS) optimizes battery performance
- BMS protects batteries against over-charging, over-discharging
- Fast charging with low self-discharge
- Delivers twice the power of SLA batteries
- Up to 10 times more cycles than SLA batteries
- Only 40% of the weight of standard SLA batteries
- Batteries and fuse are user replaceable
Battery Pack Construction:
Durable powder coated steel with hinged door and thumb screws

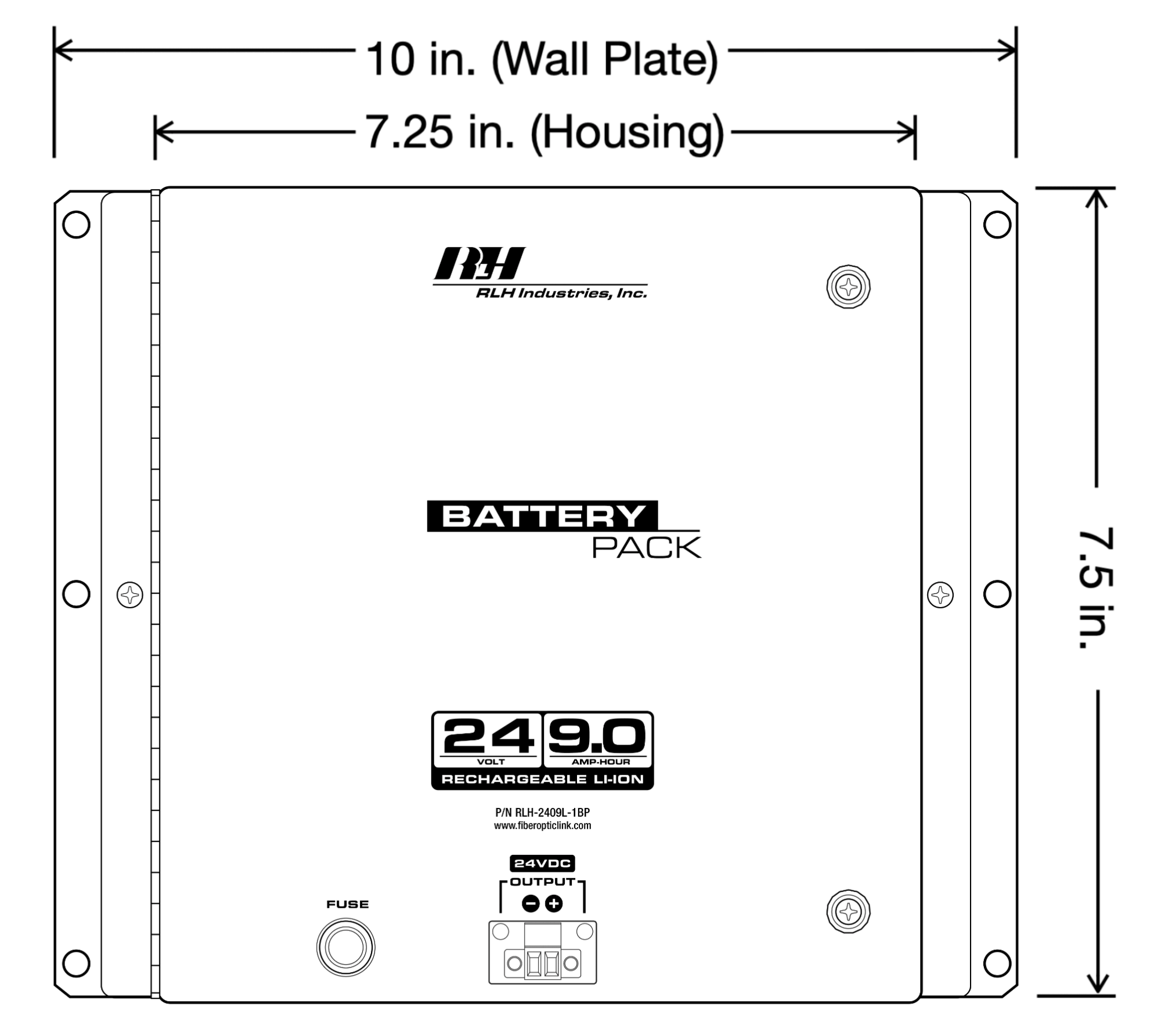

Dimensions:
10” (W) x 5.25” (D) x 7.5” (H), (254mm x 133mm x 191mm)
*including mounting wall plate
Weight:
5.5 kg/12 lbs.
Mounting:
Wall or panel mount
Power Connection:
Screw down power terminals
Internal Batteries:
Quantity 2, 12VDC, 9.0Ah
Battery Type:
Lithium (LiFeP04) with BMS, high cycle, maintenance free
Nominal Voltage:
25.6VDC
Capacity:
9.0Ah @ 25°C
Included Fuse:
15A, user replaceable
Operating Temperature Range:
Charge: 32°F (0°C) to 113°F (45°C)
Discharge: 4°F (-20°C) to 140°F (60°C)
Recommended: 59°F (15°C) to 95°F (35°C)
*Extreme temperatures will reduce the storage time as well as the life of the batteries
Over-Temperature Protection:
65°C
Release Temperature:
55°C
Max Charge Current:
9.0A
Max Discharge Current:
15A
Charge Cutoff Voltage:
29.2V
Self Discharge Rate:
≤3%/month
Long Term Storage:
Charge every 6 months or as soon as OCV is 12.8V
Cycle Life:
2000 Cycles @ 100% DOD
Life Expectancy:
5 Years at one cycle per day
General Information
$445.00
Lead Time: 1 Week*
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
24VDC 9.0Ah Wall Mount Li-Ion Battery Pack
Short description | Part number | Price | |
---|---|---|---|
24 Volt DC Lithium-ion Battery Pack with 9.0Ah Capacity, Wall Mount | RLH-2409L-1BP | $445.00 |
Replacement Battery Set For RLH-2409L-1BP
Short description | Part number | Price | |
---|---|---|---|
Replacement Battery Set For RLH-2409L-1BP | RLH-2409L-1RB | $270.00 |
