Use with DC Power Supply and Battery Pack for UPS Applications​

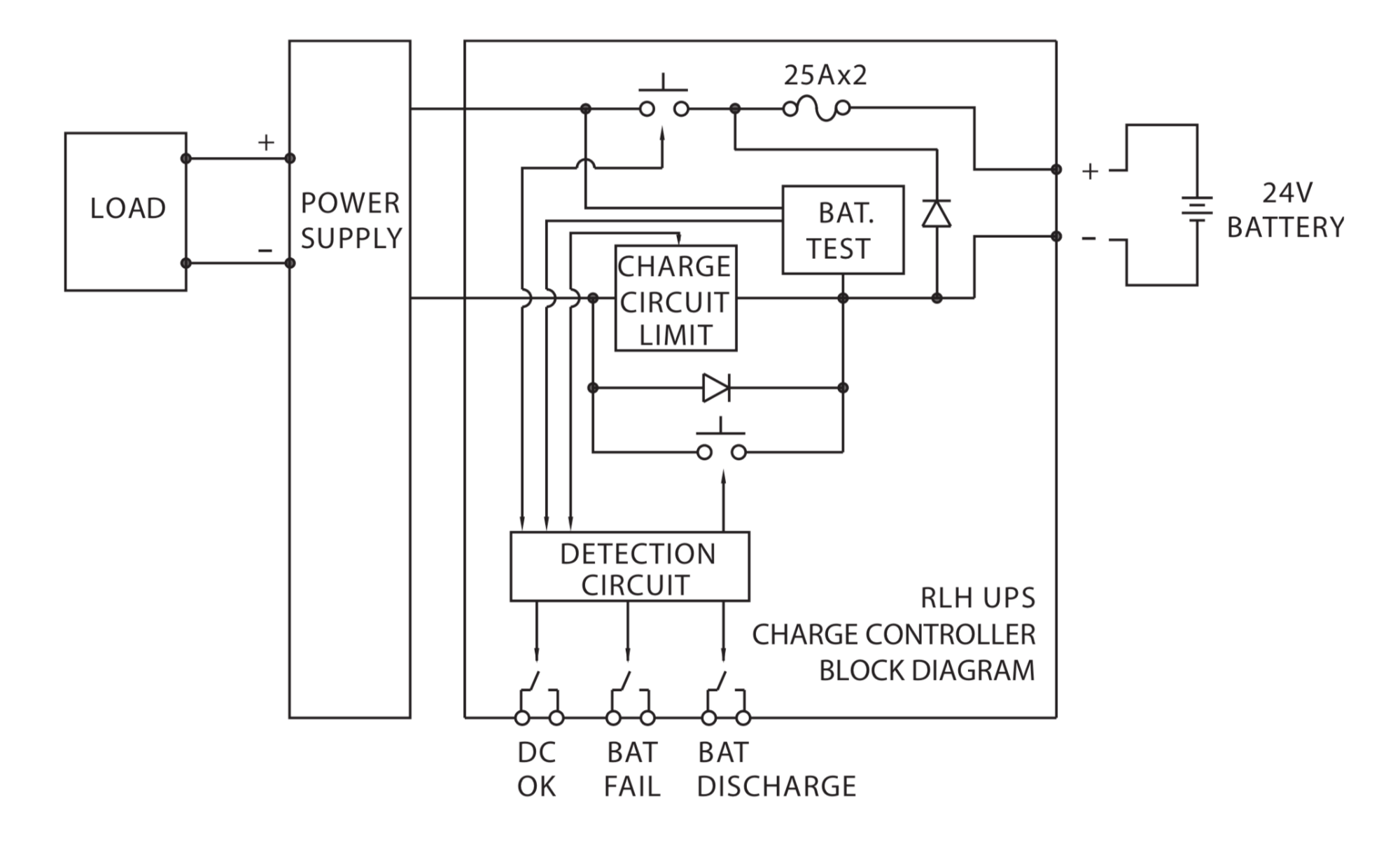

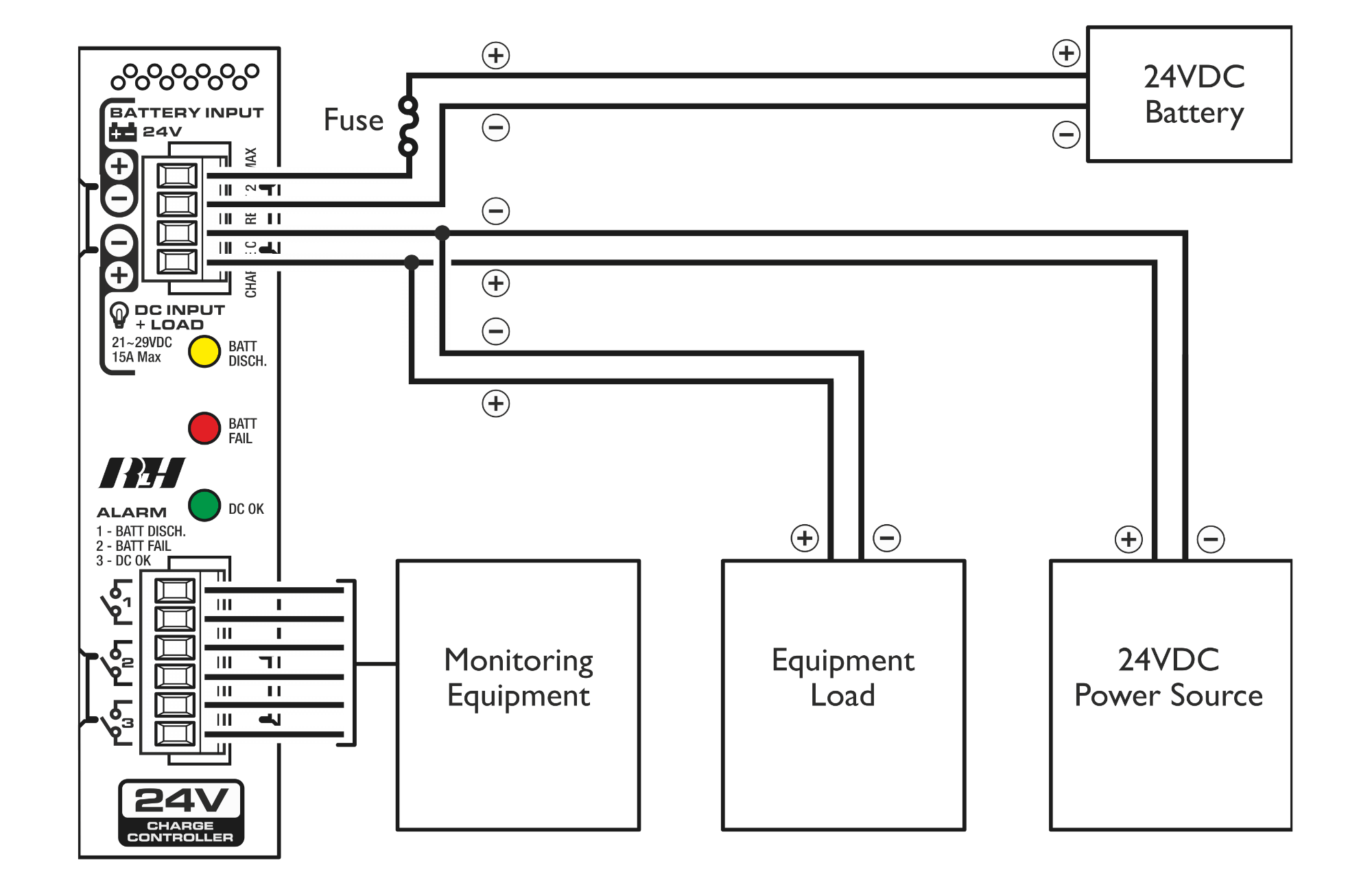

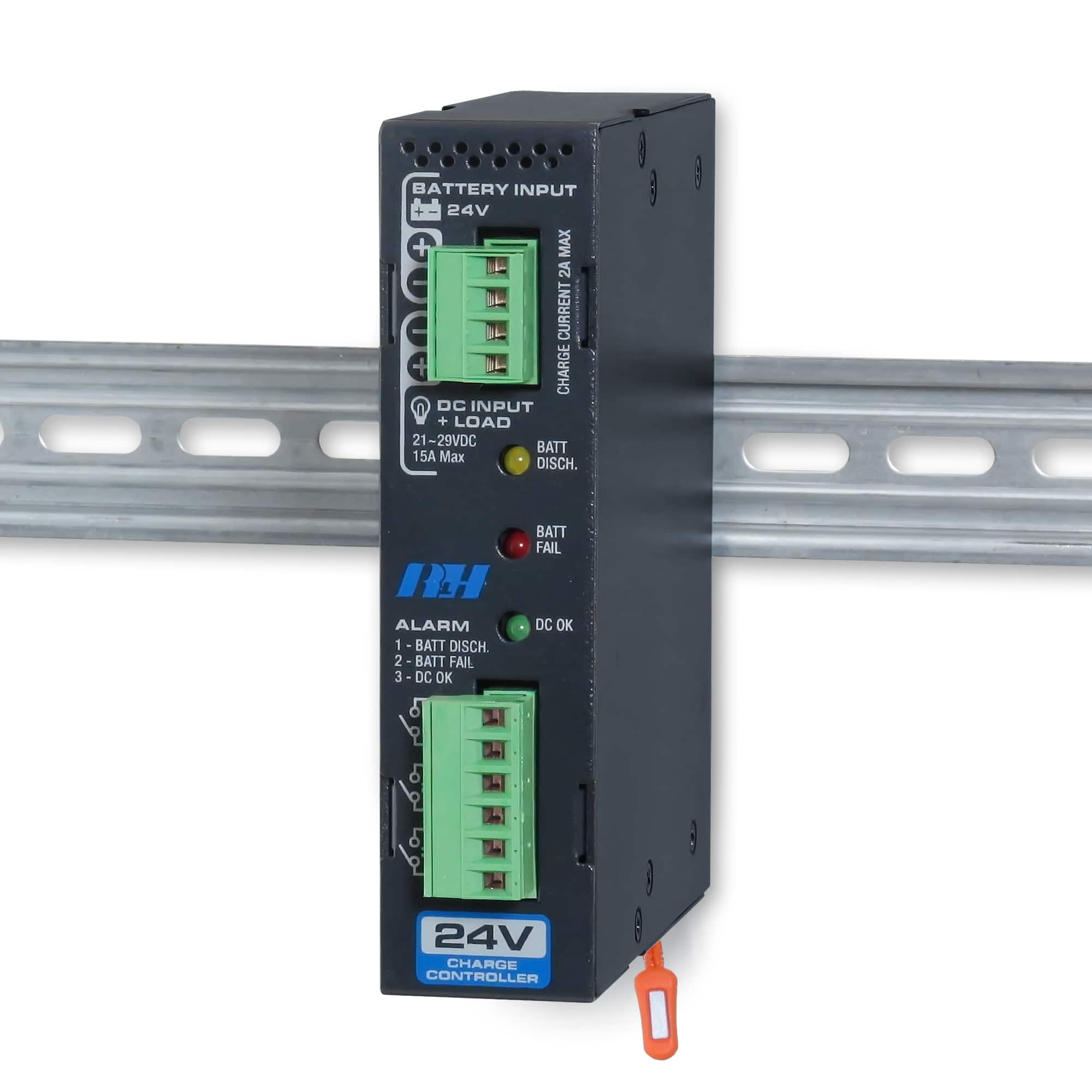

RLH 24VDC DIN rail mount charge controllers are compact units designed to work with a DC power supply (such as the RLH DIN rail power supplies) and a backup battery to provide uninterruptible power in the event of a power outage.
The charge controller continuously maintains the correct charge level on the battery and ensures a seamless power transition to battery power when needed for a complete UPS power supply solution.
Features
- Parallel connection to DC bus
- Suitable for 24VDC systems up to 15A
- Cooling by free air convection
- Install on standard DIN Rail T35 per IEC 60715
- Built-in battery test function
- Battery polarity protection
- Relay contact signal output and LED indicators for DC Bus OK, Battery Fail and Battery Discharge
- Convenient screw down terminals
- Sturdy DIN rail clip with hi-viz release lanyard
- Made in USA
Please see the product documentation for the complete list of specifications
Construction:
Powder coated steel
Dimensions:
H 5.4in. x W 1.3in. x D 4.4 (H 137mm x W 33mm x D 112mm) (Housing only)
Not including DIN bracket
Mounting Style:
Standard DIN rail (T35)
Operating Temperature:
-40° to +70°C (-40°F to +158°F)
DC Input / DC Bus:
24 ~ 29V, 0 ~ 15A
Battery Output:
24 ~ 29VDC, 0 ~ 15A, 4 / 7 / 12 / 20Ah (typ.)
Relay Contact Rating (Max):
30VDC, 10A (max.)
General Information
RLH-UPS-24-15-01
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
24VDC UPS Battery Charge Controller Module
| Short description | Part number | Price | |
|---|---|---|---|
| 24 Volt DC Battery Charge Controller, 2A Max Battery Charging Current, 15A Maximum Load | RLH-UPS-24-15-01 | $295.00 |
- View our compatible Battery Packs
You May Also Be Interested In
You may also like…
-

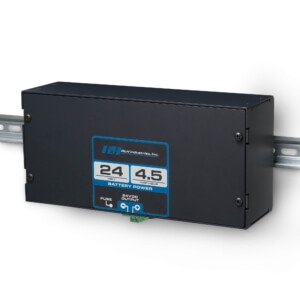

24VDC 4.5Ah DIN Mount Battery Pack
The 24VDC 4.5 Amp Hour DIN mount battery pack is ideal for providing temporary backup power for UPS applications.
View ProductPower Supplies24VDC 4.5Ah DIN Mount Battery Pack
$170.00 View Product This product has multiple variants. The options may be chosen on the product page -

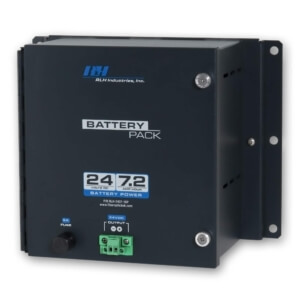

24VDC 7.2Ah Wall Mount Battery Pack
The 24VDC 7.2 Amp Hour wall mount battery pack is ideal for providing temporary backup power for UPS applications.
View ProductPower Supplies24VDC 7.2Ah Wall Mount Battery Pack
$280.00 View Product This product has multiple variants. The options may be chosen on the product page -

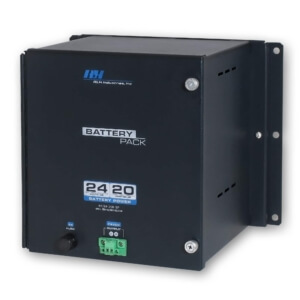

24VDC 20Ah Wall Mount Battery Pack
The 24VDC 20 Amp Hour wall mount battery pack is ideal for providing temporary backup power for UPS applications.
View ProductPower Supplies24VDC 20Ah Wall Mount Battery Pack
$390.00 View Product This product has multiple variants. The options may be chosen on the product page -

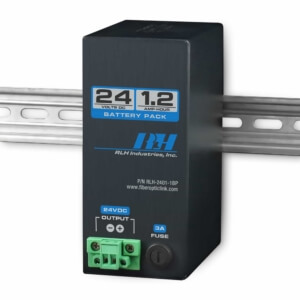

24VDC 1.2Ah DIN Mount Battery Pack
The 24VDC 1.2 Amp Hour DIN mount battery pack is ideal for providing temporary backup power for low powered electronics.
View ProductPower Supplies24VDC 1.2Ah DIN Mount Battery Pack
$145.00 View Product This product has multiple variants. The options may be chosen on the product page -

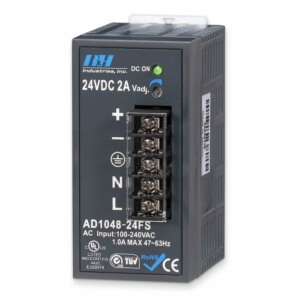

Industrial AC/DC + DC/DC Switching 48 Watt Power Supply
