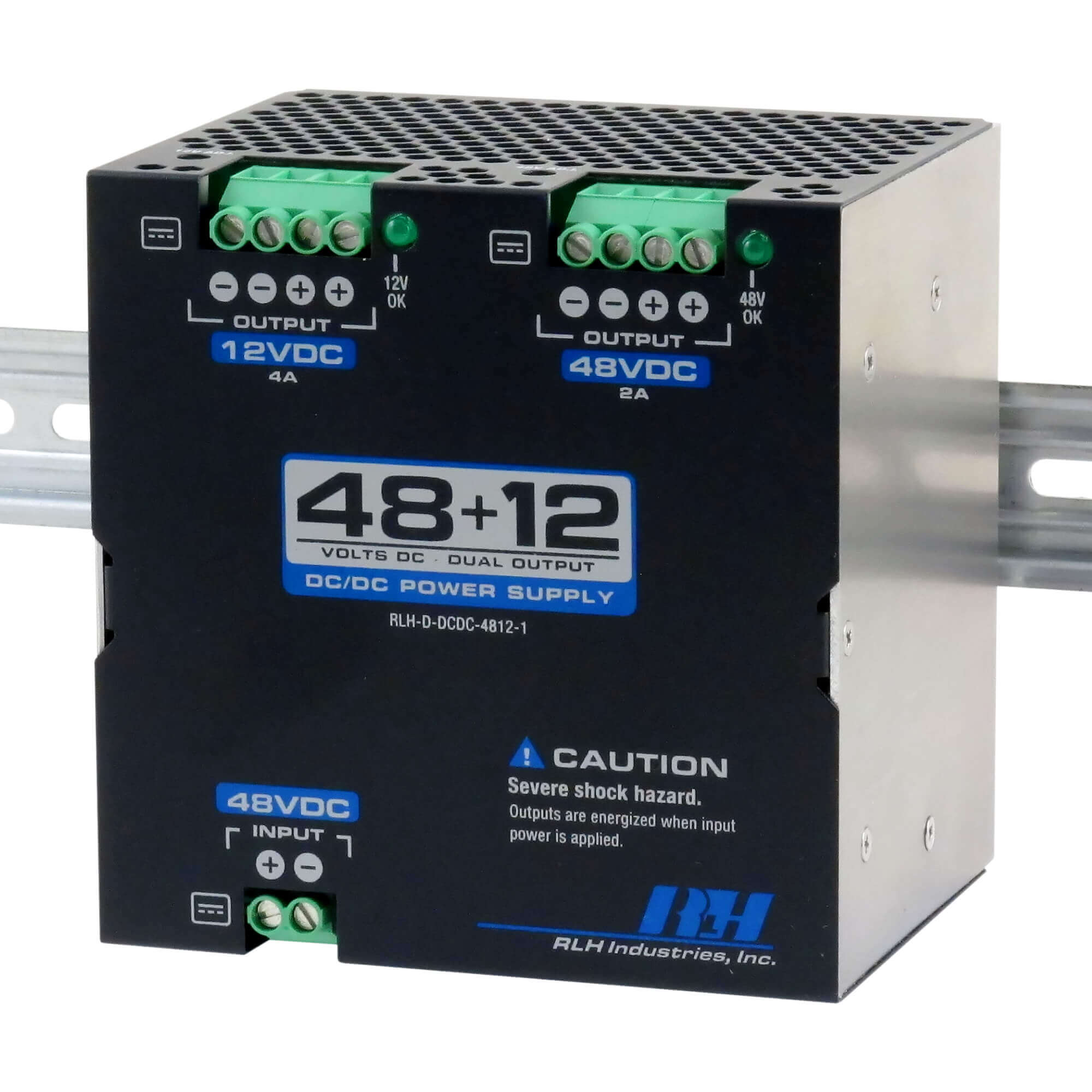

Industrial Power Supply with Dual DC Outputs​
The RLH 48V Dual Output DC/DC DIN rail mount power supply is a compact power supply designed to convert 48VDC power (18~75VDC) to regulated 48VDC and 12VDC output to power a wide range of industrial equipment.
Each internal regulated power supply section is separate and independent of the other power section, allowing for maximum efficiency and operation.
The power supply may be DIN rail or wall-mounted, and includes a power indicator for each output section so that performance and operation may be quickly assessed. It has low output ripple along with short circuit, overvoltage and overload protection, fanless convection cooled design, and extended operating temperature range with high efficiency.
This rugged power supply features a tough aluminum alloy frame with powder coated galvanized steel housing for superior corrosion resistance.
- 48VDC input with 48VDC & 12VDC output terminals
- Wide 36~72VDC input tolerance range
- Short circuit, overload, over voltage and over temperature protection
- Low ripple and noise
- ±10% output trim adjustment range on 48VDC output
- Cooling by free air convection
- 300KHz switching frequency
- Designed for 35mm DIN rail mounting
- Individual LED power indicators for each output
- Convenient screw down terminals accept up to 8AWG wiring
- 100% full load tested
- Made in USA
Construction:
Aluminum alloy and powder coated steel

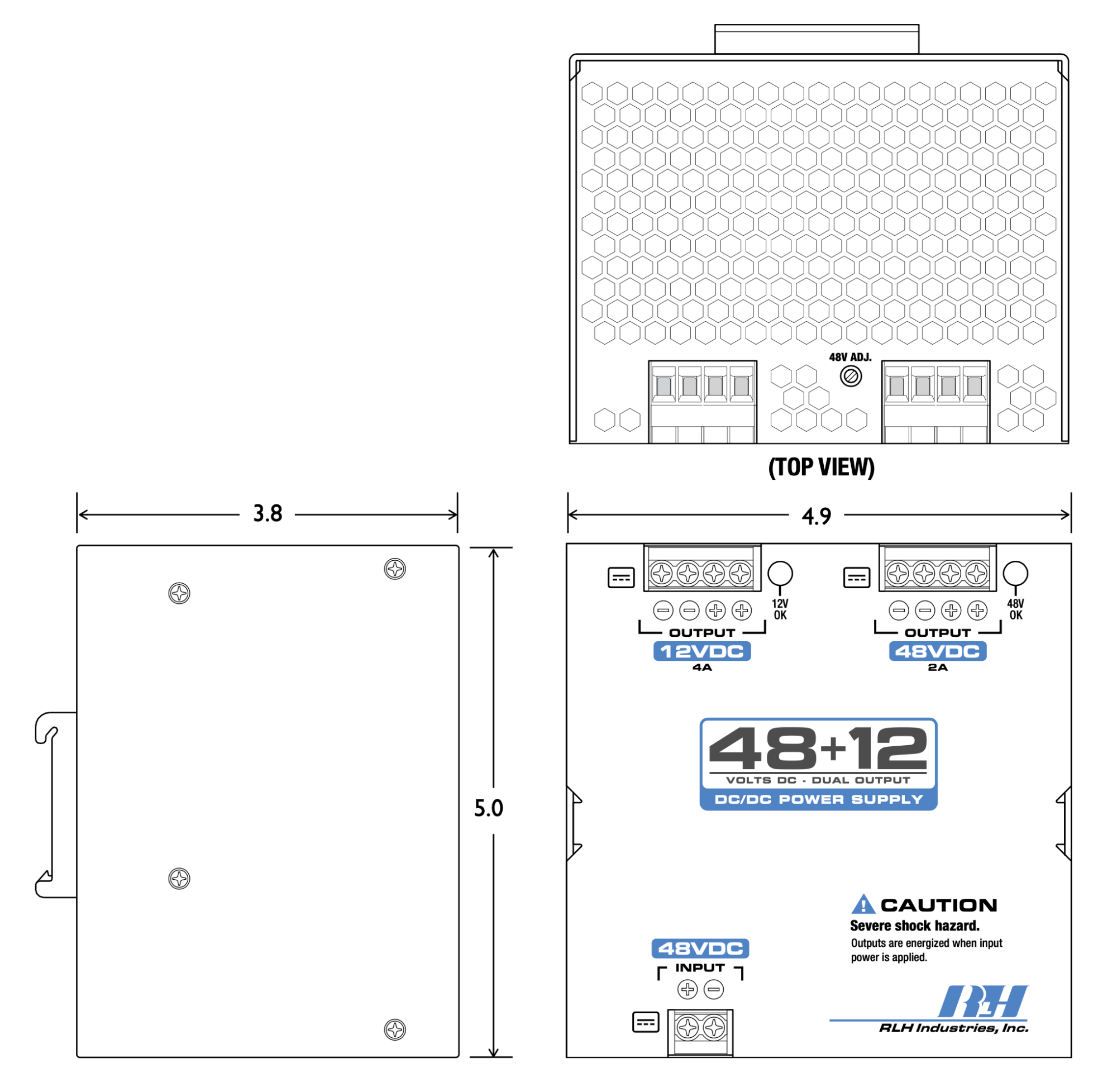

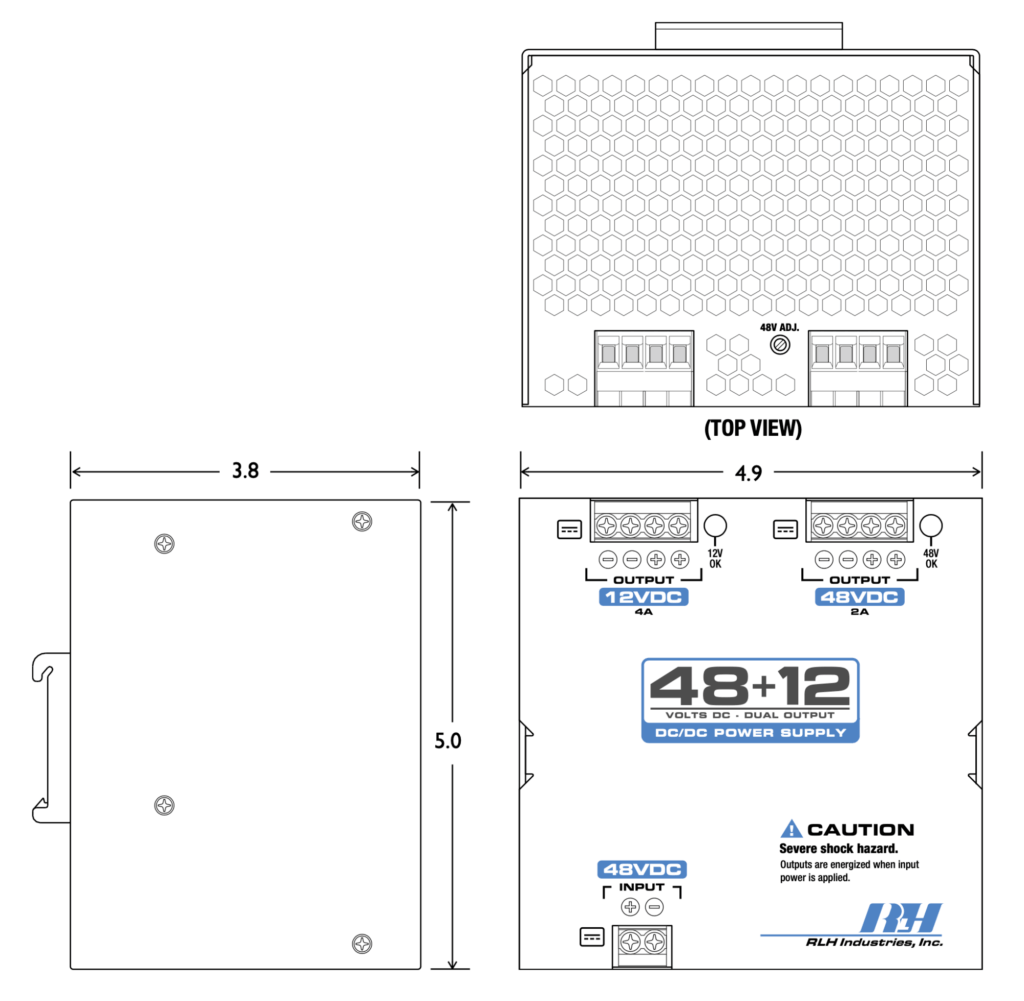

Dimensions:
H 5.0 in. x W 4.7 in. x D 3.7 in. (127mm x 119mm x 94mm)
Not including DIN bracket
Mounting Style:
Standard 35mm DIN rail (TS-35)
Operating Temperature:
-25˚C to +70˚C (-13°F to +158°F)
Power Input:
48VDC (18~75VDC range)
Power Output:
48VDC@2.1A and 12VDC@4.1A
General Information
RLH-D-DCDC-4812-2
$495.00
Lead Time: 1 to 2 Weeks*
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
48VDC to 48~12V Dual Output DC/DC Power Supply
Short description | Part number | Price | |
---|---|---|---|
Dual Output DC/DC Converter, DIN Mount, 48VDC to 48VDC & 12VDC | RLH-D-DCDC-4812-2 | $495.00 |
You May Also Be Interested In
You may also like…
-
DIN Mount Circuit Breakers
Protection of sensitive loads within enclosures such as media converters, power supplies, fans, and other devices.
See DetailsAccessories for Ethernet IODIN Mount Circuit Breakers
$15.00 See Details This product has multiple variants. The options may be chosen on the product page -
DIN Rail
T35 DIN rail cut to length, pre-slotted for easy panel or wood backboard mounting.
See DetailsAccessories for Ethernet IODIN Rail
$3.00 – $12.00 See Details This product has multiple variants. The options may be chosen on the product page -
DIN Terminal Blocks
Red, black, & grey DIN mount terminal blocks, convenient for setting up multiple devices on the same buss.
See DetailsAccessories for Ethernet IODIN Terminal Blocks
$10.00 – $30.00 See Details This product has multiple variants. The options may be chosen on the product page -

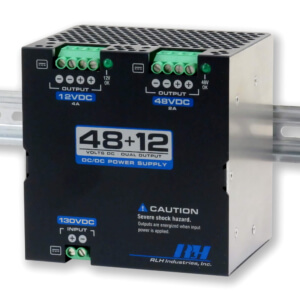

130VDC to 48~12V Dual Output DC/DC Power Supply
A compact power supply to convert 130VDC power to regulated 48VDC and 12VDC output to power industrial equipment.
See DetailsDC/DC Converters130VDC to 48~12V Dual Output DC/DC Power Supply
$495.00 See Details This product has multiple variants. The options may be chosen on the product page -

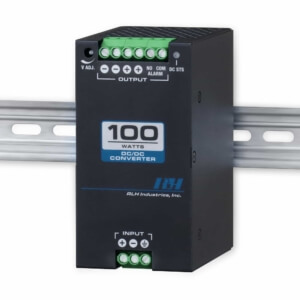

DC/DC Converter
