Use with DC Power Supply and Battery Pack for UPS Applications​

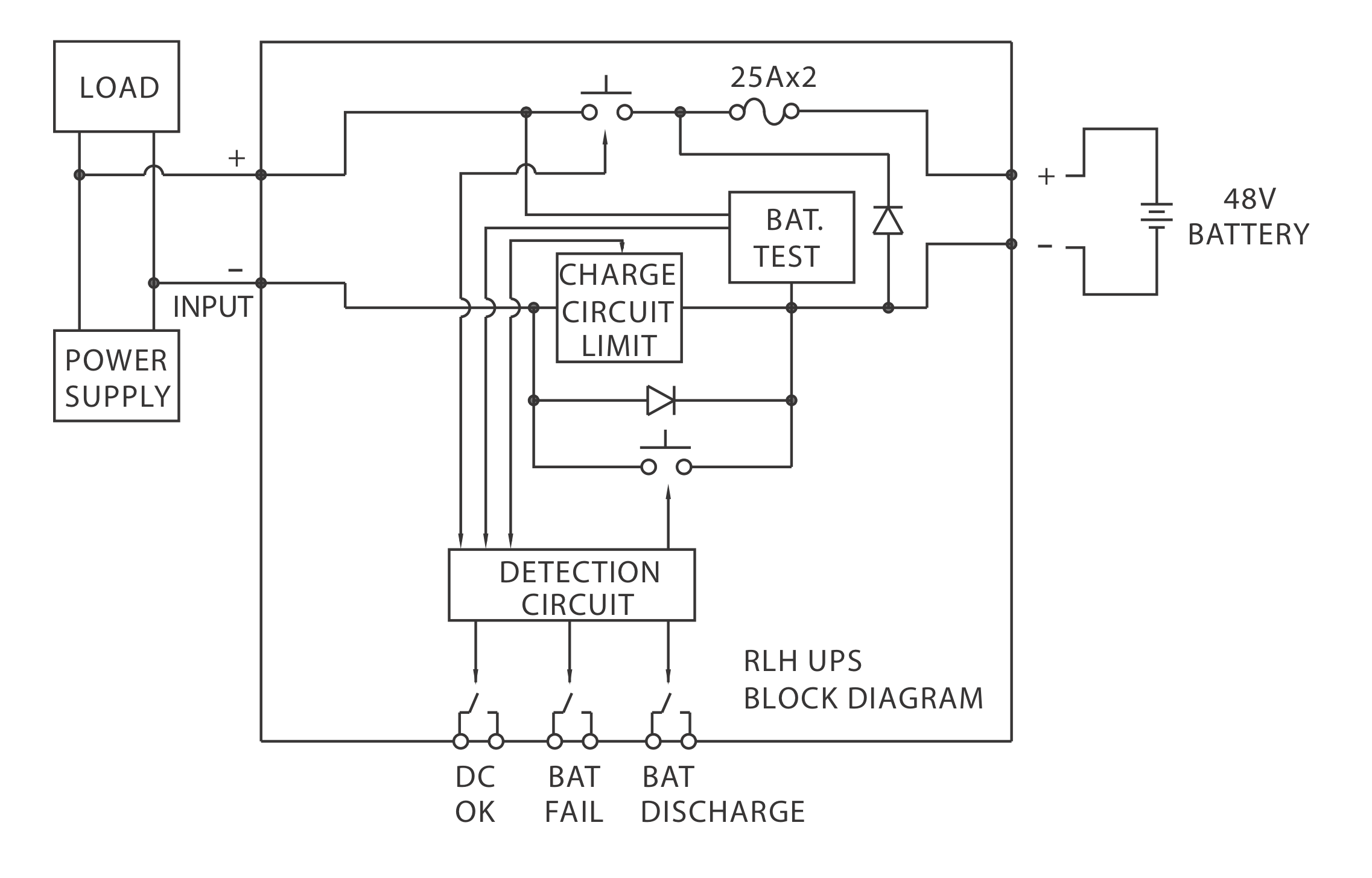

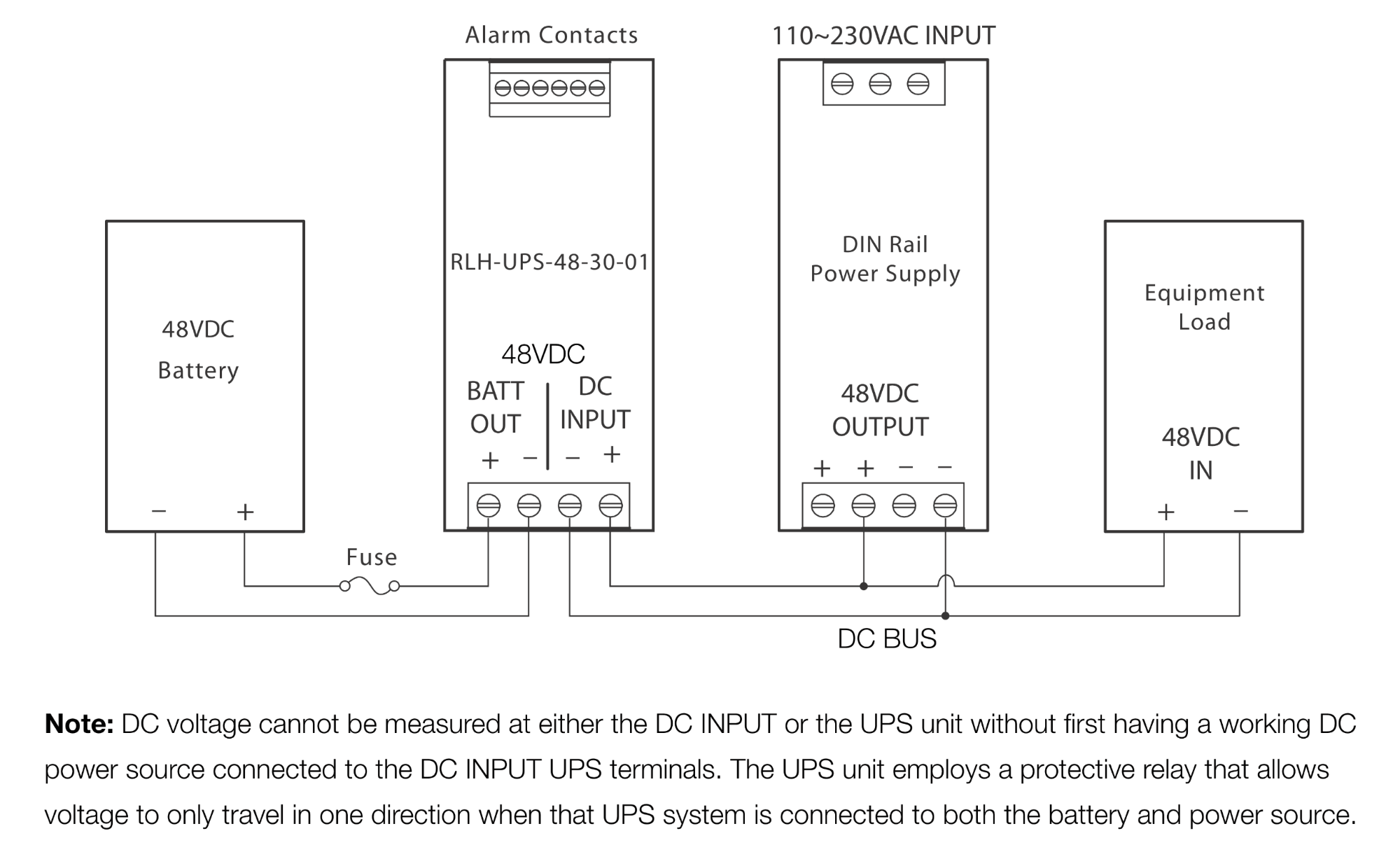

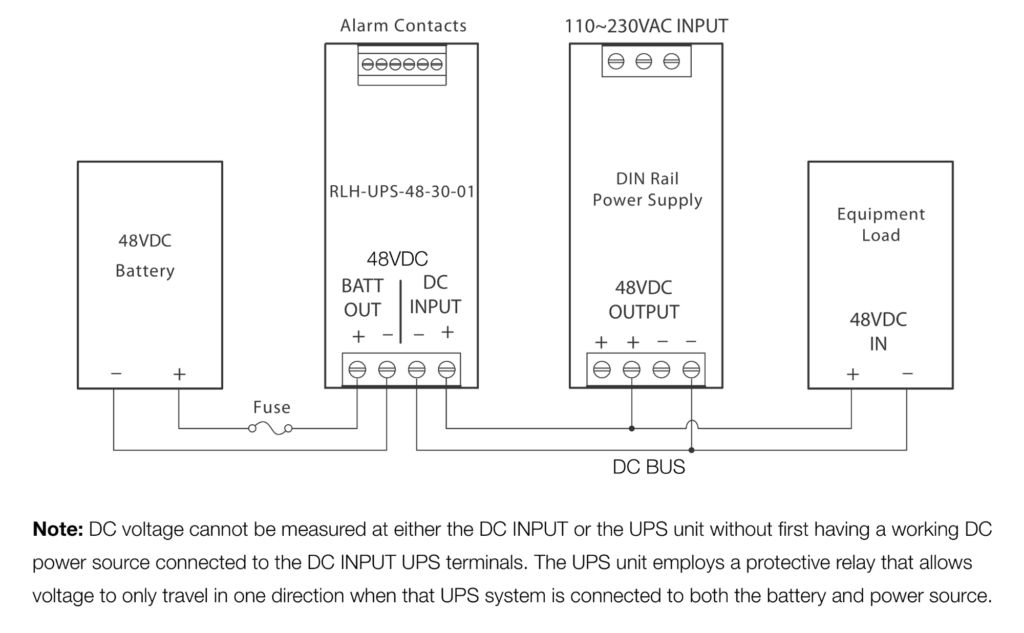

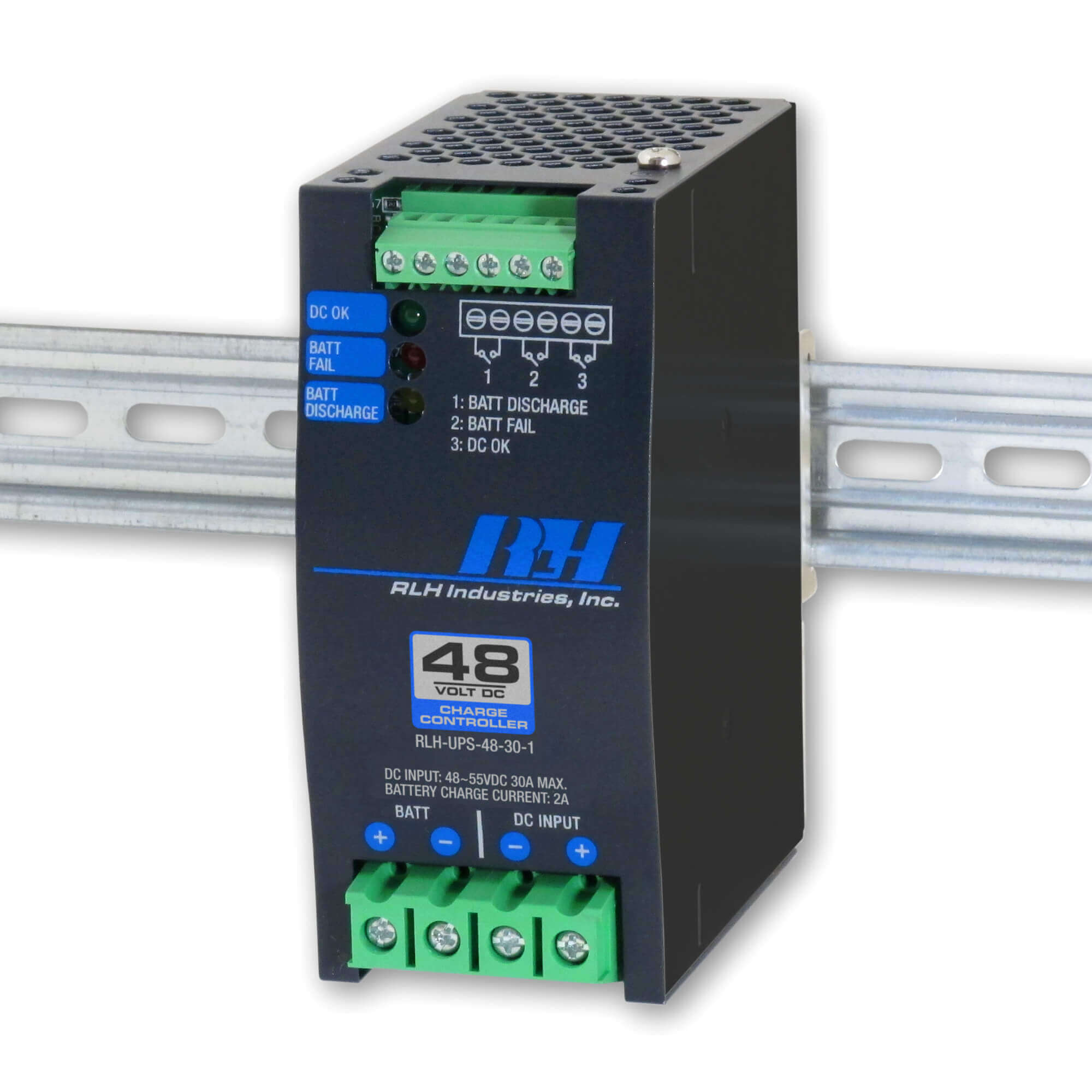

RLH 48VDC DIN rail mount charge controllers are compact units designed to work with a DC power supply (such as the RLH DIN rail power supplies) and a backup battery to provide uninterruptible power in the event of a power outage.
The charge controller continuously maintains the correct charge level on the battery and ensures a seamless power transition to battery power when needed for a complete UPS power supply solution.
Features
- Parallel connection to DC bus
- Suitable for 48VDC systems up to 30A
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- Built-in battery test function
- Battery polarity protection
- Relay contact signal output and LED indicators for DC Bus OK, Battery Fail and Battery Discharge
- Convenient screw down terminals
- 6 inch DIN rail is included
- Made in USA
Please see the product documentation for the complete list of specifications
Construction:
Powder coated steel
Dimensions:
H 4.9 x W 2.2 x D 3.9 (H 125.2mm x W 55.5mm x D 100mm)
Not including DIN bracket
Mounting Style:
Standard DIN rail (TS-35/7.5 0r 15) or wall mount. DIN rail section included
Operating Temperature:
-20° to +70°C (-4°F to +158°F)
DC Input / DC Bus:
48 ~ 55V, 30A
Battery Output:
1A Charging Current
7AH Battery Array Maximum
Relay Contact Rating (Max):
30VDC, 1A (max.)
General Information
RLH-UPS-48-30-01
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
48VDC UPS Battery Charge Controller Module
| Short description | Part number | Price | |
|---|---|---|---|
| 48 Volt DC Battery Charge Controller, 1A Max Battery Charging Current, 30A Maximum Load | RLH-UPS-48-30-01 | $345.00 |
- View our compatible Battery Packs
You May Also Be Interested In
You may also like…
-

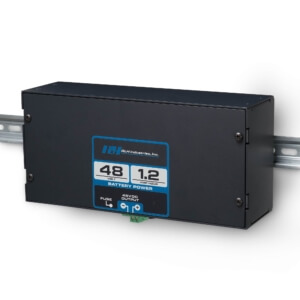

48VDC 1.2Ah DIN Mount Battery Pack
The 48VDC 1.2 Amp Hour DIN mount battery pack is ideal for providing temporary backup power for low powered electronics.
View ProductPower Supplies48VDC 1.2Ah DIN Mount Battery Pack
$195.00 View Product This product has multiple variants. The options may be chosen on the product page -

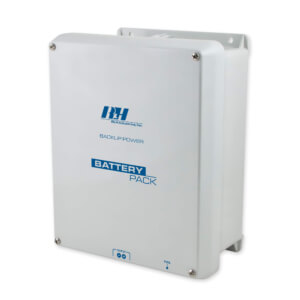

48VDC 7.2Ah Wall Mount Battery Pack
The 48VDC 7.2 Amp Hour wall mount battery pack is ideal for providing temporary backup power for UPS applications.
View ProductPower Supplies48VDC 7.2Ah Wall Mount Battery Pack
$380.00 View Product This product has multiple variants. The options may be chosen on the product page -

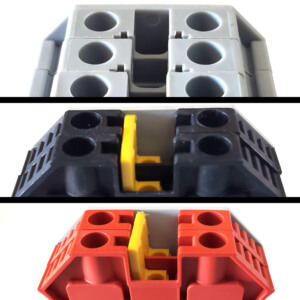

DIN Terminal Blocks
Red, black, & grey DIN mount terminal blocks, convenient for setting up multiple devices on the same buss.
View ProductAccessories for Ethernet IODIN Terminal Blocks
$10.00 – $30.00 View Product This product has multiple variants. The options may be chosen on the product page -

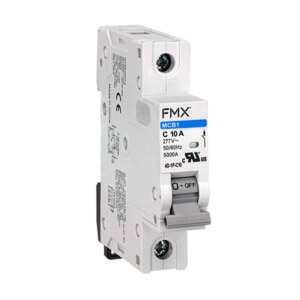

DIN Mount Circuit Breakers
Protection of sensitive loads within enclosures such as media converters, power supplies, fans, and other devices.
View ProductAccessories for Ethernet IODIN Mount Circuit Breakers
$15.00 View Product This product has multiple variants. The options may be chosen on the product page -

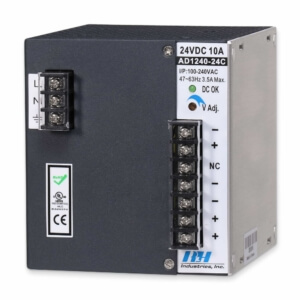

Industrial AC/DC + DC/DC Switching 240 Watt Power Supply
