Industrial 500 Watt DC/DC Converter

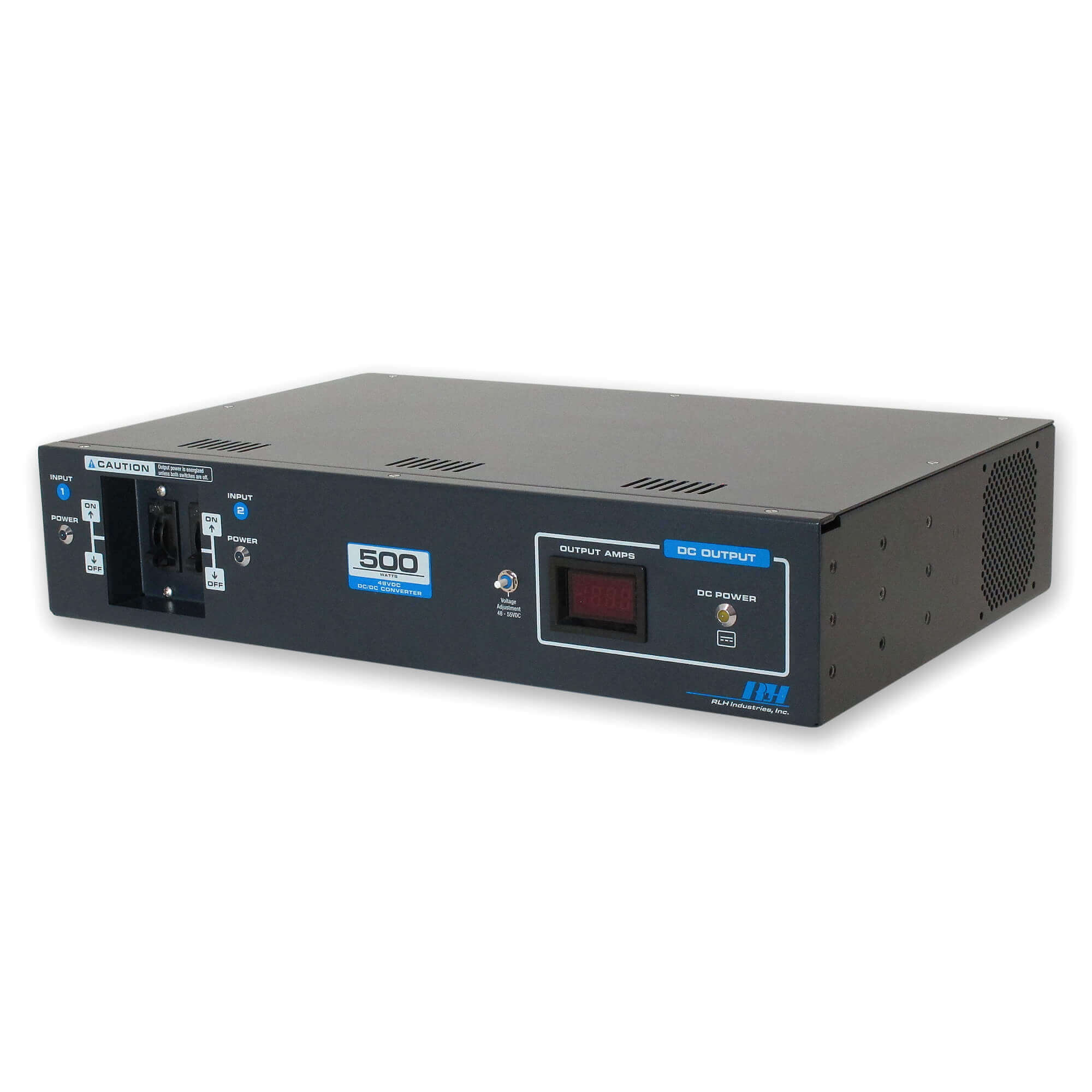

The RLH 500 Series Rack Mount DC/DC Converter is an isolated DC power source designed to provide constant power to telecom and industrial equipment. It is rated up to 10A and features a recessed front panel with input power circuit breakers and a front display digital ammeter for monitoring the output current.

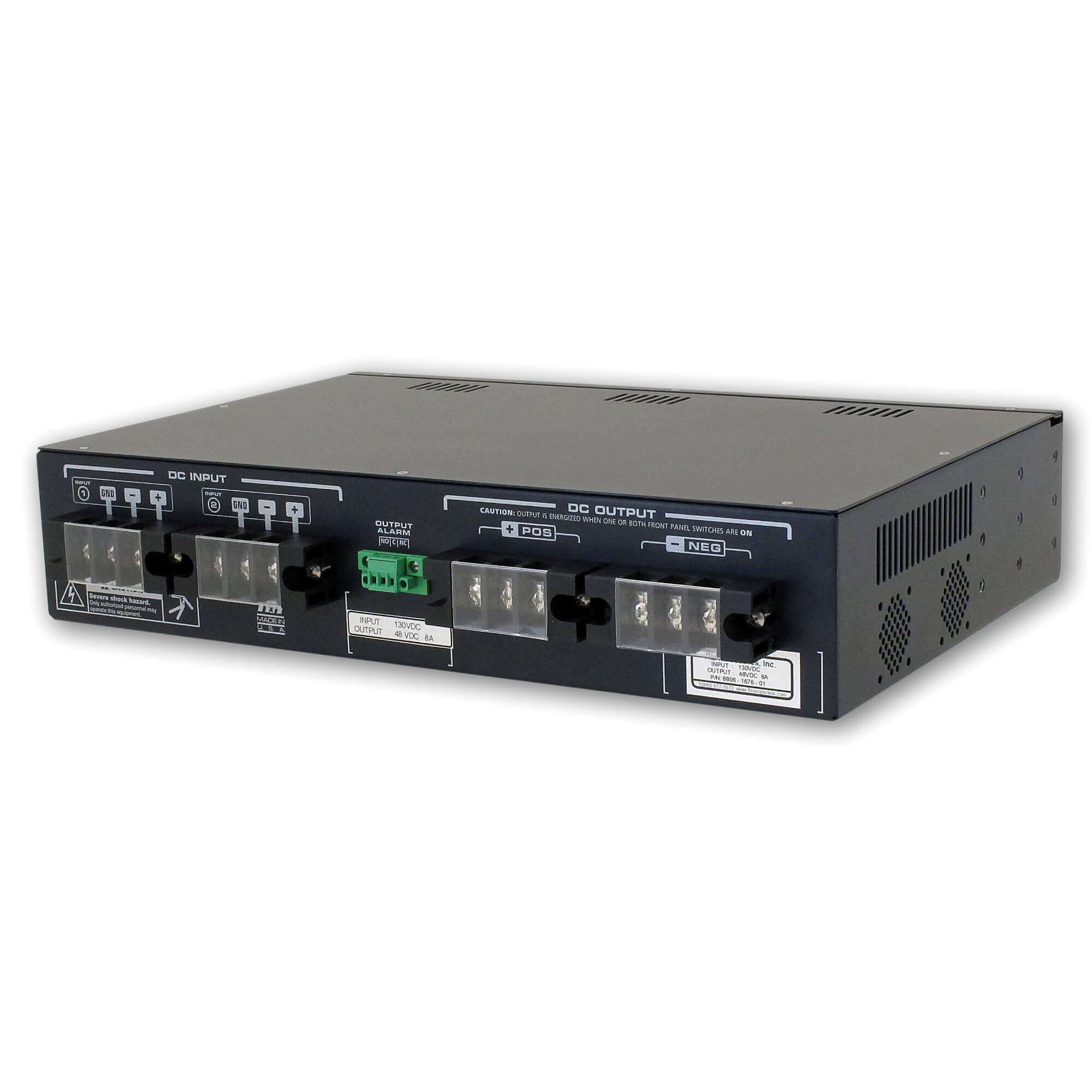

The converter has dual inputs with automatic internal switching for connecting redundant power input sources, and three position output terminals for connecting multiple devices. Heavy duty circuit breakers protect each input.
The Series 500 DC/DC converter is an EIA 19/23 inch 2RU rack mountable enclosure, with both front or telco center style rack ear mounting.
- EIA 19” and 23” rack mount ears, 2 RU
- Heavy duty powder coated steel enclosure
- Dual, heavy duty, high cycle life, front mounted breakers
- Breakers meet Mil-STD-202 for environmental durability
- 2000VAC I/O Isolation
- Built-in short circuit, overload, over-voltage and over-temperature protection
- Auto switching dual input terminal for redundant power input sources
- Convenient front mounted LED status indicators
- Digital LED ammeter displays output amps
- Commercial grade terminal blocks
- 3 output terminal connections
- Alarm contact on back for system monitoring
- Wide operating thermal range
- Made in USA
Construction:
Steel, powder coated
Dimensions:
H 3.5 in. x W 17 in. x D 11.5 in. (H 89mm x W 432mm x D 292mm)
Not Including Rack Ears
Mounting Style:
Standard EIA 19″ or 23″ Rack Mount, 2RU
Operating Temperature:
-20° to +60°C (-4°F to +140°F) See output load derating curve
General Information
8806-1678-01
8806-1666-01
8806-1675-01
8806-1676-01
Ordering
500 Series DC/DC Rack Mount Converter
| Short description | Input Voltage | Output Voltage | Part number | Price | |
|---|---|---|---|---|---|
| 130VDC Input to Isolated 48VDC Output | 130VDC | 48VDC | 8806-1676-01 | $1,280.00 | |
| 130VDC Input to Isolated 24VDC Output | 130VDC | 24VDC | 8806-1675-01 | $1,315.00 | |
| 48VDC Input to Isolated 24VDC Output | 48VDC* | 24VDC | 8806-1678-02 | $1,410.00 | |
| 48VDC Input to Isolated 48VDC Output | 48VDC* | 48VDC | 8806-1666-02 | $1,375.00 |
