Dual-Output, Compact, DIN or Wall mountable, with Universal Input
RLH Industries power supplies are commonly used in communications and industrial control environments. The dual output can provide reliable power to a wide range of industrial equipment.

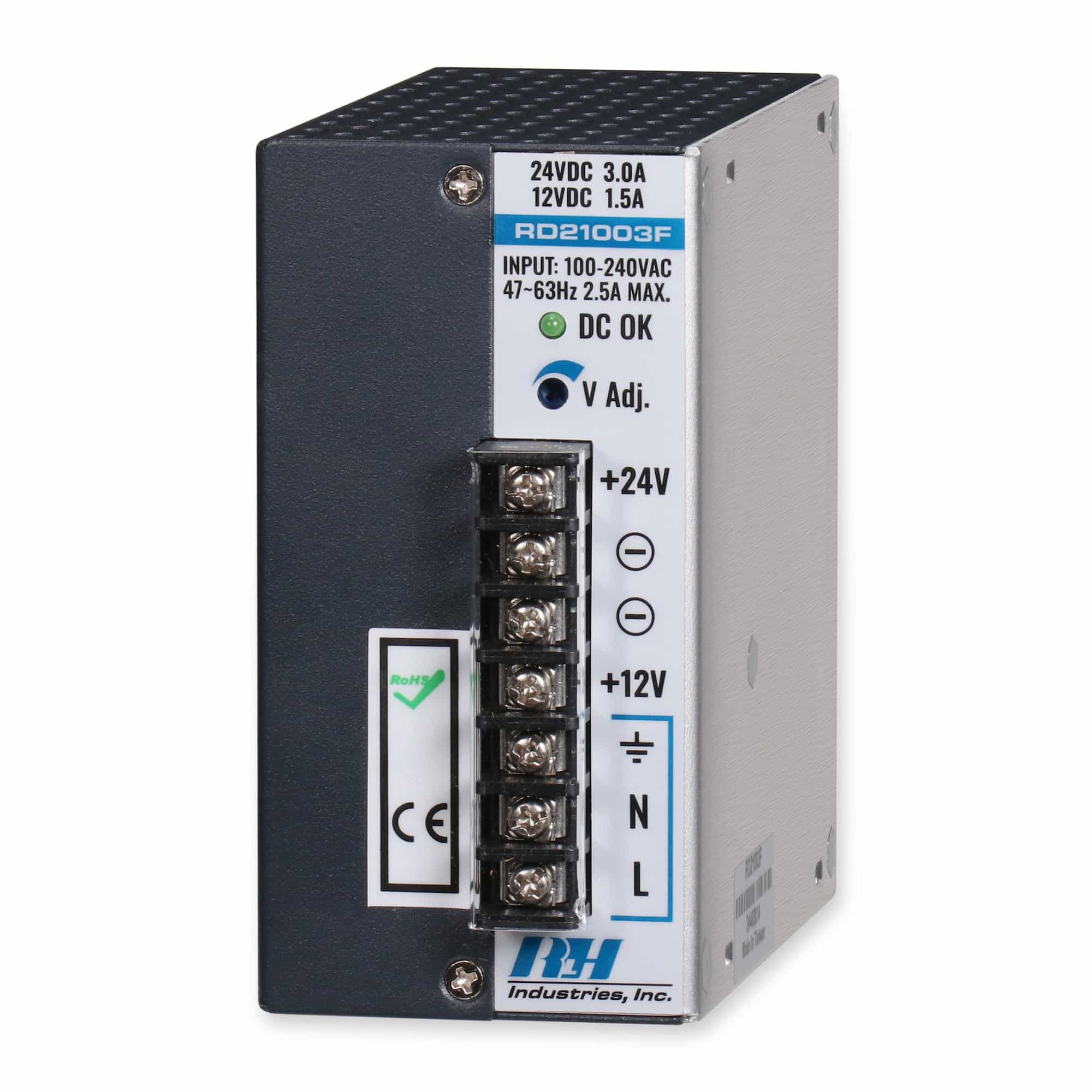

The RLH 90 Watt AC/DC 24V +12V Dual DC Output Power Supply features a universal input of 100-240VAC or 120-370VDC. Designed for industrial use and operates over a wide temperature range. Includes a powder coated steel housing that can be DIN or wall mounted.
Features
- Dual Independent 24V and 12V DC Outputs
- Universal Input Range 100-240VAC/120-370VDC
- Wide operating temperature range, -40° to +158°F
- Short circuit, overload, and over voltage protection
- DIN Rail or Wall Mountable
- Cooling by free air convention
- 100% full load burn in testing
Please see the product documentation for the complete list of specifications
Switching Frequency:
Switching Frequency
Isolation Voltage:
Input-Output – 3000VAC /4242VDC
Input-FG – 1500VAC/2121VDC
Output-FG – 500VAC/ 710VDC
Isolation Resistance:
100MΩ when Input-Output @500VDC
Operating Temperature:
-40°C~70°C
Derating:
2.5% per degree from 50°C to 70°C
Storage Temperature:
-40°C to +85°C
Relative Humidity:
5%~95% RH, Non-condensing
Temperature Coefficient:
±0.04% of output voltage per °C
MTBF:
60,000hrs Min. Per MIL-HDBK-217F, 25°C GB
Attitude During Operation:
2000m
Installation Position:
Vertical
Vibration:
Random Vibration, 10~500Hz. 3 axis
Warranty:
3 years
General Information
RD21003F
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
90W AC/DC 24V+12V Dual Output Power Supply
| Short description | Part number | Price | |
|---|---|---|---|
| 90W AC/DC Dual Output Power, 24V/3.0A + 12V/1.5A, DIN or Wall Mountable | RD21003F | $115.00 |
