Regulated Power with UPS for Industrial Equipment​
The RLH 75W AC/DC 24V power supply with integrated battery charger offers a complete power system designed for 24VDC UPS applications. The compact switching power supply has a built-in UPS charge controller, and optional DIN mount 24V 1.2AH battery pack. This system is designed to provide regulated 24V power for industrial equipment, while providing battery backup power in the event of a source power interruption.
The system features flexible AC or DC input, with low output ripple along with short circuit, overvoltage and overload protection.
The integrated charge controller continuously maintains the correct charge level on the battery and ensures a seamless power transition to battery power when needed for a complete UPS power supply solution.
The optional battery pack contains sealed batteries that are field replaceable. The battery pack has a convenient screw terminal for wiring, and an external replaceable fuse for protection.
This compact UPS system offers an excellent price/performance ratio, and provides tightly regulated output voltage for sensitive loads in industrial environments. The constant-current, short-circuit protection limits the output current as the voltage is reduced, to safely protect the control components from direct shorts and device failures.
- 75W 24V power supply accepts AC or DC input power
- Short circuit, overload, over voltage and over temperature protection
- Cooling by free air convection
- UPS and battery pack use standard DIN Rail T35 per IEC 60715
- LED status indicators
- 100% full load burn-in test
- Built-in battery test function
- Battery polarity protection
- Relay contact signal output and LED indicators for DC Bus OK, Battery Fail and Battery Discharge
- Sealed batteries are field replaceable
- Battery pack is 1.2AH, 24V, includes front panel fuse
- Convenient screw down terminals
- Made in USA
Construction:
Durable powder coated aluminum alloy construction
Dimensions:
UPS: H 5.5in. x W 3in. x D 4.4 (H 139mm x W 76mm x D 112mm)
Battery Pack: H 5.5in. x W 2.5in. x D 3.7 (H 139mm x W 63mm x D 94mm)
Not including DIN bracket
Mounting Style:
Standard DIN Rail T35 per IEC 60715 or wall mount
Operating Temperature:
-20ËšC~+70ËšC (Refer to derating curve)
Powering Requirement:
90 ~ 264VAC, 127 ~ 370VDC, auto switching
Power Input:
24VDC 3.2A
General Information
Miscellaneous
PSC-D-75-24-1
RLH-2401-1BP
RLH-2401-1RB
$390.00 – $560.00
Lead Time: 1 to 5 Days*
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
Integrated 75W AC/DC UPS with Battery Backup
Short description | Part number | Price | |
---|---|---|---|
75 Watt Power Supply With Integrated Battery Charge Controller, 24 Volt DC Output, No Battery Pack Included | PSC-D-75-24-1 | $390.00 | |
75 Watt Power Supply With Integrated Battery Charge Controller, 24 Volt DC Output, Includes 1.2Ah 24VDC Battery Pack (RLH-2401-1BP) | PSC-D-75-24-UPS1-1 | $535.00 | |

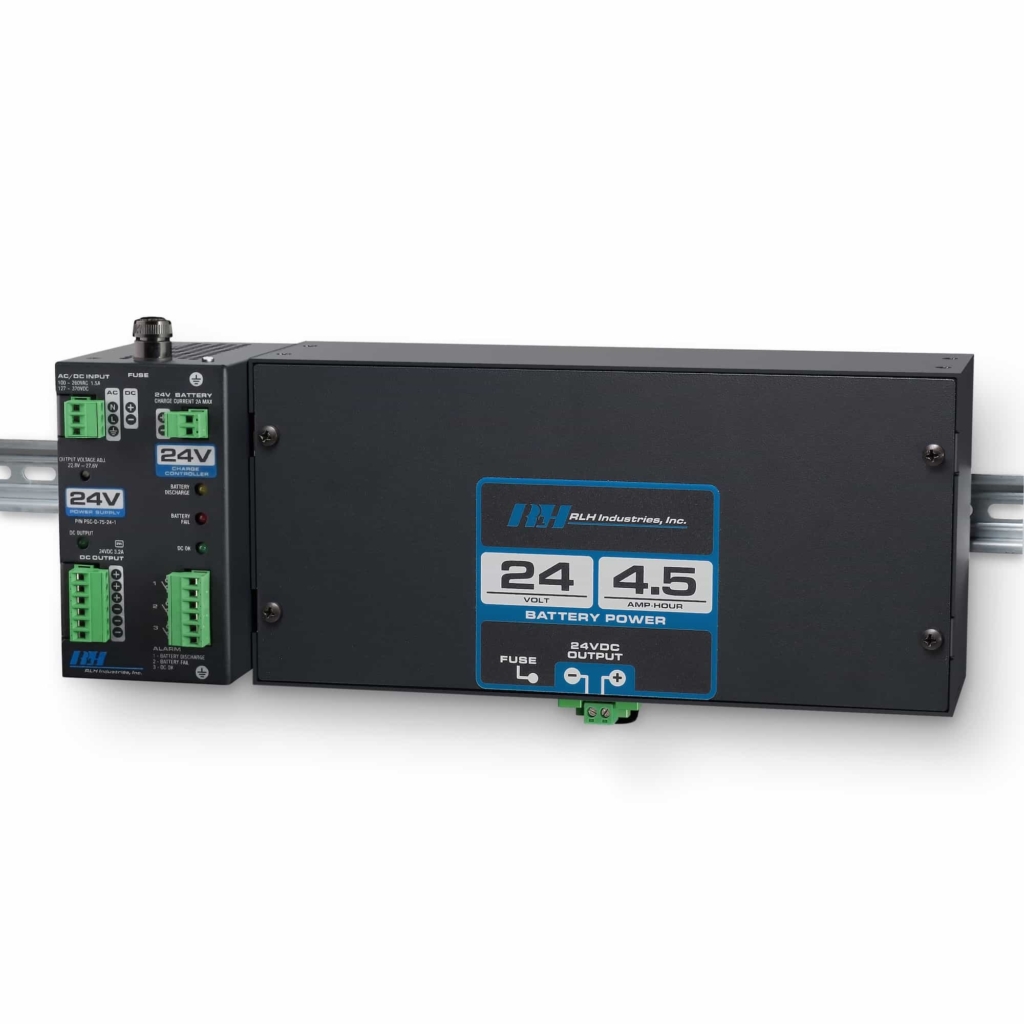

75 Watt Power Supply With Integrated Battery Charge Controller, 24 Volt DC Output, Includes 4.5Ah 24VDC Battery Pack (RLH-2404-2BP) | PSC-D-75-24-UPS4-1 | $560.00 |
