Compact, DIN or Wall Mountable, with Universal Power Input
The 48 Watt compact industrial switching power supply series features a universal input of 100-240VAC or 120-370VDC. Offers a high power density in a small foot print. Designed for industrial use and is UL Listed, RoHS and CE compliant and operates over a wide temperature range.
When used in combination with the optional battery charge controllers and battery packs, these power supplies make a compact and reliable UPS system.
- Input Range 100–240VAC/120–370VDC
- Short circuit, overload, over voltage and over temperature protection
- Wide operating temperature range, -40 – 158°F
- Low ripple and noise
- Easily accessible output trim adjustment ±10%
- Cooling by free air convection
- Designed for 35mm DIN rail mounting or wall
- LED power indicator
- Convenient screw down terminals
- 100% full load tested
Construction:
Durable dielectric plastic housing
Mounting Style:
Standard 35mm DIN rail (T-35) or Wall
Operating Temperature:
-40°C – +70°C max (above +40°C see derating curve for max output)
Power Input:
VAC Input: 100~240
VDC Input: 120~370
Power Output:

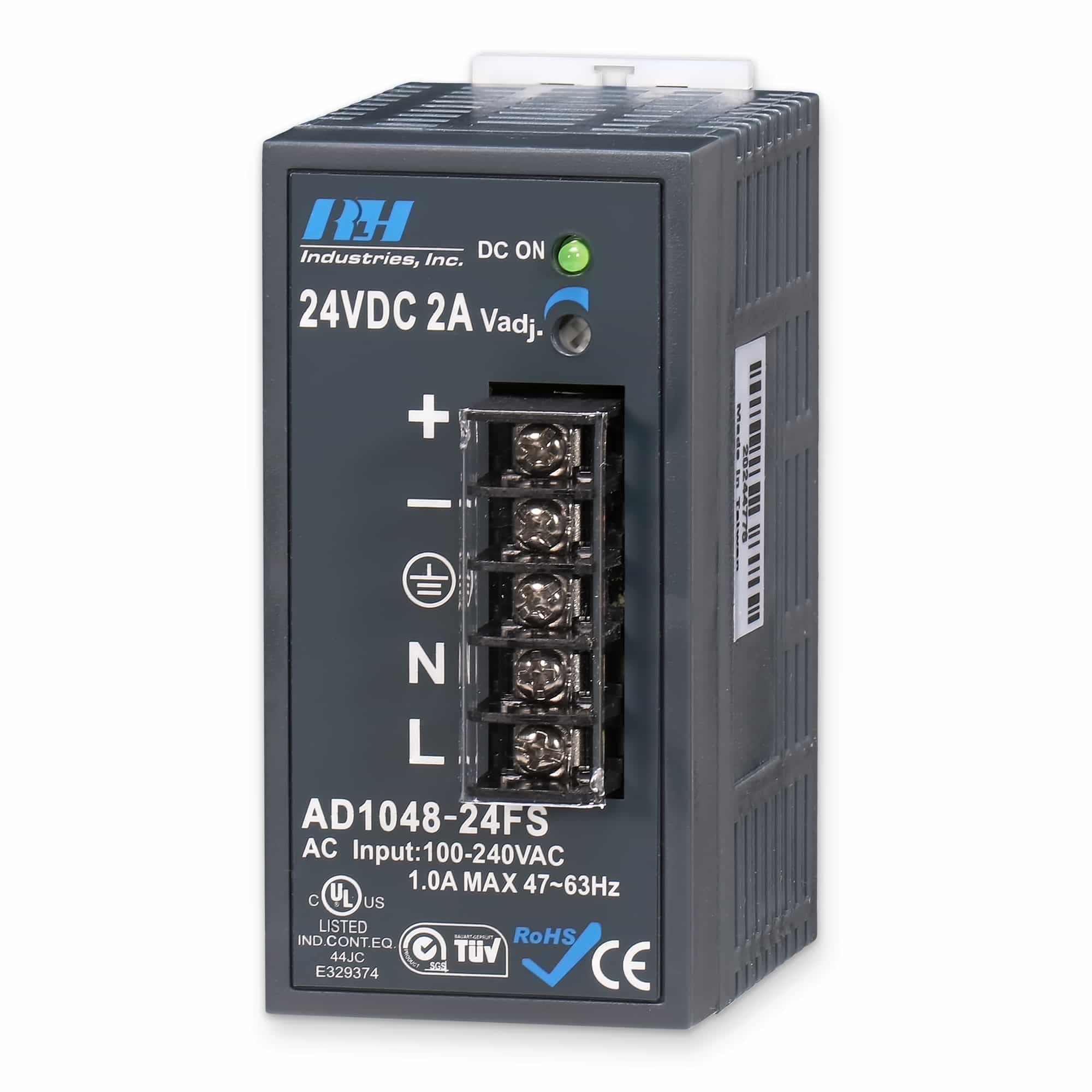

AD1048-24FS – 24VDC ±10% @ 2.0A
AD1048-24FS – 48VDC ±10% @ 2.0A
Dimensions:
3.8” H x 1.8” W x 3” D (96mm x 45mm x 75.5mm)
General Information
AD1048-24FS
AD1048-48FS
Ordering
Industrial AC/DC + DC/DC Switching 48 Watt Power Supply
| Short description | Part number | Price | |
|---|---|---|---|
| Industrial AC/DC + DC/DC Switching Power Supply, 24 Volts, 2 Amps, 48 Watts | AD1048-24FS | $55.00 | |
| Industrial AC/DC + DC/DC Switching Power Supply, 48 Volts, 1 Amp, 48 Watts | AD1048-48FS | $55.00 |
